Preview

5244-37TW: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size194KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

5244-37TW Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking, Plug

5244-37TW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	306937625
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.492 inch
subject depth	0.37 inch
body length	2.73 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37

Preview

Download Datasheet

View All

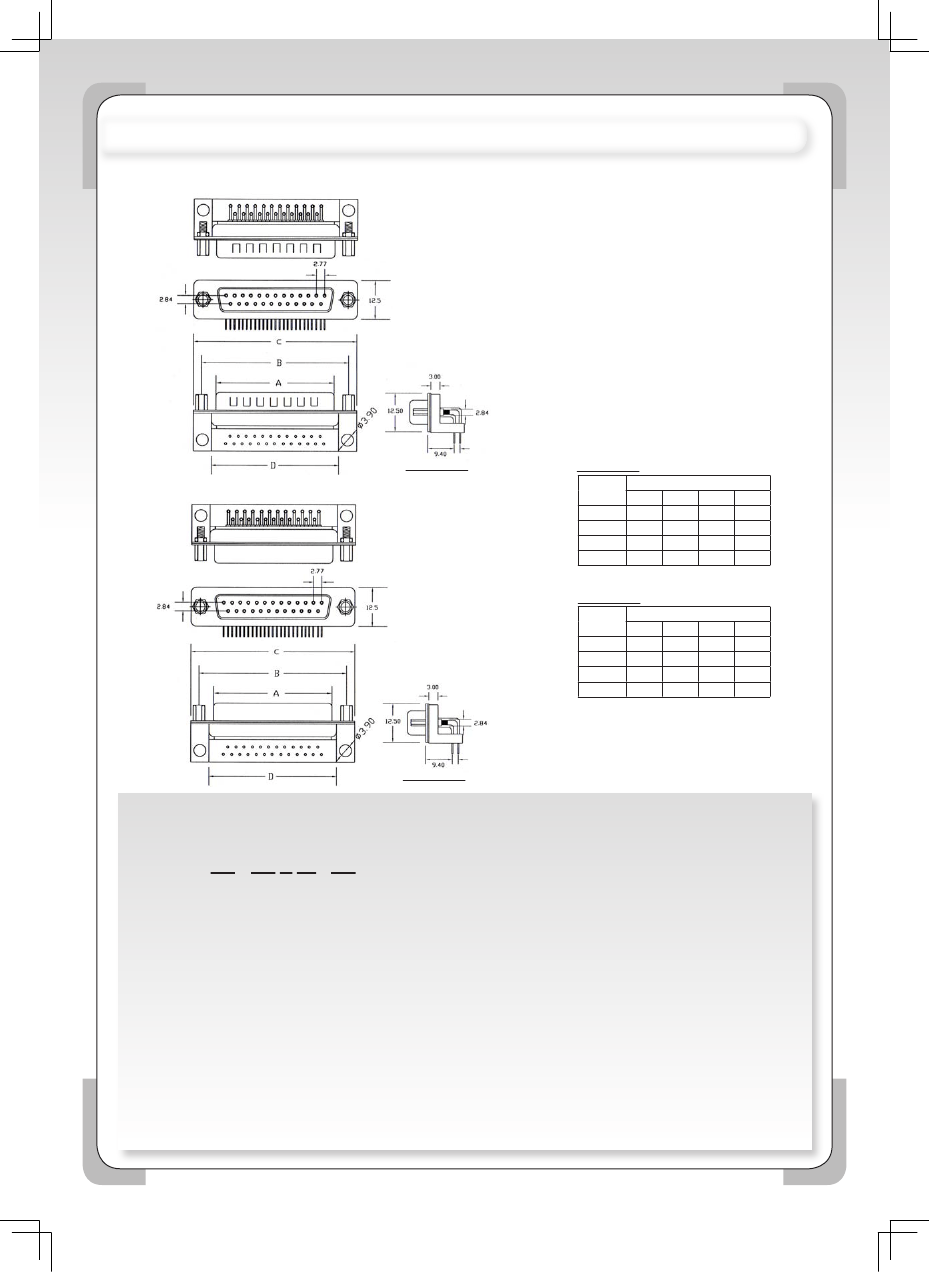

D-SUB. RIGHT ANGLE CONNECTOR WITH MACHINED PINS & PLASTIC BRACKET

SPECIFICATIONS

Current Rating:

5A

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

MATERIALS

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

5241, 5243

No. of

Contacts

09

15

25

37

Dimensions(mm)

A

B

C

D

16.92 24.99 30.81 18.20

25.25 33.32 39.14 26.30

38.96 47.04 53.04 40.30

55.42 63.50 69.32 56.50

5242, 5244

No. of

Contacts

09

15

25

37

Dimensions(mm)

A

B

C

D

16.33 24.99 30.81 18.20

24.66 33.32 39.14 26.30

38.38 47.04 53.04 40.30

54.84 63.50 69.32 56.50

5242, 5244

ORDERING INFORMATION:

P/N 5 2 x x - x x T W / x x

1

2 3 4 5

1. CONNECTOR TYPE & FOOTPRINT:

"41" MALE WITH FOOTPRINT= 7.2MM

"42" FEMALE WITH FOOTPRINT= 7.2MM

"43" MALE WITH FOOTPRINT= 9.4MM

"44" FEMALE WITH FOOTPRINT= 9.4MM

2. NO. OF CONTACTS:

09, 15, 25, 37

3. SHELL FINISH:

"T" FULL TIN PLATED

4. INSULATOR COLOR:

"W" WHITE

"B" BLACK

5. MOUNTING OPTION:

" " W/O BOARDLOCKS

"BL" WITH BOARDLOCKS

C0052
