5296-78D/BR

Description
D Type Connector, 78 Contact(s), Female, 0.095 inch Pitch, Surface Mount Terminal, Locking, Plug
CategoryThe connector    The connector
File Size195KB，1 Pages
ManufacturerRatioplast Electronics
Environmental Compliance
Download Datasheet Parametric View All

5296-78D/BR Overview

D Type Connector, 78 Contact(s), Female, 0.095 inch Pitch, Surface Mount Terminal, Locking, Plug

5296-78D/BR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid307113466
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.606 inch
body length2.638 inch
Body/casing typePLUG
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance25 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance1000000000 Ω
insulator materialPOLYBUTYLENE TEREPHTHALATE
Plug contact pitch0.095 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number3
Number of rows loaded3
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Terminal pitch2.413 mm
Termination typeSURFACE MOUNT
Total number of contacts78

Preview

Download Datasheet

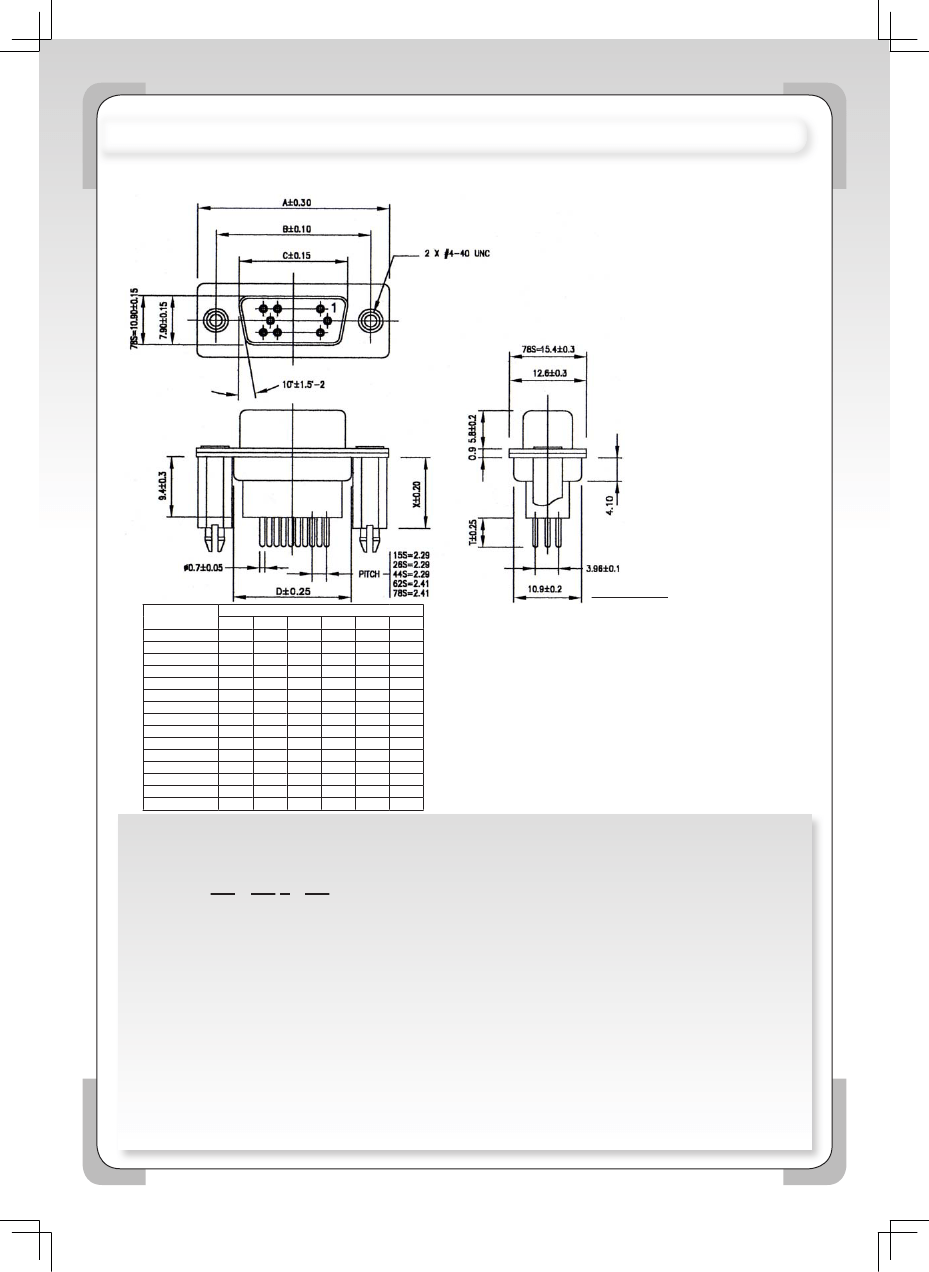

D-SUB. HIGH DENSITY FEMALE CONNECTOR HIGH PROFILE STRAIGHT PCB
MOUNT TYPE
SPECIFICATIONS
Current Rating:
3A or 5A
Contact Resistance:
25mΩ Max.
Insulation Resistance:
1000MΩ Min. at 500V
Dielectric Voltage:
1000V at 1 Minute
Operating Temperature:
-55ºc to +105ºc
Insulator:
PBT, UL94V-0 Rated
Contact:
Brass
Shell:
Brass,Steel
Contact Plating:
Gold Over Nickel Plated
Shell Plating:
Tin Over Copper Plated
*RoHS & REACH compliant.
MATERIALS
5296-xxx/BR
Part No.
5296-15A(D)/xx
5296-15B(E)/xx
5296-15C(F)/xx
5296-26A(D)/xx
5296-26B(E)/xx
5296-26C(F)/xx
5296-44A(D)/xx
5296-44B(E)/xx
5296-44C(F)/xx
5296-62A(D)/xx
5296-62B(E)/xx
5296-62C(F)/xx
5296-78A(D)/xx
5296-78B(E)/xx
5296-78C(F)/xx
A
30.80
30.80
30.80
39.20
39.20
39.20
53.00
53.00
53.00
69.40
69.40
69.40
67.00
67.00
67.00
B
24.99
24.99
24.99
33.32
33.32
33.32
47.04
47.04
47.04
63.50
63.50
63.50
61.10
61.10
61.10
Dimensions(mm)
C
D
16.34 19.20
16.34 19.20
16.34 19.20
24.70 27.70
24.70 27.70
24.70 27.70
38.40 41.10
38.40 41.10
38.40 41.10
54.80 57.30
54.80 57.30
54.80 57.30
52.20 55.10
52.20 55.10
52.20 55.10
T
3.60
5.40
7.20
3.60
5.40
7.20
3.60
5.40
7.20
3.60
5.40
7.20
3.60
5.40
7.20
X
9.60
11.00
12.70
9.60
11.00
12.70
9.60
11.00
12.70
9.60
11.00
12.70
9.60
11.00
12.70
ORDERING INFORMATION:
P/N 5 2 9 6 - x x x / x x
1 2 3 4
1. CONNECTOR TYPE:
"96" FEMALE
2. NO. OF CONTACTS:
15, 26, 44, 62, 78
3. PIN LENGTH & CONTACT TYPE:
"A" T= 3.6MM MACHINED PINS (5A)
"B" T= 5.4MM MACHINED PINS (5A)
"C"T= 7.2MM MACHINED PINS (5A)
"D" T= 3.6MM STAMPED PINS (3A)
"E" T= 5.4MM STAMPED PINS (3A)
"F" T= 7.2MM STAMPED PINS (3A)
4. MOUNTING OPTION:
" " Ø3.05MM THROUGH HOLES
"BR" BOARD LOCK
"BRJ" BOARD LOCK & SCREW
C0038
