DIAMOND
Fiber Optic Components

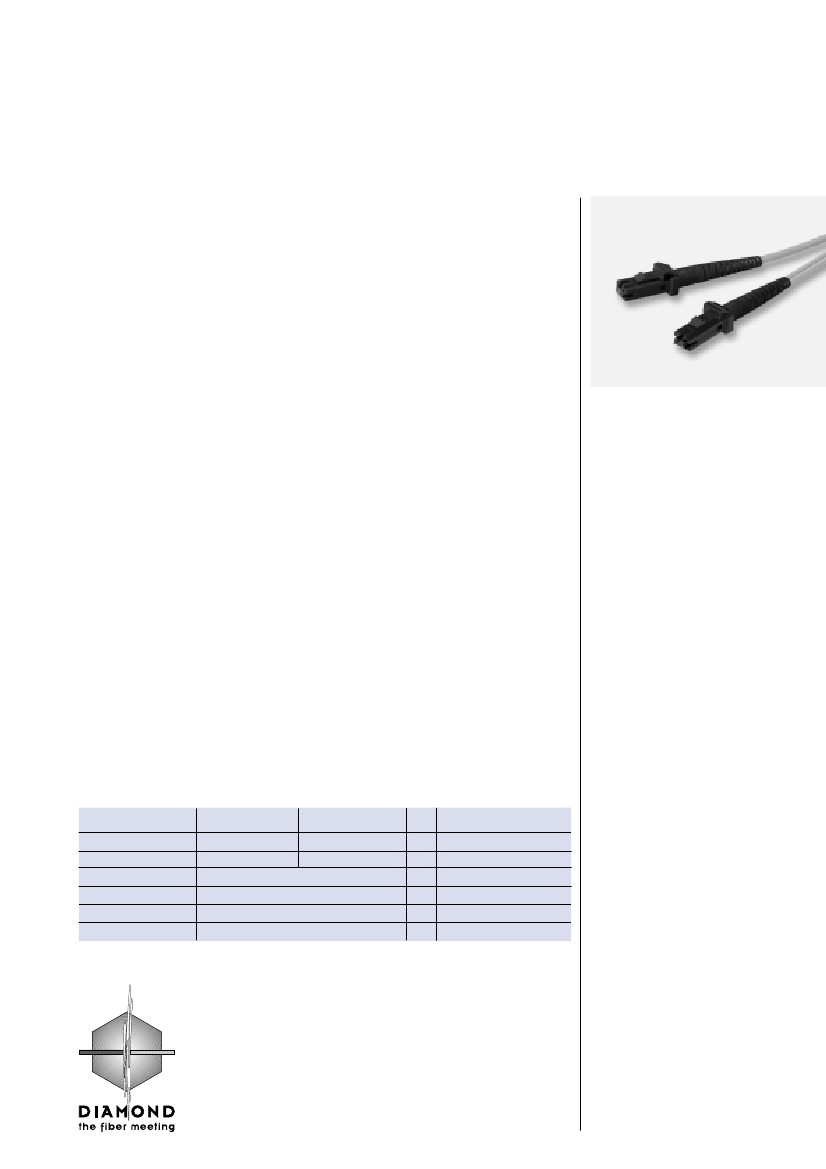

The MT-RJ is a SFF duplex connector with a moulded body, including two
fibers spaced 750 mm apart within a plastic mini-MT ferrule.
The DIAMOND`s MT-RJ connector is the ideal solution for 10-100 Mbit
Ethernet up to applications in Gigabit Ethernet.
This connector is available as an assembled pigtail or patchcord; with a mini
zip cord construction, or a 3mm cable with a ribbon of two fibers inside.
Due to its excellent performance and technical characteristics, it's the optimal
connector system for FTT-X applications.
MT-RJ
SFF DUPLEX
CONNECTOR
MT-RJ M0
MM
MT-RJ S0
SM
APPLICATIONS
STANDARDS
LAN, FTT-X (including FTTC, FTTH, FTTD)
•
•
•
•
ISO/IEC 11801
EN 50173
TIA/EIA-569-A
TIA/EIA-568-B.3
Plug and pull with well-known RJ
style latch. Installable in conven-
tional RJ-45 faceplates.
DESIGN/MATERIALS
Design:
Fiber alignment: Through precision guide pins on
the male plugs fitting exactly the
corresponding guide holes of the
female plugs
Polish:
Ferrule:
AVAILABLE AS
0° Convex (PC)
Standard mini-MT double fiber
ferrule
- Unterminated connector
- Terminated patchcord or pigtail
See ordering information on reverse
SPECIFICATIONS
Single mode
Insertion loss (IL)
Return loss (RL)
Repeatability of IL
Service life
Operating temperature
Strain relief (cable)
* May be further limited by cable specifications.
Multimode
typ 0.2 max 0.5
typ 30 min 20
max
±0.2
-40 +85*
> 50
Units
Test conditions
typ 0.4 max 1
typ 50 min 40
max
±0.2
dB
dB
dB
°C
N
IEC 61300-3-4; l = 1300/1550nm
IEC 61300-3-6; l = 1300/1550nm
Over service life
500 mate/demate cycles
DIAMOND SA
Via dei Patrizi 5
CH-6616 LOSONE
Tel. ++41-91/785 45 45
Fax ++41-91/785 45 00
e-mail: info@diamond-fo.com
Specifications subject to change
without notice
002-037-214P001082
CONNECTORS
SINGLE MODE (with pins)
Type designation:
Ferrule type:
External parts:
Polish geometry:
Dimensions
Fiber/Cable
2 x 9/125/900/3000
9/125/900/1500/3000
21.2
MT-RJ S0
Standard Mini MT
Plastic blue
Convex (PC)
21.2
ca. 56.5
Order Number
Unterminated connector
Terminated assembly
271 - 000 - 004 L 000
271 - 000 - 006 L 000
271 - xxx - 054 L xxx
271 - xxx - 056 L xxx
1
2
3
4
ca. 56.7
Connectors for other fiber and cable dimensions available upon request
SINGLE MODE (without pins)
Type designation:
MT-RJ S0
Dimensions
Fiber/Cable
2 x 9/125/900/3000
9/125/900/1500/3000
Order Number
Unterminated connector
Terminated assembly
274 - 000 - 004 L 000
274 - 000 - 006 L 000
274 - xxx - 054 L xxx
274 - xxx - 056 L xxx
1
2
3
4
21.2
ca. 56.5
21.2
Connectors for other fiber and cable dimensions available upon request
ca. 56.7
MULTIMODE (with pins)
Type designation:
Ferrule material:
External parts:
Polish geometry:
Dimensions
Fiber/Cable
2 x 50/125/900/3000
50/125/900/1500/3000
2 x 62.5/125/900/3000
62.5/125/900/1500/3000
MT-RJ M0
Standard Mini MT
Plastic Black
Convex (PC)
Order Number
Unterminated connector
Terminated assembly
270 - 000 - 004 L 000
270 - 000 - 006 L 000
270 - 000 - 004 L 000
270 - 000 - 006 L 000
270 - xxx - 054 L xxx
270 - xxx - 056 L xxx
270 - xxx - 064 L xxx
270 - xxx - 066 L xxx
1
2
3
4
Connectors for other fiber and cable dimensions available upon request
MULTIMODE (without pins)
Type designation:
MT-RJ M0
Dimensions
Fiber/Cable
2 x 50/125/900/3000
50/125/900/1500/3000
2 x 62.5/125/900/3000
62.5/125/900/1500/3000
Order Number
Unterminated connector
Terminated assembly
273 - 000 - 004 L 000
273 - 000 - 006 L 000
273 - 000 - 004 L 000
273 - 000 - 006 L 000
273 - xxx - 054 L xxx
273 - xxx - 056 L xxx
273 - xxx - 064 L xxx
273 - xxx - 066 L xxx
1
2
3
4
Connectors for other fiber and cable dimensions available upon request
3
MATING ADAPTER MT-RJ
Type designation:
MMT-RJ
External parts:
Plastic
Color
blue (SM-PC)
black (MM)
Order Number
142 - 306 - 901 V 003
142 - 306 - 901 V 002
10
28
ORDER NUMBER CODES
1
2
3
4
Connector code
Connector code for termination on other end of assembly
- For pigtails:
insert 000
- For patch assemblies: insert connector code for other connector
Code for fiber or cable
Length in meters
See ordering information for additional details
