OXL/CLH/63/12/CL/YW datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> OXL/CLH/63/12/CL/YW

Preview

OXL/CLH/63/12/CL/YW: DescriptionSingle Color LED, Yellow, Clear, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size252KB，2 Pages; ManufacturerOxley Group Ltd; Websitehttps://www.oxleygroup.com; Environmental Compliance

Download Datasheet Parametric View All

OXL/CLH/63/12/CL/YW Overview

Single Color LED, Yellow, Clear, ROHS COMPLIANT PACKAGE-2

OXL/CLH/63/12/CL/YW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8070812187
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
Country Of Origin	Slovakia
YTEOL	7.65
color	YELLOW
color@wavelength	Yellow
Configuration	SINGLE
Maximum forward current	0.02 A
Maximum forward voltage	12 V
Lens type	CLEAR
Nominal luminous intensity	45.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	3.2 mm
method of packing	BULK
Maximum reverse voltage	12 V
shape	ROUND
surface mount	NO
Terminal pitch	2.54 mm
perspective	80 deg

Preview

Download Datasheet

View All

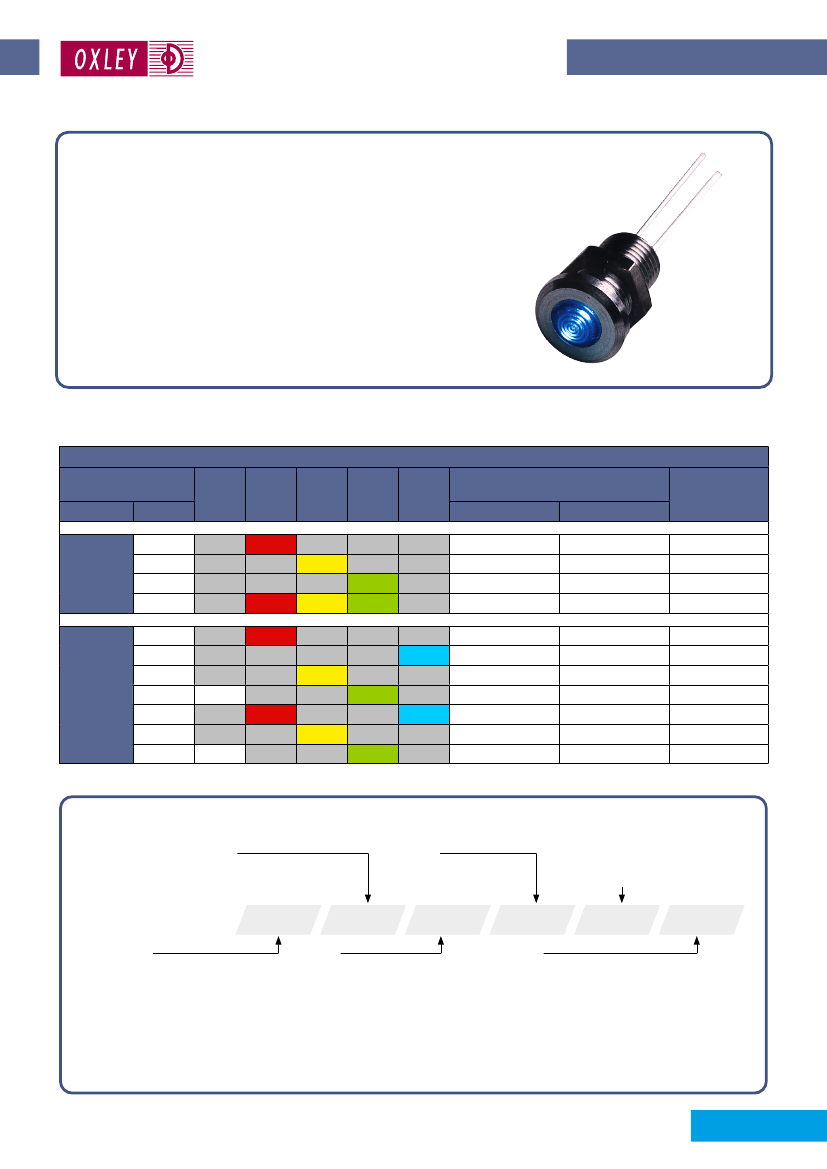

OXL/CLH/63 Series

Low Profile or Prominent

[

Key Characteristics

Functional

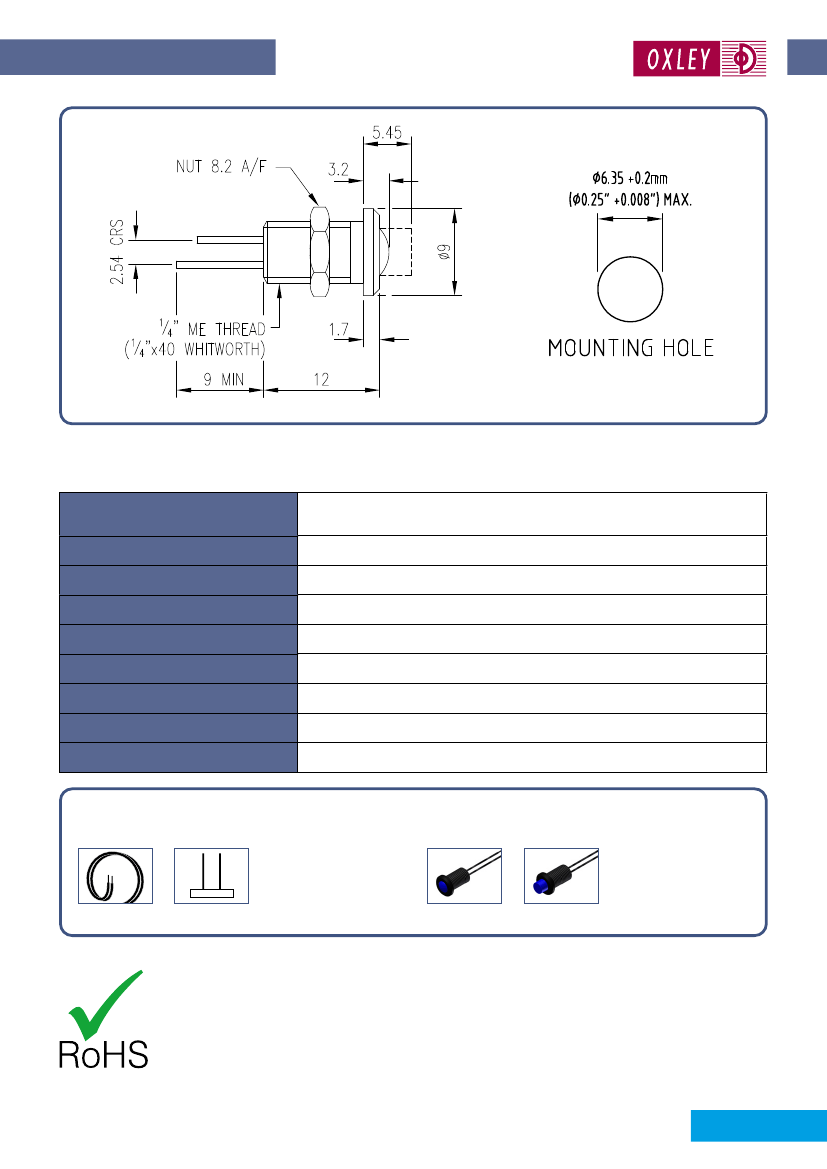

• 6.35mm mounting

• Space critical applications

• 80° or 100° viewing angle

Adaptable

• Full colour range with lens options

• Voltage and current options

• Customer specials on request

Resilient

• IP66 sealed

• -40°C to +85°C operating and storage temp

[

Specifications

COLOURS

Luminous Intensity

mcd

50

40

1000

2500

5000

750

2000

4000

White

Red

Yellow Green

Blue

Voltage

Forward

1.9

2.1

2.2

5,12,15,24,28

1.9

3.3

2.1

3.3

5,12,15,24,28

Reverse

5

5,12,15,24,28

5

5,12,15,24,28

Current (mA)

20

15

20

15

x

P

x

P

x

P

x

P

x

P

x

P

x

P

x

P

x

P

x

P

x

P

x

P

x

P

x

[

Ordering Information

OXL/CLH/63/

Finish

Blank - Aluminium

BB - Black Nickel

Example: OXL/CLH/63/RD - Aluminium Finish, Fresnel Lens, 2.2v, Coloured Lens, Spills, Standard Intensity Red

Example: OXL/CLH/63/BB/P/12/CL/FL20/H/BE - Black Nickel, Prominent Lens, Clear Lens, 12v, Flying Lead 20cm, High Intensity Blue

Telephone: +44 (0)1229 483226 • sales@oxleygroup.com • www.oxleygroup.com

8

Std

High Intensity

Lens

Blank - 80° Fresnel Lens

P - 100° Prominent Lens

Lens Colour

Blank - Coloured Lens

CL - Clear Lens

Terminations

Blank - Spills

FLXX - Flying Leads (XX length in cm)

/

Voltage

Blank -

5

-

12

-

15

-

24

-

28

-

/

<5VDC (current driven)

5VDC

12VDC

15VDC

24VDC

28VDC

/

Colours

RD

- Red

GN

- Green

YW - Yellow

/

ALGaAsRD - High Intensity Red

H/GN - High Intensity Green

H/YW - High Intensity Yellow

H/BE - High Intensity Blue

H/WE - High Intensity White

PANEL LAMPS
