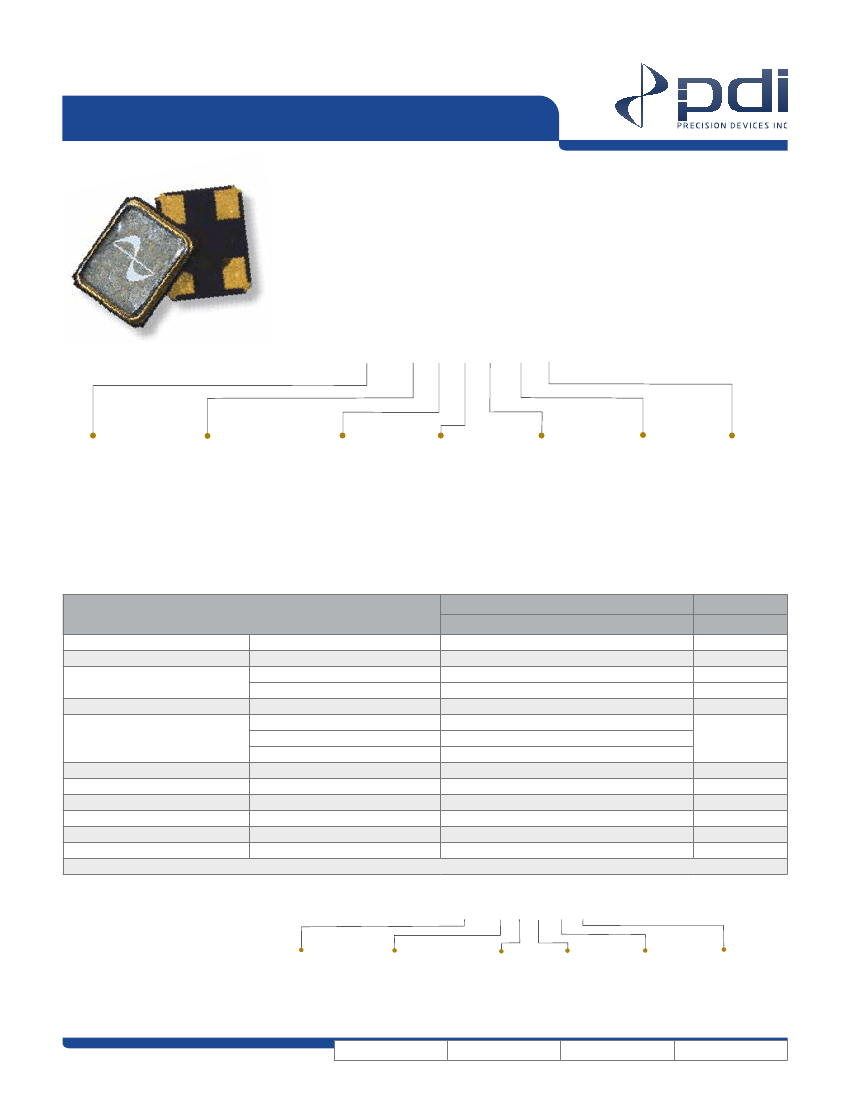

CS-Series Specifications
2.00L x 1.60W x 0.60H (mm)
PDI
CS-Series
is a hermetically sealed quartz crystal in a seam-welded ceramic
SMT package. This crystal, designed to meet your most demanding specification,
is available in standard or custom frequencies and/or with customized parameters.
PDI provides quick-turn sampling for your proto-typing needs, mass production
capability, and competitive pricing.
ex)
CS—25000X—F—B—C—B—18—R—X
*
*(X) for standard or assigned for custimization.
FREQUENCY
24000X – 60000X
=
24.000MHz -
60.000MHz -
MODE
F
= Fundamental
TOLERANCE
@ 25°C
A
= ±10
B
= ±25
C
= ±50
S
= Special
FREQUENCY
STABILITY
B
= ±25
C
= ±50
E
= ±100
S
= Special
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
S
= Special
LOAD
08-99
= pF
SE =
Series
PACKAGE
R
= Tape & Reel
See below for legacy part numbering configuration for parts designed prior to 02-01-2014, which are still available
Parameter
Frequency Range
Frequency Tolerance
Temperature Range
*1
Frequency Stability
*1
Equivalent Series Resistance
(Maximum)
Drive Level (Typical)
Shunt Capacitance (Maximum)
Load Capacitance (Typical)
Aging (Maximum)
Seal Method
Insulation Resistance
*1
Mode
Fundamental
Units
MHz
ppm
°C
°C
ppm
Ω
uW
pF
pF
ppm
24.000000 to 60.000000
@ +25°C
Per Option
Operating
Per Option
Storage
- 55 to +125
Over Operating Temperature
Per Option
24.000000 to 26.000000 MHz
80
26.000000 to 40.000000 MHz
60
40.000000 to 60.000000 MHz
50
10
5.0
Per Option
Per Year
±5.0
Seam Weld
500MΩ Minimum @100Vdc ±15V
*1 - Not all Frequency/Stability/Temperature combinations are available.
ex)
CS—25000X—F—C—B—18—R—X
*
Legacy Part Numbering Configuration
FREQUENCY
24000X – 60000X
=
24.000MHz -
60.000MHz -
MODE
F
= Fundamental
FREQUENCY
STABILITY
B
= ±25
C
= ±50
D
= ±100
S
= Special
SIZE:
A
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
S
= Special
CAGE:
A
LOAD
08-99
= pF
SE =
Series
PACKAGE
R
= Tape & Reel
REV:
NA
1
of
3
CS-Series
2.00 x 1.60 x 0.60
(mm)

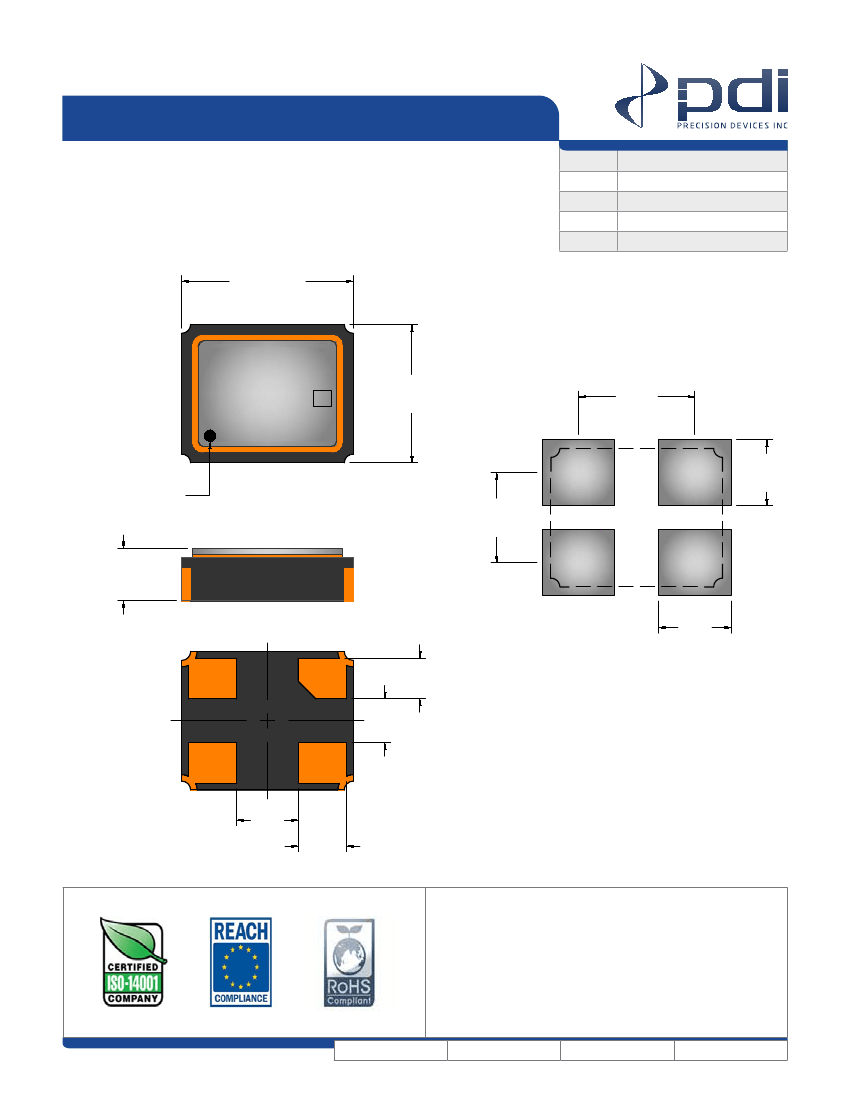

PA C K A G E D I M E N S I O N S
Decimal XXX = ± .008, XX = ± .02 Metric [XXX = ± .20], [XX = ± .50]
PIN
1
2
3
4
CONNECTION
Crystal
Ground/Cover
Crystal
Ground/Cover
.079 ±.006
[2.00 ±.15]
Top View
P FKA
Date Code
.063 ±.006
[1.60 ±.15]
.053
[1.35]
.030
[.75]
Pin 1
4
.041
[1.05]
1
3
.024 Max
[.60 Max]
2
.033
[.85]
1
2
.020
[.50]
4
.028
[.70]
Bottom View
3
.019
[.48]
Reccomended Land Pattern
(Top View)
.023
[.58]
NOTES:
Terminals are Au.
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Specifications subject to change without notice, last updated 4/1/13.
REV:
NA
SIZE:
A
CAGE:
A
2
of
3
CS-Series
2.00 x 1.60 x 0.60
(mm)

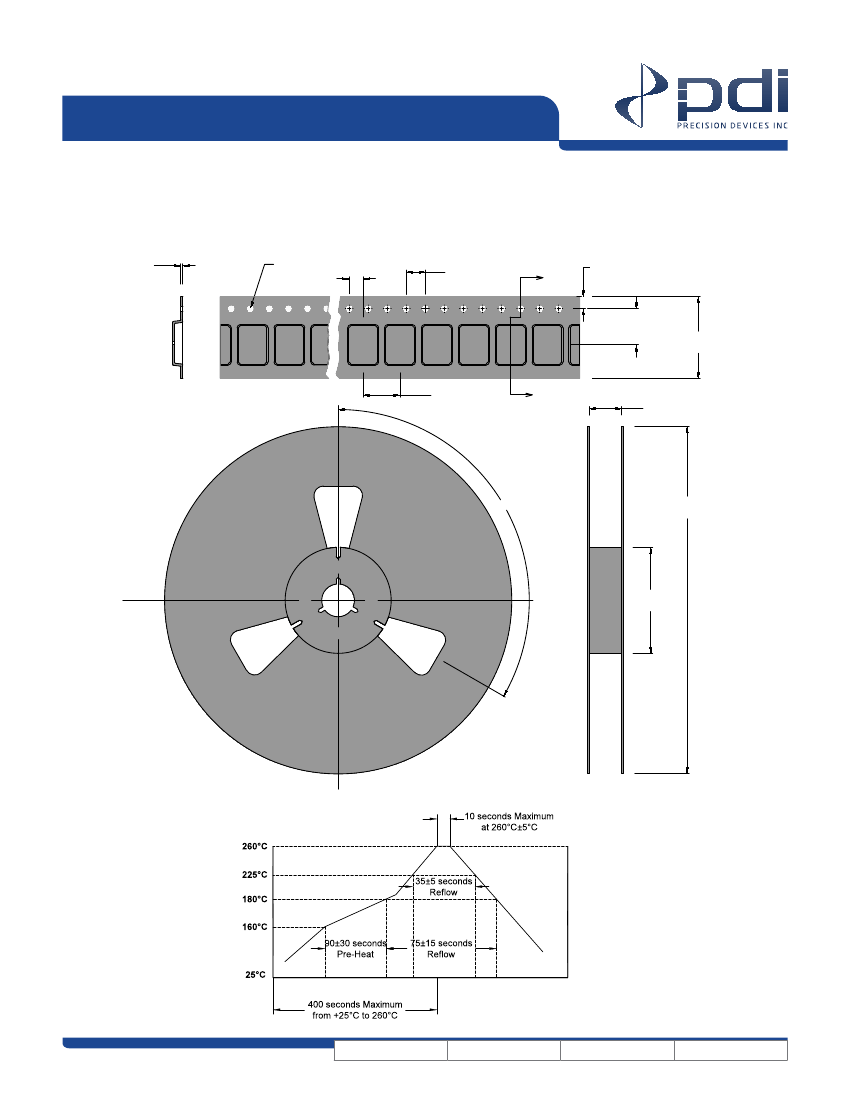

1.
Material: Black Conductive Polystyrene or equivalent.
2.
10 Sprocket Hole pitch cumulative tolerance of ±.008
3.
Camber in compliance with EIA 481
4.
Empty pockets: Trailing end (Minimum) 200 mm. and Leading end (Minimum) 400 mm.
5.
Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
.012±.002
[0.30±.05]
Ø.059
[Ø1.50]
.157 Typ.
[4.00 Typ.]
.069
[1.75]
.079
[2.00]
A
.207
[5.25]
.315 ±.012
[8.00 ±.30]
Section A-A
.157 Typ.
[4.00 Typ.]
A
.319
[8.10]
120°
Ø7.09
[Ø180.00]
3.15
[80.00]
REV:
NA
SIZE:
A
CAGE:
A
3
of
3
