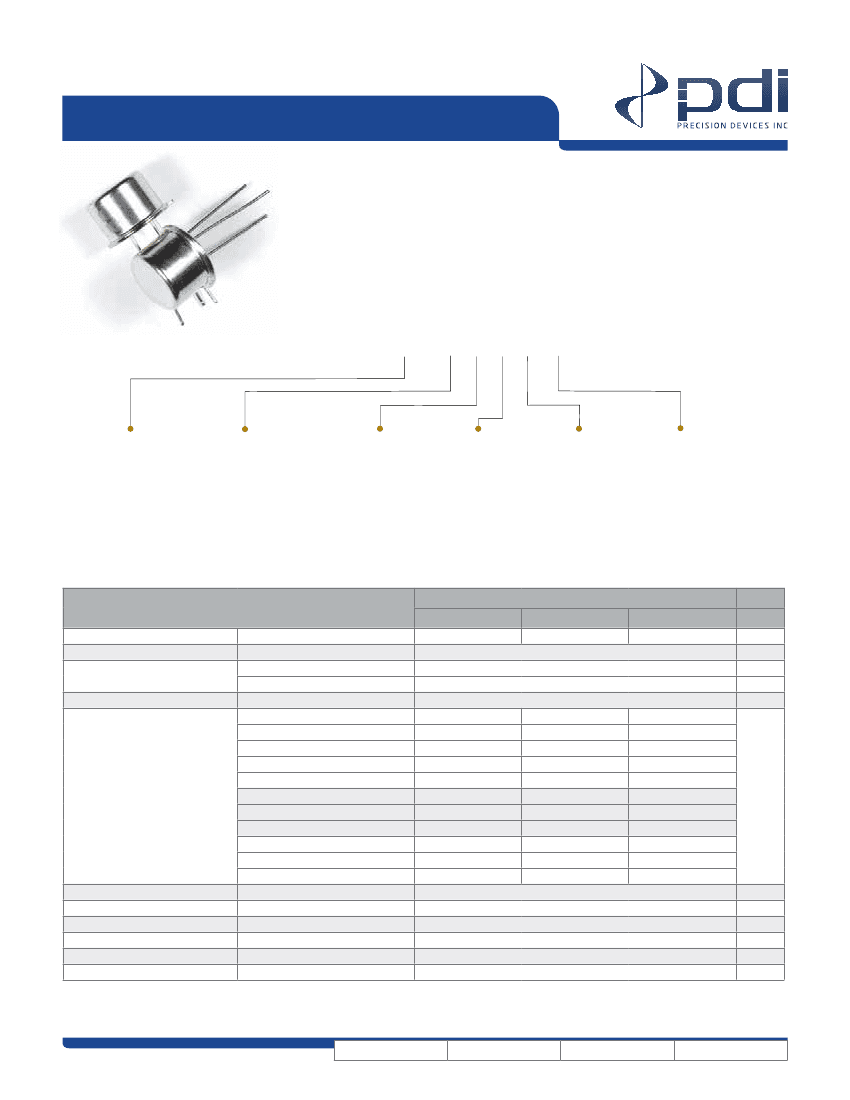

TR-Series Specifications
9.73D x 6.73H
(mm)
PDI
TR-Series
is a resistance-welded hermetically sealed quartz crystal in a TO5
through-hole package. This crystal, designed to meet your most demanding
specification, is available in standard or custom frequencies and/or with
customized parameters. PDI provides quick-turn sampling for your proto-typing
needs, mass production capability, and competitive pricing.
ex)
TR—25000X—F—B—C—B—18—X—X
*
FREQUENCY
08000X – 99999X
=
8.0000MHz -
99.999MHz -
C10000 – C20000
=
100.00MHz -
200.00MHz -
MODE
F
= Fundamental
3
= 3rd Overtone
5
= 5th Overtone
TOLERANCE
@ 25°C
A
= ±10
B
= ±25
C
= ±50
S
= Special
FREQUENCY
STABILITY
B
= ±25
C
= ±50
E
= ±100
S
= Special
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
E
= -55 to +125°C
S
= Special
Mode
LOAD
08-99
= pF
SE =
Series
*(X) for standard or assigned for custimization.
Parameter (AT-Cut)
Frequency Range
Frequency Tolerance
Temperature Range
Frequency Stability
@ +25°C
Operating
Storage
Over Operating Temperature
8.000000 to 10.000000 MHz
10.000000 to 13.000000 MHz
13.000000 to 20.000000 MHz
20.000000 to 30.000000 MHz
25.000000 to 40.000000 MHz
40.000000 to 60.000000 MHz
60.000000 to 80.000000 MHz
80.000000 to 120.000000 MHz
60.000000 to 100.000000 MHz
100.000000 to 150.000000 MHz
125.000000 to 200.000000 MHz
Fundamental
3rd Overtone
5th Overtone
Units
MHz
ppm
°C
°C
ppm
Equivalent Series Resistance
(Maximum)
Drive Level (Typical)
Shunt Capacitance (Maximum)
Load Capacitance (Typical)
Aging (Maximum)
Seal Method
Insulation Resistance
Per Year
8.0000 to 40.0000 40.0000 to 120.0000 60.0000 to 200.0000
Per Option
Per Option
- 55 to +125
Per Option
70
60
40
25
30
50
40
40
60
50
50
100
7.0
Per Option
±3.0
Resistance Weld
500MΩ Minimum @100Vdc ±15V
Ω
uW
pF
pF
ppm
REV:
NA
SIZE:
A
CAGE:
A
1
of
2
TR-Series
9.73D x 6.73H
(mm)

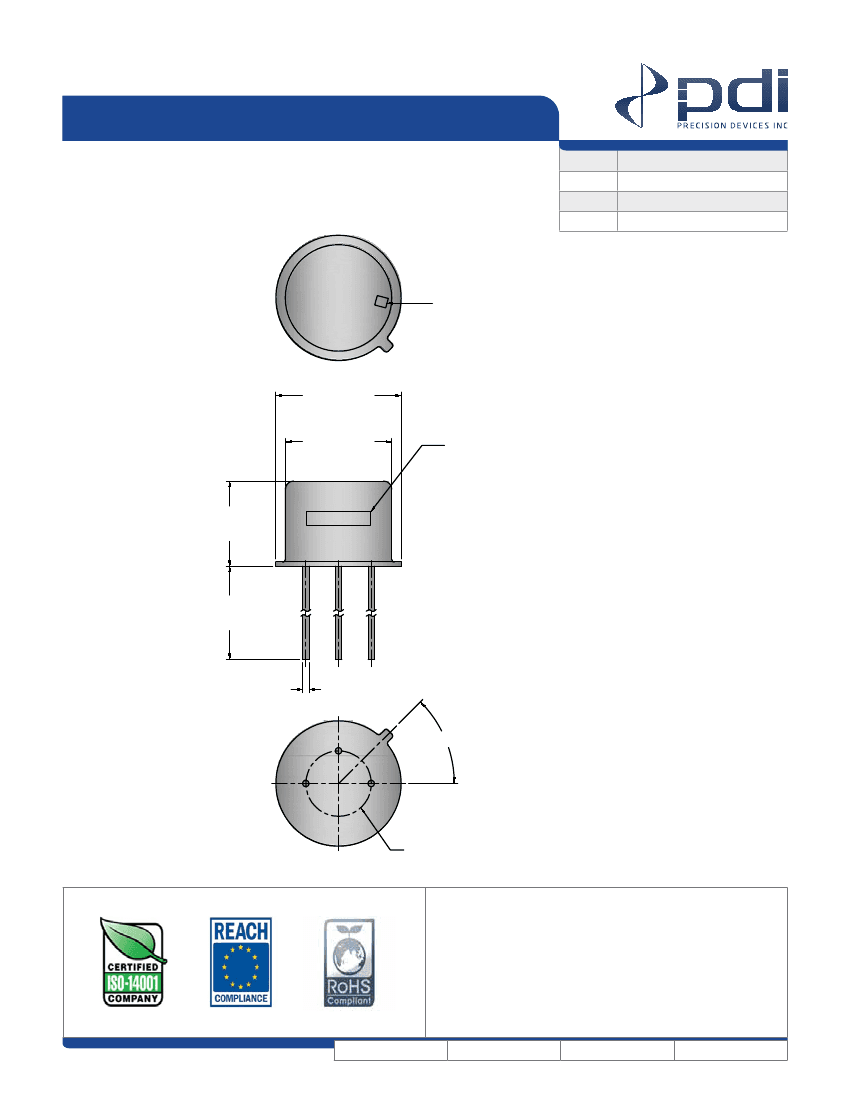

PA C K A G E D I M E N S I O N S
Decimal XXX = ± .008, XX = ± .02 Metric [XXX = ± .20], [XX = ± .50]
PIN
1
2
3
Q
U
E
N
C
R
E
CONNECTION
Crystal
Ground
Crystal
F
Y
Traceability Code
D
A
T
O
E
C
.383 Max.
[9.73 Max.]
.324 Max.
[8.25 Max.]
FKA Number
.265 ±.015
[6.73 ±.38]
.500 MIN
[12.7 Min.]
.018 ±.002
[.46 ±.05]
2
1
D
E
PDI
3
45°
Ø.200 BC
[Ø5.08]
NOTES:
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Specifications subject to change without notice, last updated 4/1/13.
REV:
NA
SIZE:
A
CAGE:
A
2
of
2
