Document 281-1

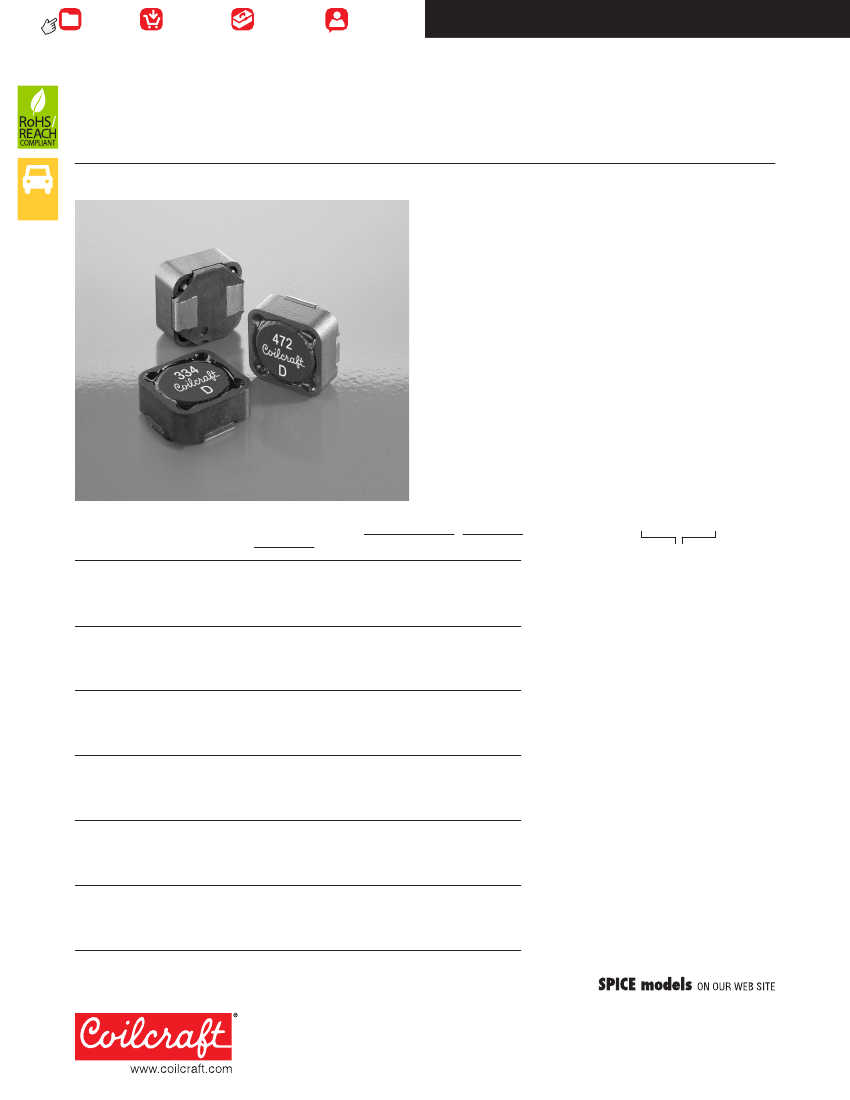

Shielded Power Inductors–MSS1260
Q200
+
85°C
AEC

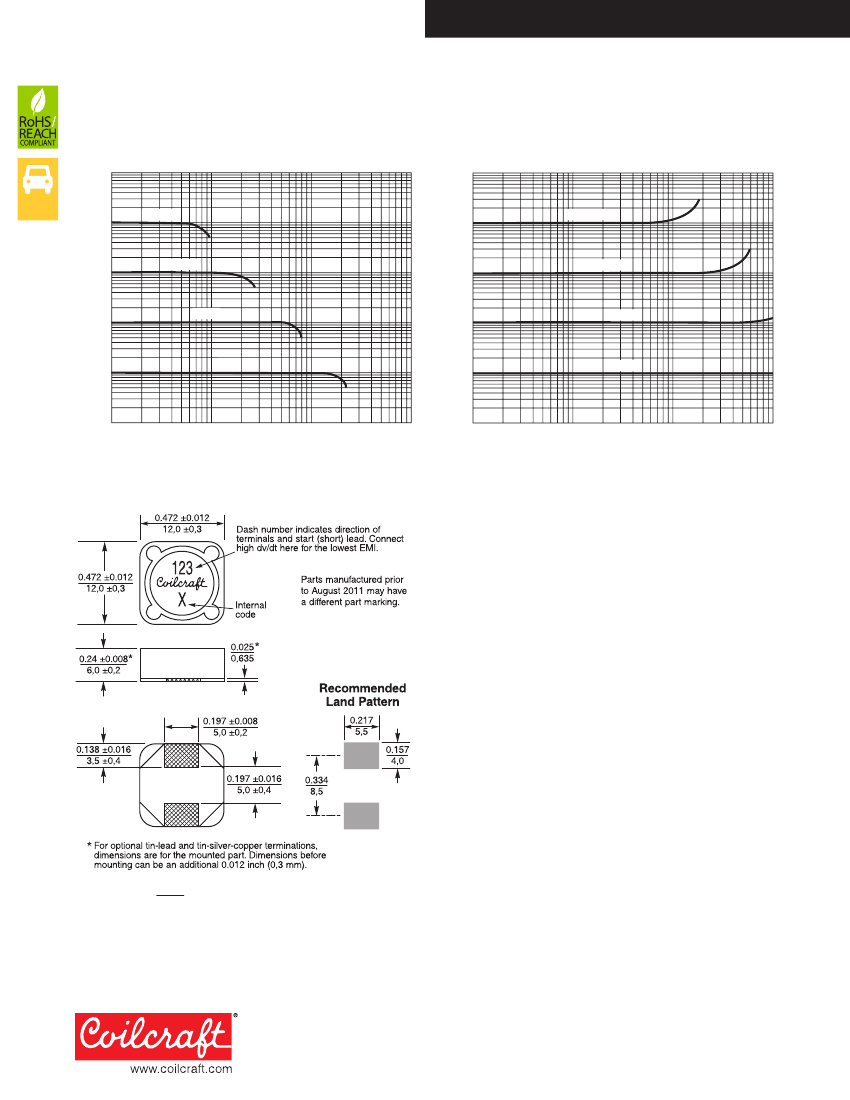

• 12.3 × 12.3 mm footprint; 6 mm high shielded inductors
• Low DCR and excellent current handling
Designer’s Kit C360
contains 3 each of all values.
Core material
Ferrite
Core and winding loss
See
www.coilcraft.com/coreloss
Terminations
RoHS compliant matte tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight:
2.8 – 3.3 g
Ambient temperature
–40°C to +85°C with (40°C rise)
Irms
current.
Maximum part temperature
+125°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Packaging
500/13″ reel; Plastic tape: 24 mm wide, 0.5 mm thick,
16 mm pocket spacing, 6.9 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
DCR
3
Isat
(A)
5
SRF
(mOhms)
typ
4
10% 20% 30%
typ
max (MHz) drop drop drop
5.8
6.5 100
19.1 21.4 22.7
8.8
9.8 80.0 15.0 16.6 17.6
11.5 12.8 55.0 11.7 13.0 13.9
12.6 14.0 42.0 10.4 11.7 12.5
13.9 15.5 33.0 9.22 10.1 10.8
14.9 16.6 30.0 7.86 9.02 9.74
16.6 18.5 27.0 7.40 8.26 8.80
17.0 20.0 26.0 7.10 7.96 8.50
21.5 23.9 22.0 6.18 6.92 7.40
24.5 27.3 20.0 5.18 5.94 6.42
27.0 32.0 18.0 4.80 5.40 5.78
30.0 33.0 16.0 4.58 5.22 5.62
36.6 40.7 15.0 4.06 4.64 4.96
48.0 52.0 13.0 3.52 3.96 4.28
54.0 57.0 12.4 3.22 3.74 4.02
58.0 64.5 12.0 3.08 3.56 3.80
75.0 82.0 11.6 2.66 3.04 3.30
85.0 89.0 10.5 2.54 2.96 3.14
94.5 105
10.0 2.40 2.70 2.94
120 129
8.6 2.16 2.46 2.64
139 146
7.8 1.88 2.16 2.32
193 195
6.8 1.70 1.92 2.10
209 216
6.4 1.58 1.80 1.98
234 246
6.1 1.40 1.60 1.72
306 335
5.5 1.28 1.44 1.56
349 355
4.3 1.10 1.26 1.38
482 494
4.0 1.00 1.14 1.24
515 533
3.6 0.93 1.06 1.15
705 733
3.0 0.87 0.99 1.06
776 800
2.8 0.81 0.92 1.00
887 910
2.6 0.74 0.85 0.92
1130 1152
2.5 0.66 0.76 0.81
1295 1335
2.4 0.60 0.69 0.74
Irms
(A)
6
20°C 40°C
rise rise
6.00 8.00
6.00 7.50
5.50 7.00
5.00 7.00
4.50 7.00
4.00 6.40
3.80 5.90
3.40 4.80
3.00 4.00
2.80 3.70
2.60 3.50
2.50 3.30
2.30 3.10
2.10 2.90
2.00 2.70
1.90 2.60
1.85 2.50
1.75 2.40
1.70 2.30
1.60 2.20
1.50 2.10
1.38 1.85
1.20 1.66
1.14 1.58
1.00 1.42
0.90 1.45
0.84 1.16
0.78 1.08
0.70 0.96
0.64 0.88
0.58 0.80
0.53 0.73
0.48 0.68
1. Please specify
termination
and
packaging
codes:
MSS1260-105KLD
Termination:L
=RoHS compliant matte tin over
nickel over phos bronze.
Special order:
T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS
tin-lead (63/37).
Packaging: D
=13″ machine-ready reel. EIA-481
embossed plastic tape (500 parts
per full reel). Quantities less than
full reel available: in tape (not
machine ready) or with leader
and trailer ($25 charge).
B
=Less than full reel. In an effort
to simplify our part numbering
system, Coilcraft is eliminating
the need for multiple packaging
codes. When ordering, simply
change the last letter of your
part number from B to D.
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc us-
ing an Agilent/HP 4263B LCR meter or equivalent.
3. DCR measured on a micro-ohmmeter and a
Coilcraft CCF858 test fixture.
4. SRF measured using Agilent/HP 4191A or equivalent.
5. DC current at 25°C that causes the specified
inductance drop from its value without current.
Click for temperature derating information.
6. Current that causes the specified temperature rise
from 25°C ambient. This information is for reference
only and does not represent absolute maximum
ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.
Part number
1
(µH)
MSS1260-102NL_
1.0 ±30%
MSS1260-152NL_
1.5 ±30%
MSS1260-222NL_
2.2 ±30%
MSS1260-332NL_
3.3 ±30%
MSS1260-472ML_
4.7 ±20%
MSS1260-562ML_
5.6 ±20%
MSS1260-682ML_
6.8 ±20%
MSS1260-822ML_
8.2 ±20%
MSS1260-103ML_
10 ±20%
MSS1260-123ML_
12 ±20%
MSS1260-153ML_
15 ±20%
MSS1260-183ML_
18 ±20%
MSS1260-223ML_
22 ±20%
MSS1260-273ML_
27 ±20%
MSS1260-333ML_
33 ±20%
MSS1260-393ML_
39 ±20%
MSS1260-473ML_
47 ±20%
MSS1260-563ML_
56 ±20%
MSS1260-683ML_
68 ±20%
MSS1260-823ML_
82 ±20%
MSS1260-104ML_ 100 ±20%
MSS1260-124KL_ 120 ±10%
MSS1260-154KL_ 150 ±10%
MSS1260-184KL_ 180 ±10%
MSS1260-224KL_ 220 ±10%
MSS1260-274KL_ 270 ±10%
MSS1260-334KL_ 330 ±10%
MSS1260-394KL_ 390 ±10%
MSS1260-474KL_ 470 ±10%
MSS1260-564KL_ 560 ±10%
MSS1260-684KL_ 680 ±10%
MSS1260-824KL_ 820 ±10%
MSS1260-105KL_ 1000 ±10%
Inductance
2
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 281-1
Revised 01/28/22
© Coilcraft Inc. 2022
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
