Specifications

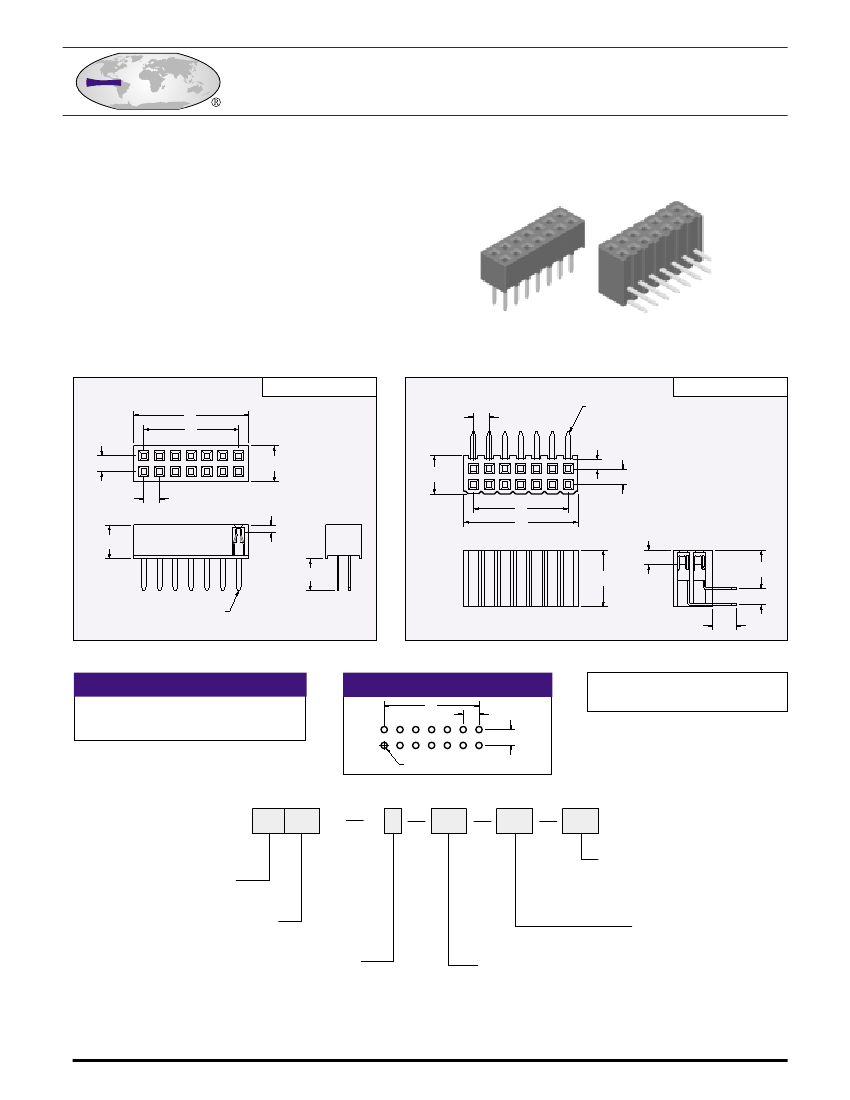

.079 [2.00] Straight & R/A Sockets
9400S Series Sockets
Insulator Material: Glass filled polyester, Thermoplastic,
94V-O Nylon-6T, UL Recognized.
Contact Material: Phosphor Bronze
Contact Plating: Gold and/or Tin over .000050” Ni
(See contact plating options)
Insulation Resistance:
5000 M ohms min.
Dielectric Withstand Voltage: 500 VAC
Current Rating:
1 AMP
Operating Temperature:
-40°C To +105°C
Contact Resistance:
20 m ohms max.
Max Processing Temp.:
230°C for 30 seconds
UL File Numbers:
E146967 & E176234
STRAIGHT
A
B
.0787 [2.0] TYP
.
.020 x.008 [.50 x.20]
RIGHT ANGLE
.079 [2.0]
.181 [4.6]
.191 [4.85]
.059 [1.5]
.0787 [2.0]
.0787 [2.0] TYP
.
.059 [1.5]
.169 [4.3]
B
A
.073 [1.85]
TAIL LENGTH
.283 [7.2]
.193 [4.9]
.079 [2.0]
.020 x.008 [.5 x.2]
.118 [3.0]
DIMENSIONS ARE IN INCHES & [MM]
SUGGESTED MATING CONNECTORS
PCB LAYOUT
B
.0787 [2.0] TYP
.
.079 [2.0]
Ø.032±.002 [.80±.05]
94XX-BX-XX-XX (PAGE F-22)
94XX-DX-XX-XX (PAGE F-23)
94XX-EX-XX-XX-X (PAGE F-24)
A
= .020 + .0787 x No. of Pos.
B
= .0787 x (No. Of Cont./2 -1)
PART NUMBERING
94 XX S
SERIES CODE
.079 SOCKETS
CX
XX
XX
XX
LOCKING LEADS
LL
= LOCKING LEADS
LEAVE BLANK FOR STANDARD
NO. OF CONTACTS
06 - 80
CONTACT PLATING
1
= STRAIGHT
2
= RIGHT ANGLE
TAIL STYLE
TAIL LENGTH
01
= .094 [2.40] (STANDARD)
02
= .047 [1.20]
03
= .126 [3.20]
05
= .118 [3.00] RIGHT ANGLE
.000050” Nickel underplate
CONTACT
TAIL
00
= 100µ”Sn
100µ”Sn
01
= Au Flash
100µ”Sn
03
= Au Flash
Au Flash
10
= 10 µ”Au
100µ”Sn
20
= 15 µ”Au
100µ”Sn
30
= 30 µ”Au
100µ”Sn
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
WWW.ECSCONN.COM
