C228M3 datasheet, PDF - EEWORLD Datasheet

C228M3: DescriptionSilicon Controlled Rectifier, 35A I(T)RMS, 35000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, CASE 311-02, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size89KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Compare View All

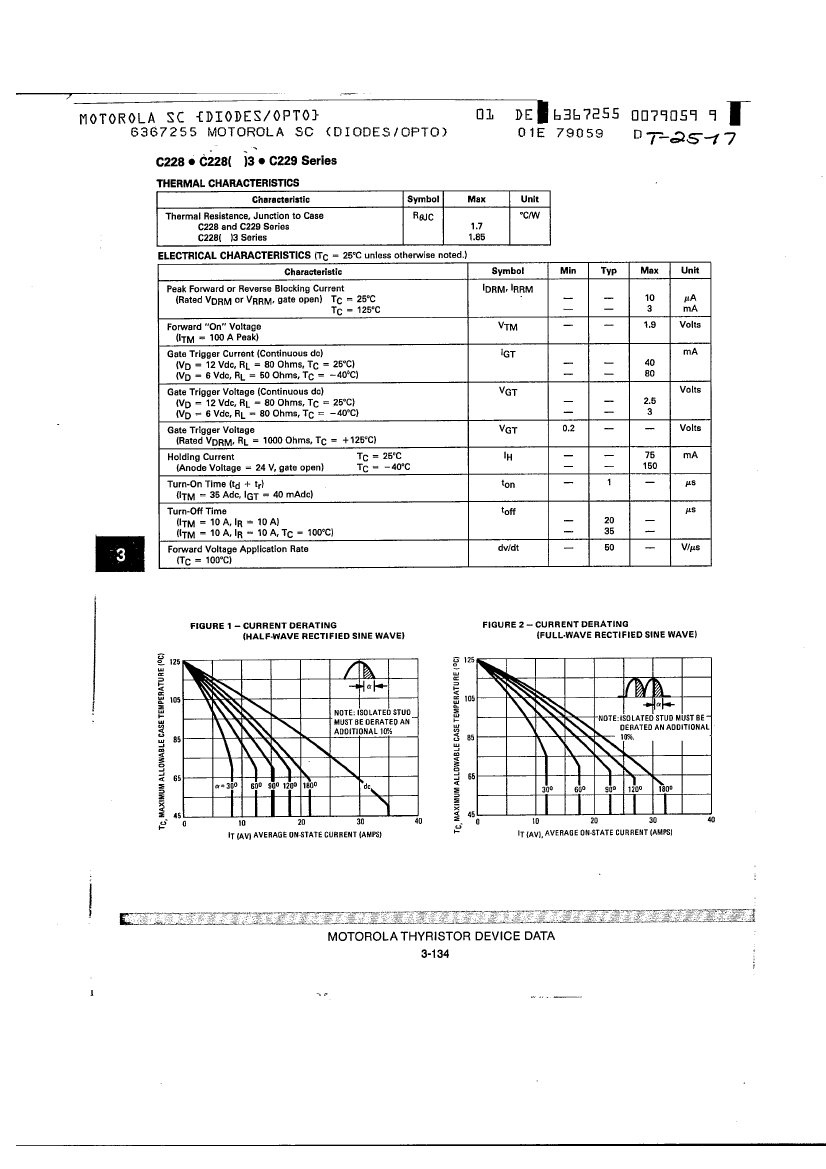

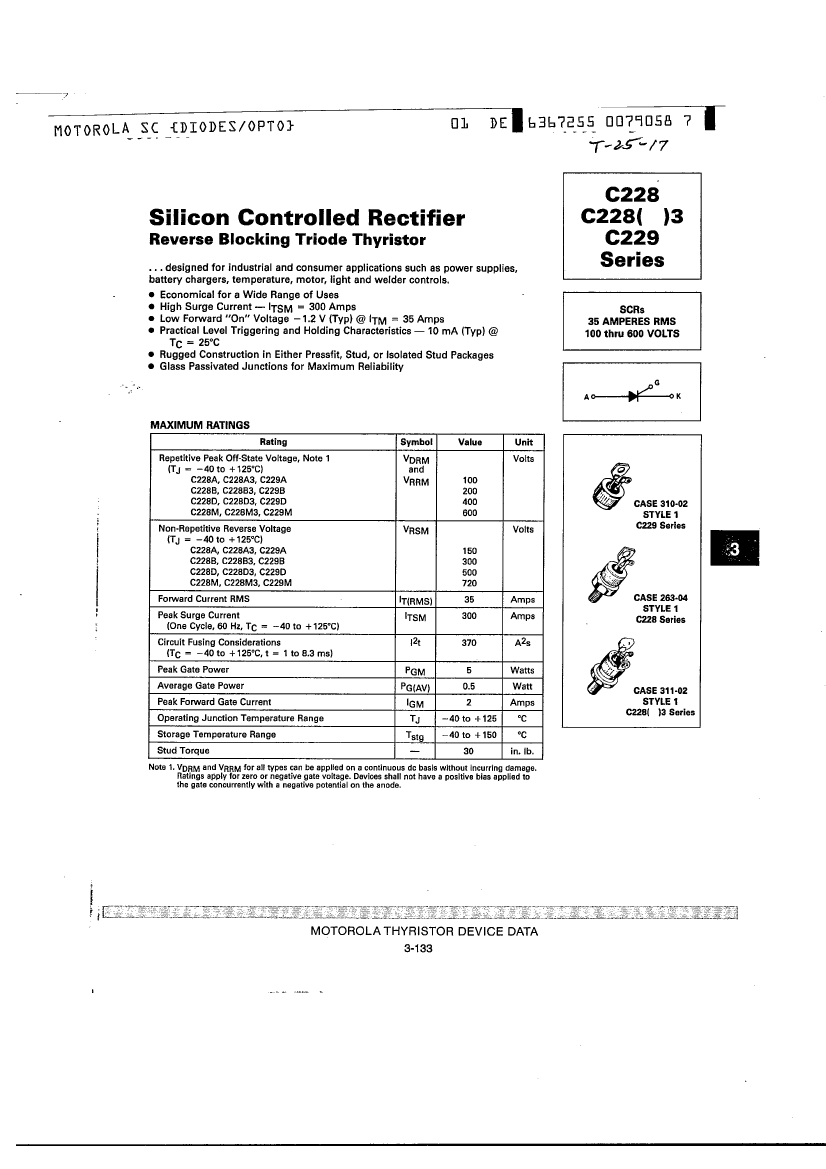

C228M3 Overview

Silicon Controlled Rectifier, 35A I(T)RMS, 35000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, CASE 311-02, 3 PIN

	C228M3	C228	C229A	C229D	C228M	C229M	C229B
Description	Silicon Controlled Rectifier, 35A I(T)RMS, 35000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, CASE 311-02, 3 PIN	SILICON CONTROLLED RECTIFIER REVERSE BLOCKING TRIODE THYRISTOR	SILICON CONTROLLED RECTIFIER REVERSE BLOCKING TRIODE THYRISTOR	SILICON CONTROLLED RECTIFIER REVERSE BLOCKING TRIODE THYRISTOR	SILICON CONTROLLED RECTIFIER REVERSE BLOCKING TRIODE THYRISTOR	SILICON CONTROLLED RECTIFIER REVERSE BLOCKING TRIODE THYRISTOR	SILICON CONTROLLED RECTIFIER REVERSE BLOCKING TRIODE THYRISTOR
Maker	-	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Reach Compliance Code	-	-	unknow	unknow	unknown	unknow	unknow
Nominal circuit commutation break time	-	-	20 µs	20 µs	20 µs	20 µs	20 µs
Maximum DC gate trigger current	-	-	40 mA	40 mA	40 mA	40 mA	40 mA
Maximum DC gate trigger voltage	-	-	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Maximum holding current	-	-	75 mA	75 mA	75 mA	75 mA	75 mA
Maximum leakage current	-	-	3 mA	3 mA	-	3 mA	3 mA
On-state non-repetitive peak current	-	-	300 A	300 A	-	300 A	300 A
Maximum on-state voltage	-	-	1.9 V	1.9 V	-	1.9 V	1.9 V
Maximum on-state current	-	-	35000 A	35000 A	-	35000 A	35000 A
Maximum operating temperature	-	-	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-	-45 °C	-45 °C	-40 °C	-45 °C	-45 °C
Off-state repetitive peak voltage	-	-	100 V	400 V	600 V	600 V	200 V
surface mount	-	-	NO	NO	NO	NO	NO
Trigger device type	-	-	SCR	SCR	SCR	SCR	SCR
