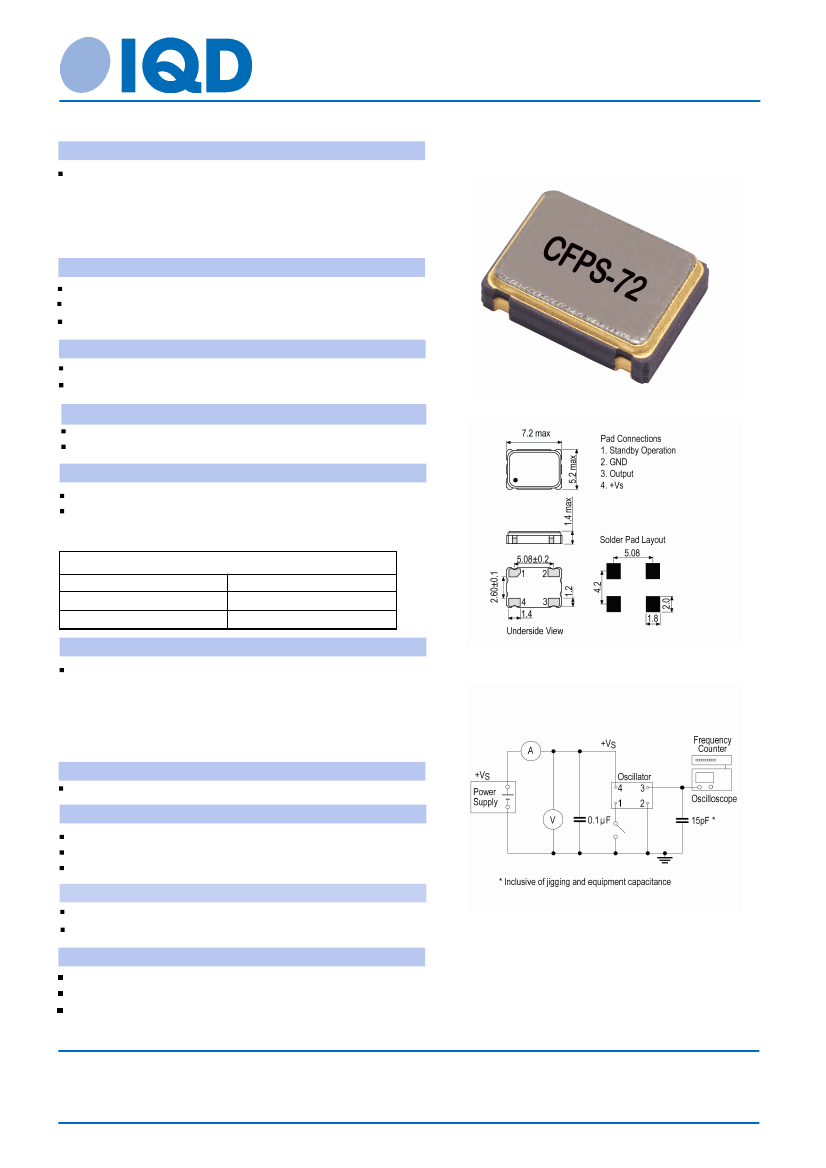

Crystal Clock Oscillator Specification
CFPS-72
ISSUE 14; September 2019
Description
Standard 7 x 5mm crystal oscillator in a ceramic package with
a seam sealed metal lid, hermetically sealed.
Stock parts are available.
Fast Make Capability: The CFPP-72 series programmable
oscillators are the nearest equivalent fast make model.
Frequency Parameters
Frequency
Frequency Stability
Ageing
Electrical Parameters
500.0kHz to 100.0MHz
±25.00ppm to ±100.00ppm
±3ppm per year max
5.0V ±10%
Supply Voltage
Note: parameters are referenced to 15pF load
Operating Temperature Ranges
Outline (mm)
0 to 70°C
-40 to 85°C
Output Details
Output Compatibility
HCMOS/TTL
Start up time: 10ms max
1.1ms typ to 90% of final amplitude (under ideal conditions @
25°C)
Drive Capability
0.5MHz to 50.0MHz
50.0MHz to 80.0MHz
80.0MHz to 100.0MHz
Output Control
15pF std, 50pF max
15pF std, 30pF max
15pF max
Standby Operation:
Logic ‘1’ (>70% Vs) to pad 1 enables oscillator output.
Logic ‘0’ (<30% Vs) to pad 1 disables oscillator output; the
oscillator output goes to the high impedance state.
No connection to pad 1 enables oscillator output.
Standby Current: 10μA max, 2.3µA typ @ 25°C
Noise Parameters
Test Circuit
RMS Phase Jitter: 350fs typical
Environmental Parameters
Shock: MIL-STD-202, Method 213, Condition E.
Vibration: MIL-STD-883, Method 2007, Condition A.
Storage Temperature Range: -55 to 125°
Manufacturing Details
RoHS Terminations
RoHS Reflow
Compliance
NiAu
260°C 10s
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Compliant
Compliant
Not Applicable
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
Printed on 25 Sep 19 17:10 using Model Data Sheet V1.2550
Crystal Clock Oscillator Specification
CFPS-72
Packaging Details
Pack Style: Reel
Pack Size: 1,000
Pack Style: Cutt
Pack Size: 100
Wave Form
Tape & reel in accordance with EIA-481-D
In tape, cut from a reel
Electrical Specification - maximum limiting values @ 15pF and 5.0V ±10%
Frequency
Min
Frequency
Max
Temperature
Range
Stability
Min
Current
Draw
Rise and Fall
Time
Duty Cycle
°C
500.0kHz
20.000001MHz
35.000001MHz
70.000001MHz
20.0MHz
35.0MHz
70.0MHz
100.0MHz
0 to 70
-40 to 85
0 to 70
-40 to 85
0 to 70
-40 to 85
0 to 70
-40 to 85
ppm
±25.0
±25.0
±25.0
±25.0
±25.0
±25.0
±25.0
±25.0
mA
20
20
30
30
50
50
70
70
ns
10
10
6
6
6
6
6
6
%
45/55%
45/55%
45/55%
45/55%
45/55%
45/55%
45/55%
45/55%
This document was correct at the time of printing; please contact your local sales office for the latest version.
Click to view latest version on our website.
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 2 of 2
Printed on 25 Sep 19 17:10 using Model Data Sheet V1.2550
