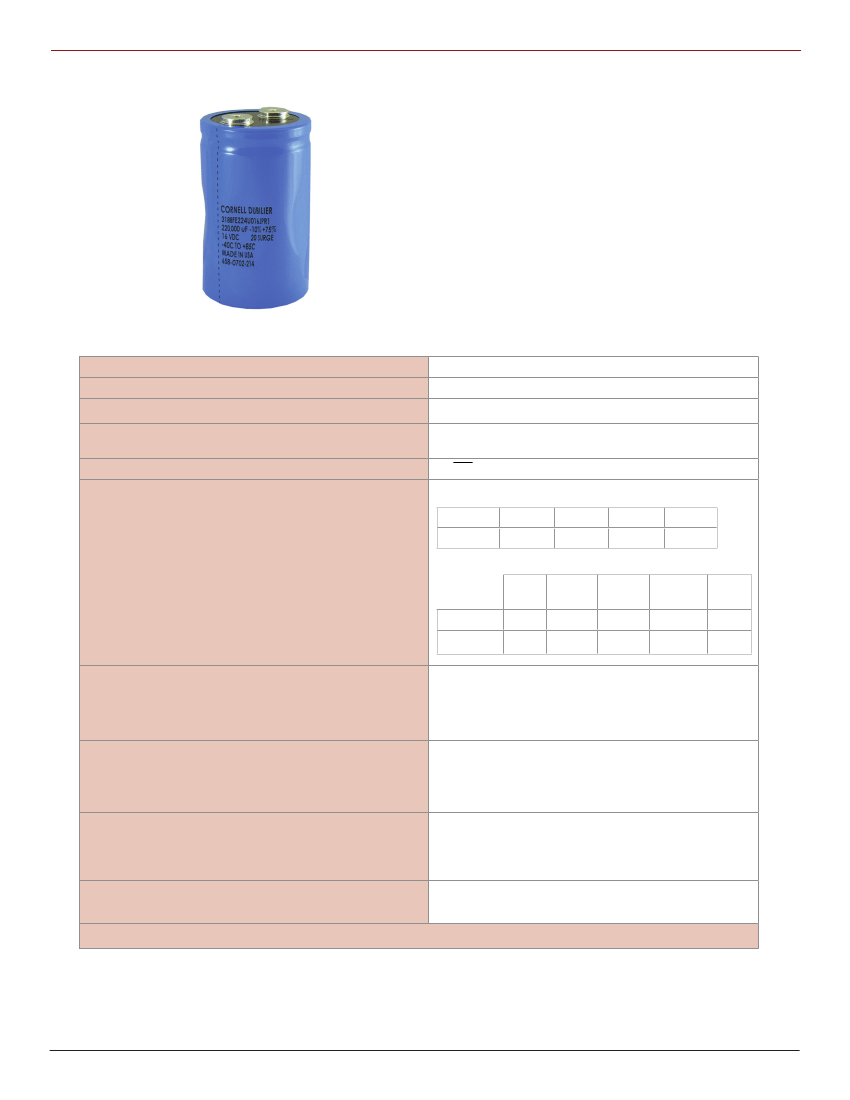

Type 3188 85 °C Best Value, Screw Terminal, Aluminum
85 °C Long Life Screw Terminal Type
Type 3188 has twice the life of the 3186 and twice the
ripple-current capability. While the standard encasement
is by compression with the capacitor element captured
on an aluminum peg in the can bottom and a phenolic
peg in the top, rilled construction is available. With rilled
construction the element is secured by rills, spoon shaped
dimples in the side of the can. Rilled construction offers the
industry’s highest vibration and shock withstanding and
excellent heat transfer. Besides increasing ripple-current
handling, the rilled construction facilitates use in military
and transportation applications.
Highlights
- Rilled cans withstand high shock and vibration.
- 2 times the ripple-current capability
- High capacitance per can
–40 ºC to +85 ºC
16 Vdc to 450 Vdc
270 µF to 1.0 F
–10% +75% ≤ 100 Vdc
–10% +50% ≥ 200 Vdc
≤6√CV µA (6 mA max.) at 5 minutes
Ambient Temperature
45 °C
2.24
Frequency
60 Hz 120 Hz
16 – 100 V
0.90
1.00
1.00
200 – 450 V
0.90
Low Temperature Characteristics
300 Hz
1.15
1.25
1000 Hz
1.25
1.40
≥10
kHz
1.30
1.50
55 °C
2.00
65 °C
1.73
75 °C
1.41
85 °C
1.00
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
Impedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 8 (16–50 Vdc)
≤ 4 (63–100 Vdc)
≤ 3 (150–450 Vdc)
4,000 h @ full load at 85 °C
∆Capacitance ±10%
ESR 200% of limit
DCL 100% of limit
500 h @ 85 °C
∆Capacitance ±10%
ESR 175% of limit
DCL 100% of limit
10 to 55 Hz, 0.06" & 10 g max for compression,
15 g max for rilled, 1.5 h ea. of 2 axes
RoHS Compliant
Endurance Life Test
Shelf Life Test
Vibration
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 3188 85 °C Best Value, Screw Terminal, Aluminum
85 °C Long Life Screw Terminal Type
Part Numbering System
3188
GH
562
Capacitance
562=5600 µF
223=22000 µF
821=820 µF
T
Tolerance
M= ±20%
S= –10 +30%
T= –10 +50%
U= –10 +75%
400
Voltage
016=16 Vdc
450=450 Vdc
M
Terminal
A=high post
B=low post
D=high current
low post
K=high current
high post
M=M5 high post
J=M6 low post
P
Insulation
P=0.008” PVC
with mounting
clamp/bracket
R=0.008” PVC
A1
Type
Case Code
Construction*
A1=compression
R1=rilled
S1=stud & compression
T1=stud & rilled
* Construction code is also a sequence number, e.g., A1, A2,---,A9, B1,B2,---, for customer
specifications. Sequence number 1 in A1, R1, S1 and T1 denotes the standard catalog capacitor
with no special requirements.
Outline Drawing
H
A
L
0.63 (16)
Stud Dimensions
+
Case
Stud
Thread
M8
M8
M12
M12
M12
P± 0.039”
(±1.0 mm)
0.470” (12.0)
0.470” (12.0)
0.630” (16.0)
0.630” (16.0)
0.630” (16.0)
D
P
Diam.
1.375
1.750
2.000
Optional Stud
2.500
3.000
Can Dimensions Insulation Adders
Diameter (D)
(in)
0.008" PVC
0.02
(mm )
0.51
(in)
0.032
Length (L)
(mm )
0.81
Standing Height (H)
(in)
0.024
(mm )
0.61
Terminal Dimensions
For Case
Terminal Style
Low Post
High Post
High Current, Low
High Current, High
M5 High Post
M5 Post
M6 Low Post
Diameters
1
3/8
to 3
1
3/8
to 3
2
1/2
& 3
2
1/2
& 3
1
3/8
to 2
2
1/2
& 3
2
1/2
& 3
Code
B
A
D
K
M
F
J
Post Diameter
in
0.314
0.314
0.684
0.684
0.314
0.512
0.684
mm
8.0
8.0
17.4
17.4
8.0
13.0
17.4
in
0.094
0.281
0.125
0.281
0.281
0.230
0.125
H max
mm
2.4
7.1
3.2
7.1
7.1
5.8
3.2
Thread
10–32
10–32
¼–28
¼–28
M5
M5
M6
min Full Thread
in
0.218
0.375
0.344
0.469
0.375
0.344
0.344
mm
5.5
9.5
8.7
11.9
9.5
8.7
8.7
Torque
in∙lb
25
25
50
60
25
25
50
N∙m
2.82
2.82
5.65
6.78
2.82
2.82
5.65
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 3188 85 °C Best Value, Screw Terminal, Aluminum
85 °C Long Life Screw Terminal Type
Case Dimensions, Uninsulated Bare Can
Case
Code
BA
BB
BC
BD
BE
BF
BG
BH
DA
DB
DC
DD
DE
DF
DG
DH
EA
EB
EC
ED
EE
EF
EG
EH
FB
FC
FD
FE
FF
FG
FH
GC
GD
GE
GF
GG
GH
GJ
GN
Diameter (D)
±0.031
(Inches)
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.75
1.75
1.75
1.75
1.75
1.75
1.75
1.75
2
2
2
2
2
2
2
2
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3
3
3
3
3
3
3
3
±0.79
(mm)
34.9
34.9
34.9
34.9
34.9
34.9
34.9
34.9
44.5
44.5
44.5
44.5
44.5
44.5
44.5
44.5
50.8
50.8
50.8
50.8
50.8
50.8
50.8
50.8
63.5
63.5
63.5
63.5
63.5
63.5
63.5
76.2
76.2
76.2
76.2
76.2
76.2
76.2
76.2
Length (L)
±0.062
(Inches)
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
2.625
3.125
3.625
4.125
4.625
5.125
5.625
3.125
3.625
4.125
4.625
5.125
5.625
5.875
8.625
±1.157
(mm)
54.0
66.7
79.4
92.1
104.8
117.5
130.2
142.9
54.0
66.7
79.4
92.1
104.8
117.5
130.2
142.9
54.0
66.7
79.4
92.1
104.8
117.5
130.2
142.9
66.7
79.4
92.1
104.8
117.5
130.2
142.9
79.4
92.1
104.8
117.5
130.2
142.9
149.2
219.1
Pitch (P)
±0.014
(Inches)
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.750
0.750
0.750
0.750
0.750
0.750
0.750
0.750
0.875
0.875
0.875
0.875
0.875
0.875
0.875
0.875
1.125
1.125
1.125
1.125
1.125
1.125
1.125
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
±0.356
(mm)
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
19.1
19.1
19.1
19.1
19.1
19.1
19.1
19.1
22.2
22.2
22.2
22.2
22.2
22.2
22.2
22.2
28.6
28.6
28.6
28.6
28.6
28.6
28.6
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
Plug (A)
A
(Inches)
0.390
0.390
0.390
0.390
0.390
0.390
0.390
0.390
0.453
0.453
0.453
0.453
0.453
0.453
0.453
0.453
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.625
0.625
0.625
0.625
0.625
0.625
0.625
0.750
0.750
0.750
0.750
0.750
0.750
0.750
0.750
A
(mm)
9.9
9.9
9.9
9.9
9.9
9.9
9.9
9.9
11.5
11.5
11.5
11.5
11.5
11.5
11.5
11.5
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
15.9
15.9
15.9
15.9
15.9
15.9
15.9
19.1
19.1
19.1
19.1
19.1
19.1
19.1
19.1
Typical
Weight
(oz)
2.53
3.17
3.70
4.22
4.75
5.98
7.74
9.50
5.63
6.16
6.34
7.22
7.74
8.27
8.80
9.50
5.98
6.34
6.69
7.74
8.98
10.21
11.26
8.80
10.56
13.02
14.08
15.66
21.12
22.88
21.12
18.30
20.06
21.12
25.34
29.92
34.14
36.96
51.39
Weight
(g)
72
90
105
120
135
170
220
270
160
175
180
205
220
235
250
270
170
180
190
220
255
290
320
250
300
370
400
445
600
650
600
520
570
600
720
850
970
1050
1460
Optional
Bracket
Part No.
115058-06
115058-06
115058-06
115058-06
115058-06
115058-06
115058-06
115058-06
115058-15
115058-15
115058-15
115058-15
115058-15
115058-15
115058-15
115058-15
115058-09
115058-09
115058-09
115058-09
115058-09
115058-09
115058-09
115058-09
115058-14
115058-14
115058-14
115058-14
115058-14
115058-14
115058-14
115058-11
115058-11
115058-11
115058-11
115058-11
115058-11
115058-11
115058-11
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
85 °C Long Life Screw Terminal Type
Ratings
ESR
max
120 Hz,
Ripple max
Capacitance
Catalog
25°C
120 Hz, 85 °C
(µF)
Part Number
(mΩ)
compress (A)rilled(A)
16 Volts (20 Volts Surge)
22000 3188BA223U016APA1 10.0
10.5
12.00
39000 3188BC393U016APA1 7.0
15.2
17.00
56000 3188BE563U016APA1 6.0
18.9
21.00
82000 3188EC823U016APA1 6.0
21.4
24.00
120000 3188EE124U016APA1 6.0
26.5
30.00
150000 3188EG154U016APA1 4.0
27.0
30.00
150000 3188EH154U016APA1 4.0
27.3
30.00
220000 3188FE224U016DPA1 3.0
38.9
44.00
270000 3188FF274U016DPA1 3.0
42.5
48.00
330000 3188FH334U016DPA1 3.0
45.0
50.00
330000 3188GE334U016DPA1 3.0
43.9
50.00
390000 3188GF394U016DPA1 3.0
44.2
50.00
470000 3188GH474U016DPA1 2.0
44.6
50.00
820000 3188GN824U016DPA1 2.0
46.3
50.00
1000000 3188GN105U016DPA1 2.0
46.3
50.00
25 Volts (30 Volts Surge)
12000 3188BA123U025APA1 32.0
6.0
6.80
22000 3188BC223U025APA1 22.0
8.6
9.60
33000 3188BE333U025APA1 17.0
10.8
12.00
56000 3188EC563U025APA1 7.0
18.8
21.00
82000
3188EE823U025APA1 5.0
24.8
28.00
100000 3188EG104U025APA1 5.0
27.0
30.00
120000 3188EH124U025APA1 4.0
27.3
30.00
120000 3188FE124U025DPA1 5.0
31.0
35.00
150000 3188FF154U025DPA1 4.0
33.6
38.00
180000 3188FH184U025DPA1 4.0
36.9
41.00
180000 3188GE184U025DPA1 4.0
36.8
42.00
220000 3188GF224U025DPA1 4.0
40.7
46.00
270000 3188GH274U025DPA1 4.0
43.8
49.00
470000 3188GN474U025DPA1 3.0
46.3
50.00
40 Volts (50 Volts Surge)
8200
3188BA822U040APA1 39.0
5.4
6.10
12000 3188BC123U040APA1 27.0
7.8
8.70
18000 3188BE183U040APA1 20.0
9.9
11.00
27000 3188EC273U040APA1 9.0
17.0
19.00
47000
3188EE473U040APA1 6.0
22.1
25.00
56000 3188EG563U040APA1 5.0
27.0
30.00
68000 3188EH683U040APA1 5.0
27.3
30.00
68000 3188FE683U040DPA1 5.0
28.3
32.00
82000 3188FF823U040DPA1 5.0
31.0
35.00
100000 3188FH104U040DPA1 5.0
34.2
38.00
100000 3188GE104U040DPA1 5.0
33.3
38.00
120000 3188GF124U040DPA1 4.0
37.2
42.00
150000 3188GH154U040DPA1 4.0
41.1
46.00
270000 3188GN274U040DPA1 3.0
46.3
50.00
Type 3188 85 °C Best Value, Screw Terminal, Aluminum
ESR
max
120 Hz,
Ripple max
Capacitance
Catalog
25°C
120 Hz, 85 °C
(µF)
Part Number
(mΩ)
compress (A) rilled(A)
50 Volts (63 Volts Surge)
6800
3188BA682U050APA1 42.0
5.2
5.90
10000
3188BC103U050APA1 28.0
7.5
8.40
15000
3188BE153U050APA1 21.0
9.9
11.00
27000
3188EC273U050APA1 15.0
12.5
14.00
39000
3188EE393U050APA1 11.0
16.8
19.00
47000
3188EG473U050APA1 10.0
18.9
21.00
56000
3188EH563U050APA1 9.0
21.8
24.00
56000
3188FE563U050APA1 8.0
23.0
26.00
68000
3188FF683U050APA1 7.0
25.7
29.00
82000
3188FH823U050DPA1 6.0
30.6
34.00
82000
3188GE823U050DPA1 6.0
28.1
32.00
100000 3188GF104U050DPA1 6.0
31.9
36.00
120000 3188GH124U050DPA1 5.0
34.8
39.00
220000 3188GN224U050DPA1 4.0
46.3
50.00
63 Volts (75 Volts Surge)
4700
3188BA472U063APA1 42.0
5.2
5.90
6800
3188BC682U063APA1 29.0
7.5
8.40
10000
3188BE103U063APA1 21.0
9.9
11.00
18000
3188EC183U063APA1 15.0
12.5
14.00
27000
3188EE273U063APA1 11.0
16.8
19.00
33000
3188EG333U063APA1 9.0
20.7
23.00
39000
3188EH393U063APA1 9.0
22.7
25.00
39000
3188FE393U063APA1 8.0
23.0
26.00
47000
3188FF473U063APA1 7.0
24.8
28.00
56000
3188FH563U063DPA1 7.0
27.9
31.00
56000
3188GE563U063DPA1 7.0
28.1
32.00
68000
3188GF683U063DPA1 6.0
31.9
36.00
82000
3188GH823U063DPA1 5.0
34.8
39.00
150000 3188GN154U063DPA1 4.0
46.3
50.00
75 Volts (95 Volts Surge)
2700
3188BA272U075APA1 46.0
5.0
5.70
4700
3188BC472U075APA1 30.0
7.3
8.20
6800
3188BE682U075APA1 22.0
9.0
10.00
12000
3188EC123U075APA1 16.0
12.5
14.00
18000
3188EE183U075APA1 12.0
15.9
18.00
22000
3188EG223U075APA1 10.0
19.8
22.00
27000
3188EH273U075APA1 9.0
21.8
24.00
27000
3188FE273U075APA1 8.0
22.1
25.00
33000
3188FF333U075APA1 7.0
24.8
28.00
39000
3188FH393U075DPA1 6.0
29.7
33.00
39000
3188GE393U075DPA1 6.0
28.9
33.00
47000
3188GF473U075DPA1 6.0
31.0
35.00
56000
3188GH563U075DPA1 5.0
36.6
41.00
100000 3188GN104U075DPA1 4.0
46.3
50.00
Case Size
DxL
(in)
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 5.125
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 5.125
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 5.125
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
Case Size
DxL
(in)
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 5.125
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 5.125
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 5.125
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 3188 85 °C Best Value, Screw Terminal, Aluminum
85 °C Long Life Screw Terminal Type
Capacitance
(µF)
1800
2700
4700
6800
10000
12000
15000
18000
22000
22000
27000
27000
39000
56000
680
1200
1800
2700
3900
4700
5600
6800
8200
10000
10000
12000
15000
22000
470
820
1200
1800
2700
3300
3900
4700
5600
ESR max
120 Hz,
Ripple max
Case Size
Catalog
25°C
DxL
120 Hz, 85 °C
Part Number
(mΩ)
compress(A) rilled (A)
(in)
100 Volts (125 Volts Surge)
3188BA182U100APA1 79.0
3.5
3188BC272U100APA1 51.0
5.3
3188BE472U100APA1 32.0
8.0
3188EC682U100APA1 64.0
6.1
3188EE103U100APA1 38.0
8.9
3188EG123U100APA1 34.0
9.9
3188EH153U100APA1 28.0
11.8
3188FE183U100APA1 18.0
15.0
3188FF223U100APA1 14.0
17.7
3188FH223U100APA1 25.0
13.5
3188GE273U100APA1 13.0
19.3
3188GF273U100APA1 20.0
19.5
3188GH393U100AA1 16.0
16.1
3188GN563U100APA1 14.0
23.1
200 Volts (250 Volts Surge)
3188BA681T200APA1 130.0
2.5
3188BC122T200APA1 76.0
3.7
3188BE182T200APA1 53.0
6.2
3188EC272T200APA1 76.0
5.5
3188EE392T200APA1 51.0
7.5
3188EG472T200APA1 36.0
9.9
3188EH562T200APA1 20.0
13.6
3188FE682T200APA1 24.0
12.4
3188FF822T200APA1 21.0
14.2
3188FH103T200APA1 17.0
18.0
3188GE103T200APA1 25.0
14.0
3188GF123T200APA1 22.0
15.9
3188GH153T200APA1 19.0
18.8
3188GN223T200APA1 15.0
23.1
250 Volts (300 Volts Surge)
3188BA471T250APA1
3188BC821T250APA1
3188BE122T250APA1
3188EC182T250APA1
3188EE272T250APA1
3188EG332T250APA1
3188EH392T250APA1
3188FE472T250APA1
3188FF562T250APA1
130.0
86.0
54.0
76.0
52.0
22.0
19.0
25.0
20.0
2.5
4.2
6.1
6.2
7.4
12.6
14.5
12.4
14.2
4.00 1.375 X 2.125
5.90 1.375 X 3.125
8.90 1.375 X 4.125
6.80 2.00 X 3.125
10.00 2.00 X 4.125
11.00 2.00 X 5.125
13.00 2.00 X 5.625
17.00 2.50 X 4.125
20.00 2.50 X 4.625
15.00 2.50 X 5.625
22.00 3.00 X 4.125
18.00 3.00 X 4.625
21.00 3.00 X 5.625
25.00 3.00 X 8.625
2.90 1.375 X 2.125
4.10 1.375 X 3.125
6.90 1.375 X 4.125
6.20 2.00 X 3.125
8.50 2.00 X 4.125
11.00 2.00 X 5.125
15.00 2.00 X 5.625
14.00 2.50 X 4.125
16.00 2.50 X 4.625
20.00 2.50 X 5.625
16.00 3.00 X 4.125
18.00 3.00 X 4.625
21.00 3.00 X 5.625
25.00 3.00 X 8.625
2.90 1.375 X 2.125
4.70 1.375 X 3.125
6.80 1.375 X 4.125
6.90 2.00 X 3.125
8.40 2.00 X 4.125
14.00 2.00 X 5.125
16.00 2.00 X 5.625
14.00 2.50 X 4.125
16.00 2.50 X 4.625
Capacitance
(µF)
6800
6800
8200
10000
12000
330
560
820
1200
1800
2200
2700
2700
3300
3900
3900
4700
5600
10000
270
470
680
1000
1500
1800
2200
2200
2700
3300
3300
3900
4700
8200
1000
1500
2200
3300
3900
ESR max
120 Hz,
Ripple max
Case Size
Catalog
25°C
DxL
120 Hz, 85 °C
Part Number
(mΩ)
compress (A) rilled (A)
(in)
250 Volts (300 Volts Surge)
3188FH682T250APA1 17.0
16.2
3188GE682T250APA1 17.0
15.8
3188GF822T250APA1 24.0
14.2
3188GH103T250APA1 18.0
18.8
3188GN123T250APA1 16.0
23.1
350 Volts (400 Volts Surge)
3188BA331T350APA1 290.0
1.7
3188BC561T350APA1 191.0
2.6
3188BE821T350APA1 129.0
3.8
3188EC122T350APA1 122.0
4.5
3188EE182T350APA1 74.0
6.5
3188EG222T350APA1 49.0
8.2
3188EH272T350APA1 39.0
9.0
3188FE272T350APA1 47.0
8.9
3188FF332T350APA1 39.0
10.6
3188FH392T350APA1 34.0
11.7
3188GE392T350APA1 34.0
11.4
3188GF472T350APA1 34.0
12.4
3188GH562T350APA1 28.0
14.3
3188GN103T350APA1 18.0
23.1
400 Volts (450 Volts Surge)
3188BA271T400APA1 333.0
1.5
3188BC471T400APA1 224.0
2.6
3188BE681T400APA1 134.0
3.7
3188EC102T400APA1 127.0
4.3
3188EE152T400APA1 63.0
6.9
3188EG182T400APA1 53.0
7.9
3188EH222T400APA1 45.0
8.9
3188FE222T400APA1 45.0
8.7
3188FF272T400APA1 47.0
9.5
3188FH332T400APA1 35.0
11.7
3188GE332T400APA1 35.0
11.4
3188GF392T400APA1 37.0
11.5
3188GH472T400APA1 31.0
13.4
3188GN822T400APA1 24.0
20.4
450 Volts (525 Volts Surge)
3188EE102T450APA1 102.0
3188EG152T450APA1 70.0
3188FF222T450APA1 46.0
3188GF332T450APA1 34.0
3188GH392T450APA1 22.0
4.9
6.7
9.3
12.2
17.1
18.00
18.00
16.00
21.00
25.00
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
1.90 1.375 X 2.125
2.90 1.375 X 3.125
4.20 1.375 X 4.125
5.00 2.00 X 3.125
7.30 2.00 X 4.125
9.10 2.00 X 5.125
10.00 2.00 X 5.625
10.00 2.50 X 4.125
12.00 2.50 X 4.625
13.00 2.50 X 5.625
13.00 3.00 X 4.125
14.00 3.00 X 4.625
16.00 3.00 X 5.625
25.00 3.00 X 8.625
1.70 1.375 X 2.125
2.90 1.375 X 3.125
4.10 1.375 X 4.125
4.80 2.00 X 3.125
7.80 2.00 X 4.125
8.80 2.00 X 5.125
9.80 2.00 X 5.625
9.80 2.50 X 4.125
10.70 2.50 X 4.625
13.00 2.50 X 5.625
13.00 3.00 X 4.125
13.00 3.00 X 4.625
15.00 3.00 X 5.625
22.00 3.00 X 8.625
5.50
7.40
10.50
13.80
19.10
2.00 X 4.125
2.00 X 5.125
2.50 X 4.625
3.00 X 4.625
3.00 X 5.625
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
/3188gn282s400kpa1_pdf/pg_0001.png)
PCB Design
京公网安备 11010802033920号
EEWORLD/3188gn282s400kpa1_pdf/1.png)
/3188gn282s400kpa1_pdf/2.png)
/3188gn282s400kpa1_pdf/3.png)
/3188gn282s400kpa1_pdf/4.png)
/3188gn282s400kpa1_pdf/5.png)
/3188gn282s400kpa1_pdf/pg_0002.png)
/3188gn282s400kpa1_pdf/pg_0003.png)
/3188gn282s400kpa1_pdf/pg_0004.png)
/3188gn282s400kpa1_pdf/pg_0005.png)
