233-105-00MT13-21SC datasheet, PDF

Datasheet> All Categories > The connector> The connector> 233-105-00MT13-21SC

233-105-00MT13-21SC: DescriptionMIL Series Connector, 13 Contact(s), Aluminum Alloy, Female, Receptacle; CategoryThe connector The connector; File Size501KB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

233-105-00MT13-21SC Overview

MIL Series Connector, 13 Contact(s), Aluminum Alloy, Female, Receptacle

233-105-00MT13-21SC Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-38999
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	233-105
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	C
Total number of contacts	13
Base Number Matches	1

Preview

Download Datasheet

View All

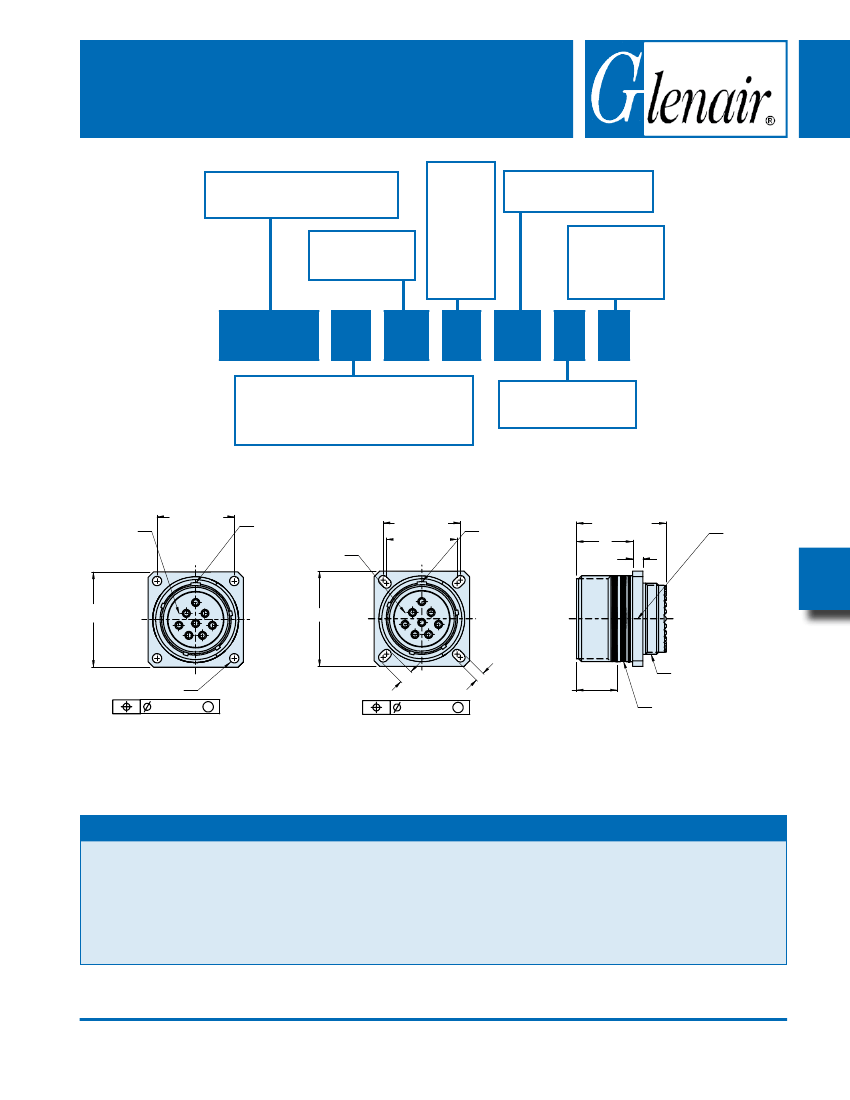

Wall Mount Environmental Receptacle Connector

Shell Size

09 = A

11 = B

13 = C

15 = D

17 = E

19 = F

21 = G

23 = H

25 = J

233-105-00

MIL-DTL-38999 Series III Type

Basic Part Number

233-105

D38999 Series III Type

Power Connector

Finish Material

(See Table II)

Insert Arrangement

(See Pages D-2, 3 & 4)

(N for Normal)

Alternate Key

Position

A, B, C, D, or E

233-105

Contact Type

Shell Style

- Receptacle, Wall Mount w/ Slotted Holes

- Receptacle, Wall Mount w/ Round Holes

- Receptacle, Wall Mount w/ Tapped Holes

(See Page D-8)

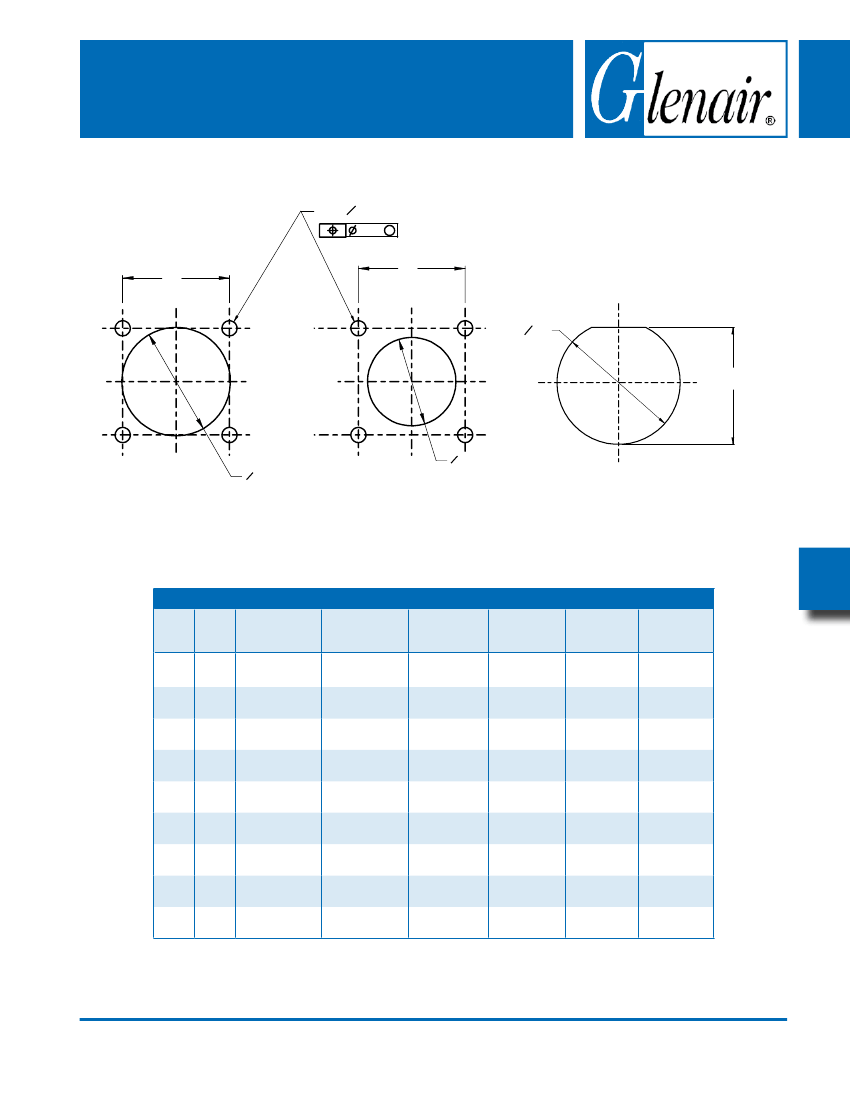

D0 - ROUND HOLES

See Notes

4 and 5

2X C BSC

Master

Keyway

00 - SLOTTED HOLES

2X C BSC

2X D BSC

Master

Keyway

1.240 (31.5)

Max

See Note 3

See Notes 4 and 5

B SQ

J Thread

4 x K Dia Holes

.005 (0.1)

4X F

4X E

.005 (0.1)

.510 (13.0) Max

Fully Mated Red

Indicator Band

Blue Color Band

See Note 2

Consult factory for available insert arrangements.

APPLICATION NOTES

1. Material/ Finishes:

Shells, Jam Nut - See Table II

(Composite Jam Nut & Composite Coupling Nut No Plating

Required).

Insulators- High Grade Rigid Dielectric/ N.A

Seals- Fluorosilicone/ N.A.

2. Blue Color Band indicates rear release retention system.

3. Assembly to be identified with Glenair’s name, part number

and date code space permitting.

4. Insert arrangement in accordance with MIL-STD-1560.

5. Insert arrangement shown is for reference only.

6. Metric dimensions (mm) are in parentheses.

www.glenair.com

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

D-11

Environmental

Connectors
