5962-01-206-2292 datasheet, PDF

5962-01-206-2292: DescriptionIC,BUFFER/DRIVER,DUAL,2-BIT/4-BIT,CMOS,DIP,16PIN,CERAMIC; Categorylogic logic; File Size477KB，7 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

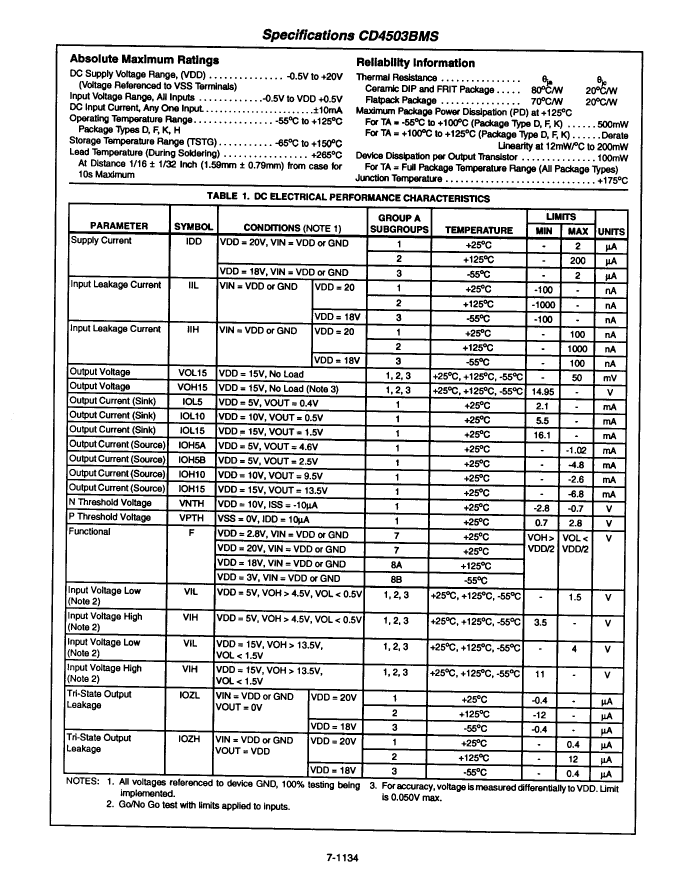

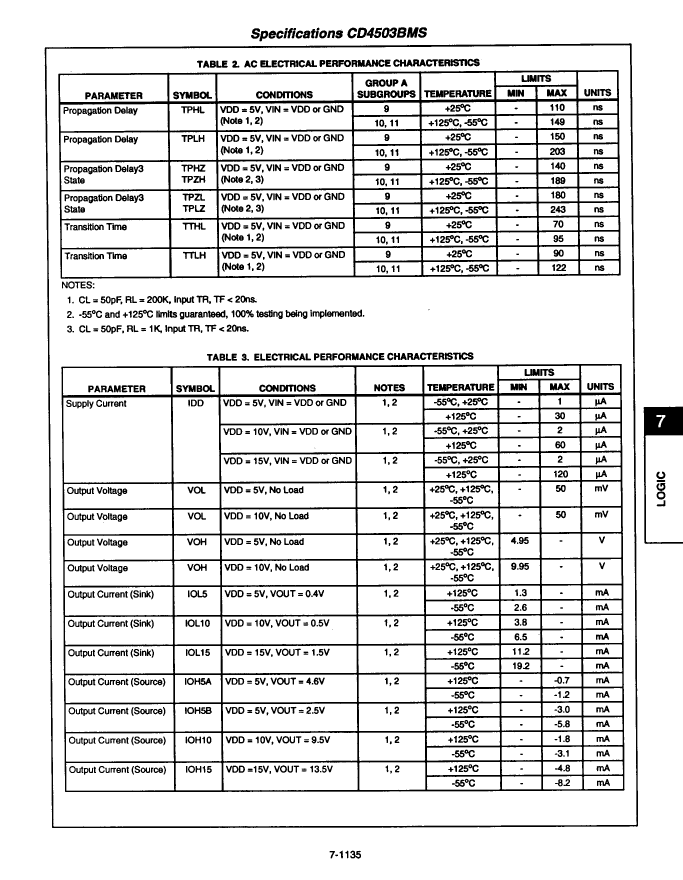

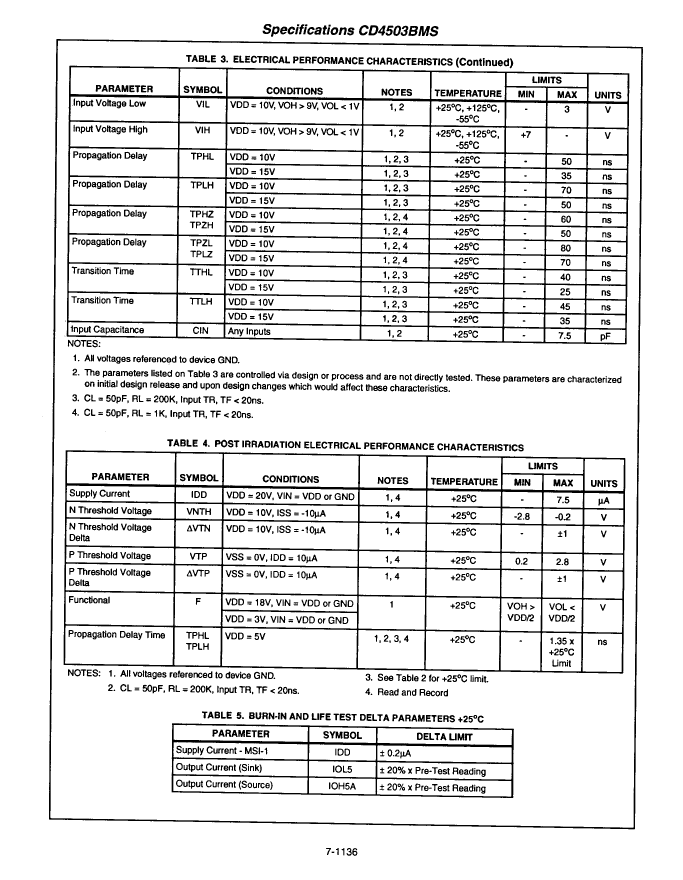

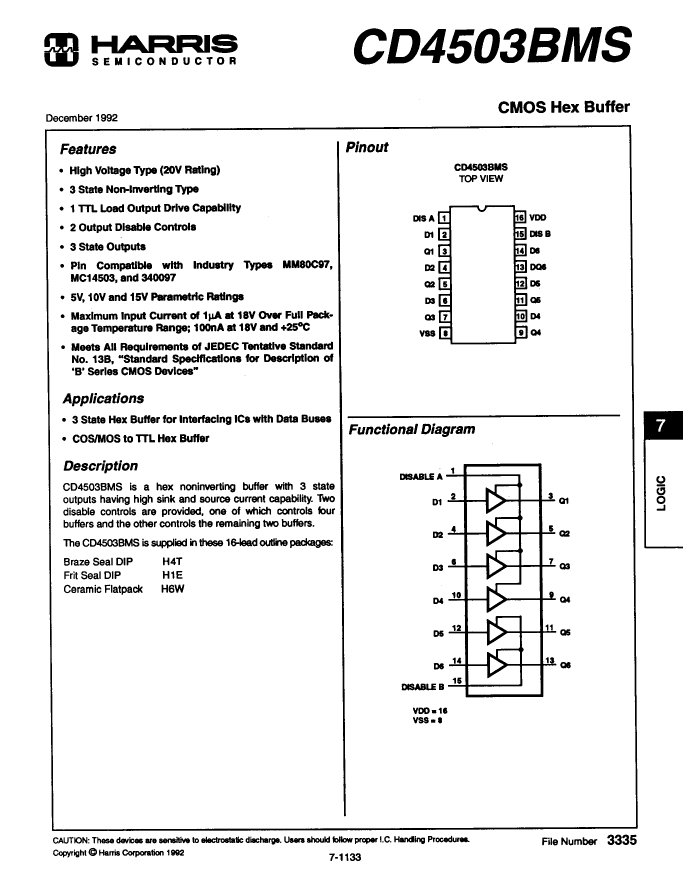

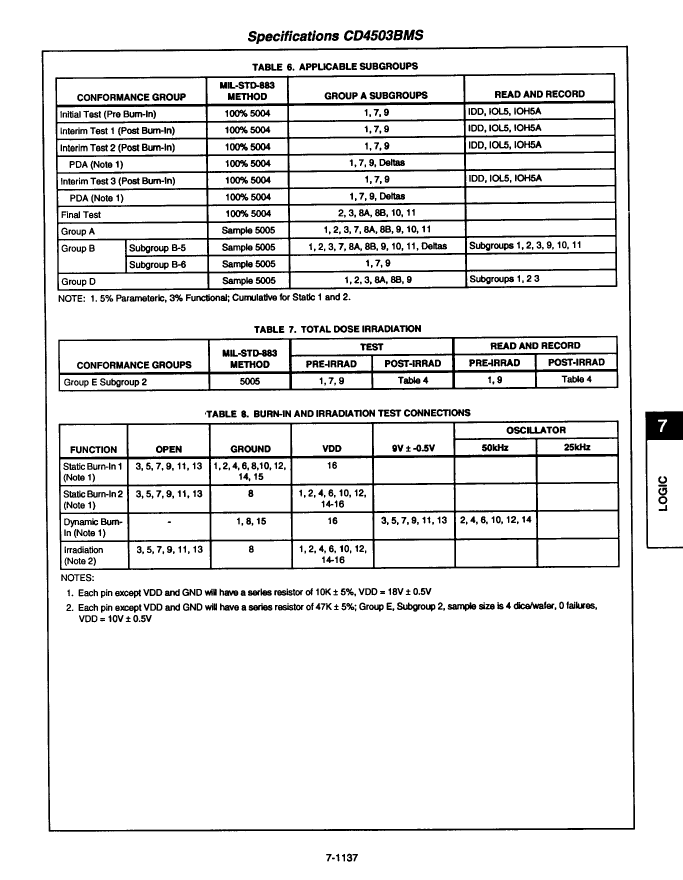

5962-01-206-2292 Overview

IC,BUFFER/DRIVER,DUAL,2-BIT/4-BIT,CMOS,DIP,16PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1164058032
package instruction	DIP, DIP16,.3
Reach Compliance Code	not_compliant
Control type	ENABLE LOW
JESD-30 code	R-XDIP-T16
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.0013 A
Number of digits	6
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Prop。Delay @ Nom-Sup	150 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
