DSC8002 Series
1.8 to 3.3V
Programmable Low-Power CMOS Oscillator
General Description
The DSC8002 is a programmable MEMS based
PureSilicon™ Oscillator. Using the DragonFly™
or TimeFlash™ handheld programmer, the end
user can program the DSC8002 within seconds
to any frequency from 1 to 150MHz in
increments of 100Hz (up to four decimal point
resolution).
The nominal operational range
spans from 1.8 to 3.3 Volts, without any need
for additional external components, providing
ease of use and flexibility in multi-voltage
applications.
The DSC8002 incorporates an all silicon
resonator that is extremely robust and nearly
immune to stress related fractures, common to
crystal based oscillators. Without sacrificing the
performance and stability required of today’s
systems, a crystal-less design allows for a
higher level of reliability, making the DSC8002
ideal for rugged, industrial, and portable
applications where stress, shock, and vibration
can damage quartz crystal based systems.
Available in industry standard packages, the
DSC8002 can be “dropped-in” to the same PCB
footprint as standard crystal oscillators.
Features
Frequency Range: 1 to 150MHz
Exceptional Stability over Temperature
o
±25 PPM, ±50 PPM
Operating voltage
o
1.8 to 3.3V (nominal)
o
1.65 to 3.60V (absolute max)
Operating Temperature Range
o
Industrial -40ºC to 85ºC
o
Ext. Commercial -20ºC to 70ºC
o
Commercial 0ºC to 70ºC
Low Operating and Standby Current
o
3mA Operating (40MHz)
o
1uA Standby
Ultra Miniature Footprint
o
2.5 x 2.0 x 0.85 mm
o
3.2 x 2.5 x 0.85 mm
o
5.0 x 3.2 x 0.85 mm
o
7.0 x 5.0 x 0.85 mm
Excellent shock and Vibration
Resistance
Lead Free, RoHS & Reach SVHC
Compliant
Handheld programmer available for
purchase
Benefits
Pin for pin “drop in” replacement for
industry standard oscillators
Semiconductor level reliability,
significantly higher than quartz
Frequency Resolution to 4 decimals
Fully Programmable Operating Voltage
and Frequency
Longer Battery Life / Reduced Power
Compact Plastic package
Cost Effective

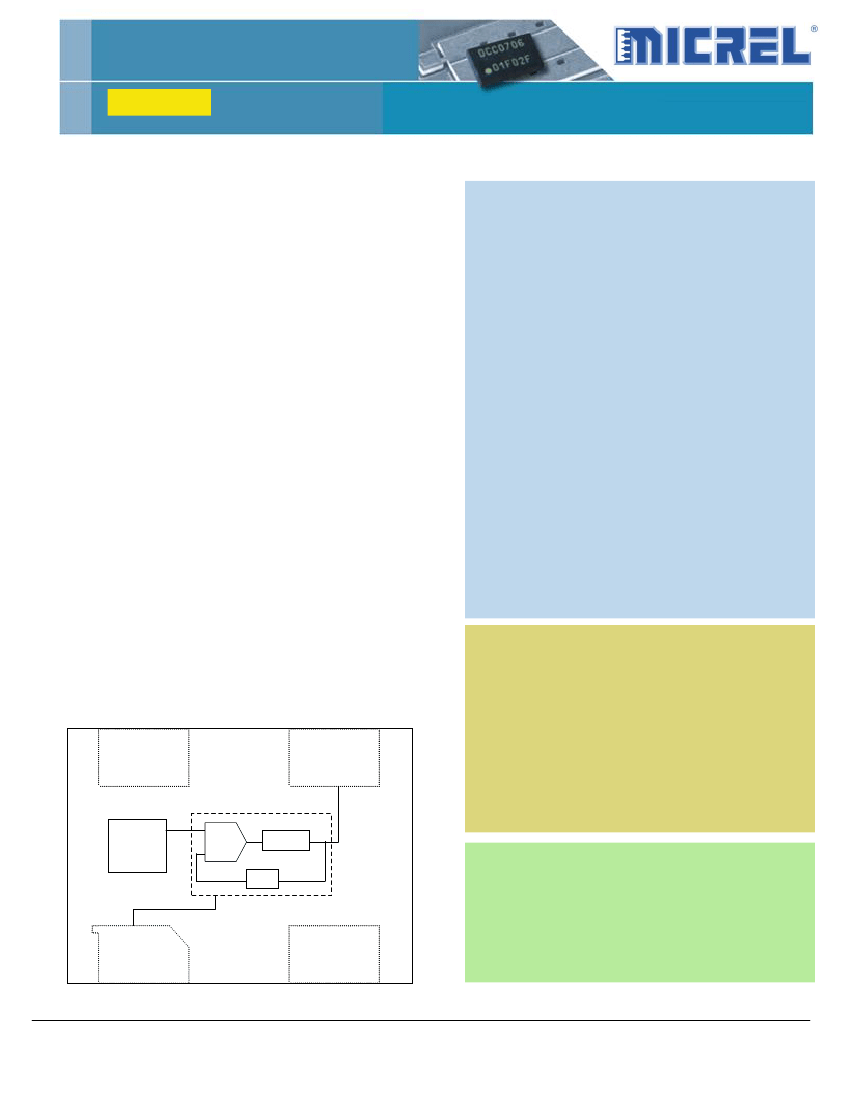

Block Diagram
V
DD
Output
Resonator
PFD
VCO
Applications
Frac-N
PLL
Standby#
(pin1)
GND
Mobile Applications
Consumer Electronics
Portable Electronics
CCD Clock for VTR Cameras
Low Profile Applications
Industrial
All Rights Reserved. No part of this document may be copied or reproduced in any form without the prior written permission of Micrel, Inc. Micrel Inc. may update or make changes
to the contents, products, programs or services described at any time without notice. This document neither states nor implies any kind of warranty, including, but not limited to
implied warranties of merchantability or fitness for a particular use.
Page 1 |
MK-Q-B-P-D-031809-06-6
DSC8002 Series
1.8 to 3.3V
Programmable Low-Power CMOS Oscillator
Absolute Maximum Ratings
1
Item
Supply Voltage
Input Voltage
Junction Temp
Storage Temp
Soldering Temp
ESD
HBM
MM
CDM
Min.
-0.3
-0.3
-
-55
-
-
2000
200
500
Max
+4.0
VDD+0.3
+150
+150
+260
Unit
V
V
°C
°C
°C
V
40 sec max.
Condition
Ordering Code
DSC8002
Family
Package, Temp
& Stability
Output Freq
1.0 to 150MHz
Tape/
Reel
CE1
-
032.0000
T
* See Ordering Information for details
Recommended Operating Conditions
Parameter
Supply Voltage
Output Load
Operating Temperature
Option 1
Option 2
Option 3
Symbol
V
DD
Z
L
T
Range
1.65 – 3.60V
R>10KΩ, C≤15pF
-40 − +85 °C
-20 − +70 °C
0 − +70 °C
Specifications
Parameter
Frequency
Frequency Tolerance
Option 1
Option 2
Option 3
Supply Current, no
load
Symbol
f
0
Condition
Single Frequency
-40°C to +85°C
-20°C to +70°C
0°C to +70°C
C
L
=0p
1 to 40MHz
R
L
=∞
40 to 80MHz
T=25°C
80 to 125MHz
125 to 150MHz
T=25°C
Min.
1
Typ.
Max.
150
±25,±50
±25,±50
±25,±50
3
4
5
6
Unit
MHz
ppm
Δf
I
DD
mA
10
1.0
uA
Supply Current,
standby
Output Logic Levels
Output logic high
Output logic low
Output Transition time
Rise Time
Fall Time
Output Startup Time
2
Output Disable Time
Output Duty Cycle
Input Logic Levels
Input logic high
Input logic low
Jitter, Cycle to Cycle
I
DD
V
OH
V
OL
t
R
t
F
t
SU
t
DA
SYM
V
IH
V
IL
J
CC
C
L
=15pF
C
L
=15pF; T=25°C
20%/80%*V
DD
T=25°C
0.8*V
DD
-
1.3
1.3
3
20
45
0.75*V
DD
-
-
0.2*V
DD
2
2
10
100
55
-
0.25* V
DD
95
Volts
ns
ms
ns
%
Volts
ps
F = 100MHz
3
Notes:
1.
Absolute maximum ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be
operated beyond these limits.
2.
Output frequency to within 100ppm of final stable output frequency.
3.
See typical cycle to cycle jitter graph for frequency dependence.
All Rights Reserved. No part of this document may be copied or reproduced in any form without the prior written permission of Micrel, Inc. Micrel Inc. may update or make changes
to the contents, products, programs or services described at any time without notice. This document neither states nor implies any kind of warranty, including, but not limited to
implied warranties of merchantability or fitness for a particular use.
Page 2 |
MK-Q-B-P-D-031809-06-6
