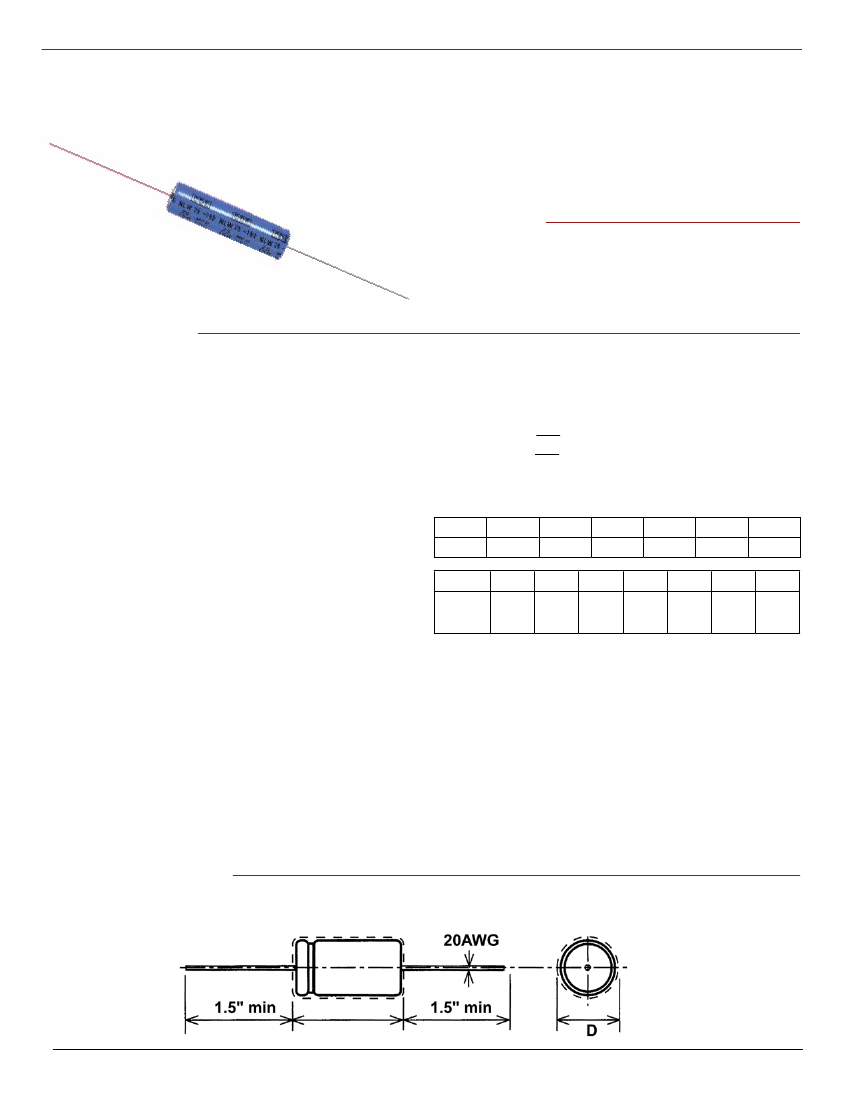

Type NLW
105 ºC, Miniature Computer Grade, Axial Leaded
105 ºComputer Grade
Type NLW Combines low DCL and ESR to provide su-
perior performance. Designed for industrial applica-
tions requiring resistance to vibration and extended
operating temperatures.
Highlights
•
•
•
•
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
Leakage Current:
Low DCL and ESR
Extended temperature
Subminiature, high capacitance, low cost
Extended Life
Specifications
1.0 to 400 µF
6.3 to 150 Vdc
–10 +75%
–40 ºC to +105 ºC
<25 Vdc 0.1 √CV +2 µA
≥25 Vdc 0.2 √CV +2 µA
Ambient Temperature
45 ºC
1.61
55 ºC
1.48
65 ºC
1.34
75 ºC
1.18
85 ºC
1.00
95 ºC
0.77
105 ºC
0.45
Ripple Current Multipliers:
Frequency
0 - 60 Vdc
61 - 150 Vdc
50 Hz
0.85
0.83
60 Hz
1.00
1.00
120 Hz
1.10
1.15
360 Hz
1.15
1.20
1 kHz
1.15
1.20
5 kHz
1.15
1.20
10 kHz+
1.15
1.20
Outline Drawing
1,000 h @ +105 ºC
∆ Capacitance ±20%
∆ ESR 200% of limit
∆ DCL 200% of limit
Shelf Life:
1,000 h @ +105 ºC
∆ Capacitance ±20%
∆ ESR 200% of limit
∆ DCL 200% of limit
Vibration:
10 to 55 Hz; 0.06” and 10 g max, 2 h in each
plane
Load Life:
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type NLW
105 ºC, Miniature Computer Grade, Axial Leaded
