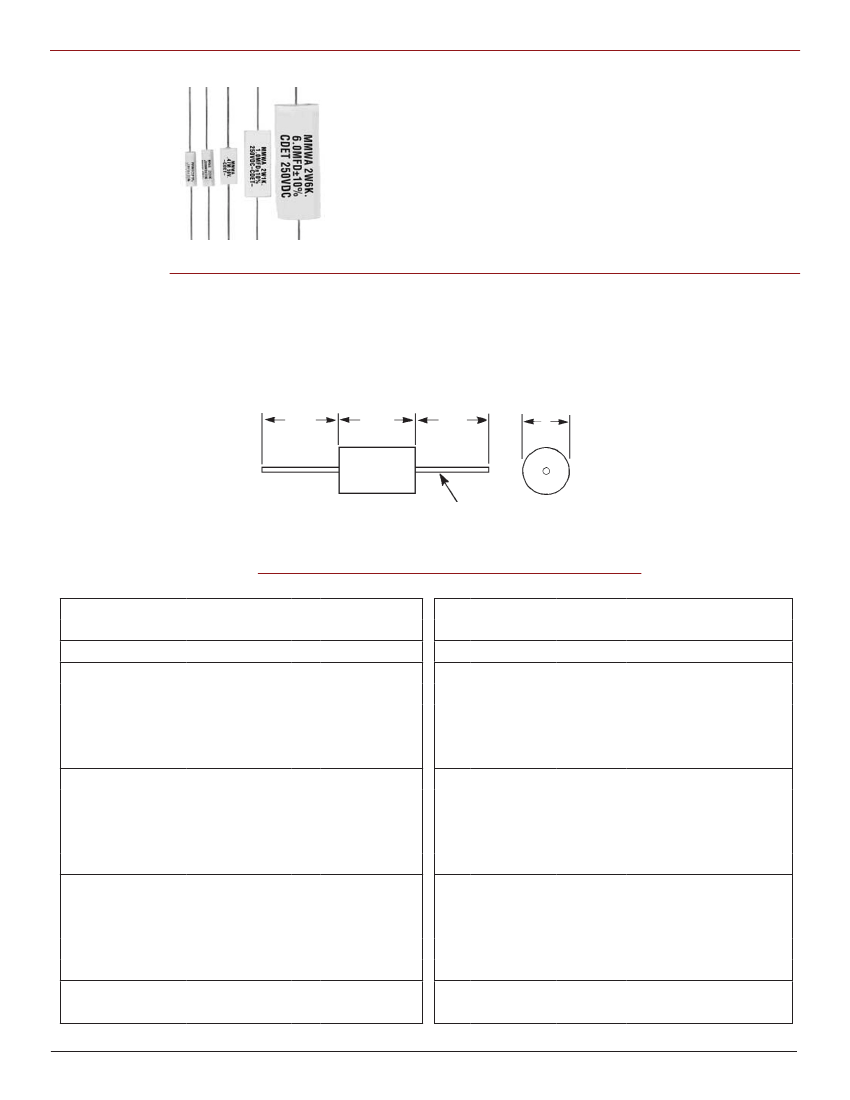

Type MMWA,
Polyester Film Capacitors
Metallized
Axial Leads
High Capacitance, High Voltage
Type MMWA axial-leaded, metallized polyester film
capacitors incorporate compact, non-inductive extended
windings with epoxy end seals to ofer excellent moisture
resistance and capacitance stability over the operating
temperature range. Metallized polyester provides self-
healing characteristics that help prevent permanent
shorting due to high voltage transients.
Specifcations
Voltage Range:
50-1,000 Vdc
Capacitance Range:
.01-10 µF
Capacitance Tolerance:
±10% (K) standard
±5% (J) optional
Operating Temperature Range:
-55°C to 125°C*
*Full-rated voltage at 85°C–Derate linearly to 50%-rated voltage at 125°C
RoHS Compliant
Dielectric Strength:
200% (1 minute)
Dissipation Factor:
.75% Max. (25°C, 1 kHz)
Insulation Resistance:
10,000 M
Ω
x µF
30,000 M
Ω
Min.
Life Test:
1000 Hours at 85°C at 125% Rated Voltage
1.50”
(38.1mm)
MAX.
D
1.50”
(38.1mm)
L MAX.
d
TINNED COPPER-CLAD STEEL LEADS
NOTE:
Other capacitance values, sizes and performance specifcations are
available. Contact us.
Ratings and Dimensions
Cap.
(µF)
Catalog
Part Number
D
L
d
dV/dt
V/μs
Cap.
(µF)
Catalog
Part Number
D
Inches (mm) Inches (mm) Inches (mm)
50 Vd
0.100 MMWA05P1K-F
0.150 MMWA05P15K-F
0.220 MMWA05P22K-F
0.330 MMWA05P33K-F
0.470 MMWA05P47K-F
0.680 MMWA05P68K-F
1.000 MMWA05W1K-F
1.500 MMWA05W1P5K-F
2.000 MMWA05W2K-F
3.000 MMWA05W3K-F
4.000 MMWA05W4K-F
5.000 MMWA05W5K-F
6.000 MMWA05W6K-F
7.000 MMWA05W7K-F
8.000 MMWA05W8K-F
9.000 MMWA05W9K-F
10.000 MMWA05W10K-F
0.220
0.210
0.240
0.280
0.320
0.290
0.335
0.355
(5.6)
(5.3)
(6.1)
(7.1)
(8.1)
(7.4)
(8.5)
(9.0)
0.562 (14.3) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.024 (0.6)
0.687 (17.4) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
1.250 (31.7) 0.024 (0.6)
36
20
20
20
20
9
9
9
9
9
5
4
4
4
4
4
4
0.010 MMWA1S1K-F
0.015 MMWA1S15K-F
0.022 MMWA1S22K-F
0.033 MMWA1S33K-F
0.047 MMWA1S47K-F
0.068 MMWA1S68K-F
0.100 MMWA1P1K-F
0.150 MMWA1P15K-F
0.220 MMWA1P22K-F
0.330 MMWA1P33K-F
0.470 MMWA1P47K-F
0.680 MMWA1P68K-F
1.000 MMWA1W1K-F
1.500 MMWA1W1P5K-F
2.000 MMWA1W2K-F
3.000 MMWA1W3K-F
4.000 MMWA1W4K-F
Normally Stocked
L
d
dV/dt
V/μs
Inches (mm) Inches (mm) Inches (mm)
100 Vdc
0.197
0.197
0.197
0.197
0.217
0.217
0.236
0.236
0.256
0.295
0.320
0.320
0.374
0.374
(5.0)
(5.0)
(5.0)
(5.0)
(5.5)
(5.5)
(6.0)
(6.0)
(6.5)
(7.5)
(8.1)
(8.1)
(9.5)
(9.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.024 (0.6)
0.687 (17.4) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
1.250 (31.7) 0.024 (0.6)
36
36
36
36
36
36
36
20
20
20
20
9
9
9
9
9
5
0.400 (10.2) 1.250 (31.7) 0.024 (0.6)
0.475 (12.1) 1.250 (31.7) 0.024 (0.6)
0.505 (12.8) 1.375 (34.9) 0.024 (0.6)
0.525 (13.3) 1.500 (38.1) 0.024 (0.6)
0.585 (14.9) 1.500 (38.1) 0.032 (0.8)
0.625 (15.9) 1.500 (38.1) 0.032 (0.8)
0.669 (17.0) 1.500 (38.1) 0.040 (1.0)
0.700 (17.8) 1.500 (38.1) 0.040 (1.0)
0.670 (17.0) 1.750 (44.4) 0.040 (1.0)
0.400 (10.2) 1.250 (31.7) 0.024 (0.6)
0.475 (12.1) 1.250 (31.7) 0.024 (0.6)
0.505 (12.8) 1.375 (34.9) 0.032 (0.8)
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02740
•
Phone: (508)996-8561
•
Fax: (508)996-3830 www.cde.com
Type MMWA,
Polyester Film Capacitors
Cap.
(µF)
5.000
6.000
7.000
8.000
9.000
10.000
Catalog
Part Number
MMWA1W5K-F
MMWA1W6K-F
MMWA1W7K-F
MMWA1W8K-F
MMWA1W9K-F
MMWA1W10K-F
D
L
d
dV/dt
Cap.
(µF)
0.680
1.000
Catalog
Part Number
MMWA4P68K-F
MMWA4W1K-F
D
L
d
dV/dt
Inches (mm) Inches (mm) Inches (mm) V/μs
0.525 (13.3) 1.500 (38.1) 0.032 (0.8)
0.585 (14.9) 1.500 (38.1) 0.032 (0.8)
0.625 (15.9) 1.500 (38.1) 0.032 (0.8)
0.669 (17.0) 1.500 (38.1) 0.040 (1.0)
0.700 (17.8) 1.500 (38.1) 0.040 (1.0)
0.768 (19.5) 1.750 (44.4) 0.040 (1.0)
200/250 Vdc
0.010
0.015
0.022
0.033
0.047
0.068
0.100
0.150
0.220
0.330
0.470
0.680
1.000
1.500
2.000
3.000
3.500
4.000
5.000
6.000
MMWA2S1K-F
MMWA2S15K-F
MMWA2S22K-F
MMWA2S33K-F
MMWA2S47K-F
MMWA2S68K-F
MMWA2P1K-F
MMWA2P15K-F
MMWA2P22K-F
MMWA2P33K-F
MMWA2P47K-F
MMWA2P68K-F
MMWA2W1K-F
MMWA2W1P5K-F
MMWA2W2K-F
MMWA2W3K-F
MMWA2W3P5K-F
MMWA2W4K-F
MMWA2W5K-F
MMWA2W6K-F
0.197
0.197
0.197
0.197
0.217
0.200
0.240
0.276
0.310
0.365
0.374
0.365
(5.0)
(5.0)
(5.0)
(5.0)
(5.5)
(5.1)
(6.1)
(7.0)
(7.9)
(9.3)
(9.5)
(9.3)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.024 (0.6)
0.687 (17.4) 0.024 (0.6)
0.728 (18.5) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
52
52
52
52
52
29
29
29
29
29
14
14
14
14
14
6
6
5
5
5
0.010
0.015
0.022
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.562 (14.3) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.024 (0.6)
0.687 (17.4) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
82
82
82
46
46
46
46
22
22
22
22
0.033
0.047
0.068
0.100
0.150
0.220
0.330
0.470
0.680
1.000
MMWA10S1K-F
MMWA10S15K-F
MMWA10S22K-F
MMWA10S33K-F
MMWA10S47K-F
MMWA10S68K-F
MMWA10P1K-F
MMWA10P15K-F
MMWA10P22K-F
MMWA10P33K-F
MMWA10P47K-F
MMWA10P68K-F
MMWA10W1K-F
0.010
0.015
0.022
0.033
0.047
0.068
0.100
0.150
0.220
0.330
0.470
0.680
1.000
2.000
3.000
MMWA6S1K-F
MMWA6S15K-F
MMWA6S22K-F
MMWA6S33K-F
MMWA6S47K-F
MMWA6S68K-F
MMWA6P1K-F
MMWA6P15K-F
MMWA6P22K-F
MMWA6P33K-F
MMWA6P47K-F
MMWA6P68K-F
MMWA6W1K-F
MMWA6W2K-F
MMWA6W3K-F
4
4
4
4
4
3
Inches (mm) Inches (mm) Inches (mm) V/μs
0.433
0.470
0.570
0.669
0.695
0.745
0.790
0.870
(11.0)
(11.9)
(14.5)
(17.0)
(17.6)
(18.9)
(20.1)
(22.1)
1.500 (38.1) 0.024 (0.6)
1.750 (44.4) 0.024 (0.6)
1.750 (44.4) 0.032 (0.8)
1.750 (44.4) 0.040 (1.0)
2.125 (54.0) 0.040 (1.0)
2.125 (54.0) 0.040 (1.0)
2.125 (54.0) 0.040 (1.0)
2.125 (54.0) 0.040 (1.0)
10
8
8
8
6
6
6
6
1.500 MMWA4W1P5K-F
2.000
3.000
MMWA4W2K-F
MMWA4W3K-F
3.500 MMWA4W3P5K-F
4.000
5.000
MMWA4W4K-F
MMWA4W5K-F
600/630 Vdc
0.217
0.236
0.276
0.270
0.305
0.335
0.374
0.413
0.430
0.480
0.470
0.570
0.685
0.805
0.945
(5.5)
(6.0)
(7.0)
(6.9)
(7.7)
(8.5)
(9.5)
(10.5)
(10.9)
(12.2)
(11.9)
(14.5)
(17.4)
(20.4)
(24.0)
0.687 (17.4) 0.020 (0.5)
0.687 (17.4) 0.020 (0.5)
0.750 (19.0) 0.020 (0.5)
0.750 (19.0) 0.024 (0.6)
0.750 (19.0) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
1.000 (25.4) 0.024 (0.6)
1.187 (30.1) 0.024 (0.6)
1.250 (31.7) 0.024 (0.6)
1.250 (31.7) 0.024 (0.6)
1.750 (44.4) 0.024 (0.6)
1.750 (44.4) 0.032 (0.8)
1.750 (44.4) 0.040 (1.0)
2.250 (57.1) 0.040 (1.0)
2.250 (57.1) 0.040 (1.0)
69
69
69
69
69
32
32
32
32
32
12
12
12
10
10
0.430 (10.9) 1.062 (27.0) 0.024 (0.6)
0.465 (11.8) 1.250 (31.7) 0.024 (0.6)
0.525 (13.3) 1.250 (31.7) 0.032 (0.8)
0.555 (14.1) 1.500 (38.1) 0.032 (0.8)
0.610 (15.5) 1.500 (38.1) 0.032 (0.8)
0.590 (15.0) 1.750 (44.4) 0.032 (0.8)
0.669 (17.0) 1.750 (44.4) 0.040 (1.0)
0.705 (17.9) 1.750 (44.4) 0.040 (1.0)
400 Vdc
1000 Vdc
0.240
0.275
0.320
0.380
0.335
0.410
0.485
0.595
0.605
0.640
0.750
0.810
0.880
(6.1)
(7.0)
(8.1)
(9.6)
(8.5)
(10.4)
(12.3)
(15.1)
(15.4)
(16.3)
(19.0)
(20.6)
(22.3)
0.875 (22.2) 0.020 (0.5)
0.875 (22.2) 0.024 (0.6)
0.875 (22.2) 0.024 (0.6)
0.875 (22.2) 0.024 (0.6)
1.062 (27.0) 0.024 (0.6)
1.125 (28.6) 0.024 (0.6)
1.125 (28.6) 0.024 (0.6)
1.125 (28.6) 0.032 (0.8)
1.312 (33.3) 0.032 (0.8)
1.500 (38.1) 0.032 (0.8)
1.500 (38.1) 0.040 (1.0)
1.750 (44.4) 0.040 (1.0)
1.937 (49.2) 0.040 (1.0)
220
220
220
220
120
120
120
120
85
50
50
45
40
0.010
0.015
0.022
0.033
0.047
0.068
0.100
0.150
0.220
0.330
0.470
MMWA4S1K-F
MMWA4S15K-F
MMWA4S22K-F
MMWA4S33K-F
MMWA4S47K-F
MMWA4S68K-F
MMWA4P1K-F
MMWA4P15K-F
MMWA4P22K-F
MMWA4P33K-F
MMWA4P47K-F
0.217
0.217
0.236
0.220
0.276
0.280
0.320
0.290
0.335
(5.5)
(5.5)
(6.0)
(5.6)
(7.0)
(7.1)
(8.1)
(7.4)
(8.5)
0.394 (10.0) 1.187 (30.1) 0.024 (0.6)
0.433 (11.0) 1.187 (30.1) 0.024 (0.6)
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02740
•
Phone: (508)996-8561
•
Fax: (508)996-3830 www.cde.com
Type MMWA,
Polyester Film Capacitors
Notice and Disclaimer:
All product drawings, descriptions, specifcations, statements, information and data
(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer
is responsible for checking, confrming and verifying the extent to which the Information contained in this
datasheet or other publication is applicable to an order at the time the order is placed. All Information given
herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation
or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based
on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”) has
of operating conditions that such Cornell Dubilier company regards as typical for such applications, but
are not intended to constitute any guarantee, warranty or representation regarding any such matter – and
Cornell Dubilier specifcally and expressly disclaims any guarantee, warranty or representation concerning
the suitability for a specifc customer application, use, storage, transportation, or operating environment.
The Information is intended for use only by customers who have the requisite experience and capability to
determine the correct products for their application. Any technical advice inferred from this Information or
otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given
gratis (unless otherwise specifed by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability
for the advice given or results obtained. Although Cornell Dubilier strives to apply the most stringent quality
and safety standards regarding the design and manufacturing of its products, in light of the current state
of the art, isolated component failures may still occur. Accordingly, customer applications which require a
high degree of reliability or safety should employ suitable designs or other safeguards (such as installation
of protective circuitry or redundancies or other appropriate protective measures) in order to ensure that the
failure of an electrical component does not result in a risk of personal injury or property damage. Although
all product-related warnings, cautions and notes must be observed, the customer should not assume that all
safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be
required.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02740
•
Phone: (508)996-8561
•
Fax: (508)996-3830 www.cde.com
/2017101075620_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD/2017101075620_pdf/1.png)
/2017101075620_pdf/2.png)
/2017101075620_pdf/3.png)
/2017101075620_pdf/pg_0002.png)
/2017101075620_pdf/pg_0003.png)
