MIC2951-02BJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MIC2951-02BJ

MIC2951-02BJ: DescriptionFixed/Adjustable Positive LDO Regulator, 4.975V Min, 5.025V Max, 0.08V Dropout, BIPolar, CDIP8, CERDIP-8; CategoryPower/power management The power supply circuit; File Size479KB，13 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

MIC2951-02BJ Overview

Fixed/Adjustable Positive LDO Regulator, 4.975V Min, 5.025V Max, 0.08V Dropout, BIPolar, CDIP8, CERDIP-8

MIC2951-02BJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Adjustability	FIXED/ADJUSTABLE
Maximum drop-back voltage 1	0.08 V
Nominal dropback voltage 1	0.38 V
Maximum absolute input voltage	30 V
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
length	9.7155 mm
Maximum grid adjustment rate	0.01%
Maximum load regulation	0.01%
Number of functions	1
Output times	1
Number of terminals	8
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.15 A
Maximum output voltage 1	5.025 V
Minimum output voltage 1	4.975 V
Nominal output voltage 1	5 V
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	5.08 mm
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	1.5%
width	7.62 mm

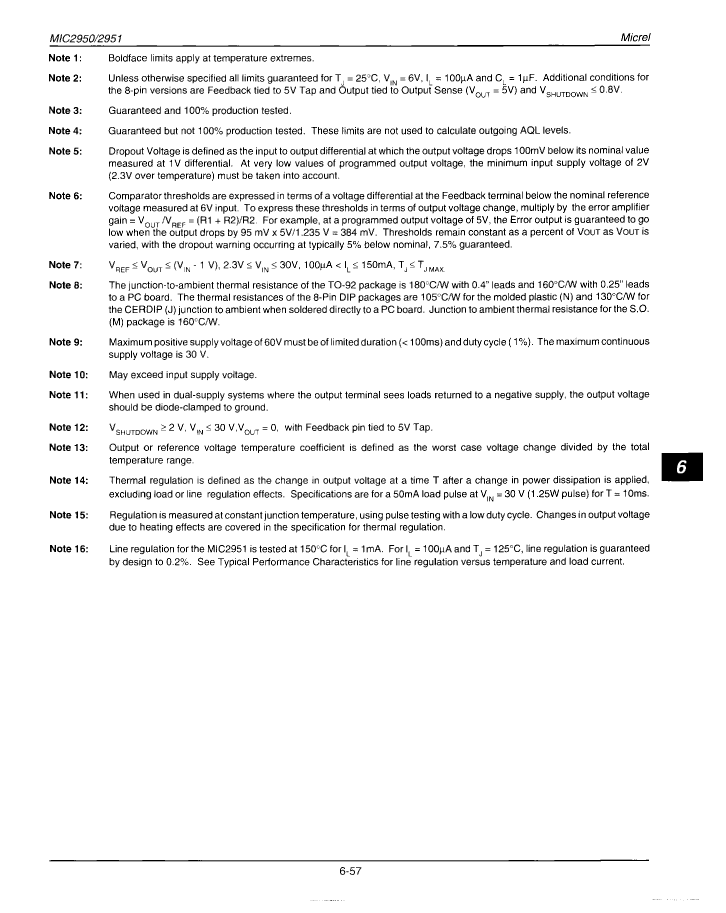

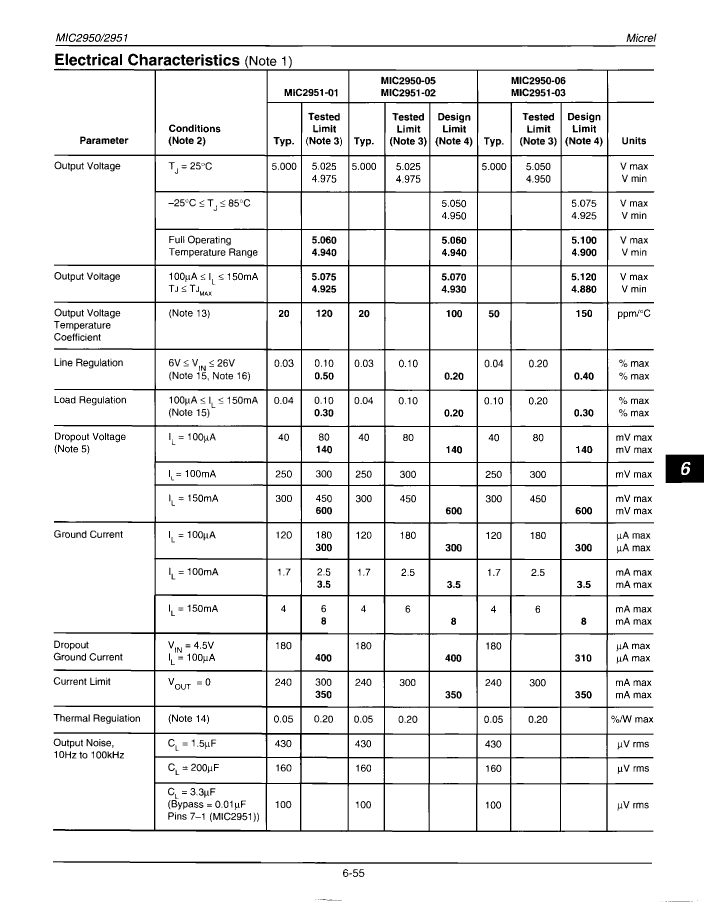

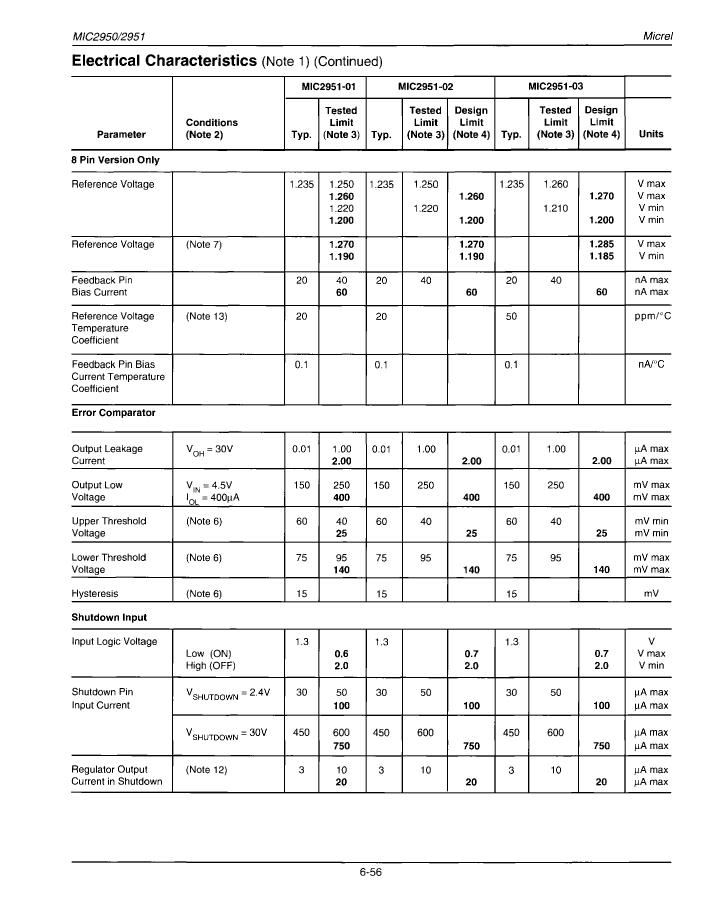

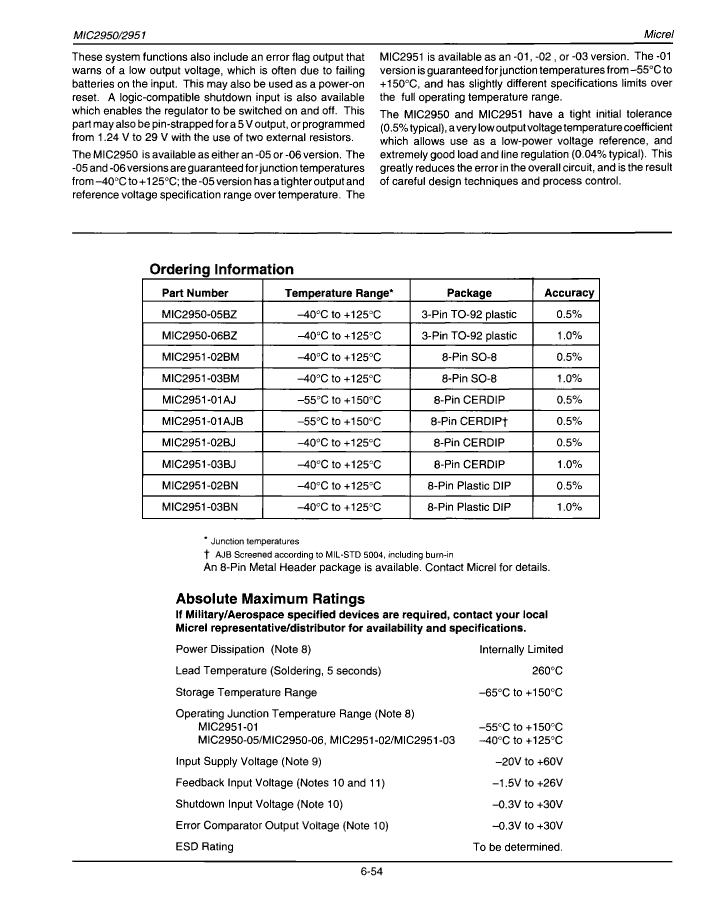

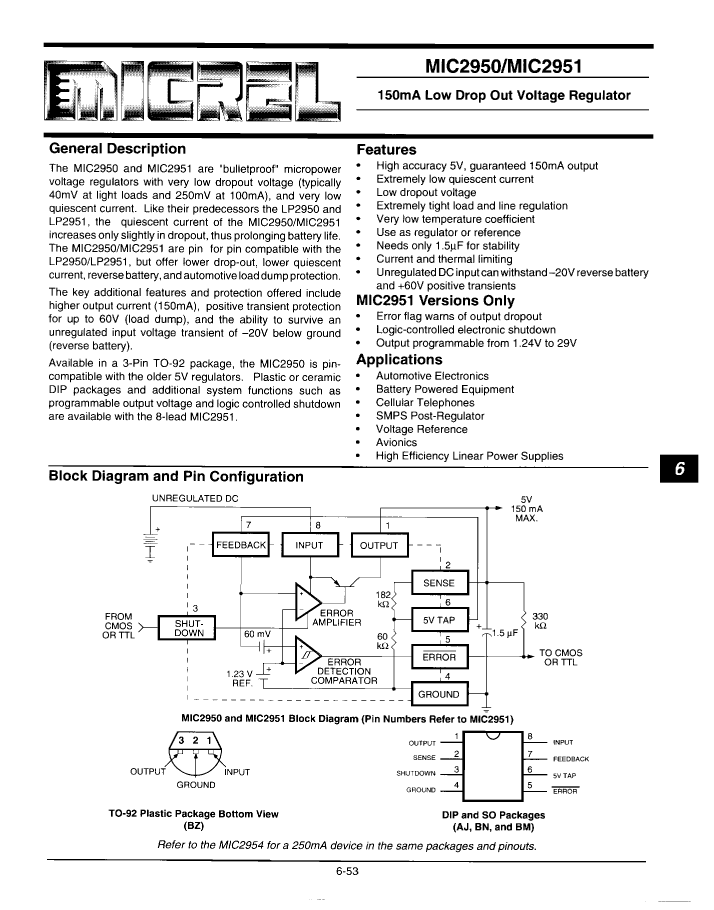

Preview

Download Datasheet

View All

MIC2951-02BJ Related Products

	MIC2951-02BJ	MIC2951-03BJ	MIC2951-01AJ	MIC2951-01AJB
Description	Fixed/Adjustable Positive LDO Regulator, 4.975V Min, 5.025V Max, 0.08V Dropout, BIPolar, CDIP8, CERDIP-8	Fixed/Adjustable Positive LDO Regulator, 4.95V Min, 5.05V Max, 0.08V Dropout, BIPolar, CDIP8, CERDIP-8	Fixed/Adjustable Positive LDO Regulator, 4.975V Min, 5.025V Max, 0.08V Dropout, BIPolar, CDIP8, CERDIP-8	Fixed/Adjustable Positive LDO Regulator, 4.975V Min, 5.025V Max, 0.08V Dropout, BIPolar, CDIP8, CERDIP-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Microchip	Microchip	Microchip	Microchip
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3
Contacts	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Adjustability	FIXED/ADJUSTABLE	FIXED/ADJUSTABLE	FIXED/ADJUSTABLE	FIXED/ADJUSTABLE
Maximum drop-back voltage 1	0.08 V	0.08 V	0.08 V	0.08 V
Nominal dropback voltage 1	0.38 V	0.38 V	0.38 V	0.38 V
Maximum absolute input voltage	30 V	30 V	30 V	30 V
JESD-30 code	R-GDIP-T8	R-GDIP-T8	R-GDIP-T8	R-GDIP-T8
JESD-609 code	e0	e0	e0	e0
length	9.7155 mm	9.7155 mm	9.7155 mm	9.7155 mm
Maximum grid adjustment rate	0.01%	0.02%	0.025%	0.025%
Maximum load regulation	0.01%	0.015%	0.015%	0.015%
Number of functions	1	1	1	1
Output times	1	1	1	1
Number of terminals	8	8	8	8
Working temperatureTJ-Max	125 °C	125 °C	150 °C	150 °C
Working temperature TJ-Min	-40 °C	-40 °C	-55 °C	-55 °C
Maximum output current 1	0.15 A	0.15 A	0.15 A	0.15 A
Maximum output voltage 1	5.025 V	5.05 V	5.025 V	5.025 V
Minimum output voltage 1	4.975 V	4.95 V	4.975 V	4.975 V
Nominal output voltage 1	5 V	5 V	5 V	5 V
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum voltage tolerance	1.5%	2.4%	1.5%	1.5%
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm
