MIC8013-02BN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> MIC8013-02BN

MIC8013-02BN: DescriptionLiquid Crystal Driver, 30-Segment, CMOS, PDIP40, PLASTIC, DIP-40; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size210KB，7 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

MIC8013-02BN Overview

Liquid Crystal Driver, 30-Segment, CMOS, PDIP40, PLASTIC, DIP-40

MIC8013-02BN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	compli
ECCN code	EAR99
data entry mode	SERIAL
display mode	DOT MATRIX
Input properties	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
Multiplex display function	NO
Number of base plates	1-BP
Number of functions	1
Number of segments	30
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	TOTEM-POLE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/16,-25 V
Certification status	Not Qualified
Maximum seat height	4.318 mm
Maximum slew rate	0.2 mA
Maximum supply voltage	16 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
Supply voltage 1-max	11 V
Mains voltage 1-minute	-29 V
Supply voltage1-Nom	-25 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
minfmax	2 MHz

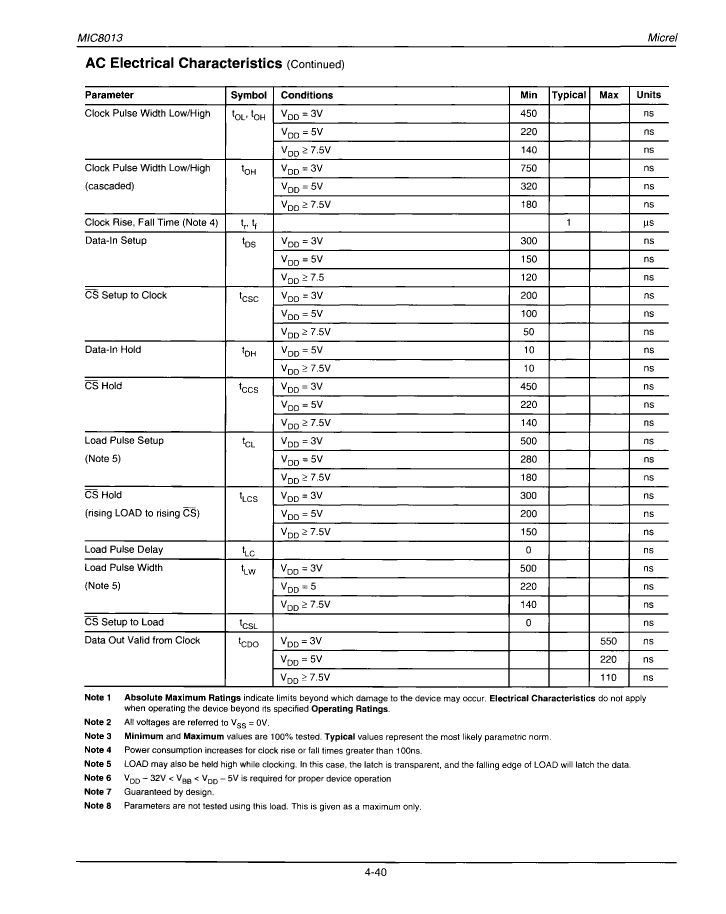

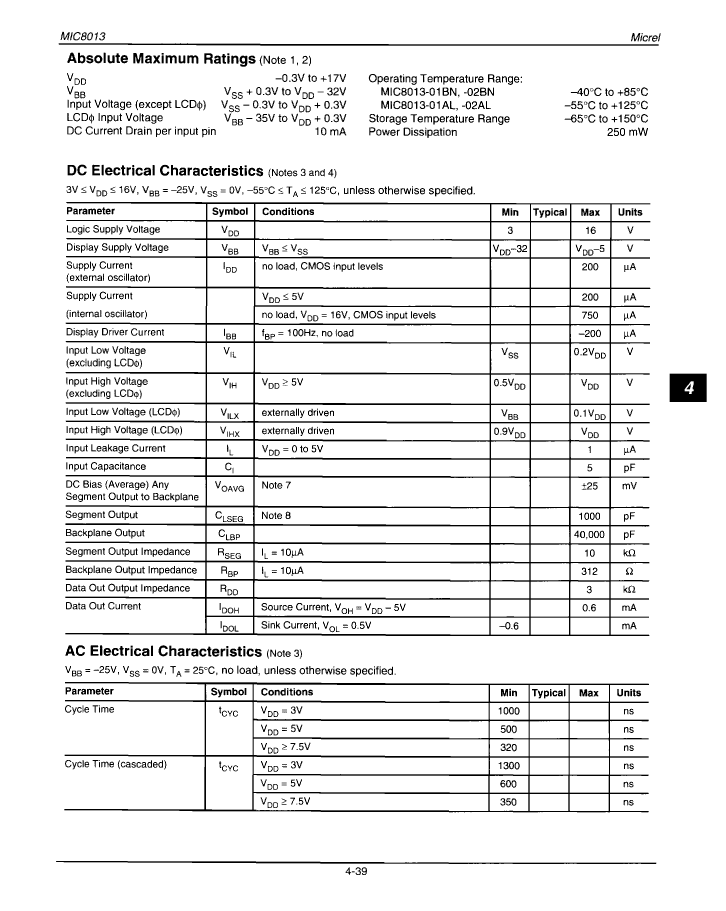

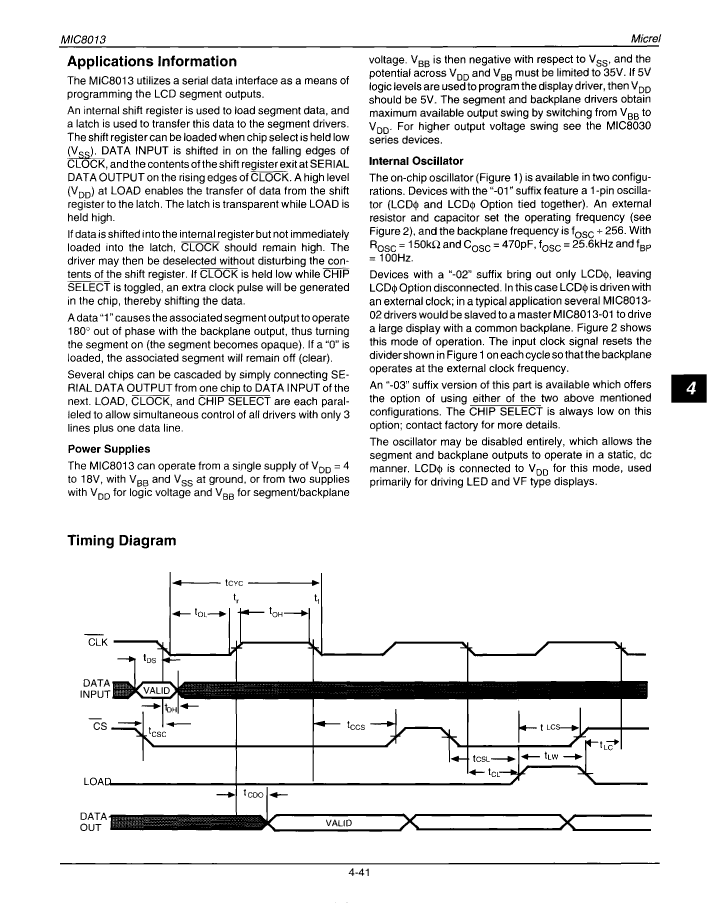

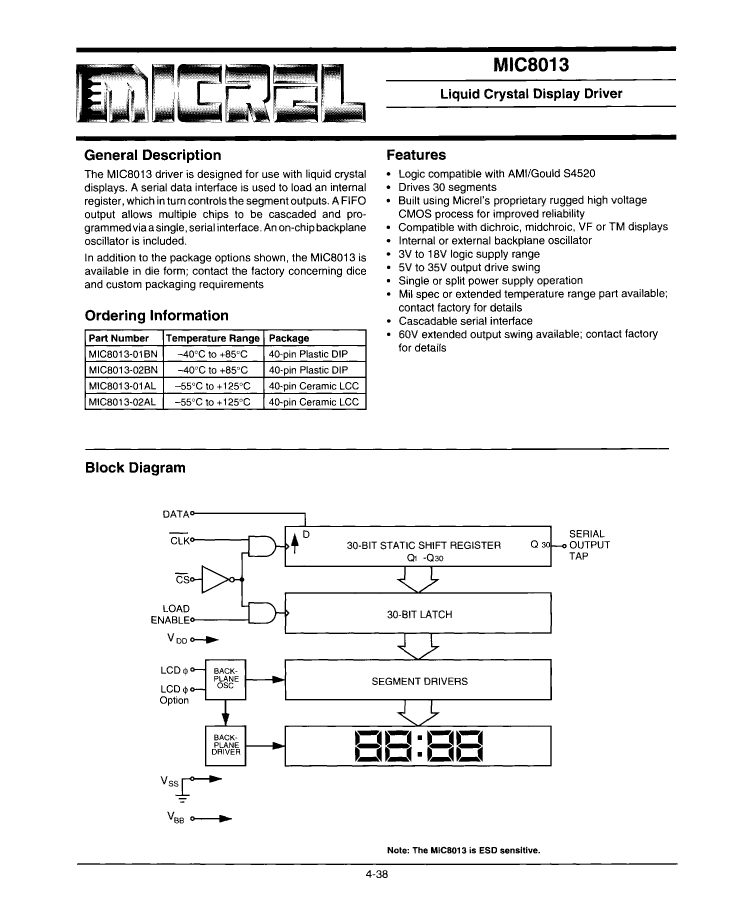

Preview

Download Datasheet

View All

MIC8013-02BN Related Products

	MIC8013-02BN	MIC8013-01BN	MIC8013-01AL	MIC8013-02AL
Description	Liquid Crystal Driver, 30-Segment, CMOS, PDIP40, PLASTIC, DIP-40	Liquid Crystal Driver, 30-Segment, CMOS, PDIP40, PLASTIC, DIP-40	Liquid Crystal Driver, 30-Segment, CMOS, CQCC40, CERAMIC, LCC-40	Liquid Crystal Driver, 30-Segment, CMOS, CQCC40, CERAMIC, LCC-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Microchip	Microchip	Microchip	Microchip
Parts packaging code	DIP	DIP	LCC	LCC
package instruction	DIP, DIP40,.6	DIP, DIP40,.6	QCCN, LCC40,.5SQ,40	QCCN, LCC40,.5SQ,40
Contacts	40	40	40	40
Reach Compliance Code	compli	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
data entry mode	SERIAL	SERIAL	SERIAL	SERIAL
display mode	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX
Input properties	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-PDIP-T40	R-PDIP-T40	S-CQCC-N40	S-CQCC-N40
JESD-609 code	e0	e0	e0	e0
Multiplex display function	NO	NO	NO	NO
Number of base plates	1-BP	1-BP	1-BP	1-BP
Number of functions	1	1	1	1
Number of segments	30	30	30	30
Number of terminals	40	40	40	40
Maximum operating temperature	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-55 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	QCCN	QCCN
Encapsulate equivalent code	DIP40,.6	DIP40,.6	LCC40,.5SQ,40	LCC40,.5SQ,40
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	240	240
power supply	3/16,-25 V	3/16,-25 V	3/16,-25 V	3/16,-25 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.318 mm	4.318 mm	1.7 mm	1.7 mm
Maximum slew rate	0.2 mA	0.2 mA	0.2 mA	0.2 mA
Maximum supply voltage	16 V	16 V	16 V	16 V
Minimum supply voltage	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V
Supply voltage 1-max	11 V	11 V	11 V	11 V
Mains voltage 1-minute	-29 V	-29 V	-29 V	-29 V
Supply voltage1-Nom	-25 V	-25 V	-25 V	-25 V
surface mount	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	1.016 mm	1.016 mm
Terminal location	DUAL	DUAL	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	12.3 mm	12.3 mm
minfmax	2 MHz	2 MHz	2 MHz	2 MHz
