SY100E111JCJC datasheet, PDF - EEWORLD Datasheet

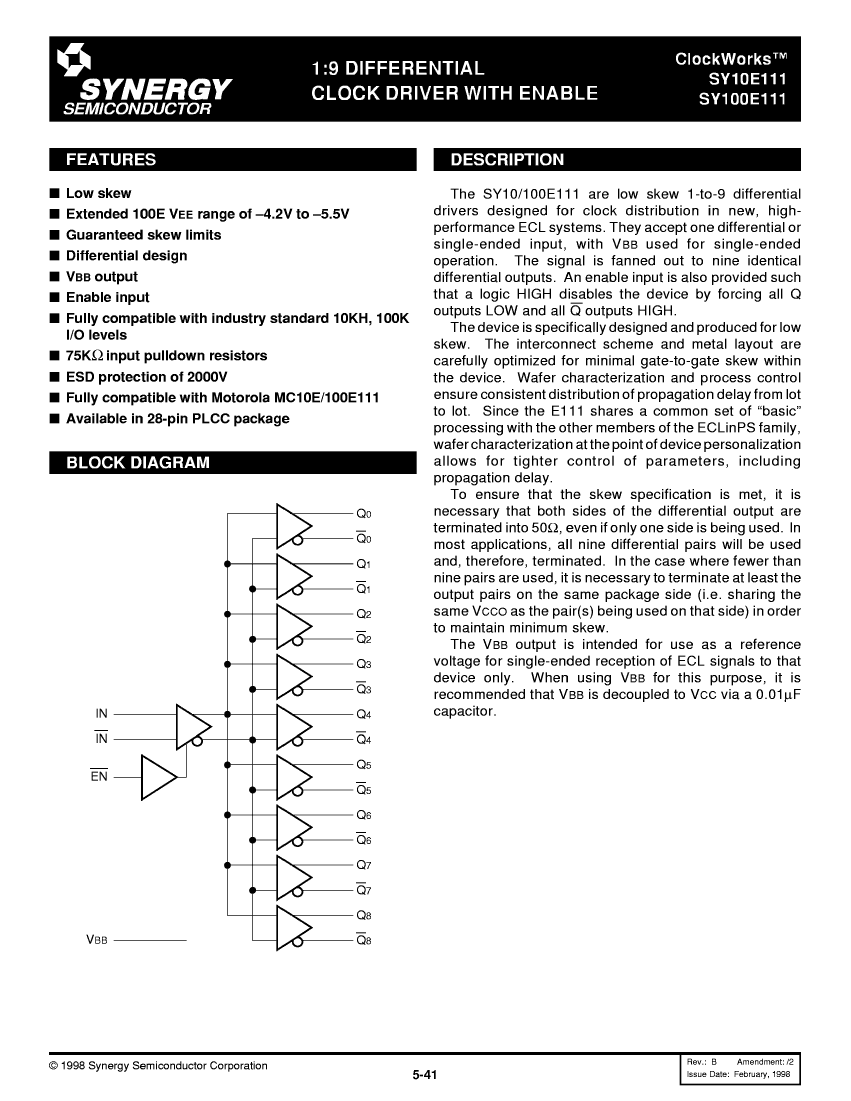

SY100E111JCJC: DescriptionLow Skew Clock Driver, 100E Series, 9 True Output(s), 0 Inverted Output(s), ECL, PQCC28, PLASTIC, LCC-28; Categorylogic logic; File Size152KB，4 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

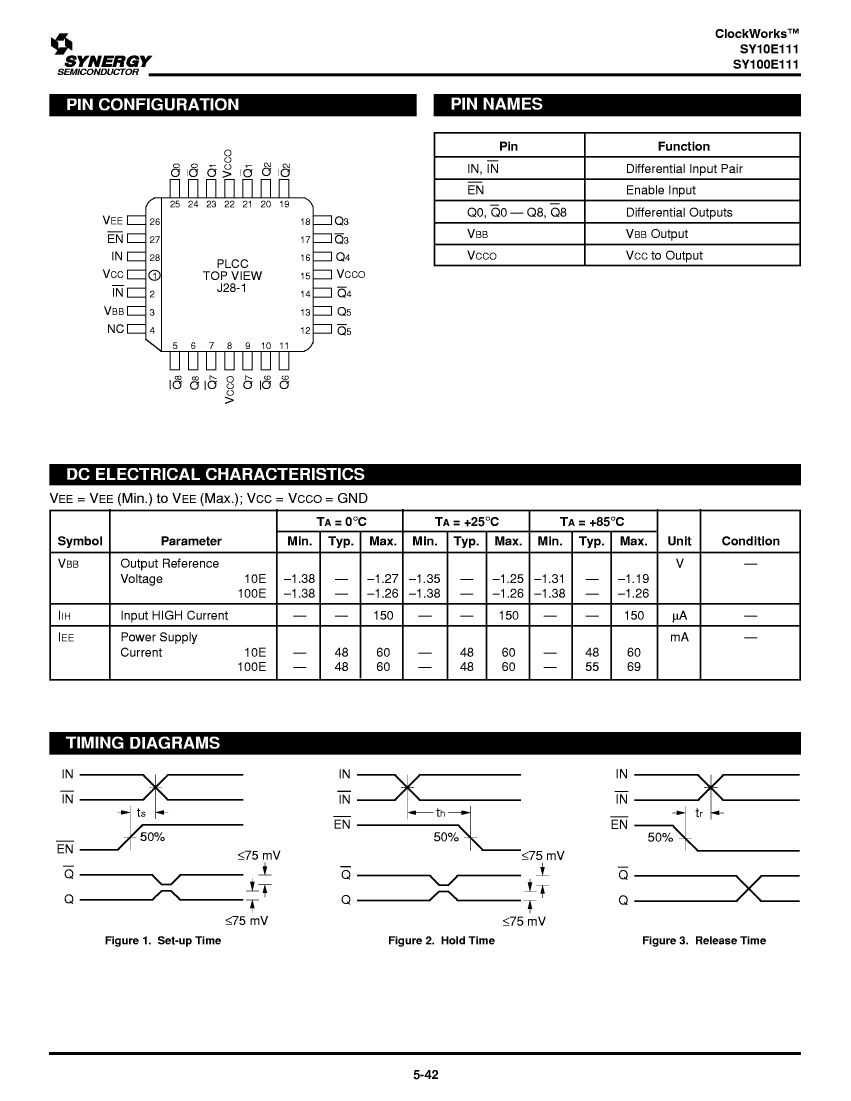

SY100E111JCJC Overview

Low Skew Clock Driver, 100E Series, 9 True Output(s), 0 Inverted Output(s), ECL, PQCC28, PLASTIC, LCC-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip

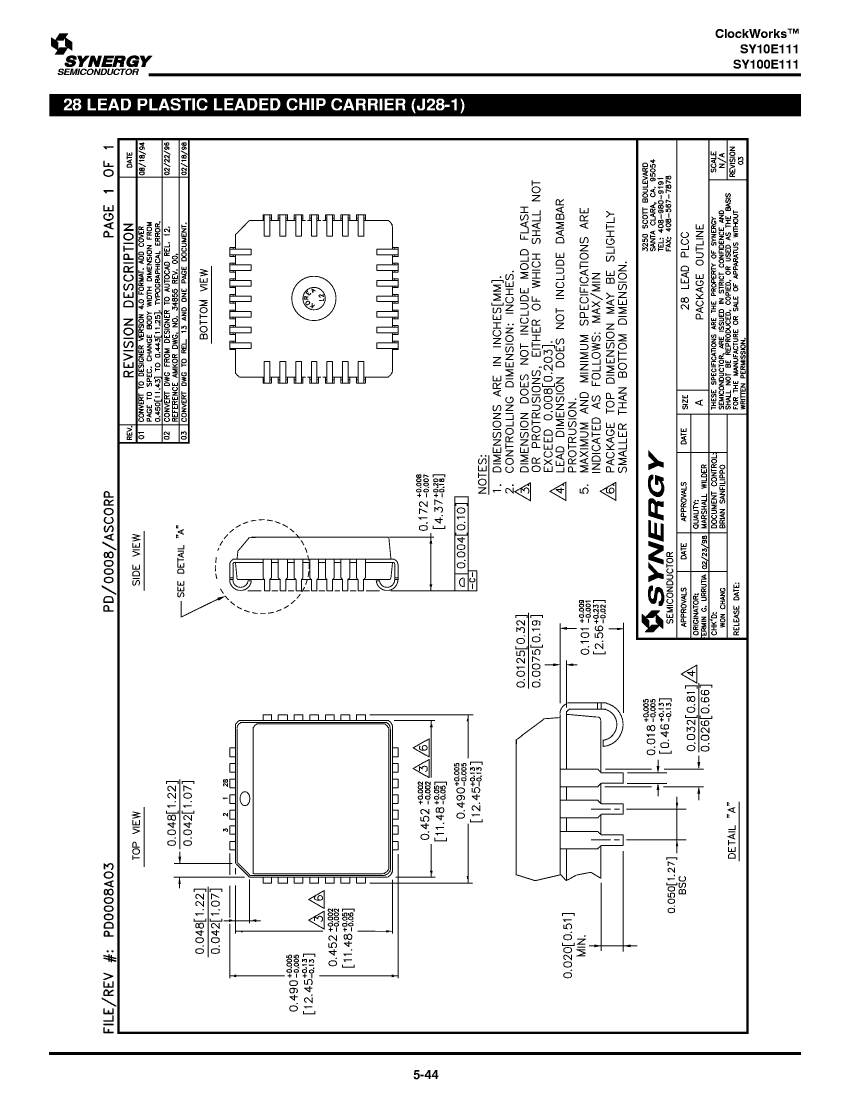

package instruction	QCCJ,
Reach Compliance Code	compli
series	100E
Input adjustment	DIFFERENTIAL
JESD-30 code	S-PQCC-J28
JESD-609 code	e0
length	11.48 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Humidity sensitivity level	1
Number of functions	1
Number of inverted outputs
Number of terminals	28
Actual output times	9
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240

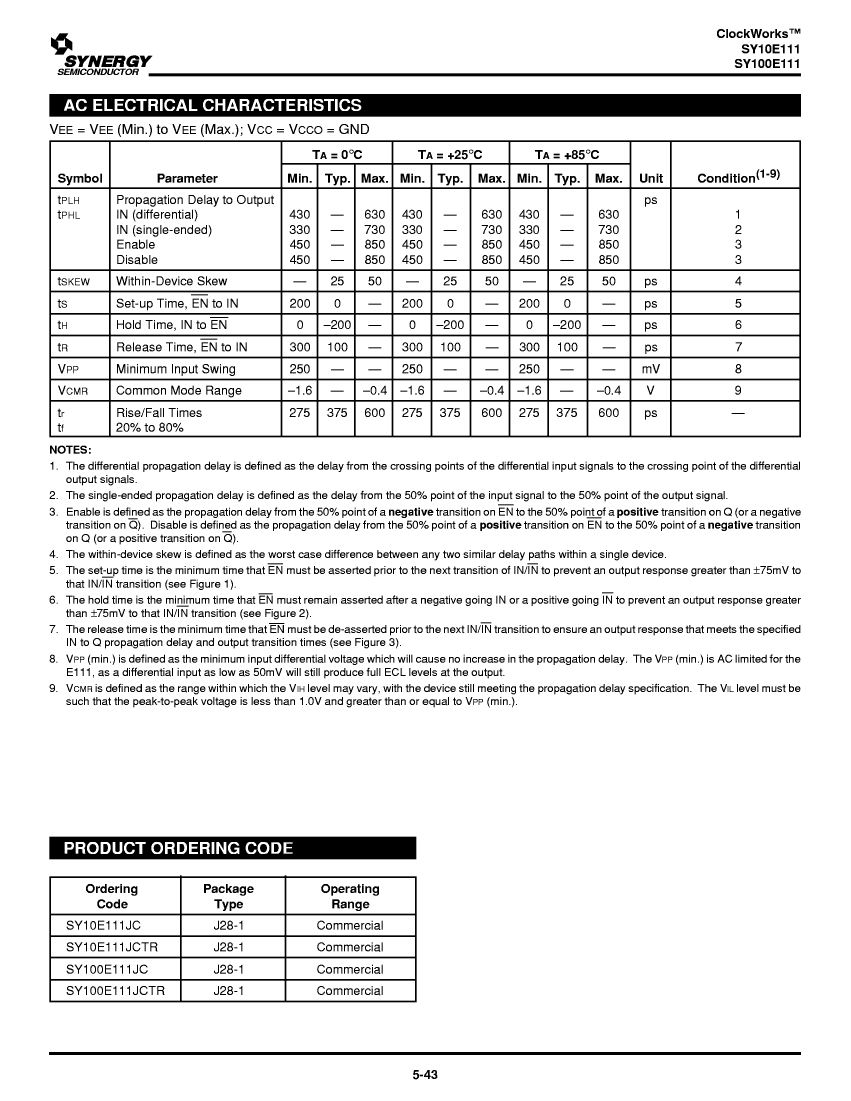

propagation delay (tpd)	0.73 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.05 ns
Maximum seat height	4.57 mm
surface mount	YES
technology	ECL
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	11.48 mm

	SY100E111JCJC	SY100E111JCJCTR
Description	Low Skew Clock Driver, 100E Series, 9 True Output(s), 0 Inverted Output(s), ECL, PQCC28, PLASTIC, LCC-28	Low Skew Clock Driver, 100E Series, 9 True Output(s), 0 Inverted Output(s), ECL, PQCC28, PLASTIC, LCC-28
Is it Rohs certified?	incompatible	incompatible
Maker	Microchip	Microchip
package instruction	QCCJ,	QCCJ,
Reach Compliance Code	compli	compliant
series	100E	100E
Input adjustment	DIFFERENTIAL	DIFFERENTIAL
JESD-30 code	S-PQCC-J28	S-PQCC-J28
JESD-609 code	e0	e0
length	11.48 mm	11.48 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER
Humidity sensitivity level	1	1
Number of functions	1	1
Number of terminals	28	28
Actual output times	9	9
Maximum operating temperature	85 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240	240
propagation delay (tpd)	0.73 ns	0.73 ns
Certification status	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.05 ns	0.05 ns
Maximum seat height	4.57 mm	4.57 mm
surface mount	YES	YES
technology	ECL	ECL
Temperature level	OTHER	OTHER
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	30	30
width	11.48 mm	11.48 mm
