36-Mbit QDR II+ SRAM 4-Word Burst
Architecture (2.0 Cycle Read Latency)
36-Mbit QDR
®
II+ SRAM 4-Word Burst Architecture (2.0 Cycle Read Latency)
CY7C1241KV18, CY7C1256KV18
CY7C1243KV18, CY7C1245KV18
®
Features
■
Configurations
With Read Cycle Latency of 2.0 cycles:
CY7C1241KV18 – 4 M × 8
CY7C1256KV18 – 4 M × 9
CY7C1243KV18 – 2 M × 18
CY7C1245KV18 – 1 M × 36
Separate independent read and write data ports
❐
Supports concurrent transactions
450 MHz clock for high bandwidth
4-word burst for reducing address bus frequency
Double data rate (DDR) interfaces on both read and write ports
(data transferred at 900 MHz) at 450 MHz
Available in 2.0 clock cycle latency
Two input clocks (K and K) for precise DDR timing
❐
SRAM uses rising edges only
Echo clocks (CQ and CQ) simplify data capture in high speed
systems
Data valid pin (QVLD) to indicate valid data on the output
Single multiplexed address input bus latches address inputs
for read and write ports
Separate port selects for depth expansion
Synchronous internally self-timed writes
QDR
®
II+ operates with 2.0 cycle read latency when DOFF is
asserted HIGH
Operates similar to QDR I device with 1 cycle read latency when
DOFF is asserted LOW
Available in × 8, × 9, × 18, and × 36 configurations
Full data coherency, providing most current data
Core V
DD
= 1.8 V ± 0.1 V; I/O V
DDQ
= 1.4 V to V
DD[1]
❐
Supports both 1.5 V and 1.8 V I/O supply
HSTL inputs and variable drive HSTL output buffers
Available in 165-ball FBGA package (13 × 15 × 1.4 mm)
Offered in both Pb-free and non Pb-free packages
JTAG 1149.1 compatible test access port
Phase-locked loop (PLL) for accurate data placement
Description
■
■
■
■
■
Functional Description
The CY7C1241KV18, CY7C1256KV18, CY7C1243KV18, and
CY7C1245KV18 are 1.8 V synchronous pipelined SRAMs,
equipped with QDR II+ architecture. Similar to QDR II
architecture, QDR II+ architecture consists of two separate ports:
the read port and the write port to access the memory array. The
read port has dedicated data outputs to support read operations
and the write port has dedicated data inputs to support write
operations. QDR II+ architecture has separate data inputs and
data outputs to completely eliminate the need to “turnaround” the
data bus that exists with common I/O devices. Each port is
accessed through a common address bus. Addresses for read
and write addresses are latched on alternate rising edges of the
input (K) clock. Accesses to the QDR II+ read and write ports are
completely independent of one another. To maximize data
throughput, both read and write ports are equipped with DDR
interfaces. Each address location is associated with four 8-bit
words (CY7C1241KV18), 9-bit words (CY7C1256KV18), 18-bit
words (CY7C1243KV18), or 36-bit words (CY7C1245KV18) that
burst sequentially into or out of the device. Because data is
transferred into and out of the device on every rising edge of both
input clocks (K and K), memory bandwidth is maximized while
simplifying system design by eliminating bus “turnarounds”.
Depth expansion is accomplished with port selects, which
enables each port to operate independently.
All synchronous inputs pass through input registers controlled by
the K or K input clocks. All data outputs pass through output
registers controlled by the K or K input clocks. Writes are
conducted with on-chip synchronous self-timed write circuitry.
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
Table 1. Selection Guide
450 MHz
450
×8
×9
× 18
× 36
710
710
720
1020
400 MHz
400
650
650
660
920
375 MHz
375
620
620
630
870
333 MHz
333
560
560
570
790
Unit
MHz
mA
Maximum operating frequency
Maximum operating current
Note
1. The Cypress QDR II+ devices surpass the QDR consortium specification and can support V
DDQ
= 1.4 V to V
DD
.
Cypress Semiconductor Corporation
Document Number: 001-57832 Rev. *B
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised February 24, 2011
[+] Feedback
CY7C1241KV18, CY7C1256KV18
CY7C1243KV18, CY7C1245KV18

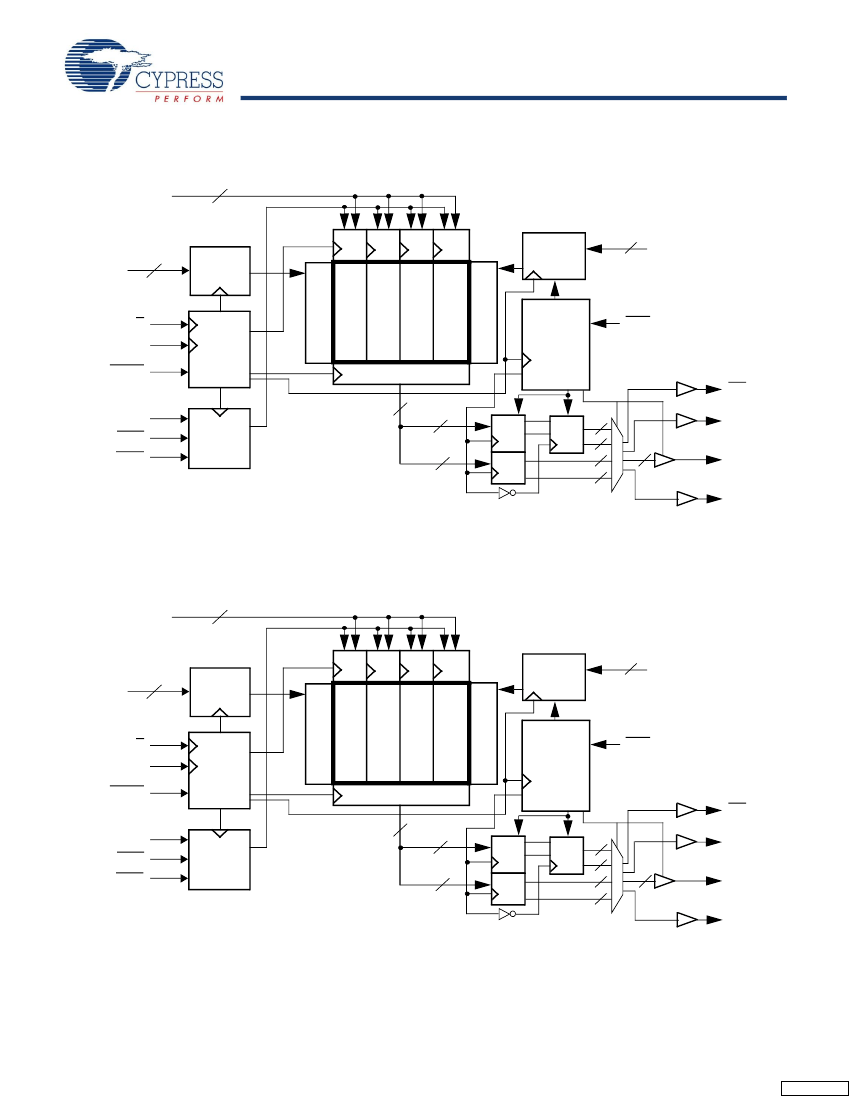

Logic Block Diagram (CY7C1241KV18)
D
[7:0]
8
Read Add. Decode
Write Add. Decode
A
(19:0)
20
Write
Reg
Address
Register
Write
Reg
Write
Reg
Write
Reg
Address
Register
20
A
(19:0)
1M x 8 Array
1M x 8 Array
1M x 8 Array
1M x 8 Array
K
K
CLK
Gen.
Control
Logic
RPS
DOFF
Read Data Reg.
CQ
32
V
REF
WPS
NWS
[1:0]
16
Control
Logic
16
Reg.
Reg.
Reg. 8
8
8
8
CQ
8
Q
[7:0]
QVLD
Logic Block Diagram (CY7C1256KV18)
D
[8:0]
9
Read Add. Decode
Write Add. Decode
A
(19:0)
20
Write
Reg
Address
Register
Write
Reg
Write
Reg
Write
Reg
Address
Register
20
A
(19:0)
1M x 9 Array
1M x 9 Array
1M x 9 Array
1M x 9 Array
K
K
CLK
Gen.
Control
Logic
RPS
DOFF
Read Data Reg.
CQ
36
V
REF
WPS
BWS
[0]
18
Control
Logic
18
Reg.
Reg.
Reg. 9
9
9
9
CQ
9
Q
[8:0]
QVLD
Document Number: 001-57832 Rev. *B
Page 2 of 28
[+] Feedback
CY7C1241KV18, CY7C1256KV18
CY7C1243KV18, CY7C1245KV18

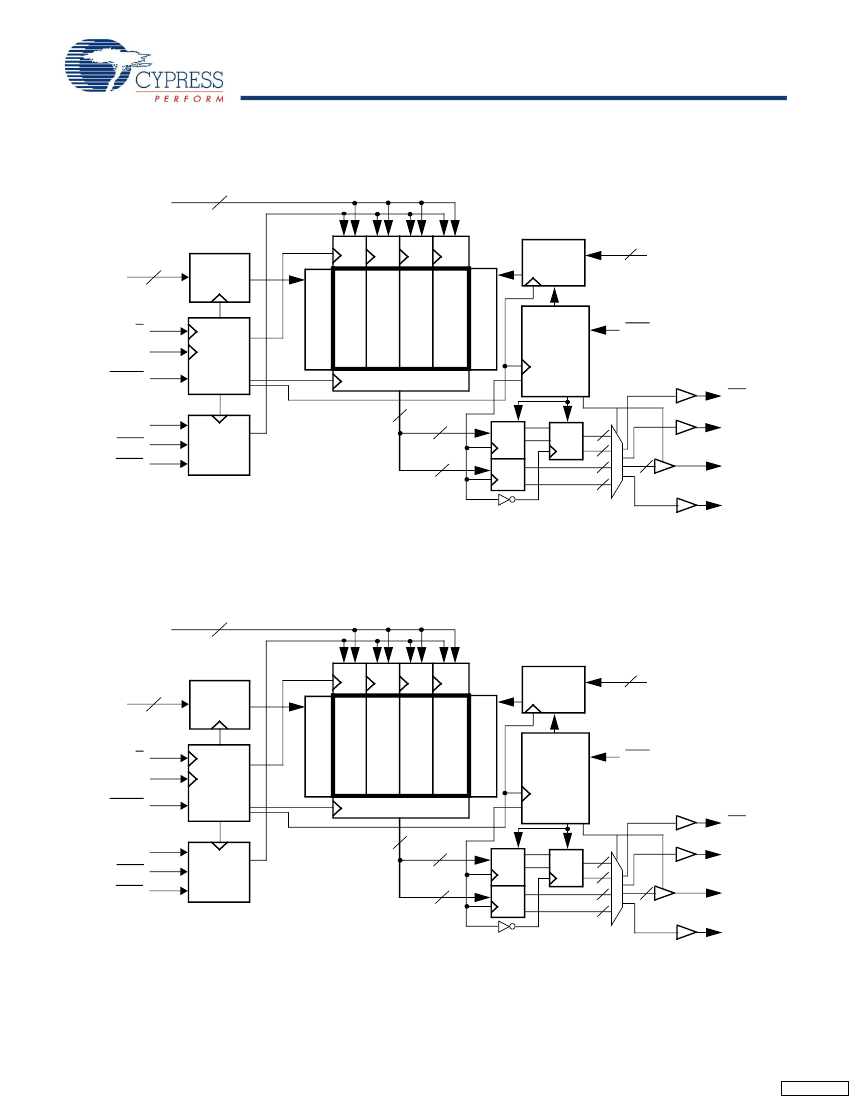

Logic Block Diagram (CY7C1243KV18)
D
[17:0]
18
Read Add. Decode
Write Add. Decode
A
(18:0)
19
Write
Reg
Address
Register
Write
Reg
Write
Reg
Write
Reg
Address
Register
19
A
(18:0)
512K x 18 Array
512K x 18 Array
512K x 18 Array
512K x 18 Array
K
K
CLK
Gen.
Control
Logic
RPS
DOFF
Read Data Reg.
CQ
72
V
REF
WPS
BWS
[1:0]
36
Control
Logic
36
Reg.
Reg.
Reg. 18
18
18
18
CQ
18
Q
[17:0]
QVLD
Logic Block Diagram (CY7C1245KV18)
36
D
[35:0]
Read Add. Decode
Write Add. Decode
A
(17:0)
18
Write
Reg
Address
Register
Write
Reg
Write
Reg
Write
Reg
Address
Register
18
A
(17:0)
256K x 36 Array
256K x 36 Array
256K x 36 Array
256K x 36 Array
K
K
CLK
Gen.
Control
Logic
RPS
DOFF
Read Data Reg.
CQ
144
V
REF
WPS
BWS
[3:0]
72
Control
Logic
72
Reg.
Reg.
Reg. 36
36
36
36
CQ
36
Q
[35:0]
QVLD
Document Number: 001-57832 Rev. *B
Page 3 of 28
[+] Feedback
CY7C1241KV18, CY7C1256KV18
CY7C1243KV18, CY7C1245KV18
Contents
Pin Configuration ............................................................. 5
165-ball FBGA (13 × 15 × 1.4 mm) pinout .................. 5
Pin Definitions .................................................................. 7
Functional Overview ........................................................ 9
Read Operations ......................................................... 9
Write Operations ......................................................... 9
Byte Write Operations ................................................. 9
Concurrent Transactions ............................................. 9
Depth Expansion ....................................................... 10
Programmable Impedance ........................................ 10
Echo Clocks .............................................................. 10
Valid Data Indicator (QVLD) ...................................... 10
PLL ............................................................................ 10
Application Example ...................................................... 10
Truth Table ...................................................................... 11
Write Cycle Descriptions ............................................... 11
Write Cycle Descriptions ............................................... 12
Write Cycle Descriptions ............................................... 12
IEEE 1149.1 Serial Boundary Scan (JTAG) .................. 13
Disabling the JTAG Feature ...................................... 13
Test Access Port—Test Clock ................................... 13
Test Mode Select (TMS) ........................................... 13
Test Data-In (TDI) ..................................................... 13
Test Data-Out (TDO) ................................................. 13
Performing a TAP Reset ........................................... 13
TAP Registers ........................................................... 13
TAP Instruction Set ................................................... 13
TAP Controller State Diagram ....................................... 15
TAP Controller Block Diagram ...................................... 16
TAP Electrical Characteristics ...................................... 16
TAP AC Switching Characteristics ............................... 17
TAP Timing and Test Conditions .................................. 17
Identification Register Definitions ................................ 18
Scan Register Sizes ....................................................... 18
Instruction Codes ........................................................... 18
Boundary Scan Order .................................................... 19
Power Up Sequence in QDR II+ SRAM ......................... 20
Power Up Sequence ................................................. 20
PLL Constraints ......................................................... 20
Maximum Ratings ........................................................... 21
Operating Range ............................................................. 21
Neutron Soft Error Immunity ......................................... 21
Electrical Characteristics ............................................... 21
DC Electrical Characteristics ..................................... 21
AC Electrical Characteristics ..................................... 23
Capacitance .................................................................... 23
Thermal Resistance ........................................................ 23
Switching Characteristics .............................................. 24
Switching Waveforms .................................................... 25
Read/Write/Deselect Sequence ................................ 25
Ordering Information ...................................................... 26
Ordering Code Definitions ......................................... 26
Package Diagram ............................................................ 27
Document History Page ................................................. 28
Sales, Solutions, and Legal Information ...................... 28
Worldwide Sales and Design Support ....................... 28
Products .................................................................... 28
PSoC Solutions ......................................................... 28
Document Number: 001-57832 Rev. *B
Page 4 of 28
[+] Feedback
CY7C1241KV18, CY7C1256KV18
CY7C1243KV18, CY7C1245KV18
Pin Configuration
The pin configurations for CY7C1241KV18, CY7C1256KV18, CY7C1243KV18, and CY7C1245KV18 follow.
[2]
165-ball FBGA (13 × 15 × 1.4 mm) pinout
CY7C1241KV18 (4 M × 8)
1
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
CQ
NC
NC
NC
NC
NC
NC
DOFF
NC
NC
NC
NC
NC
NC
TDO
2
NC/72M
NC
NC
D4
NC
NC
D5
V
REF
NC
NC
Q6
NC
D7
NC
TCK
3
A
NC
NC
NC
Q4
NC
Q5
V
DDQ
NC
NC
D6
NC
NC
Q7
A
4
WPS
A
V
SS
V
SS
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
SS
V
SS
A
A
5
NWS
1
NC/288M
A
V
SS
V
SS
V
DD
V
DD
V
DD
V
DD
V
DD
V
SS
V
SS
A
A
A
6
K
K
NC
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
A
QVLD
NC
7
NC/144M
NWS
0
A
V
SS
V
SS
V
DD
V
DD
V
DD
V
DD
V
DD
V
SS
V
SS
A
A
A
8
RPS
A
V
SS
V
SS
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
SS
V
SS
A
A
9
A
NC
NC
NC
NC
NC
NC
V
DDQ
NC
NC
NC
NC
NC
NC
A
10
A
NC
NC
NC
D2
NC
NC
V
REF
Q1
NC
NC
NC
NC
NC
TMS
11
CQ
Q3
D3
NC
Q2
NC
NC
ZQ
D1
NC
Q0
D0
NC
NC
TDI
CY7C1256KV18 (4 M × 9)
1
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
CQ
NC
NC
NC
NC
NC
NC
DOFF
NC
NC
NC
NC
NC
NC
TDO
2
NC/72M
NC
NC
D5
NC
NC
D6
V
REF
NC
NC
Q7
NC
D8
NC
TCK
3
A
NC
NC
NC
Q5
NC
Q6
V
DDQ
NC
NC
D7
NC
NC
Q8
A
4
WPS
A
V
SS
V
SS
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
SS
V
SS
A
A
5
NC
NC/288M
A
V
SS
V
SS
V
DD
V
DD
V
DD
V
DD
V
DD
V
SS
V
SS
A
A
A
6
K
K
NC
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
V
SS
A
QVLD
NC
7
NC/144M
BWS
0
A
V
SS
V
SS
V
DD
V
DD
V
DD
V
DD
V
DD
V
SS
V
SS
A
A
A
8
RPS
A
V
SS
V
SS
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
DDQ
V
SS
V
SS
A
A
9
A
NC
NC
NC
NC
NC
NC
V
DDQ
NC
NC
NC
NC
NC
NC
A
10
A
NC
NC
NC
D3
NC
NC
V
REF
Q2
NC
NC
NC
NC
D0
TMS
11
CQ
Q4
D4
NC
Q3
NC
NC
ZQ
D2
NC
Q1
D1
NC
Q0
TDI
Note
2. NC/72M, NC/144M, and NC/288M are not connected to the die and can be tied to any voltage level.
Document Number: 001-57832 Rev. *B
Page 5 of 28
[+] Feedback
京公网安备 11010802033920号
EEWORLD
