CY7C1312KV18-250BZC datasheet, PDF

Datasheet> All Categories > CY7C1312KV18-250BZC

CY7C1312KV18-250BZC: Description18-Mbit QDR® II SRAM Two-Word Burst Architecture; File Size557KB，31 Pages; ManufacturerCypress Semiconductor

Download Datasheet View All

CY7C1312KV18-250BZC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CY7C1312KV18-250BZC	-	-	View	Buy Now

CY7C1312KV18-250BZC Overview

18-Mbit QDR® II SRAM Two-Word Burst Architecture

Preview

Download Datasheet

View All

18-Mbit QDR II SRAM

Two-Word Burst Architecture

18-Mbit QDR

II SRAM Two-Word Burst Architecture

CY7C1312KV18/CY7C1314KV18

Features

■

Configurations

CY7C1312KV18 – 1M × 18

CY7C1314KV18 – 512K × 36

Separate independent read and write data ports

❐

Supports concurrent transactions

333 MHz clock for high bandwidth

Two-word burst on all accesses

Double-data rate (DDR) interfaces on both read and write ports

(data transferred at 666 MHz) at 333 MHz

Two input clocks (K and K) for precise DDR timing

❐

SRAM uses rising edges only

Two input clocks for output data (C and C) to minimize clock

skew and flight time mismatches

Echo clocks (CQ and CQ) simplify data capture in high-speed

systems

Single multiplexed address input bus latches address inputs

for both read and write ports

Separate port selects for depth expansion

Synchronous internally self-timed writes

QDR

II operates with 1.5 cycle read latency when DOFF is

asserted HIGH

Operates similar to QDR I device with one cycle read latency

when DOFF is asserted LOW

Available in × 18, and × 36 configurations

Full data coherency, providing most current data

Core V

= 1.8 V (±0.1 V); I/O V

DDQ

= 1.4 V to V

❐

Supports both 1.5 V and 1.8 V I/O supply

Available in 165-ball FBGA package (13 × 15 × 1.4 mm)

Offered in both Pb-free and non Pb-free packages

Variable drive HSTL output buffers

JTAG 1149.1 compatible test access port

PLL for accurate data placement

■

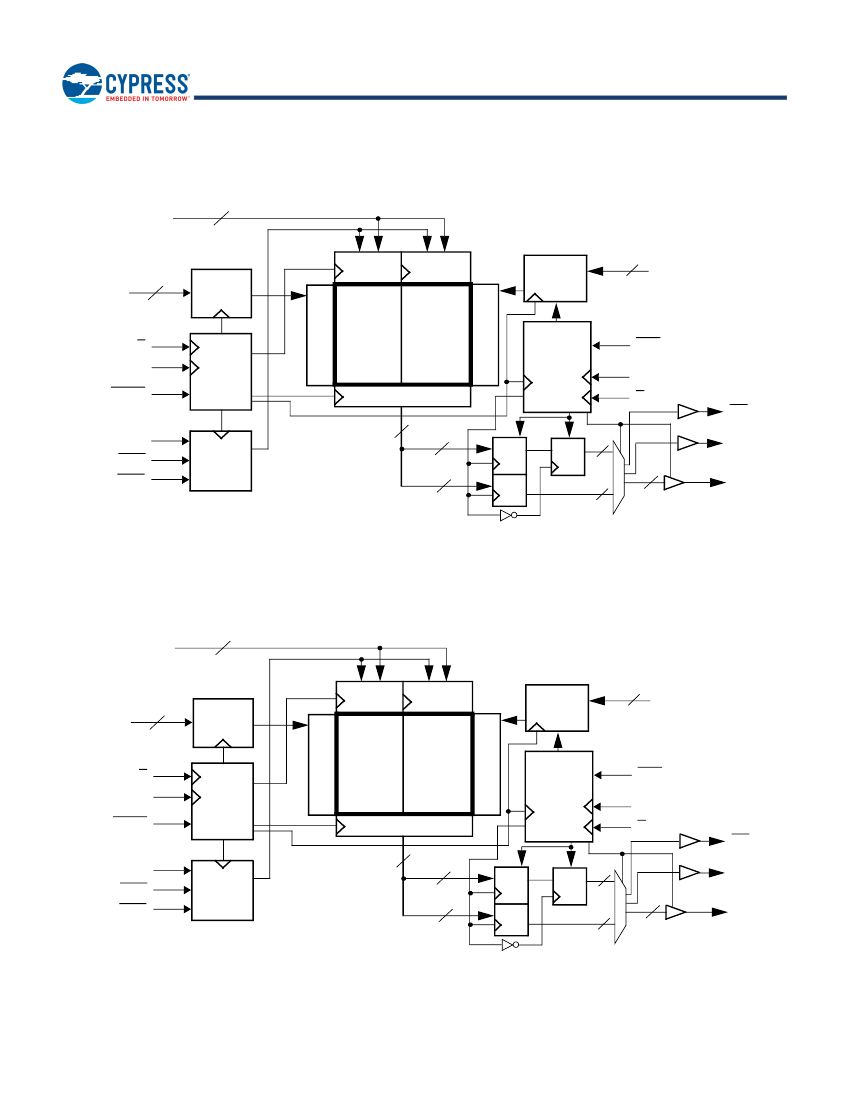

Functional Description

The CY7C1312KV18, and CY7C1314KV18 are 1.8 V

Synchronous Pipelined SRAMs, equipped with QDR II

architecture. QDR II architecture consists of two separate ports:

the read port and the write port to access the memory array. The

read port has dedicated data outputs to support read operations

and the write port has dedicated data inputs to support write

operations. QDR II architecture has separate data inputs and

data outputs to completely eliminate the need to ‘turnaround’ the

data bus that exists with common I/O devices. Access to each

port is through a common address bus. Addresses for read and

write addresses are latched on alternate rising edges of the input

(K) clock. Accesses to the QDR II read and write ports are

completely independent of one another. To maximize data

throughput, both read and write ports are equipped with DDR

interfaces. Each address location is associated with two 18-bit

words (CY7C1312KV18), or 36-bit words (CY7C1314KV18) that

burst sequentially into or out of the device. Because data can be

transferred into and out of the device on every rising edge of both

input clocks (K and K and C and C), memory bandwidth is

maximized while simplifying system design by eliminating bus

turnarounds.

Depth expansion is accomplished with port selects, which

enables each port to operate independently.

All synchronous inputs pass through input registers controlled by

the K or K input clocks. All data outputs pass through output

registers controlled by the C or C (or K or K in a single clock

domain) input clocks. Writes are conducted with on-chip

synchronous self-timed write circuitry.

For a complete list of related documentation, click

here.

■

Selection Guide

Description

Maximum operating frequency

Maximum operating current

× 18

× 36

333 MHz

333

690

840

300 MHz

300

640

780

250 MHz

250

560

670

Unit

MHz

Cypress Semiconductor Corporation

Document Number: 001-58903 Rev. *K

•

198 Champion Court

•

San Jose

CA 95134-1709

•

408-943-2600

Revised November 28, 2017
