CY7C1418KV18-300BZC Overview

36-Mbit DDR II SRAM 2-Word Burst Architecture

Preview

Download Datasheet

View All

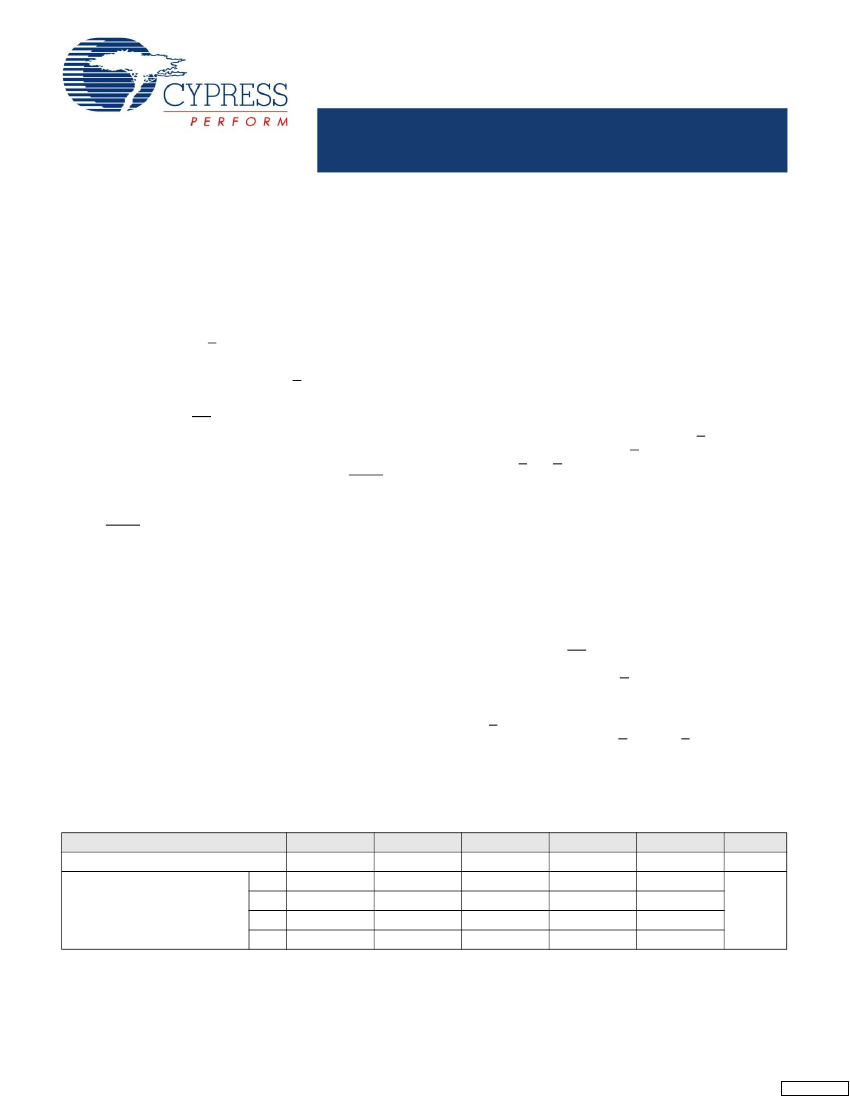

CY7C1416KV18, CY7C1427KV18

CY7C1418KV18, CY7C1420KV18

36-Mbit DDR II SRAM 2-Word

Burst Architecture

36-Mbit DDR II SRAM 2-Word Burst Architecture

Features

■

Configurations

CY7C1416KV18 – 4 M × 8

CY7C1427KV18 – 4 M × 9

CY7C1418KV18 – 2 M × 18

CY7C1420KV18 – 1 M × 36

36-Mbit density (4 M × 8, 4 M × 9, 2 M × 18, 1 M × 36)

333 MHz clock for high bandwidth

2-word burst for reducing address bus frequency

Double data rate (DDR) interfaces

(data transferred at 666 MHz) at 333 MHz

Two input clocks (K and K) for precise DDR timing

❐

SRAM uses rising edges only

Two input clocks for output data (C and C) to minimize clock

skew and flight time mismatches

Echo clocks (CQ and CQ) simplify data capture in high speed

systems

Synchronous internally self-timed writes

DDR II operates with 1.5 cycle read latency when DOFF is

asserted HIGH

Operates similar to DDR-I device with 1 cycle read latency

when DOFF is asserted LOW

1.8 V core power supply with HSTL inputs and outputs

Variable drive HSTL output buffers

Expanded HSTL output voltage (1.4 V to V

)

❐

Supports both 1.5 V and 1.8 V IO supply

Available in 165-ball FBGA package (13 × 15 × 1.4 mm)

Offered in both Pb-free and non Pb-free packages

JTAG 1149.1 compatible test access port

Phase locked loop (PLL) for accurate data placement

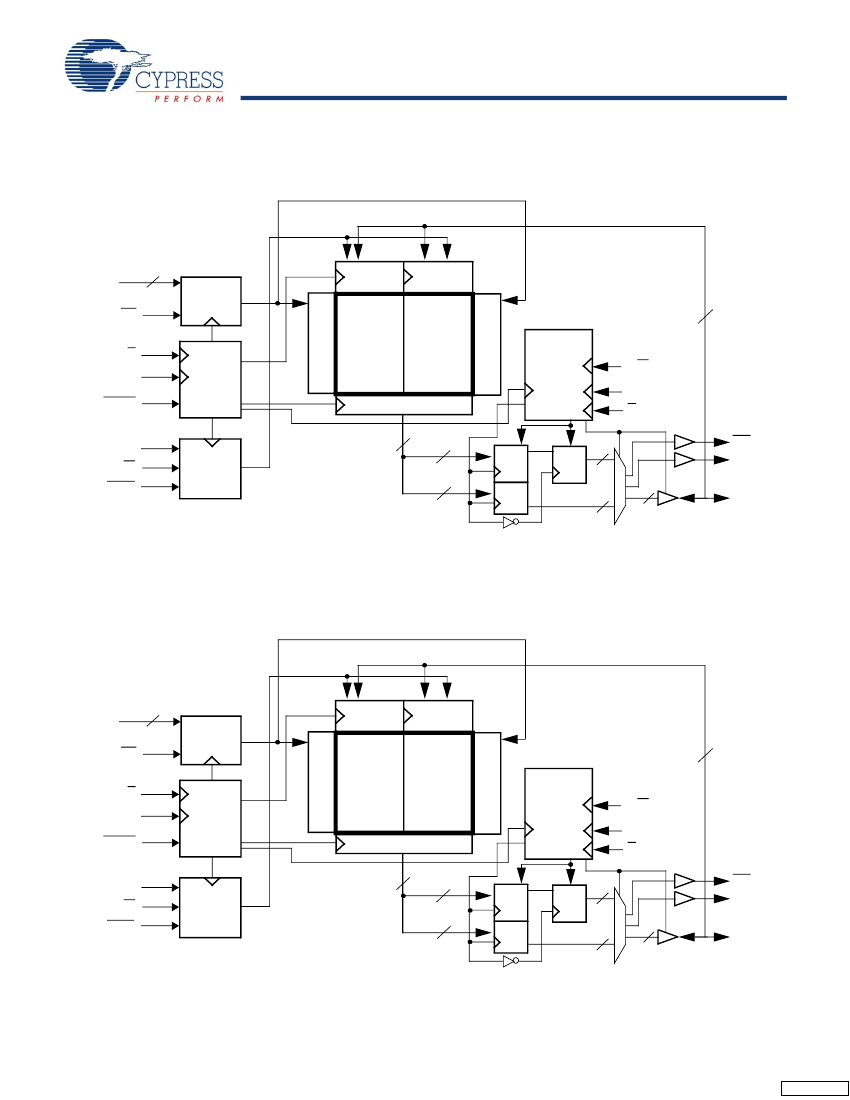

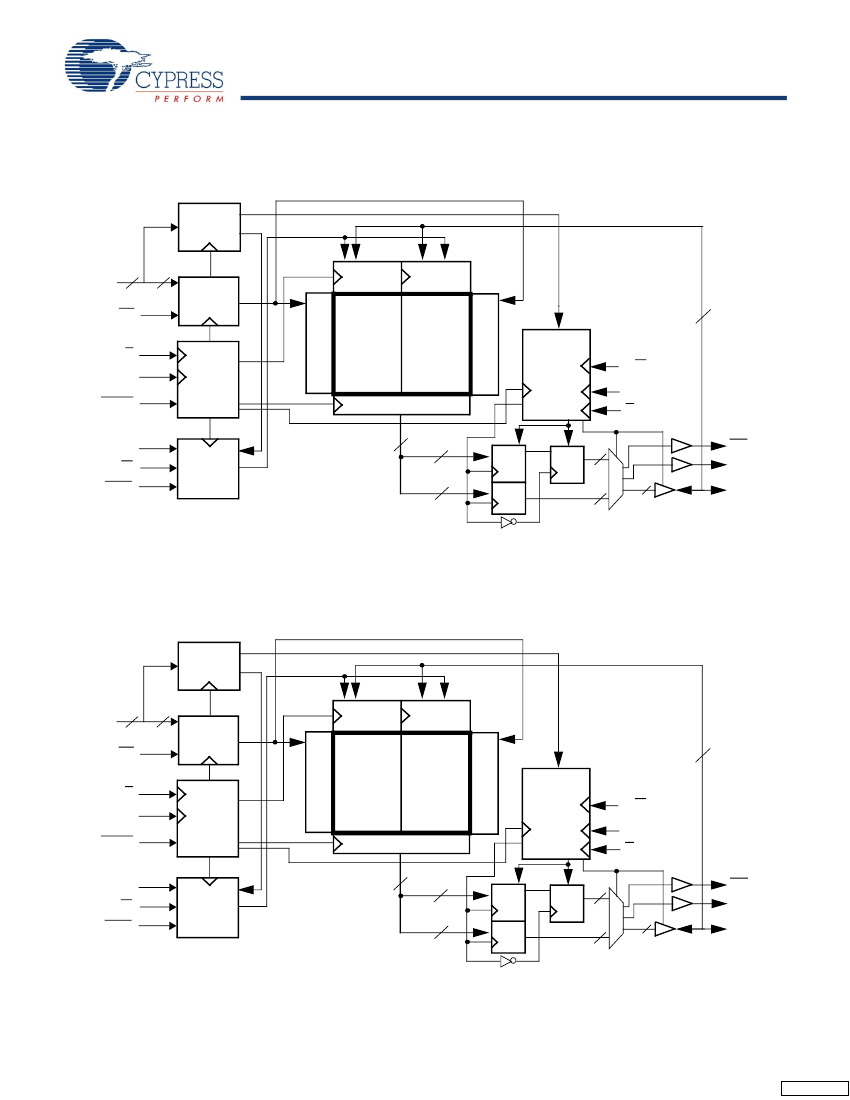

Functional Description

The CY7C1416KV18, CY7C1427KV18, CY7C1418KV18, and

CY7C1420KV18 are 1.8 V synchronous pipelined SRAM

equipped with DDR II architecture. The DDR II consists of an

SRAM core with advanced synchronous peripheral circuitry and

a 1-bit burst counter. Addresses for read and write are latched

on alternate rising edges of the input (K) clock. Write data is

registered on the rising edges of both K and K. Read data is

driven on the rising edges of C and C if provided, or on the rising

edge of K and K if C/C are not provided. Each address location

is associated with two 8-bit words in the case of CY7C1416KV18

and two 9-bit words in the case of CY7C1427KV18 that burst

sequentially into or out of the device. The burst counter always

starts with a “0” internally in the case of CY7C1416KV18 and

CY7C1427KV18. On CY7C1418KV18 and CY7C1420KV18, the

burst counter takes in the least significant bit of the external

address and bursts two 18-bit words in the case of

CY7C1418KV18 and two 36-bit words in the case of

CY7C1420KV18 sequentially into or out of the device.

Asynchronous inputs include an output impedance matching

input (ZQ). Synchronous data outputs (Q, sharing the same

physical pins as the data inputs D) are tightly matched to the two

output echo clocks CQ/CQ, eliminating the need for separately

capturing data from each individual DDR SRAM in the system

design. Output data clocks (C/C) enable maximum system

clocking and data synchronization flexibility.

All synchronous inputs pass through input registers controlled by

the K or K input clocks. All data outputs pass through output

registers controlled by the C or C (or K or K in a single clock

domain) input clocks. Writes are conducted with on-chip

synchronous self-timed write circuitry.

■

Selection Guide

Description

Maximum operating frequency

Maximum operating current

×8

×9

× 18

× 36

333 MHz

333

480

490

600

300 MHz

300

450

460

560

250 MHz

250

420

430

490

200 MHz

200

370

380

430

167 MHz

167

340

380

Unit

MHz

Cypress Semiconductor Corporation

Document Number: 001-57827 Rev. *B

•

198 Champion Court

•

San Jose

CA 95134-1709

•

408-943-2600

Revised February 25, 2011

[+] Feedback
