Crystal Oscillators (XO’s)

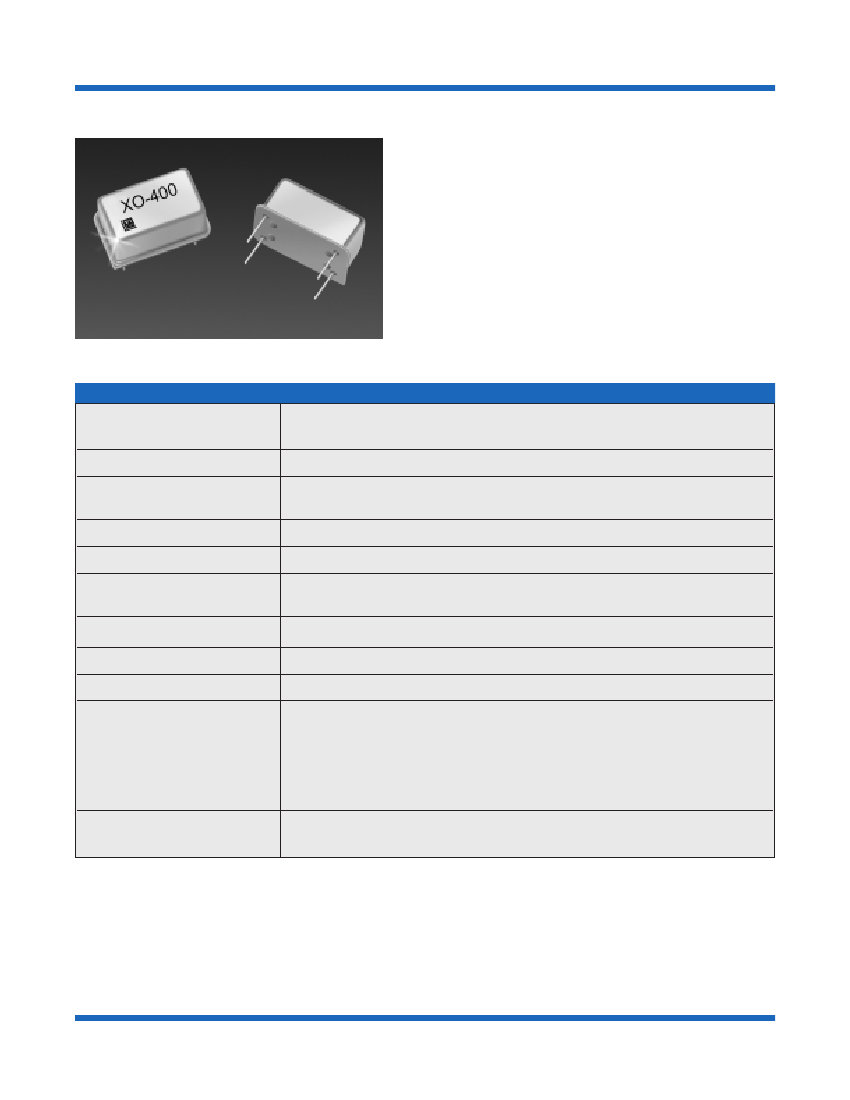

XO-400
Description:
Vectron
International has introduced a series of low
cost complementary PECL Crystal Oscillators (XO’s)
available in frequencies from 15 MHz to 250 MHz in a
standard 4 pin DIP package. This series offers ultra low
jitter of <0.5 ps rms from 12 kHz to 20 MHz bandwidth.
Features:
•
•
•
•
Ultra low jitter
3.3 Vdc or 5 Vdc operation
Complementary PECL output
Standard 4 pin DIP package
Performance Characteristics
Parameter
Frequencies:
Package Size:
Supply Voltage:
Supply Current:
Output Type:
Output Level:
@ +25°C
Rise/Fall Time tr/tf:
Symmetry (Duty Cycle):
Internal Load:
Temperature Stability:
Characteristics
15 MHz to 250 MHz
20.32 x 12.70 x 10.29 mm (0.8” x 0.5” x 0.405”)
C
= 5 Vdc ±5%
D
= 3.3 Vdc ±5%
<80 mA
Complementary PECL
V
OH
(“1”) = Vcc - 1.02V min.
V
OL
(“0”) = Vcc - 1.63V max
<1.5 ns (20% to 80%)
50/50 ±5% @ Vcc - 1.3V for “D”; Vcc - 3V for “C”
274 ohm internal load for each output for 3.3 Vdc, 510 ohms for 5Vdc
C-C
= ±20 ppm All Causes over 0°C to +70°C
C-F
= ±32 ppm All Causes over 0°C to +70°C
C-G
= ±50 ppm All Causes over 0°C to +70°C
F-G
= ±50 ppm All Causes over -40°C to +85°C
All Causes = Entire Temperature Range, Aging for 10 years
Initial Accuracy and Supply variation.
<0.5 ps rms from 12 kHz to 20 MHz BW @ 155.52 MHz
Jitter:
