TSC015A05026A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Light touch switch> TSC015A05026A

TSC015A05026A: CategoryLight touch switch; File Size137KB，1 Pages; ManufacturerBZCN

Download Datasheet Parametric View All

TSC015A05026A Parametric

Parameter Name	Attribute value
contact current	50mA
Rated voltage (AC)	-
Rated voltage (DC)	12V
Installation method	Stand sticker
button shape	round button
Switch length	4.5mm
Switch width	4.5mm
Switch height	5mm

Preview

Download Datasheet

View All

TSC015*******

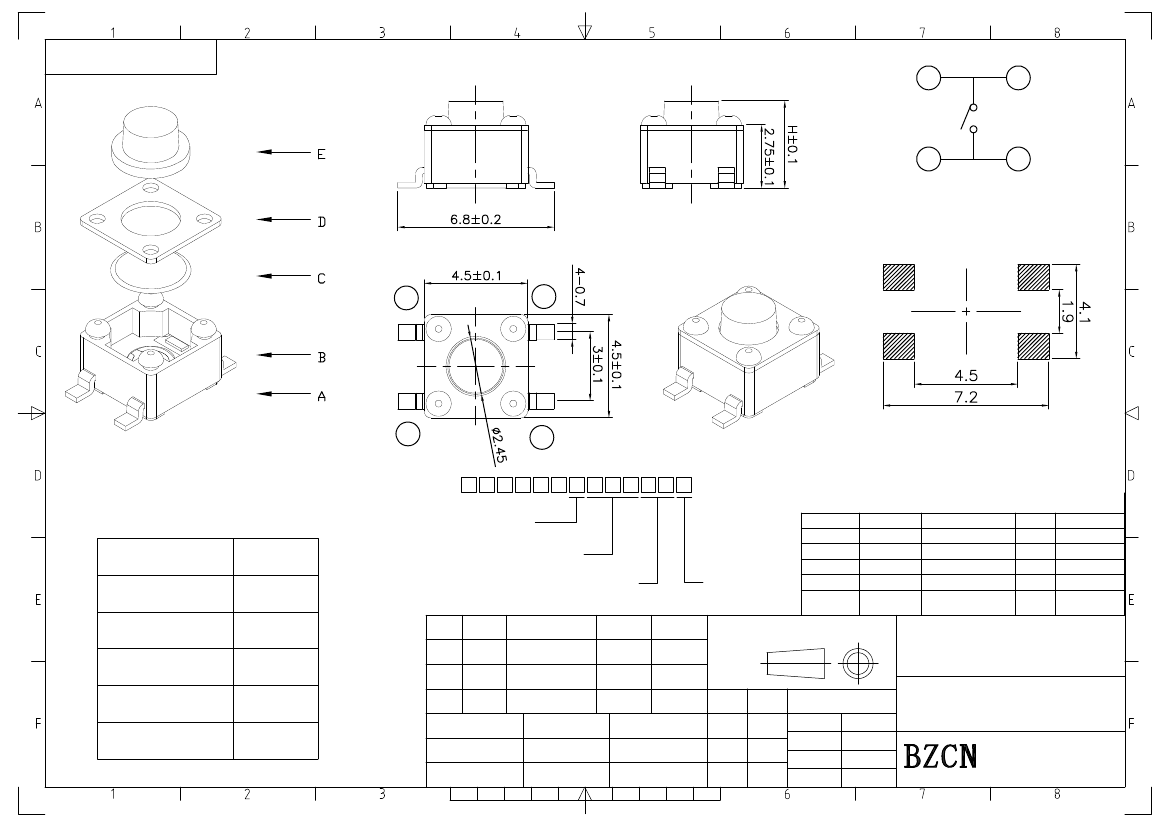

电路图

CIRCUIT DIAGRAM

主要技术参数、性½

The Main Thchnology Performance

额定电流、电压

Rate voltage.current

接触电阻

Contact resistance

按力

Operating force

行程

Travel

绝缘电阻

Insulated resistance

介电强度

Dielectric strength

50mA DC12V

≤100m

±50gf

0.20±0.10mm

≥100M

≥250VAC/1min

标记

SING

处数

FREQUENCY

T S C 0 1 5

寿½：

A:≥100000次

B:≥200000次

C:≥300000次

PCB.焊接图

PCB.WELDING DRAWING

按钮

盖板

弹片

本½

卡件

名称

DESCRIPTION

PPA

铁

不锈钢

PPA

黄铜

材质

MATERIAL

数量

QTY

黑色

镀铜锡

镀银

黑色

镀银

表面处理/颜色

FINSH/COLOR

高度H：

035:3.5H

038:3.8H

040:4.0H

045:4.5H

...

100:10.0H

力度：

12:120g

18:180g

26:260g

包装方式：

A:散件

B:冷封编带

C:热封编带

项目

ITEM

第一视角

FIRST VIEW

名称/NAME：

½触开关

TACTILE SWITCH

型号/MODEL：

更改文件号

REVISION

签名

APPROVED

日期

DATE

比例

SCALE

单½

UNIT

重量

WEIGHT

1:1

一般公差

GENERAL TOLERANCE

设计 DESIGN

审核 CHECKED

批准 APPROVED

朱元隆

赵晓峰

陈乐峰

2021.06.01

≥0

2＜ ±0.10

≥2

5＜ ±0.25

±0.30

≥5

角度

±0.5°

ANGLE

TSC015*******

浙江博众电气有限公司

ZHEJIANG BOZHONG ELECTRONIC CO.,LTD.
