M83731/2416A02V

Description
Toggle Switch, 3PDT, Latched, 4A, 28VDC, Solder Terminal, Locking Lever Actuator, Panel Mount-threaded
CategoryMechanical and electronic products    switch
File Size217KB,4 Pages
ManufacturerAPEM
Download Datasheet Parametric View All

M83731/2416A02V Overview

Toggle Switch, 3PDT, Latched, 4A, 28VDC, Solder Terminal, Locking Lever Actuator, Panel Mount-threaded

M83731/2416A02V Parametric

Parameter NameAttribute value
Objectid1039537607
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL9
Actuator typeLOCKING LEVER
body width16 mm
body height15.1 mm
Body length or diameter22 mm
Contact (AC) maximum rated R load4A@125VAC
Maximum contact current (AC)4 A
Maximum contact current (DC)4 A
Contact (DC) maximum rated R load4A@28VDC
Maximum contact voltage (AC)125 V
Maximum contact voltage (DC)28 V
Electrical life150000 Cycle(s)
Manufacturer's serial numberM83731/24
Installation featuresPANEL MOUNT-THREADED
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
method of packingBULK
sealEPOXY TERMINAL SEALED; IP67; SPLASH PROOF
surface mountNO
Switch actionLATCHED
switch function3PDT
Switch typeTOGGLE SWITCH
Termination typeSOLDER
M3950/16 & M83731/24
Distinctive features

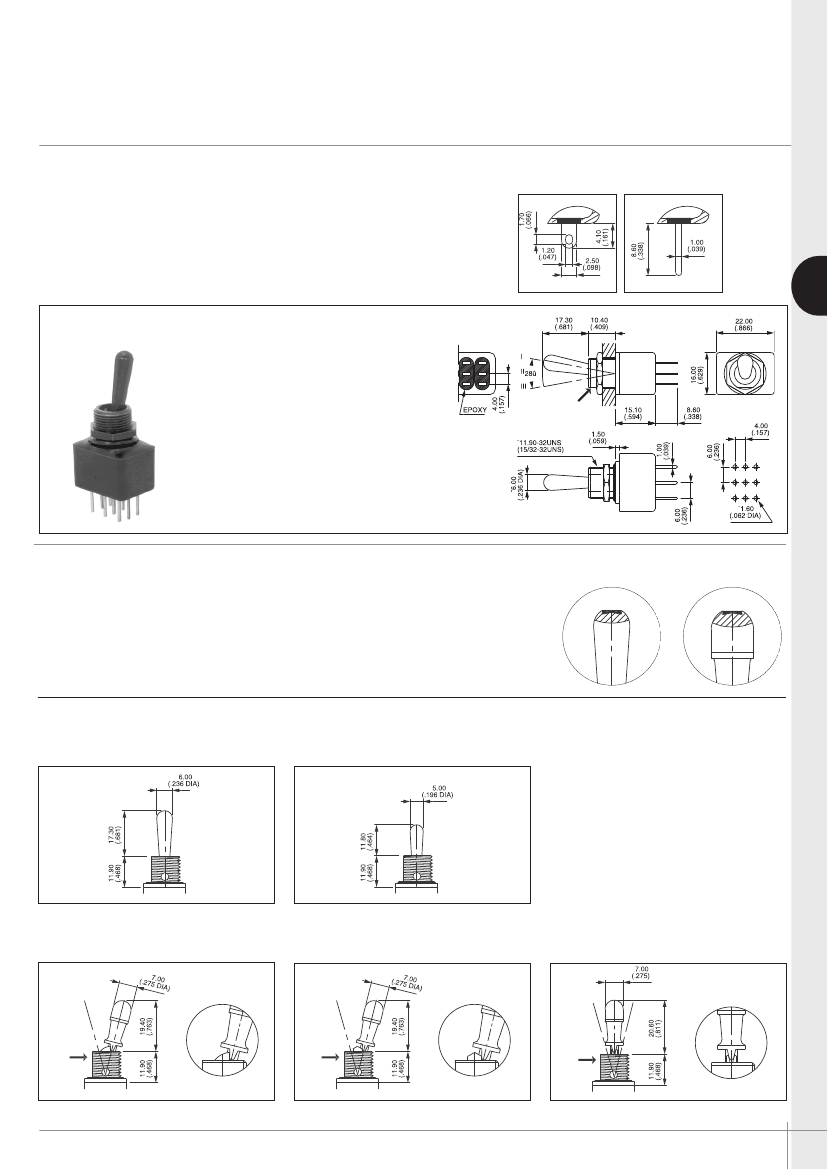

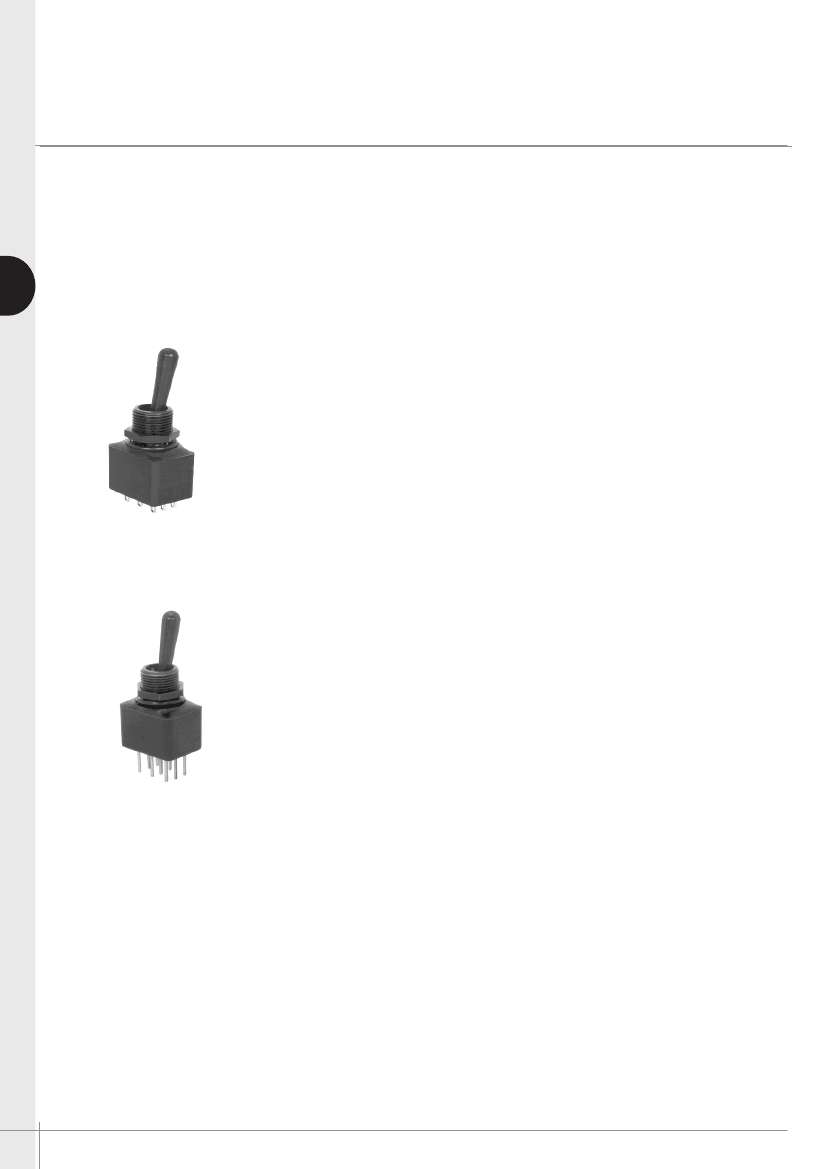

QPL listed toggle switches - threaded bushing Ø 11,9 (15/32)
K
Approval and lists
M3950/16
M83731/24
QPL listed
This range of professional toggle switches is suitable for use in military and
other high specification environments.
K
Contacts
K
Pinned lever
Highly reliable contacts suitable for low level applications (10mA 50mV -
10µA 5VDC min.) or power applications (2A 250VAC - 4A 125VAC -
4A 30VDC max.)
K
Double shell case
K
Compact size
K
Finish
The base of the switch lever is pinned to the bushing, thus earthing the lever to
the bushing. This also provides strain relief to protect the switch if accidentally
knocked.
For high mechanical strength and high electrical insulation.
The small rear end of the switch allows space saving behind the panel.
Matt black finish on body, bushing, lever and hardware.
Panel sealed to IP 67, these switches are frontal sealed by two O-rings and
have full rear end sealing.
A comprehensive range of protection boots (both full and half length), locking
levers and security caps are available.
K
Sealing
K
Accessories
www.apem.com
APEM
