Type 361R 105 °C, Miniature, Industrial Grade, Radial Leaded
High-value, High Ripple, Low ESR & ESL
Please click here to see notice regarding “Longer life non RoHS parts”
Type 361R capacitors are for industrial applications from –40 °C to
+105 °C. They deliver excellent ripple capability and low ESR and

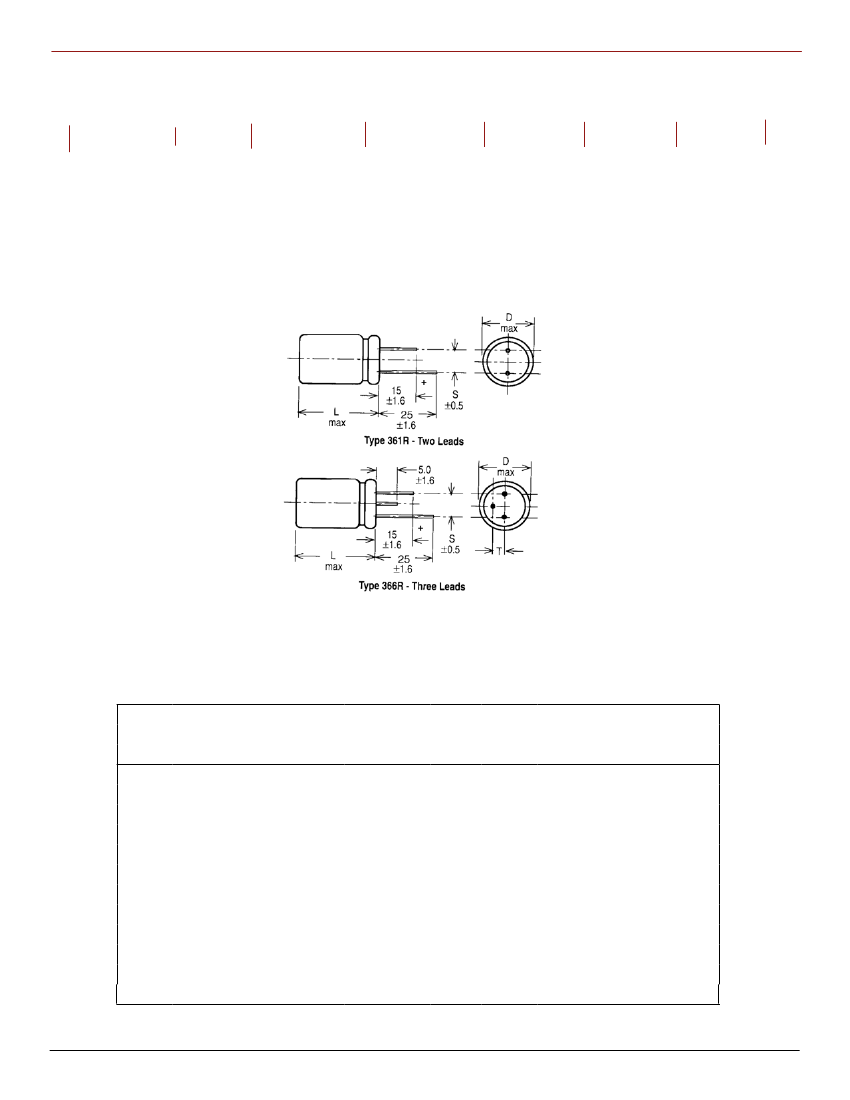

ESL. Also available with three mounting leads. For three leads,
change Type designation from 361R to 366R.
Highlights
- Excellent Ripple Capability
- Low ESR and ESL
- High Valuers
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Leakage Current
Ripple Current Multipliers
–40 °C to +105 °C
6.3 to 450 Vdc
7 to 18,000 µF ± 20%
≤0.002 CV µF +25 °C, 6.3 to 160 Vdc
≤0.02 CV µF +25 °C, 200 to 450 Vdc
Ambient Temperature
45 ºC
2.00
Frequency
50 Hz 60 Hz 120 Hz 360 Hz 1 kHz
6.3 & 10 V
16 to 25 V
35 V & up
Load Life
RoHS
Non-RoHS
0.91
0.85
0.77
0.93
0.88
0.82
1.00
1.00
1.00
1.06
1.12
1.21
1.08
1.18
1.32
5 kHz
1.09
1.21
1.37
10 kHz & up
1.09
1.22
1.38
55 ºC
1.60
65 ºC
1.40
75 ºC
1.25
85 ºC
1.00
95 ºC
0.79
105 ºC
0.5
2000 h at full load at 105 °C
4000 h at full load at 105 °C
∆ Capacitance ±15%
ESR 175% of limit
DCL 100% of limit
1,000 h @ 105 °C
∆ Capacitance ±15%
ESR 150% of limit
DCL 200% of limit
10 to 55 Hz, 0.06” and 10 g, 2 h ea of 3 planes
Shelf Life Test
Vibration

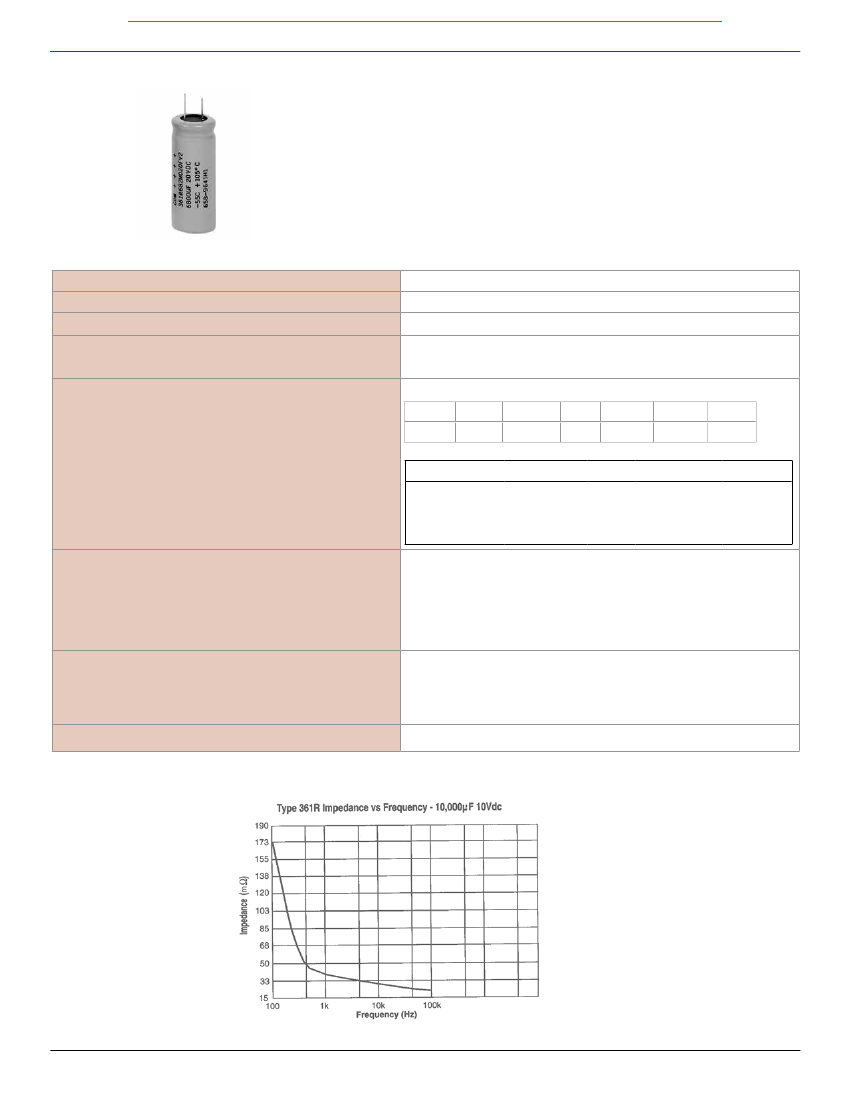

Typical Curve
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Notice and Disclaimer:
All product drawings, descriptions, specifications, statements, information and
data (collectively, the “Information”) in this datasheet or other publication are subject to change. The
customer is responsible for checking, confirming and verifying the extent to which the Information con-
tained in this datasheet or other publication is applicable to an order at the time the order is placed. All
Information given herein is believed to be accurate and reliable, but it is presented without any guaran-
tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability
for certain applications are based on the knowledge that the Cornell Dubilier company providing such
statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards
as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-
tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,
warranty or representation concerning the suitability for a specific customer application, use, storage,
transportation, or operating environment. The Information is intended for use only by customers who
have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference
to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),
and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although
Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design
and manufacturing of its products, in light of the current state of the art, isolated component failures may
still occur. Accordingly, customer applications which require a high degree of reliability or safety should
employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies
or other appropriate protective measures) in order to ensure that the failure of an electrical component
does not result in a risk of personal injury or property damage. Although all product-related warnings,
cautions and notes must be observed, the customer should not assume that all safety measures are indi-
cated in such warnings, cautions and notes, or that other safety measures may not be required.
