REVISION AU
DO NOT
SCALE FROM
THIS PRINT
NOTES:
MMSDX-XX-XXX-X-XX.XX-X-X-XXX
1.
C
REPRESENTS A CRITICAL DIMENSION.
FEP CABLE OPTION
2. BURR ALLOWANCE: .003[.08] MAX.
3. PARTS TO BE MOLDED TO POSITION.
OPTION
-T: FEP INSULATION
4. MINIMUM PIN PULLOUT FORCE: 4.000LB[17.79N]
(LEAVE BLANK FOR STANDARD
5. CONTACT MUST BE INSERTED UNTIL RETENTION
SINGLE
PVC INSULATION)
FEATURE LOCKS INTO PLACE.
(SEE NOTE 14)
-M: METAL LATCH (USE IPD1-XX-D-X-M)
6. ALL FINISHED GOODS ARE TO BE ELECTRICAL TESTED INCLUDING HI-POT TEST
No OF POSITIONS
(LEAVE BLANK FOR PLASTIC)
@ 1000 VOLTS DC. AFTER FINAL ELECTRICAL TEST, LABEL EACH ASSEMBLY
-02 THRU -25
WITH (1) ET STAMP ON THE BODY.
C
DOUBLE
(PER ROW)
7. TINNED COPPER WIRE IS ROHS COMPLIANT.
-LUS: PLASTIC LATCH UP, STRAIGHT
8. FOLLOW CO-RF-WI-3001-M AND SAMTEC PACKAGING STANDARDS.
WIRE GAUGE (AWG)
-LDS: PLASTIC LATCH DOWN, STRAIGHT
9. MINIMUM METAL LATCH RETENTION FORCE: 1.000LB[4.45N]
PVC: -20, -22, -24, -26, -28, -30
10. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP
-LUX: PLASTIC LATCH UP, CROSSED
FEP
: -20,-24-28-30
DIMENSIONS, TOLERANCES, TOOLING AND ITS REQUIREMENTS.
-LDX: PLASTIC LATCH DOWN, CROSSED
11. FOR LENGTHS LESS THAN 12 IN, TOLERANCE SHALL
-MUS: METAL LATCH UP, STRAIGHT
COLOR CODE
BE ±.125[3.18]. FOR OTHER LENGTHS, TOLERANCES SHALL BE ±2%.
-MDS: METAL LATCH DOWN, STRAIGHT
C (SEE TABLE 3, SHEET 3)
12. LOCATION OF GATE PAD IS AT THE DISCRETION OF THE VENDOR.
-MUX: METAL LATCH UP, CROSSED
13. GOLD PLATING IS NOT REQUIRED ON THE OUTSIDE OF THE CONTACT
(LEAVE BLANK FOR STANDARD
-MDX: METAL LATCH DOWN, CROSSED
BOX OR ON THE SIDE WITH THE RETENTION LANCE.
BLACK CABLE)
14. ASSEMBLIES USING THE FEP OPTION ARE FOR CRIMP APPLICATIONS ONLY.
(NOT AVAILABLE FOR TEFLON OPTION,
POLARIZATION OPTION
15. CUT LENGTH IS ASSEMBLY LENGTH MINUS OVERALL LENGTH SUBTRACTOR.
TEFLON CABLE ONLY AVAILABLE IN BLUE)
(-P, -K, OR -G OPTION IS REQUIRED.)
-P: POLARIZATION (SEE FIG 3, SHEET 2)
PLATING SPECIFICATION
(NOT AVAILABLE WITH -LUS, -LDS, -LUX, -K, -G OPTIONS)
(No OF POS x .100[2.54])
-F: 3 µ" SELECTIVE GOLD IN CONTACT
-K: KEYED POLARIZATION
AREA, BRIGHT TIN ON TAIL.
+ .058[1.47] REF
(USE IPD1-XX-D-K) (SEE FIG 4, SHEET 2)
-L: 10 µ" SELECTIVE GOLD IN CONTACT
C
(NOT AVAILABLE WITH -P, -G OPTIONS)
AREA, BRIGHT TIN ON TAIL.
05
01
-G: GUIDE POST
-S: 30 µ" SELECTIVE GOLD IN CONTACT
(USE IPD1-XX-D-GP) (SEE FIG 6, SHEET 3)
C
AREA, BRIGHT TIN ON TAIL.
(NOT AVAILABLE WITH -LDS, -LUX, -P, -K OPTIONS)
.353 8.97
.250 6.35
ASSEMBLED LENGTH
REF
REF
(LEAVE BLANK FOR NO POLARIZATION;
SPECIFY IN INCHES [USE DWC-XX-XX]
AVAILABLE TO EXISTING CUSTOMERS ONLY)
(SINGLE END: 03.00 INCH MINIMUM,
10
06
DOUBLE END: 03.25 INCH MINIMUM)
.100 2.54
REF
"A"
IPD1-XX-D
END OPTION
-S: SINGLE END
-D: DOUBLE END
(MUST CHOOSE FROM
LUS, LDS, LUX, LDX, MUS,
MDS, MUX, OR MDX)
C
.505 12.83
REF
.285 7.24
REF
XX.XX
(SEE NOTE 11)
C
C
XX.XX
(SEE NOTE 11)
FIG 1
"A"
MMSD-05-22-X-XX.XX-S SHOWN
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MMSD-05-22-X-XX.XX-D SHOWN
*
PROPRIETARY NOTE
*
FIG 2
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667
F:\DWG\MISC\MKTG\MMSDX-XX-XXX-X-XX.XX-X-X-XXX-MKT.SLDDRW
HOUSING: NYLON 66, COLOR: WHITE
CONTACT: PHOS BRONZE
CABLE; INSULATION: SEE CALLOUT
WIRE: TINNED COPPER
LATCH: NICKEL-PLATED BeCu, #25, 1/2 HT
.100[2.54] SOCKET DISCRETE CABLE ASSEMBLY
DWG. NO.
MMSDX-XX-XXX-X-XX.XX-X-X-XXX
DEAN P
07/16/2004
SHEET
1
OF
4
BY:
REVISION AU
01
N/2 + 1
N
N/2
N
N/2
N
N/2
N/2
(SEE TABLE 2)
N
LATCH-
END 2
N/2 + 1
01
(SEE TABLE 2)
LATCH-
END 1
N/2 + 1
01
(SEE TABLE 2)
N/2 + 1
LATCH-
END 1
01
(SEE TABLE 2)

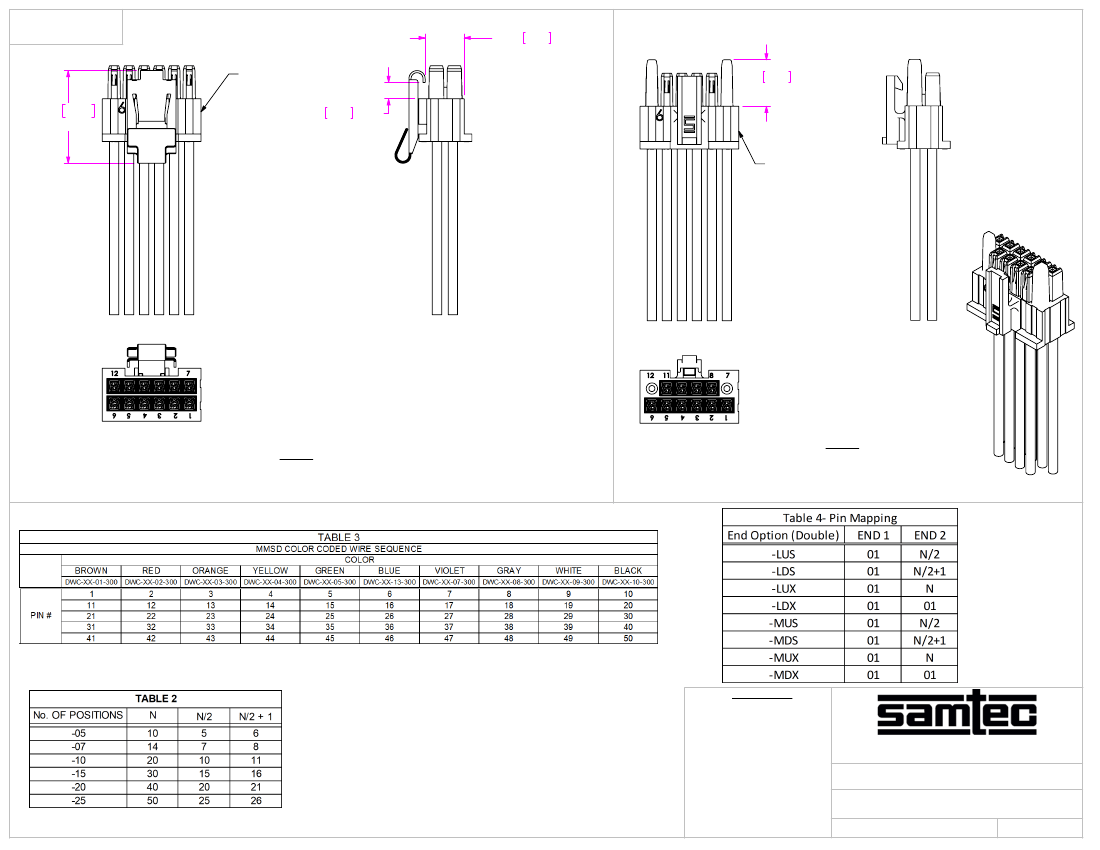

-LUS
[LATCH UP - CABLE STRAIGHT]
(SEE SHEET 3, TABLE 4 FOR PIN MAPPING)
LATCH-
END 2
-LDS
[LATCH DOWN - CABLE STRAIGHT]
(SEE SHEET 3, TABLE 4 FOR PIN MAPPING)
N
N/2
01
N/2 + 1
N
N/2
N
N/2
N/2
(SEE TABLE 2)
N
LATCH-
END 2
N/2 + 1
01
(SEE TABLE 2)
LATCH-
END 1
N/2 + 1
01
(SEE TABLE 2)
N/2 + 1
LATCH-
END 1
01
(SEE TABLE 2)
-LUX
[LATCH UP - CABLE CROSSED]
(SEE SHEET 3, TABLE 4 FOR PIN MAPPING)
.022 0.56
02 01
REF
.022 0.56 REF
(TYP) (2 PLCS)
LATCH-
END 2
-LDX
[LATCH DOWN - CABLE CROSSED]
(SEE SHEET 3, TABLE 4 FOR PIN MAPPING)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
*
PROPRIETARY NOTE
*
IPD1-XX-D-P
07
IPD1-XX-D-K
IPD1-02-D-K
(MMSDX-06-XX-X-XX.XX-X-K-XXX SHOWN)
(NOT AVAILABLE WITH -P OPTION)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
-02 POS
(DIFFERENT AS SHOWN)
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
(NOT AVAILABLE WITH
-LUS, -LDS, -LUX OPTIONS
)
(MMSDX-06-XX-X-XX.XX-X-P SHOWN)
FIG 3
-P: POLARIZATION
DO NOT SCALE DRAWING
.100[2.54] SOCKET DISCRETE CABLE ASSEMBLY
DWG. NO.
FIG 4
-K: KEYED POLARIZATION
F:\DWG\MISC\MKTG\MMSDX-XX-XXX-X-XX.XX-X-X-XXX-MKT.SLDDRW
SHEET SCALE: 1.25:1
MMSDX-XX-XXX-X-XX.XX-X-X-XXX
DEAN P
07/16/2004
SHEET
2
OF
4
BY:
REVISION AU
IPD1-XX-D-X-M
.260 6.60
REF
.310 7.87
REF
REF
.618 15.70
REF
.109 2.77
IPD1-XX-D-GP
(MMSDX-06-XX-X-XX.XX-S-M SHOWN)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 5
(MMSDX-06-XX-X-XX.XX-S-G SHOWN)
(NOT AVAILABLE WITH -LDS, -LUX, -P, -K OPTIONS)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 6
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
*
PROPRIETARY NOTE
*
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
.100[2.54] SOCKET DISCRETE CABLE ASSEMBLY
SHEET SCALE: 2:1
MMSDX-XX-XXX-X-XX.XX-X-X-XXX
DEAN P
07/16/2004
SHEET
3
OF
4
F:\DWG\MISC\MKTG\MMSDX-XX-XXX-X-XX.XX-X-X-XXX-MKT.SLDDRW
BY:
REVISION AU
CABLE CUT IN-PROCESS
"A"
(SEE TABLE 1, SHT 1)
"A"
(SEE TABLE 1, SHT 1)
OVERALL LENGTH
(SEE TABLE 5)
OVERALL LENGTH
(SEE TABLE 5)
"A"
(SEE TABLE 1, SHT 1)
-S: SINGLE END
-D: DOUBLE END
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
*
PROPRIETARY NOTE
*
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
SHEET SCALE: 2:1
.100[2.54] SOCKET DISCRETE CABLE ASSEMBLY
MMSDX-XX-XXX-X-XX.XX-X-X-XXX
07/16/2004
SHEET
4
OF
4
F:\DWG\MISC\MKTG\MMSDX-XX-XXX-X-XX.XX-X-X-XXX-MKT.SLDDRW
BY:
DEAN P
