Connectors (Inlets/Outlets)
www.schurter.com/pg07

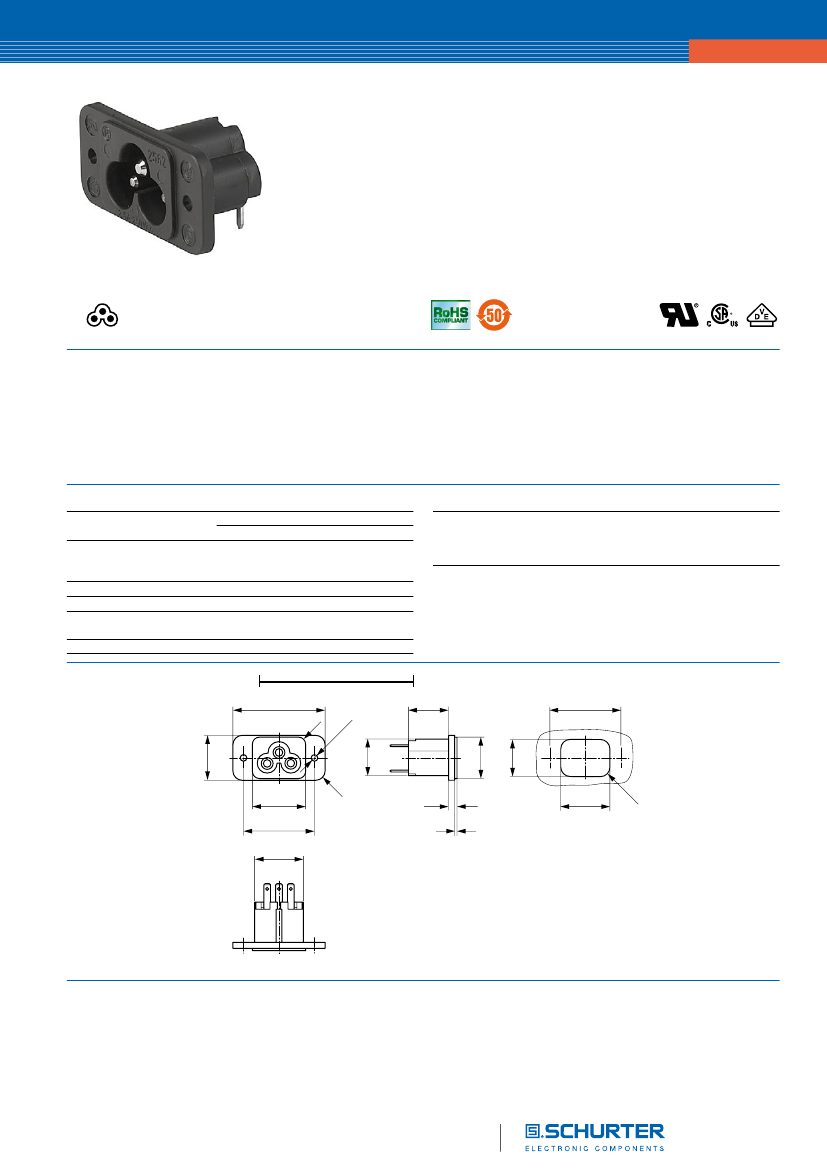

IEC Appliance Inlet C6, Screw-on Mounting, Front or Rear Side, Solder, PCB or Quick-connect Terminal
2562
C6
70° C
Description
- Panel Mount:
Screw-on mounting, Frontside Appliance Inlet, Pin temperature 70 °C
Protection class I
- Solder, Quick Connect or PCB Terminal
References
Weblinks
We recommend for new applications the type 0724
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-
Stock-Check, Accessories
Approvals
- VDE Certificate Number: 40002273
- UL File Number: E96454
- CSA File Number: 27324
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
2.5 A / 250 VAC; 50 Hz
2.5 A / 250 VAC; 60 Hz
> 4 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 1 acc. to IEC 61140
PA6, black / grey / white, UL 94V-0
Appliance Inlet
C6 acc. to IEC/EN 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
2.5 A, Protection Class 1
Allowable Operation Temp.
Degree of Protection
Protection Class
Material: Housing
Dimensions
39
3
R
ø
2.
8
39 mm
17
30
15.7
- 0
15.5
17.5
19
+0.2
R
4
R
22.5
30
20.6
3.5
1
20.8
- 0
+0.2
<4
Length of the terminal please find at the order code configuration table
Connectors
2562
www.schurter.com/pg07
Config. Code
2562
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
Connectors (Inlets/Outlets)
The characters are placeholders for the correspondingly keys of selections from the key tables.
2562
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Type
Type
protection class 1
2562
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Configuration
key
X
Terminal Ground
PCB-terminal (standard)
Blade terminal (2.8 x 0.8 mm)
Symbols similar as in table A
Configuration
key
4
7
2562
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Terminal L
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
PCB-terminal (standard)
Blade terminal (2.8 x 0.8 mm)
Configuration
key
2
3
2562
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Color
Color
jet black: RAL9005
Configuration
key
A
B
D
4
7
silver grey: RAL7001
pure white: RAL9010
2562
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Terminals
Terminal N
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
PCB-terminal (standard)
Blade terminal (2.8 x 0.8 mm)
Symbols similar as in table A
2562
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
= Style
Configuration
key
2
3
4
7
Style
flange with through holes
Configuration
key
2
Packaging unit
50 Pcs
Mating Outlets/Connectors
Category / Description
Power CordOverview complete
Power Cord with IEC Connector C5, Angled
Power Cord with IEC Connector C5, Straight
Power Cordfurther types to2562
2512
2530
2
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
