DFXOP4TSM5-20.0M,50/100/-/E

Description
LVPECL Output Clock Oscillator, 20MHz Nom,
CategoryPassive components    oscillator
File Size448KB，3 Pages
ManufacturerSTATEK CORPORATION
Websitehttp://www.statek.com/
Download Datasheet Parametric View All

DFXOP4TSM5-20.0M,50/100/-/E Overview

LVPECL Output Clock Oscillator, 20MHz Nom,

DFXOP4TSM5-20.0M,50/100/-/E Parametric

Parameter NameAttribute value
Objectid8247625886
Reach Compliance Codecompliant
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR; TRAY
maximum descent time1.5 ns
Frequency Adjustment - MechanicalNO
frequency stability100%
Installation featuresSURFACE MOUNT
Nominal operating frequency20 MHz
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Oscillator typeLVPECL
Output load50 OHM
physical size7.16mm x 5.16mm x 2.05mm
longest rise time1.5 ns
Maximum supply voltage3.63 V
Minimum supply voltage2.97 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry60/40 %

DFXOP4TSM5-20.0M,50/100/-/E Preview

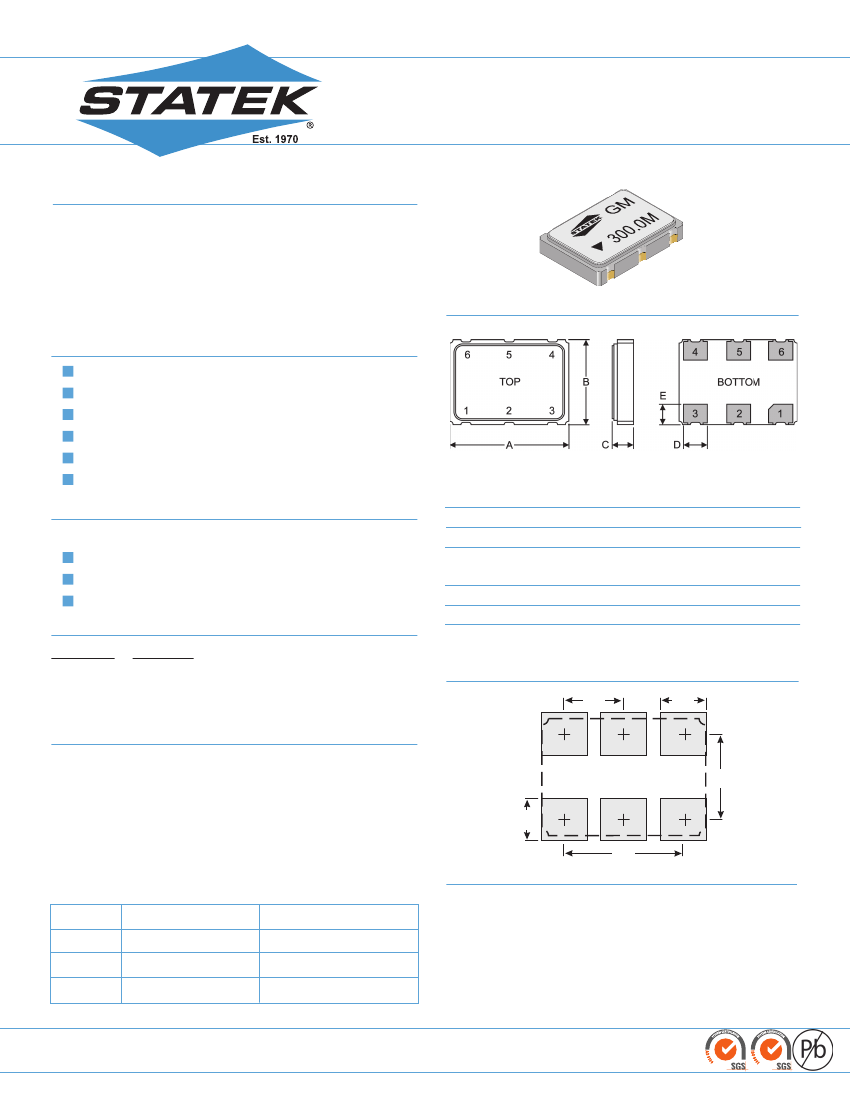

DFXO
LVDS - LVPECL & CMOS Output
20 MHz to 300 MHz
Differential Output Crystal Oscillator
DESCRIPTION
5mm x 7mm
Statek’s 5 mm x 7 mm surface mount Differential Output
Crystal Oscillator is designed for applications requiring low jitter
and ultra high frequency differential outputs in a small footprint.
Offered at frequencies from 20 MHz to 300 MHz with operation
over a temperature range of (-40°C to +105°C). No external
decoupling capacitor required with optional internal capacitor.
FEATURES
Low Profile
DIMENSIONS
LVDS - LVPECL- CMOS outputs available
Low phase noise - Low phase jitter
Internal 0.01µF SMD decoupling capacitor option
Low Allan deviation
High Frequency Fundamental Mode Crystal
Extended Industrial temperature range
APPLICATIONS
PACKAGE DIMENSIONS
Dimension
A
B
C
(SM1)
C
(SM3/SM5)
D
E
Military & Aerospace
Avionics
Communications
Networking
TERMINATIONS
Minimum
mm
6.86
4.85
1.55
1.65
1.19
1.07
Typical
mm
7.00
5.00
1.75
1.85
1.40
1.27
Maximum
mm
7.16
5.16
1.95
2.05
1.41
1.47
Designation
SM1
SM3
SM5
Termination
Gold Plated (Pb Free)
Solder Dipped
Solder Dipped (Pb Free
)
SUGGESTED LAND PATTERN
0.100
(2.54)
0.077
(1.96)
inches
(mm)
ENABLE/DISABLE OPTIONS (T/N)
Statek offers two enable/disable options: T and N. The T-version
has a Tri-State output and continues to oscillate internally when the
output is put into the high Z state. As a result, when re-enabled,
the oscillator does not have to restart and an output with a stable
frequency resumes almost immediately. The N-version does not
have PIN 2 connected internally and so has no enable/disable
capability. The following table describes the Enable/Disable option T.
ENABLE/DISABLE OPTION T FUNCTION TABLE
0.144
(3.65)
0.070
(1.80)
0.200
(5.08)
PIN CONNECTIONS
Enable (PIN 1 High*)
Output
Oscillator
Current
Frequency Output
Oscillates
Normal
Disable (PIN 1 Low)
High Z State
Oscillates
Lower than normal
*
When PIN 1 is allowed to float, it is held high by an internal pull-up resistor.
1.
2.
3.
4.
5.
6.
(T) Enable/Disable or not connected (N)
(NC) Not Connected
Ground
LVDS - LVPECL - CMOS
LVDS - LVPECL (complementary)
Supply Voltage (V
DD
)
10196 Rev C
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
ABSOLUTE MAXIMUM RATINGS
SPECIFICATIONS
Supply Voltage V
DD
-0.5 V to 4.6 V
Storage Temperature
-65
O
C to +150
O
C
Maximum Process Temperature
260
O
C for 10 seconds
ESD Protection Human Body Model 2kV
PACKAGING OPTIONS
Nominal Frequency
Operating Temperature
Supply Voltage
2
1
20 MHz to 300 MHz
-40
O
C to +85
O
C
3.3V
±
10%
(2.5 V ±10% Available)
DFXO - Tray Pack
- Tape and reel Per EIA 481
SPECIFICATIONS TABLE
Parameter
Frequency Stability
3
Shock, survival
Vibration, survival
6
5,000 g, 0.3 ms, ½ sine
20 g, 10-2,000 Hz swept sine
Parameters listed are at 25°C unless otherwise noted.
Units
PPM
PPM
PPM
PPM
PPM
Tightest
±75
±25
±25
±25
Standard
±100
±50
±5
±50
±50
Maximum
±150
±100
±100
±100
Conditions / Comments
-40°C to +105°C
-40°C to +85°C
First year depending on frequency
@25°C Other tolerances available
-40°C to +85ºC
Symbol
Aging
4
Calibration Tolerance
Frequency Tolerance (Total)
LVDS Output
Parameter
Symbol
Output Differential Voltage
V
OD
V
DD
Magnitude Change
Δ
V
OD
Output High Voltage
V
OH
Output Low Voltage
V
OL
Offset Voltage
V
OS
Offset Magnitude Change
Δ
V
OS
Power-off Leakage
I
OXD
Short Circuit Current (Output)
I
OSD
Rise Time (Differential Clock)
t
R
Fall Time (Differential Clock)
t
F
Supply Current
(Outputs Loaded)
I
DD
5
Duty Cycle (Output Clock)
LVPECL Output
Parameter
Symbol
Output High Voltage
Output Low Voltage
Rise Time
t
R
Fall Time
t
F
Supply Current
(Outputs Loaded)
I
DD
5
Duty Cycle (Output Clock)
Units
mV
mV
V
V
V
mV
uA
mA
nS
nS
mA
%
Minimum
247
-50
0.9
1.125
0
Typical
355
1.4
1.1
1.2
3
±1
-6
0.7
0.7
30*
Maximum
454
50
1.6
1.375
25
±10
-8
1
1
80
60
Conditions / Comments
RL = 100
Ω
(See Figure 2)
V
OUT
=V
DD
or GND (V
DD
= 0V)
R
L
=100
Ω
20% to 80%
(See Figures 3 & 4)
* Typical for 125 MHz
@ 1.25 V
0.2
0.2
40
Units
Minimum
V
DD
-1.025
Typical
Maximum
Conditions / Comments
R
L
=50
Ω
to (V
DD
-2V)
(See Figure 5)
20% to 80% (See Figure 6)
20% to 80% (See Figure 6)
@
V
DD
-1.3V
nS
nS
mA
%
0.6
0.5
40
V
DD
-1.620
1.5
1.5
100
60
CMOS Output
Parameter
Symbol
Units
Short Circuit Current
mA
Output Drive Current
I
OH
mA
(CMOS)
I
OL
mA
Rise/Fall Time (CMOS)
trtf
nS
Output Load (CMOS)
CL
pF
Supply Current
(Outputs Loaded)
I
DD
mA
5
Duty Cycle (Output Clock)
%
Timing Jitter
Jitter (Integrated) (LVDS)
pS
Jitter (Period) (LVDS)
pS
Offset Frequency
Phase Noise - 125 MHz
Typical (LVDS)
L(f)
dBc/Hz
1.
2.
3.
4.
5.
6.
-40°C to +105°C at selected frequencies. Please contact factory.
2.5 V available for frequencies up to 160 MHz.
Does not include calibration tolerance.
Contact factory for tighter tolerance.
Contact factory for 45/55% duty cycle.
Per MIL-STD-202G, Method 204D, Random vibration testing also available.
Minimum
20
20
Typical
±50
25
25
1.5
Maximum
Conditions / Comments
40
0.3
2.0
@ 100 Hz
-110
15
40
60
0.4
@ 1 kHz
-133
V
OH
=V
DD
-0.4V,
V
DD
=3.3V
V
OL
=0.4V,
V
DD
=3.3V
10% to 90% 3.3V, 15pF
(See Figure 1)
200 MHz Maximum
@ 50%V
DD
125 MHz (12 kHz to 20 MHz RMS)
125 MHz (10,000 cycles RMS)
@ 10 kHz
@ 100 kHz
-143
-148
@ 10 Hz
-85
10196 Rev C
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
HOW TO ORDER DFXO SURFACE MOUNT CRYSTAL OSCILLATORS
DFXO
C
4
Supply Voltage
2 = 2.5 V
4 = 3.3 V
T
Enable/Disable
Option T or N
SM3
Terminations
Blank = SM1
= Gold Plated (Pb Free)
SM3 = Solder Dipped
SM5 = Solder Dipped (Pb Free)
300.0M
Frequency
M = MHz
,
50
Calibration
Tolerance
@ 25
O
C
(in ppm)
/
50
Frequency
Stability over
Temp. Range
(in ppm)
/
/
I
Output Type
C = CMOS
D = LVDS
P = LVPECL
OR
/
/
100
Total
Frequency
Tolerance
(in ppm)
Temperature Range
C = -10
O
C to +70
O
C
I
= -40
O
C to +85
O
C
E = -40
O
C to +105
O
C
S = Customer Specified
/
I
CMOS Test Circuit
Temperature Range
C = -10
O
C to +70
O
C
I
= -40
O
C to +85
O
C
E = -40
O
C to +105
O
C
S = Customer Specified
Note: a 0.1µF bypass capacitor between VDD and GND pins as close as
possible is recommended to minimize power supply line noise.

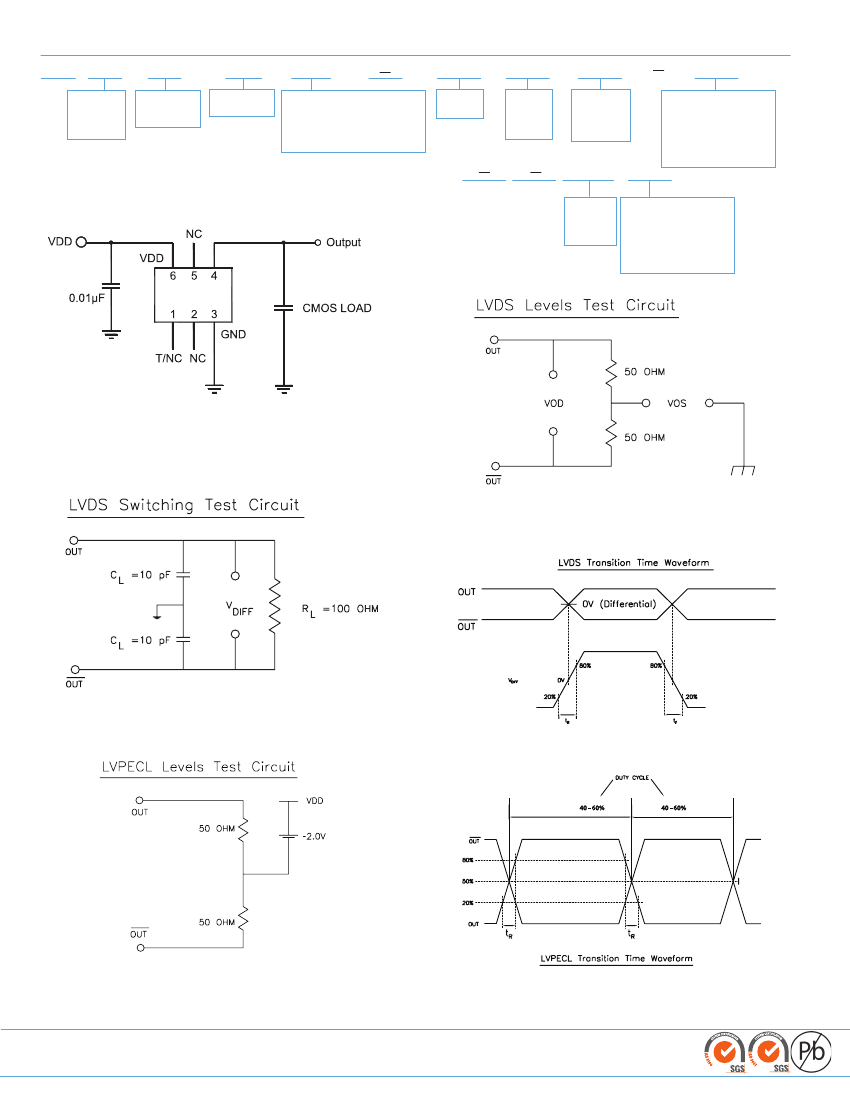

Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
10196 Rev C
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Novel solar LED light controller circuit diagram

FM modulator strong-weak signal switching circuit a

Spike signal generator circuit

Notch filter circuit using three operational amplifiers

Mains photoelectric control circuit

150V regulated power supply circuit

GitHub uses files that do not require version management
[size=4]Following the post of [color=#000000]@[backcolor=white][b]littleshrimp @[/b][/backcolor][url=https://home.eeworld.com.cn/space-uid-527961.html][b]l[/b][b]b8820265[/b][/url][/color], I roughly ...
strong161 MEMS sensors
Application of LLC series resonant circuit in high power audio amplifier
Introduction: With the continuous rise in the prices of non-ferrous metals, magnetic materials, and insulating materials in the international market, the production cost of power amplifiers is directl...
highsun Power technology
Thyristors and Triacs - Ten golden rules for successful application
Thyristors and Triacs - Ten Golden Rules for Successful Application [color=blue][b]Summary of Ten Golden Rules [/b][/color] Rule 1. To turn on a thyristor (or triac), there must be a gate current ≧IGT...
xiaogangzhang RF/Wirelessly
Did you notice? ----- In the immediate number, CCS treats the comma as "."!
In some compilers, for relatively large numbers, ------ immediate numbers are separated by commas to facilitate observation of the number of digits in the data, just like accounting, very intuitive. F...
dontium Microcontroller MCU
DA8820 430 program (debugging successful)
All projects have annotations and have been successful...
yangyu24kb Microcontroller MCU
What is the difference between programming on DSP and ARM?
I have known about DSP, digital signal processor, for a long time, and I have been using it for nearly 2 years, mainly TI. I used assembly language in school before, but now I use C language completel...
bluemoon ARM Technology
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. DS2119ME
  2. 7103SPHW5BI
  3. FKS3J013303D00MSC9
  4. QT288L-14-M-0.500MHZ
  5. MWDM4L-67CS-0J5-18H
  6. 235050011479
  7. FHV200453RFNRS
  8. SMP3B479MCJUB00
  9. SD880CS
  10. SMAJ36A
  11. A2541WV-S-2x6P-C1040-G15
  12. 0402WGJ0685TCE

Popular Articles

  1. Exxelia components power the Perseverance rover
  2. Nintendo Switch OLED Chinese version product barcode has been registered and approved
  3. New patent shows that in the future AirPods can turn off the noise reduction function by saying a secret code
  4. Huawei lost its position, Xiaomi, OV and others are chasing it
  5. SD card reader MMC memory based on 51 single chip microcomputer
  6. Introduction to the functions and common classifications of signal sources
  7. 80C51 timer interrupt
  8. Breaking the doubts about chiplet marginalization: Packaging plants will be the backbone of UCIe
  9. Honor's small-screen flagship is exposed
  10. Code reading program for infrared remote control based on HX1838 (HS0038) and STC10F04 microcontroller

Technical ResourceMore

  1. The World of Huawei (Electronic Version)
  2. PIC microcontroller macro assembler MPASM instruction table
  3. CDMA technical information
  4. MIMO radar based on Frank\'s complement code
  5. Design of Audio Signal Analyzer Based on MSP430F1611 Microcontroller
  6. Overview of test point optimization for electronic products
  7. Lists the definition of IDE interface in detail
  8. Realization of electronic transformer interface based on FPGA
  9. Two-Port calculations (VIERPOL.EXE) V3.0
  10. Multimedia Solutions Based on OMAP2 and OMAP3

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1606  1496  361  2857  613  33  31  8  58  13
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
