Spec Sheet
Super Low Distortion Multilayer Ceramic Capacitors
EMK105SD182KV-F
Features
Item Summary
1800pF±10%, 16V,
LowDistortionStandard, 0402/1005 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 10000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Operating Temp. Range (EIA)
Operating Temp. Range (JIS)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
1800 pF ± 10 %
0402/1005
16 V
0.1 %
-55 to +125 ℃
-55 to +125 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.0 ±0.05 mm
0.5 ±0.05 mm
0.5 ±0.05 mm
0.25 ±0.10 mm
2018.10.22
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○EMK105SD182KV
16V 1005 1800pF +/- 10% t=0.55mmMAX
16V 0402 1800pF +/- 10% t=0.022inchMAX

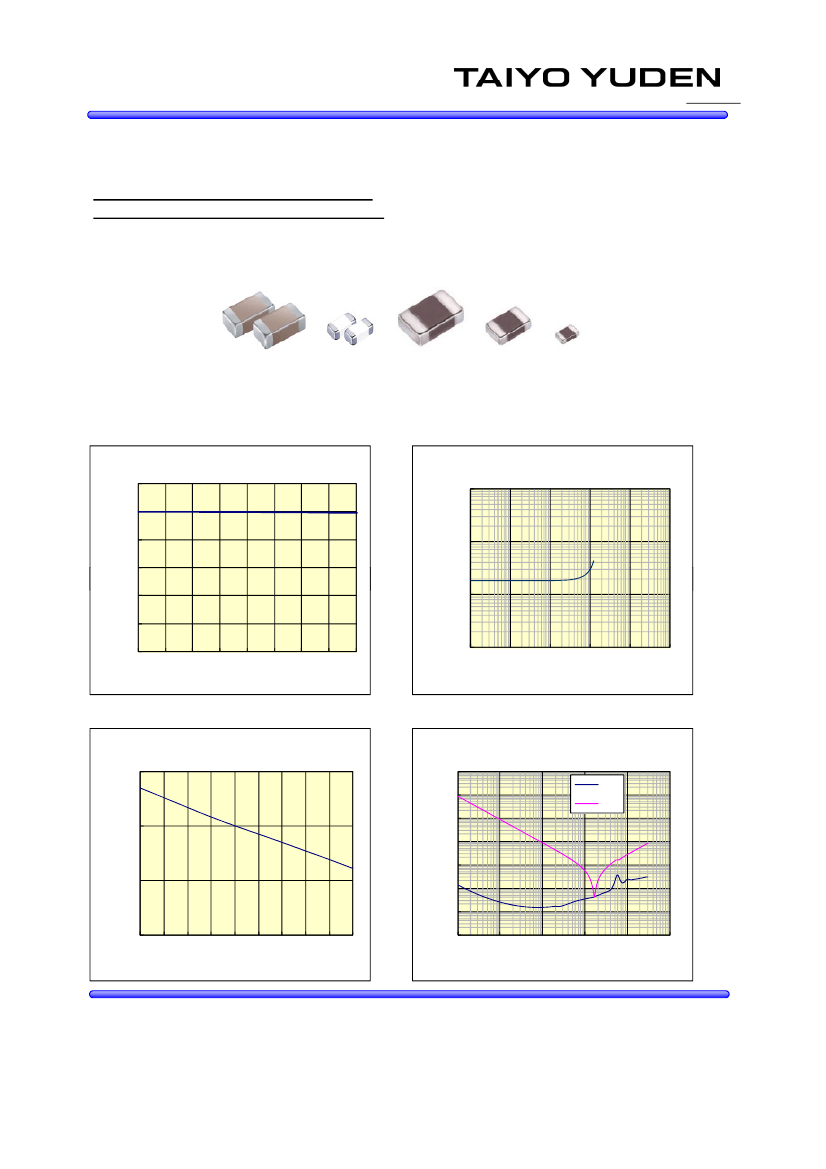

-Electrical Characteristics Data-
16CJA02
RoHS compliance product
2
0
EMK105SD182KV
DC Bias Char.
100000
EMK105SD182KV
Capa citance Freq.
-4
-6
-8
-10
0
2
4
6
8
10 12
DC Bias Voltage[V]
14
16
Capa cita nce[pF]
apa
n
-2
10000
dC/C
dC/C[%]
1000
100
0.1
1
10
100
1000
10000
Frequency[MHz]
EMK105SD182KV
Capacitance Temp.
10
10000
1000
0
100
EMK105SD182KV
Impedance,ESR Freq.
ESR
Z
Z,ESR[OHM]
dC/C[%]
10
1
-10
0.1
0.01
-20
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
0.001
0.1
1
10
100
1000
Frequency[MHz]
10000
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
