CD18FD242JO3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CD18FD242JO3

CD18FD242JO3: Descriptionmica capacitors 2400pf 500v +/-5%; CategoryPassive components; File Size146KB，3 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

CD18FD242JO3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD18FD242JO3	-	-	View	Buy Now

CD18FD242JO3 Overview

mica capacitors 2400pf 500v +/-5%

CD18FD242JO3 Parametric

Parameter Name	Attribute value
Manufacture	Cornell Dubilie
Product Category	Mica Capacitors
RoHS	N
Capacitance	2400 pF
Voltage Rating	500 V
Tolerance	5 %
Termination Style	Radial
Case Length	17 mm
Case Width	6.6 mm
Case Heigh	13.7 mm
Operating Temperature Range	- 55 C to + 150 C
Dimensions	6.6 mm L x 17 mm W x 13.7 mm H
Dissipation Factor DF	0.05
Produc	Mica High Frequency Capacitors
Factory Pack Quantity	50

Preview

Download Datasheet

View All

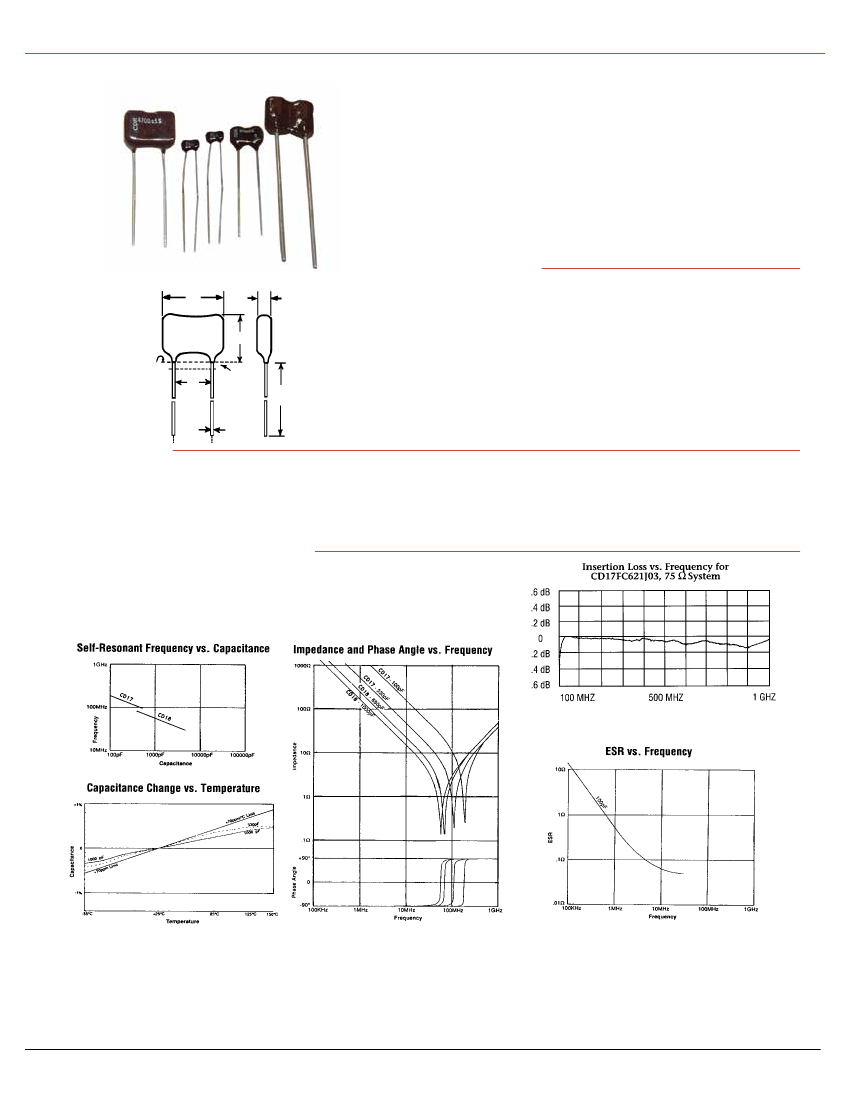

High-Frequency Capacitors for CATV and RF Applications

Types CD17, CD18 & CDV18,

High-Frequency, Mica Capacitors

Types CD17 and CD18 assure controlled, resonance-

free performance through 1 GHz. Insertion loss

data is typically flat within ±0.1 dB over the entire

frequency range, and is specified to be flat within

±0.2 dB. Interchangeable with the most popular,

common mica capacitors, Type CD17 is available in

the same case sizes and lead spacing as CD15; CD18,

in the same case sizes and lead spacing as CD19,

and CDV18, in the same as CDV19.

Highlights

• Shockproof and delamination free

• Near zero capacitance change with (t), (V) and (f )

• Very high Q at UHF/VHF frequencies

• 0.0005 typical dissipation factor

• 100,000 V/μs dV/dt capability minimum

• Low, notch-free impedance to beyond 1 GHz

• Ultra low ESR for cool operation

100 Vdc to 1,000 Vdc

1 pF to 5,100 pF

±1⁄2 pF (D), ±1 pF (C), ±1⁄2% (E), ±1% (F), ±2% (G), ±5% (J)

–55 °C to +150 °C

H Max.

Measured at

point where

phenolic cone

becomes a

cylinder

.031.

.078. Max.

no solder

Min.

Specifications

Voltage Range:

Capacitance Range:

Capacitance Tolerance:

Temperature Range:

Typical Perfomance Curves

RoHS-5 Compliant

Has more than 1000 ppm lead in some homogenous material but otherwise complies with the EU Directive 2002/95/EC

requirement restricting the use of Lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent chromium (Cr(VI)), PolyBromi-

nated Biphenyls (PBB) and PolyBrominated Diphenyl Ethers (PBDE).

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Ph: (508)996-8561

•

Fax: (508)996-3830

•

www.cde.com

Types CD17, CD18 & CDV18,

High-Frequency, Mica Capacitors

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and data

(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer

is responsible for checking, confirming and verifying the extent to which the Information contained in this

datasheet or other publication is applicable to an order at the time the order is placed. All Information given

herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation

or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based

on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”) has

of operating conditions that such Cornell Dubilier company regards as typical for such applications, but

are not intended to constitute any guarantee, warranty or representation regarding any such matter – and

Cornell Dubilier specifically and expressly disclaims any guarantee, warranty or representation concerning

the suitability for a specific customer application, use, storage, transportation, or operating environment.

The Information is intended for use only by customers who have the requisite experience and capability to

determine the correct products for their application. Any technical advice inferred from this Information or

otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given

gratis (unless otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability

for the advice given or results obtained. Although Cornell Dubilier strives to apply the most stringent quality

and safety standards regarding the design and manufacturing of its products, in light of the current state

of the art, isolated component failures may still occur. Accordingly, customer applications which require a

high degree of reliability or safety should employ suitable designs or other safeguards (such as installation

of protective circuitry or redundancies or other appropriate protective measures) in order to ensure that the

failure of an electrical component does not result in a risk of personal injury or property damage. Although

all product-related warnings, cautions and notes must be observed, the customer should not assume that all

safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be

required.

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Ph: (508)996-8561

•

Fax: (508)996-3830

•

www.cde.com
