M55342K12B20D5R: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 0.1W, 1%, 100ppm, 20.5ohm, SURFACE MOUNT, 0603, CHIP; CategoryPassive components The resistor; File Size123KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Related ProductsFound8parts with similar functions to M55342K12B20D5R

Download Datasheet Parametric View All

M55342K12B20D5R Overview

RESISTOR, METAL GLAZE/THICK FILM, 0.1W, 1%, 100ppm, 20.5ohm, SURFACE MOUNT, 0603, CHIP

M55342K12B20D5R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	, 0603
Reach Compliance Code	unknow
ECCN code	EAR99
JESD-609 code	e0
Manufacturer's serial number	RM
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
Guideline	MIL-PRF-55342
resistance	20.5 Ω
Resistor type	FIXED RESISTOR
size code	0603
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	50 V
Base Number Matches	1

Preview

Download Datasheet

View All

E/H

Vishay Thin Film

QPL MIL-PRF-55342 Qualified Thin Film Resistor Chips

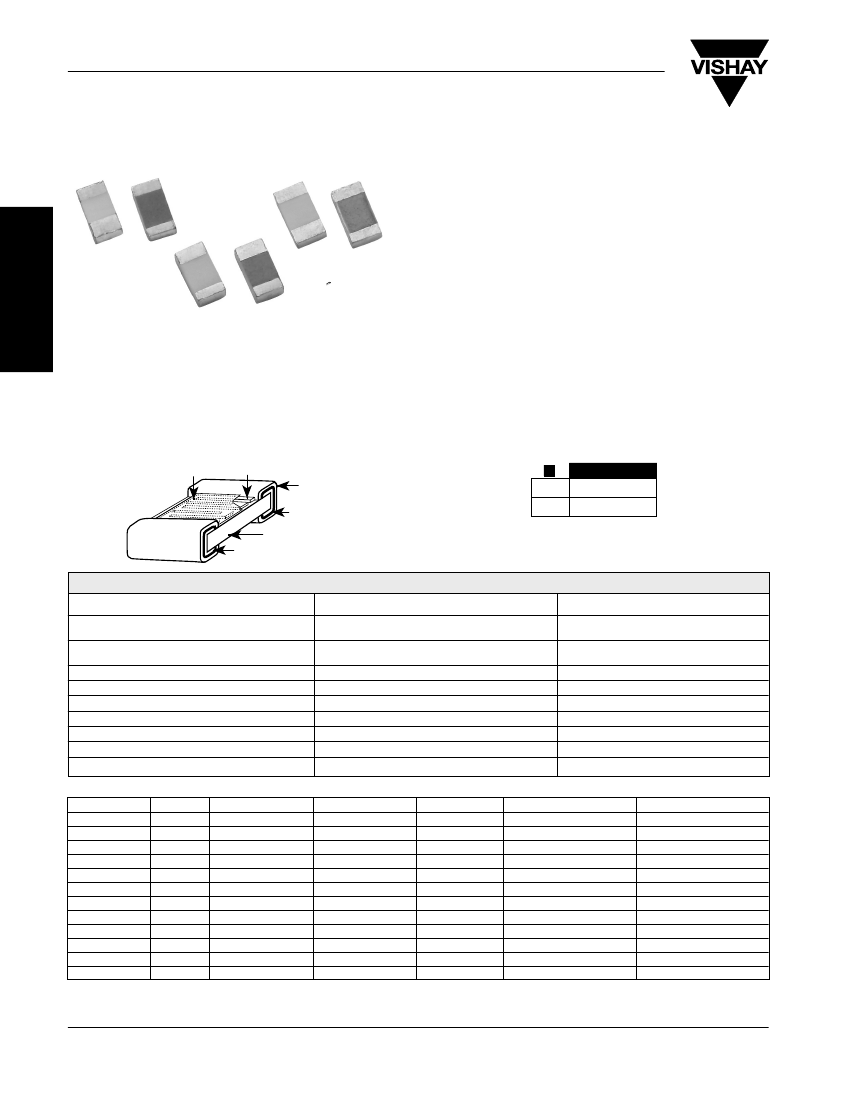

FEATURES

• Established reliability, “R” failure rate level

SURFACE MOUNT

CHIPS

• High purity alumina substrate for high power

• Wraparound termination featuring a tenacious adhesion

layer covered with an electroplated nickel barrier layer for

+ 150°C operating conditions

• Very low noise and voltage coefficient

• Non-inductive

• Laser-trimmed tolerances to

0.1%

• Wraparound resistance less than 0.010 ohms typical

• In-lot tracking less than 5ppm/°C

• Complete MIL-testing available in-house

• Antistatic waffle pack or tape and reel packaging available

Actual Size

M55342/02

Thin Film Mil chip resistors feature all sputtered wraparound

termination for excellent adhesion and dimensional uniformity.

They are ideal in applications requiring stringent performance

requirements. Established reliability is assured through 100%

screening and extensive environmental lot testing. Wafer is

sawed producing exact dimensions and clean, straight edges.

NOTE:

Specification changed by DSCC from MIL-R-55342

to MIL-PRF-55342.

TYPICAL PERFORMANCE

ABS

CONSTRUCTION

Passivation

Resistor Film

Solder

coating

Nickel barrier

High Purity

Alumina Substrate

Adhesion layer

TCR

TOL

0.1

STANDARD ELECTRICAL SPECIFICATIONS

TEST

MATERIAL

Absolute TCR:

Absolute Tolerance:

Stability:

∆

R Absolute

Voltage Coefficient

Operating Temperature Range

Storage Temperature Range

Noise

Shelf Life Stability

SPECIFICATIONS

TAMELOX®

25ppm/°C to

100ppm/°C

0.1%

0.5ppm/Volt

- 55°C to + 125°C

- 55°C to + 150°C

- 25dB

100ppm

- 55°C to + 125°C

+ 25°C

2000 hrs. @ + 70°C

CONDITIONS

1 year @ + 25°C

DIMENSIONS

CASE SIZE

M55342/01

M55342/02

M55342/03

M55342/04

M55342/05

M55342/06

D55342/07

M55342/08

M55342/09

M55342/10

M55342/11

M55342/12

TERM.

0.050

0.005

0.055

0.006

0.105

0.007

0.155

0.007

0.230

0.007

0.080

0.006

0.126

0.008

0.209

0.009

0.259

0.009

0.105

0.007

0.040

0.005

0.064

0.006

0.025

0.005

0.050

0.005

0.050

0.005

0.050

0.005

0.075

0.005

0.050

0.005

0.063

0.005

0.098

0.005

0.124

0.005

0.100

0.005

0.025

0.005

0.032

0.005

0.010 to 0.030

0.012 to 0.033

0.015 to 0.033

0.010 to 0.030

0.010 to 0.033

0.010

0.005

0.010

0.005

0.015

0.005

0.015

0.005

0.020

0.005

0.016

0.008

0.020 + 0.005, - 0.010

0.020

0.005

0.020

0.005

0.015

0.005

0.010

0.005

0.012

0.005

0.015

0.005

0.015

0.005

0.015

0.005

0.015

0.005

0.020

0.005

0.015

0.005

0.020 + 0.005, - 0.010

0.020

0.005

0.020

0.005

0.015

0.005

0.015

0.005

0.015

0.005

VISHAY THIN FILM • FRANCE +33.4.93.37.28.24 FAX: +33.4.93.37.27.31 • GERMANY +49.9287.710 FAX: +49 9287.70435 • ISRAEL +972.3.557.0945 FAX: +972.3.558.9121

• ITALY + 39.2.300.11919 FAX: +39.2.300.11999 • JAPAN +81.3.5464.6411 FAX: +81.3.5464.6433 • SINGAPORE +65.788.6668 FAX: +65.788.0988

• SWEDEN +46.8.594.70590 FAX: +46.8.594.70581 • UK +44 191 514 8237 FAX: +44 1953 457 722 • USA: (610) 407-4800 FAX: (610) 640-9081

www.vishay.com

Document Number: 60018

Revision 08-Oct-04
