MKP4O124704D00KSSD datasheet, PDF

Datasheet> All Categories > Passive components> MKP4O124704D00KSSD

MKP4O124704D00KSSD: Descriptionfilm capacitors 1kv .047uf 10%; CategoryPassive components; File Size390KB，10 Pages; ManufacturerWiha Tools Ltd.; Environmental Compliance

Download Datasheet Parametric View All

MKP4O124704D00KSSD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MKP4O124704D00KSSD	-	-	View	Buy Now

MKP4O124704D00KSSD Overview

film capacitors 1kv .047uf 10%

MKP4O124704D00KSSD Parametric

Parameter Name	Attribute value
Manufacture	WIMA
Product Category	Film Capacitors
RoHS	Yes
Produc	RF Microwave Film Capacitors
Dielectric	Polypropylene (PP)
Capacitance	0.047 uF
Voltage Rating AC	400 V
Voltage Rating DC	1 kV
Tolerance	10 %
Termination Style	Radial
Lead Spacing	15 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 100 C
Case Heigh	14 mm
Case Length	18 mm
Case Width	7 mm
Dissipation Factor DF	10
Lead Diamete	0.8 mm
Load Life	300000 h
Packaging	Bulk
Type	Metallized Polypropylene Film Capaci

Preview

Download Datasheet

View All

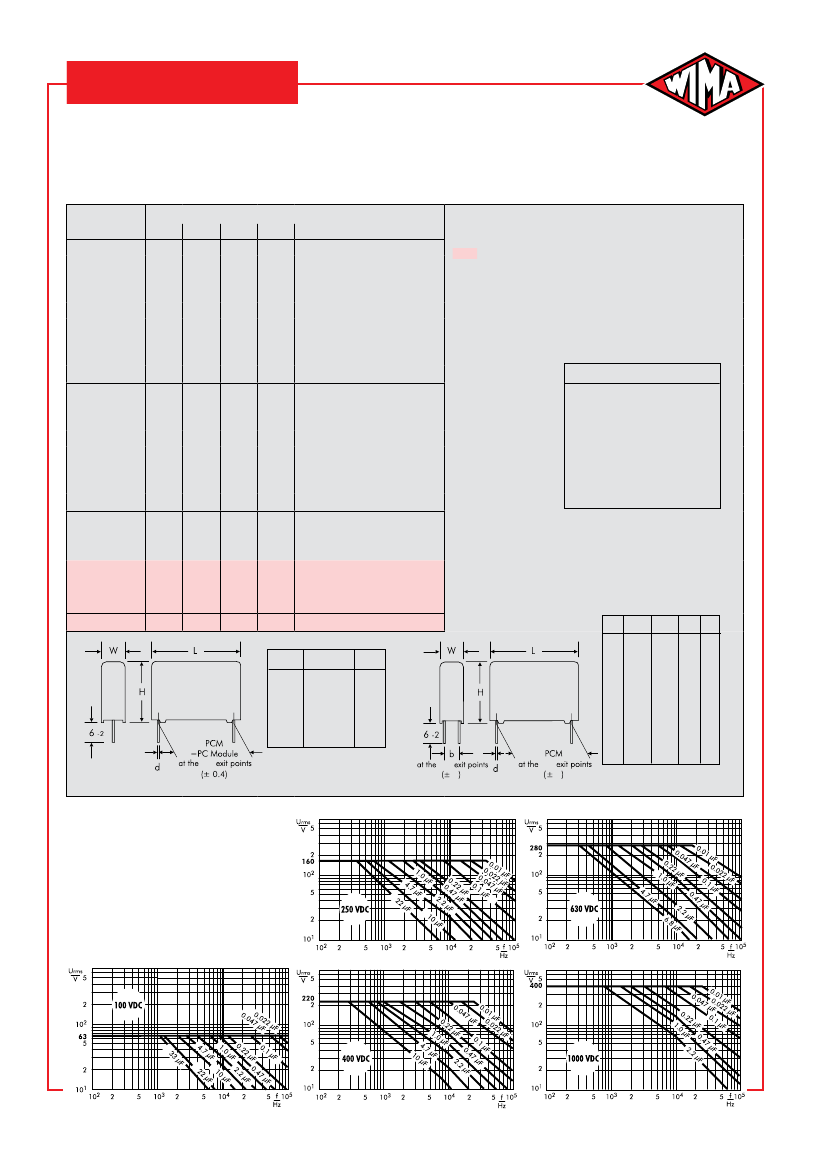

WIMA MKP 4

Metallized Polypropylene (PP) Capacitors

PCM 7.5 mm to 52.5 mm

Special Features

High volume/capacitance ratio

Self-healing

Very low dissipation factor

Negative capacitance change

versus temperature

Very low dielectric absorption

According to RoHS 2011/65/EU

Electrical Data

Capacitance range:

0.01

to 150

(E12-values on request)

Rated voltages:

100 VDC, 250 VDC, 400 VDC,

630 VDC, 1000 VDC

Capacitance tolerances:

± 20%, ± 10%, ± 5%

Operating temperature range:

–55+ C to +100+ C

Climatic test category:

55/100/56 in accordance with IEC

Insulation resistance

at +20+ C:

0.33

1 x 10

(mean value: 5 x 10

)

0.33

30 000 sec (M

(mean value: 100 000 sec)

Measuring voltage: 100 V/1 min.

Dissipation factors

at + 20) C:

tan

10 x 10

-4

at 1 kHz (C

mF)

tan

15 x 10

-4

at 1 kHz (C > 50

mF)

Maximum pulse rise time:

Capacitance

0.01 ... 0.022

0.033 ... 0.068

0.1 ... 0.22

0.33 ... 0.68

1.0 ... 2.2

3.3 ... 4.7

6.8 ... 10

... 33

47 ... 150

100 VDC

450

250

150

100

Test specifications:

In accordance with IEC 60384-16

Test voltage:

1.6 U

, 2 sec.

Dielectric absorption:

0.05 %

Voltage derating:

A voltage derating factor of 1.35 % per K

must be applied from +85+ C for DC

voltages and from +75+ C for AC

voltages.

Reliability:

Operational life

300 000 hours

Failure rate



2 fit (0.5 x U

and 40) C)

Specific dissipation:

Box size*

Specific dissipation in Watts per K

W x H x L in mm above the ambient temperature

35 x 50 x 57

0.132

45 x 55 x 57

0.164

45 x 65 x 57

0.184

* other box sizes see page 10.

Typical Applications

For high frequency applications e.g.

Sample and hold

Timing

Oscillating circuits

High frequency coupling and

decoupling

Construction

Dielectric:

Polypropylene (PP) film

Capacitor electrodes:

Vacuum-deposited

Internal construction:

MKP 4: 63 VAC, 160 VAC, 200 VAC, 280 VAC

Plastic film

Vacuum-deposited

electrode

Metal contact layer

(schoopage)

Terminating wire

max. pulse rise time V/msec at T

< 40) C

250 VDC

400 VDC

630 VDC

1000 VDC

450

250

150

100

450

300

200

150

100

–

500

350

250

200

150

120

–

550

400

300

200

150

140

100

–

MKP 4: 400 VAC

Plastic film

Vacuum-deposited

electrode

Metal contact layer

(schoopage)

Terminating wire

for pulses equal to the rated voltage

Mechanical Tests

Pull test on pins:

0.8

: 10 N in direction of pins

d > 0.8

: 20 N in direction of pins

according to IEC 60068-2-21

Vibration:

6 hours at 10 ... 2000 Hz and 0.75 mm

displacement amplitude or 10 g in

accordance with IEC 60068-2-6

Low air density:

1kPa = 10 mbar in accordance with

IEC 60068-2-13

Bump test:

4000 bumps at 390 m/sec

in accordance with IEC 60068-2-29

Packing

Available taped and reeled up to and

including case size 15 x 26 x 31.5 /

PCM 27.5 mm.

Detailed taping information and graphs

at the end of the catalogue.

Encapsulation:

Solvent-resistant, flame-retardant plastic

case with epoxy resin seal, UL 94 V-0

Terminations:

Tinned wire.

Marking:

Colour: Red. Marking: Black.

Epoxy resin seal: Red

For further details and graphs please

refer to Technical Information.
