SK331M035ST

Description
aluminum electrolytic capacitors - leaded 330uf 35v
CategoryPassive components
File Size324KB,9 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric View All

SK331M035ST Online Shopping

Suppliers Part Number Price MOQ In stock
SK331M035ST - - View Buy Now

SK331M035ST Overview

aluminum electrolytic capacitors - leaded 330uf 35v

SK331M035ST Parametric

Parameter NameAttribute value
ManufactureCornell Dubilie
Product CategoryAluminum Electrolytic Capacitors - Leaded
RoHSYes
Capacitance330 uF
Voltage Rating DC35 V
Tolerance20 %
Ripple Curre490 mA
Maximum Operating Temperature+ 85 C
Load Life2000 h
Termination StyleRadial
Case Diamete10 mm
Case Length16 mm
Lead Spacing5 mm
ProducGeneral Purpose Electrolytic Capacitors
Dimensions10 mm Dia. x 16 mm L
Dissipation Factor DF12
ESR480 mOhms
PackagingBulk
Factory Pack Quantity200
Type SK

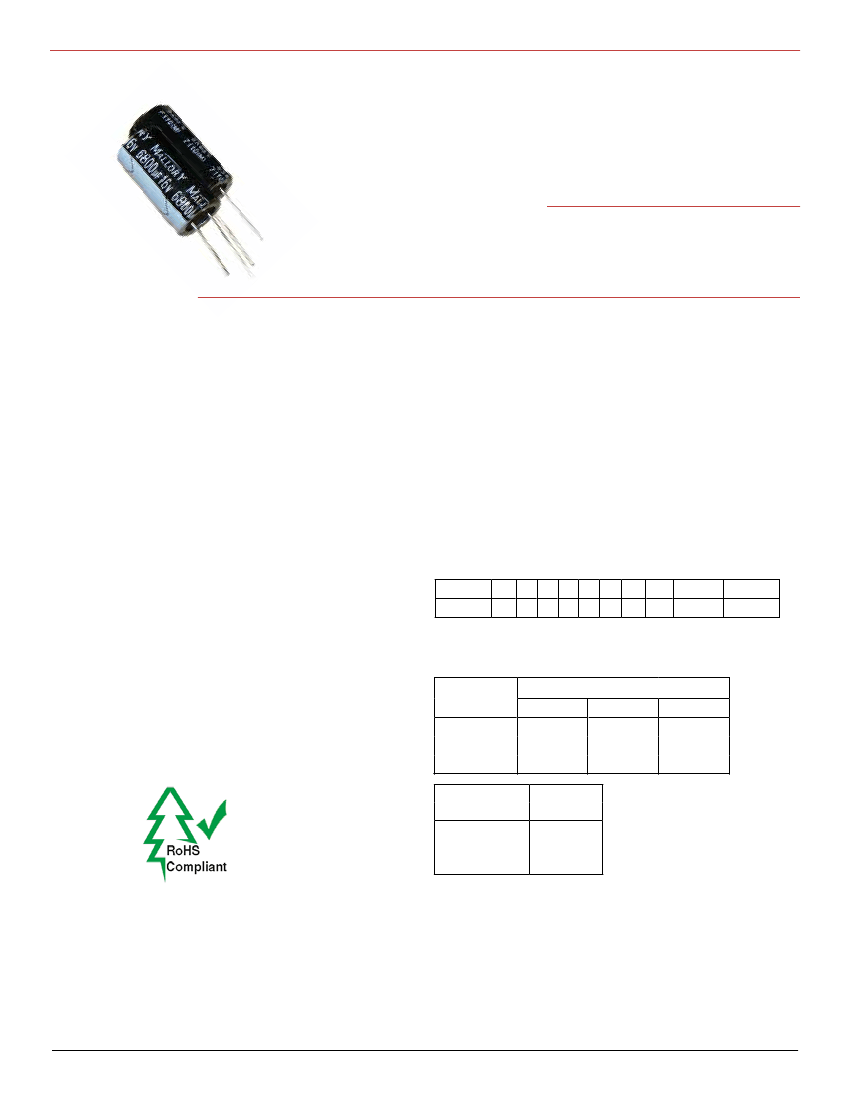

85 ºC Radial Leaded Aluminum Electrolytic Capacitors
2000 Hour Long Life, General Purpose Aluminum Electrolytic
Type SK is a radial leaded aluminum electrolytic
capacitor with a +85 ºC, 2000 hour long life rating. The
SK is a high CV rated product and is ideal for general
purpose applications such as stereo radio, TV, comput-
ers and other consumer electronic products.
+85 ºC
2000 hours - long life
High CV
Available in T&R and ammo pack
0.47 to 15,000 µF
6.3 to 450 Vdc
±20%
–40 ºC to +85 ºC; 6.3 to 100 Vdc
–25 ºC to +85 ºC; 160 to 450 Vdc
6.3 to 100 Vdc;
I = ≤.01CV or 3 µA Max
Whichever is greater after 2 minutes application
of DC working voltage at 20 ºC
≥100 Vdc; I = ≤.03CV or 10 µA Max
Whichever is greater after 2 minutes application
of DC working voltage at 20 ºC
C = Capacitance in (µF)
V = Rated voltage
I = Leakage current in µA
WV (V)
DF(%)
6.3 10 16 25 35 50 63 100 160-250 350-450
24 20 16 14 12 10 10
10
20
24
Highlights
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
DC Leakage Current:
Dissipation Factor @ 120 Hz, +20 ºC:
Ripple Multipliers for Voltage and Temperature:
For capacitance values > 1000 µF, the DF (%) value is
increased 2% for every additional
1000 µF
Rated
WVDC
6 to 25
35 to 100
160 to 250
Ambient
+85 ºC
+75 ºC
+65 ºC
Complies with the EU Directive
2002/95/EC requirement
restricting the use of Lead (Pb),
Mercury (Hg), Cadmium (Cd),
Hexavalent chromium (Cr(VI)),
PolyBrominated Biphenyls (PBB)
and PolyBrominated Diphenyl
Ethers (PBDE).
Ripple Multipliers
60Hz
0.85
0.75
0.70
Ripple
1.00
1.14
1.25
120Hz
1.0
1.0
1.0
1kHz
1.1
1.3
1.4
Temperature Multiplier
Load Life:
Apply WVDC for 2000 hours at +85 ºC
Shelf Life:
1000 hrs at +85 ºC with no voltage applied
Capacitance change within 20% of initial limit
DF not to exceed 200% of initial requirement
Leakage current meets initial limits
Cap change within 20% of initial values
DF ≤ 200% of initial requirements
DC leakage current meets initial measured value
CDE Cornell Dubilier
1605 E. Rodney French Blvd.
New Bedford, MA 02744
Phone: (508)996-8561
Fax: (508)996-3830
www.cde.com
