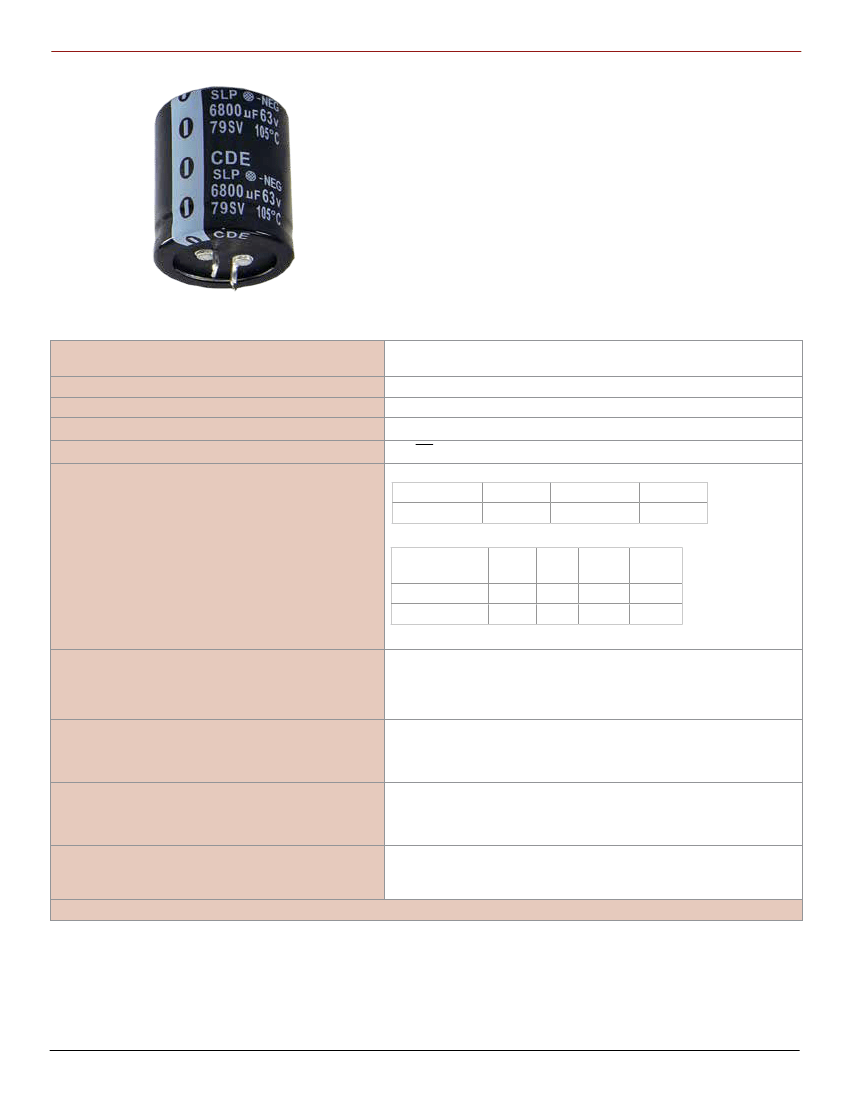

Type SLP 105 °C Snap-In Aluminum Electrolytic
Best Value 105 °C Snap-In Type
Type SLP is the best value package snap-in series for 105 ºC, 3000 h
operation. This series is the most cost-effective choice for DC filtering
and power supply applications where high temperature, long life and
high ripple capability are needed.
Highlights
- 3000 h ripple load life at rated voltage
- 105 ºC rated
- Small case size with high capacitance
- Best for switching power supplies
- 22 mm to 35 mm diameter, 10 mm lead spacing
- Best value snap-in type
- High ripple current
–40 ºC to +105 ºC ≤ 100 Vdc
–25 ºC to +105 ºC ≥ 160 Vdc
10 Vdc to 450 Vdc
47 µF to 56,000 µF
±20%
≤ 3 √CV µA at 5 minutes
Ambient Temperature
20 ºC - 45 ºC
2.00
Frequency
Voltage
10 - 100 Vdc
160 - 450 Vdc
Low Temperature Characteristics
60 Hz 120 Hz 1 kHz
0.90
0.80
1.00
1.00
1.15
1.25
10 kHz &
Up
1.25
1.47
65 ºC
1.89
85 ºC
1.52
105 ºC
1.00
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
To apply multipliers, see ratings tables for ripple current values
Impedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 10 (10 Vdc)
≤ 8 (16–50 Vdc)
≤ 4 (63–100 Vdc)
≤ 3 (150–450 Vdc)
3,000 h @ full load @105 ºC
Δ Capacitance ±20%
ESR ≤200% of limit
DCL 100 % of limit
1,000 h @ 105 ºC
Δ Capacitance ±20%
ESR ≤150% of limit
DCL 100 % of limit
10 Hz to 55 Hz , 0.06” and 10g max
2 h for each plane
RoHS Compliant
Endurance Life
Shelf Life
Vibration
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Best Value 105 °C Snap-In Type
Part Numbering System
SLP
562
M
Type SLP 105 °C Snap-In Aluminum Electrolytic
025
A3
Case
P
3
Insulating
A
Type
SLP
Cap
821
= 820 µF
332
= 3300 µF
103
= 10,000 µF
Tolerance
M =
±20%
Voltage
025
= 25 Vdc
250
= 250 Vdc
Code
Polarity
P
= Polarized
Sleeve
3
= PVC
mm
40
A7
C7
E7
H7
(in)
45
A4
C4
E4
H4
50
A9
C9
E9
H9
Pin Style
Blank
= 2 pins
snap-in 6.3 mm L
A
= 2 pins snap-in
4.0 mm L
Diameter
25
mm
22
25
(in)
(0.87)
(1.00)
(1.18)
(1.38)
A1
C1
E1
H1
30
A3
C3
E3
H3
Length
35
A5
C5
E5
H5
(1.00) (1.18) (1.38)
(1.57) (1.77) (2.00)
Outline Drawing
10.0
30
35
1.5 +0.2/-0.1
Vent
0.8 +0.2/-0.1
0.8 +0.2/-0.1
6.3
3.5
L±2
6.3±1
D+1 max.
2 x
Ø2.0±0.1
PC Board Mounting Holes
3000 h @ 105 ºC
Cap
(μF)
10000
12000
12000
15000
15000
15000
18000
18000
18000
22000
22000
22000
27000
27000
27000
33000
33000
39000
39000
47000
47000
Catalog
Part Number
SLP103M016C1P3
SLP123M016A5P3
SLP123M016C3P3
SLP153M016A7P3
SLP153M016C5P3
SLP153M016E1P3
SLP183M016A4P3
SLP183M016C7P3
SLP183M016E3P3
SLP223M016C4P3
SLP223M016E3P3
SLP223M016H3P3
SLP273M016C9P3
SLP273M016E5P3
SLP273M016H3P3
SLP333M016E7P3
SLP333M016H5P3
SLP393M016E4P3
SLP393M016H7P3
SLP473M016E9P3
SLP473M016H4P3
4.0 mm pin length option
(add “A” to end of part #)
Ratings
3000 h @ 105 ºC
Cap
(μF)
10000
12000
12000
15000
15000
18000
18000
22000
22000
27000
27000
33000
33000
39000
39000
47000
47000
56000
6800
8200
10000
Catalog
Part Number
SLP103M010A1P3
SLP123M010A3P3
SLP123M010C1P3
SLP153M010A5P3
SLP153M010C1P3
SLP183M010A7P3
SLP183M010C3P3
SLP223M010A4P3
SLP223M010C5P3
SLP273M010A9P3
SLP273M010C7P3
SLP333M010C4P3
SLP333M010H3P3
SLP393M010E7P3
SLP393M010H3P3
SLP473M010E4P3
SLP473M010H5P3
SLP563M010H7P3
SLP682M016A1P3
SLP822M016A3P3
SLP103M016A3P3
Max 25 °C ESR Max 105 °C Ripple Nominal
(Ω)
120 Hz 20kHz
0.073
0.061
0.061
0.049
0.049
0.041
0.041
0.033
0.033
0.027
0.027
0.022
0.022
0.019
0.019
0.016
0.016
0.013
0.098
0.081
0.066
0.055
0.046
0.046
0.037
0.037
0.031
0.031
0.025
0.025
0.020
0.020
0.017
0.017
0.014
0.014
0.012
0.012
0.010
0.074
0.061
0.050
10 Vdc (13 Vdc Surge)
1.80
2.20
2.20
2.30
2.30
2.52
2.40
2.60
2.60
3.19
3.10
3.40
3.40
3.79
3.70
4.26
4.20
5.00
2.20
2.40
2.60
2.25
2.75
2.75
2.88
2.88
3.15
3.00
3.25
3.25
3.99
3.88
4.25
4.25
4.74
4.63
5.33
5.25
6.25
2.75
3.00
3.25
22 x 25
22 x 30
25 x 25
22 x 35
25 x 25
22 x 40
25 x 30
22 x 45
25 x 35
22 x 50
25 x 40
25 x 45
35 x 30
30 x 40
35 x 30
30 x 45
35 x 35
35 x 40
22 x 25
22 x 30
22 x 30
(A
rms
)
120 Hz
20kHz
Size (DxL)
(mm)
Additional Voltages and Sizes available at www.cde.com/catalogs/SLP.pdf
Max 25 °C ESR Max 105 °C Ripple Nominal
(Ω)
16 Vdc (20 Vdc Surge)
0.066
0.055
0.055
0.044
0.044
0.044
0.037
0.037
0.037
0.030
0.030
0.030
0.025
0.025
0.025
0.020
0.020
0.017
0.017
0.014
0.014
0.050
0.041
0.041
0.033
0.033
0.033
0.028
0.028
0.028
0.023
0.023
0.023
0.019
0.019
0.019
0.015
0.015
0.013
0.013
0.011
0.011
2.60
2.90
2.90
3.20
3.25
3.11
3.50
3.50
3.50
3.80
3.80
3.80
4.20
4.20
4.20
4.70
4.70
4.90
5.10
5.27
5.50
3.25
3.63
3.63
4.00
4.06
3.89
4.38
4.38
4.38
4.75
4.75
4.75
5.25
5.25
5.25
5.88
5.88
6.13
6.38
6.59
6.88
25 x 25
22 x 35
25 x 30
22 x 40
25 x 35
30 x 25
22 x 45
25 x 40
30 x 30
25 x 45
30 x 30
35 x 30
25 x 50
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 40
30 x 50
35 x 45
(A
rms
)
20kHz
Size (DxL)
(mm)
120 Hz 20kHz 120 Hz
16 Vdc (20 Vdc Surge)
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type SLP 105 °C Snap-In Aluminum Electrolytic
Best Value 105 °C Snap-In Type
3000 h @ 105 ºC Max 25 °C ESR
Cap
(μF)
3300
4700
5600
6800
6800
8200
8200
8200
10000
10000
10000
12000
12000
15000
15000
15000
18000
18000
22000
22000
27000
33000
3900
4700
4700
4700
5600
5600
6800
6800
6800
8200
8200
8200
10000
10000
10000
12000
12000
12000
15000
15000
Catalog
Part Number
SLP332M025A1P3
SLP472M025A1P3
SLP562M025A3P3
SLP682M025A3P3
SLP682M025C1P3
SLP822M025A5P3
SLP822M025C3P3
SLP822M025E1P3
SLP103M025A7P3
SLP103M025C5P3
SLP103M025E3P3
SLP123M025A9P3
SLP123M025C7P3
SLP153M025C4P3
SLP153M025E5P3
SLP153M025H3P3
SLP183M025E7P3
SLP183M025H5P3
SLP223M025E4P3
SLP223M025H5P3
SLP273M025H4P3
SLP333M025H9P3
SLP392M035A3P3
SLP472M035A5P3
SLP472M035C1P3
SLP472M035C5P3
SLP562M035A5P3
SLP562M035C3P3
SLP682M035A7P3
SLP682M035C5P3
SLP682M035E1P3
SLP822M035A9P3
SLP822M035C7P3
SLP822M035E3P3
SLP103M035C4P3
SLP103M035E5P3
SLP103M035C7P3
SLP123M035C9P3
SLP123M035E7P3
SLP123M035H3P3
SLP153M035E4P3
SLP153M035H5P3
(Ω)
120 Hz 20kHz
0.181
0.127
0.107
0.088
0.088
0.073
0.073
0.073
0.060
0.060
0.060
0.050
0.050
0.040
0.040
0.040
0.033
0.033
0.027
0.027
0.022
0.018
0.136
0.113
0.113
0.113
0.095
0.095
0.078
0.078
0.078
0.065
0.065
0.065
0.053
0.053
0.053
0.044
0.044
0.044
0.035
0.035
0.136
0.095
0.080
0.066
0.066
0.055
0.055
0.055
0.045
0.045
0.045
0.038
0.038
0.030
0.030
0.030
0.025
0.025
0.020
0.020
0.017
0.014
0.102
0.085
0.085
0.085
0.071
0.071
0.059
0.059
0.059
0.049
0.049
0.049
0.040
0.040
0.040
0.033
0.033
0.033
0.026
0.026
25 Vdc (32 Vdc Surge)
1.70
2.00
2.20
2.40
2.40
2.70
2.70
2.70
3.00
3.00
3.00
3.20
3.20
3.60
3.60
3.60
3.90
3.90
4.30
4.30
4.80
5.55
2.00
2.20
2.20
2.53
2.40
2.40
2.60
2.60
2.78
2.90
2.90
2.90
3.20
3.20
3.04
3.50
3.50
3.50
3.90
3.90
2.13
2.50
2.75
3.00
3.00
3.38
3.38
3.38
3.75
3.75
3.75
4.00
4.00
4.50
4.50
4.50
4.88
4.88
5.38
5.38
6.00
6.94
2.50
2.75
2.75
3.16
3.00
3.00
3.25
3.25
3.48
3.63
3.63
3.63
4.00
4.00
3.80
4.38
4.38
4.38
4.88
4.88
22 x 25
22 x 25
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
30 x 25
22 x 40
25 x 35
30 x 30
22 x 50
25 x 40
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 35
35 x 45
35 x 50
22 x 30
22 x 35
25 x 25
25 x 35
22 x 35
25 x 30
22 x 40
25 x 35
30 x 25
22 x 50
25 x 40
30 x 30
25 x 45
30 x 35
25 x 40
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
1200
1500
1800
1800
2200
2200
2700
2700
2700
3300
3300
3300
3900
3900
SLP122M063A1P3
SLP152M063A3P3
SLP182M063A3P3
SLP182M063C1P3
SLP222M063A5P3
SLP222M063C3P3
SLP272M063A7P3
SLP272M063C5P3
SLP272M063E1P3
SLP332M063A4P3
SLP332M063C5P3
SLP332M063E3P3
SLP392M063C7P3
SLP392M063E5P3
1800
2200
2700
2700
3300
3300
3900
3900
3900
4700
4700
4700
5600
5600
5600
6800
6800
6800
8200
8200
10000
10000
12000
15000
SLP182M050A1P3
SLP222M050A3P3
SLP272M050A3P3
SLP272M050C1P3
SLP332M050A5P3
SLP332M050C3P3
SLP392M050A7P3
SLP392M050C3P3
SLP392M050E1P3
SLP472M050A4P3
SLP472M050C5P3
SLP472M050E3P3
SLP562M050A9P3
SLP562M050C7P3
SLP562M050E3P3
SLP682M050C4P3
SLP682M050E5P3
SLP682M050H3P3
SLP822M050E7P3
SLP822M050H5P3
SLP103M050E9P3
SLP103M050H7P3
SLP123M050H4P3
SLP153M050H9P3
18000
22000
22000
SLP183M035H7P3
SLP223M035H4P3
SLP223M035H9P3
Additional Voltages and Sizes available at www.cde.com/catalogs/SLP.pdf
Max 105 °C Ripple Nominal
(A
rms
)
120 Hz
20kHz
Size (DxL)
(mm)
Cap
(μF)
3000 h @ 105 ºC
Catalog
Part Number
Max 25 °C ESR Max 105 °C Ripple Nominal
(Ω)
120 Hz 20kHz
0.029
0.024
0.024
0.258
0.211
0.172
0.172
0.141
0.141
0.119
0.119
0.119
0.099
0.099
0.099
0.083
0.083
0.083
0.068
0.068
0.068
0.057
0.057
0.046
0.046
0.039
0.031
0.332
0.265
0.221
0.221
0.181
0.181
0.147
0.147
0.147
0.121
0.121
0.121
0.102
0.102
0.022
0.018
0.018
0.194
0.158
0.129
0.129
0.106
0.106
0.089
0.089
0.089
0.074
0.074
0.074
0.062
0.062
0.062
0.051
0.051
0.051
0.043
0.043
0.035
0.035
0.029
0.023
0.249
0.199
0.166
0.166
0.136
0.136
0.110
0.110
0.110
0.091
0.091
0.091
0.077
0.077
35 Vdc (44 Vdc Surge)
4.51
5.24
5.48
1.50
1.70
1.80
1.80
2.00
2.00
2.23
2.20
2.20
2.50
2.43
2.50
2.80
2.80
2.76
3.30
3.30
3.30
3.71
3.85
4.51
4.49
4.56
4.80
1.40
1.50
1.70
1.70
2.00
2.00
2.20
2.20
2.20
2.60
2.39
2.50
2.57
2.70
5.64
6.55
6.85
1.88
2.13
2.25
2.25
2.50
2.50
2.79
2.75
2.75
3.13
3.04
3.13
3.50
3.50
3.45
4.13
4.13
4.13
4.64
4.81
5.64
5.61
5.70
6.00
1.75
1.88
2.13
2.13
2.50
2.50
2.75
2.75
2.75
3.25
2.99
3.13
3.21
3.38
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
30 x 30
22 x 50
25 x 40
30 x 30
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 35
30 x 25
22 x 45
25 x 35
30 x 30
25 x 40
30 x 35
(A
rms
)
120 Hz
20kHz
Size (DxL)
(mm)
50 Vdc (63 Vdc Surge)
35 Vdc (44 Vdc Surge)
63 Vdc (79 Vdc Surge)
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type SLP 105 °C Snap-In Aluminum Electrolytic
Best Value 105 °C Snap-In Type
Cap
(μF)
4700
4700
4700
5600
5600
6800
6800
8200
10000
10000
1000
1200
1500
1500
1800
1800
2200
2200
2200
2700
2700
2700
3300
3300
3300
3900
3900
3900
4700
4700
5600
5600
6800
8200
680
820
1000
1000
1200
1200
1500
Catalog
Part Number
SLP472M063C9P3
SLP472M063E7P3
SLP472M063H3P3
SLP562M063E7P3
SLP562M063H5P3
SLP682M063E9P3
SLP682M063H7P3
SLP822M063H4P3
SLP103M063H9P3
SLP103M063H4P3
SLP102M080A1P3
SLP122M080A3P3
SLP152M080A3P3
SLP152M080C1P3
SLP182M080A5P3
SLP182M080C3P3
SLP222M080A7P3
SLP222M080C5P3
SLP222M080E1P3
SLP272M080A4P3
SLP272M080C7P3
SLP272M080E3P3
SLP332M080C4P3
SLP332M080E5P3
SLP332M080H3P3
SLP392M080C9P3
SLP392M080E7P3
SLP392M080H3P3
SLP472M080E4P3
SLP472M080H5P3
SLP562M080E9P3
SLP562M080H7P3
SLP682M080H4P3
SLP822M080H9P3
SLP681M100A1P3
SLP821M100A3P3
SLP102M100A3P3
SLP102M100C1P3
SLP122M100A5P3
SLP122M100C3P3
SLP152M100A7P3
(Ω)
120 Hz 20kHz
0.085
0.085
0.085
0.071
0.071
0.059
0.059
0.049
0.040
0.040
0.332
0.276
0.221
0.221
0.184
0.184
0.151
0.151
0.151
0.123
0.123
0.123
0.101
0.101
0.101
0.085
0.085
0.085
0.071
0.071
0.059
0.059
0.049
0.040
0.390
0.324
0.265
0.265
0.221
0.221
0.177
0.064
0.064
0.064
0.053
0.053
0.044
0.044
0.037
0.030
0.030
0.249
0.207
0.166
0.166
0.138
0.138
0.113
0.113
0.113
0.092
0.092
0.092
0.076
0.076
0.076
0.064
0.064
0.064
0.053
0.053
0.044
0.044
0.037
0.030
0.293
0.243
0.199
0.199
0.166
0.166
0.133
63 Vdc (79 Vdc Surge)
3.00
3.00
3.00
3.22
3.30
3.86
3.84
4.43
5.11
4.89
1.19
1.50
1.59
1.59
1.79
1.71
2.03
2.10
1.98
2.39
2.35
2.35
2.64
2.61
2.60
2.92
2.82
2.97
3.34
3.38
3.80
3.80
3.90
4.20
1.09
1.40
1.47
1.45
1.69
1.68
1.97
3.75
3.75
3.75
4.03
4.13
4.83
4.80
5.54
6.39
6.11
1.49
1.88
1.99
1.99
2.24
2.14
2.54
2.63
2.48
2.99
2.94
2.94
3.30
3.26
3.25
3.65
3.53
3.71
4.18
4.23
4.75
4.75
4.88
5.25
1.36
1.75
1.84
1.81
2.11
2.10
2.46
25 x 50
30 x 40
35 x 30
30 x 40
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
35 x 45
22 x 25
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 35
30 x 25
22 x 45
25 x 40
30 x 30
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
270
330
390
470
470
560
560
680
680
680
820
820
820
1000
1000
1200
1200
1200
1500
1500
1800
1800
2200
1500
1500
1500
1800
1800
1800
2200
2200
2200
2700
2700
2700
3300
3300
3900
3900
4700
5600
Additional Voltages and Sizes available at www.cde.com/catalogs/SLP.pdf
3000 h @ 105 ºC Max 25 °C ESR Max 105 °C Ripple Nominal
(A
rms
)
120 Hz
20kHz
Size (DxL)
(mm)
Cap
(μF)
3000 h @ 105 ºC
Catalog
Part Number
SLP152M100C5P3
SLP152M100E1P3
SLP152M100E3P3
SLP182M100A4P3
SLP182M100C7P3
SLP182M100E3P3
SLP222M100C4P3
SLP222M100E5P3
SLP222M100H3P3
SLP272M100C9P3
SLP272M100E7P3
SLP272M100H5P3
SLP332M100E4P3
SLP332M100H5P3
SLP392M100E9P3
SLP392M100H7P3
SLP472M100H4P3
SLP562M100H9P3
SLP331M160A1P3
SLP391M160A3P3
SLP471M160A3P3
SLP471M160C1P3
SLP561M160A5P3
SLP561M160C3P3
SLP681M160A7P3
SLP681M160C5P3
SLP681M160E1P3
SLP821M160A4P3
SLP821M160C7P3
SLP821M160E3P3
SLP102M160C4P3
SLP102M160E5P3
SLP122M160C9P3
SLP122M160E7P3
SLP122M160H3P3
SLP152M160E4P3
SLP152M160H5P3
SLP182M160E9P3
SLP182M160H7P3
SLP222M160H4P3
SLP271M180A1P3
Max 25 °C ESR Max 105 °C Ripple Nominal
(Ω)
100 Vdc (125 Vdc Surge)
0.177
0.177
0.177
0.147
0.147
0.147
0.121
0.121
0.121
0.098
0.098
0.098
0.080
0.080
0.068
0.068
0.056
0.047
0.603
0.510
0.423
0.423
0.355
0.355
0.293
0.293
0.293
0.243
0.243
0.243
0.199
0.199
0.166
0.166
0.166
0.133
0.133
0.111
0.111
0.090
0.737
0.133
0.133
0.133
0.110
0.110
0.110
0.091
0.091
0.091
0.074
0.074
0.074
0.060
0.060
0.051
0.051
0.042
0.035
0.452
0.383
0.317
0.317
0.266
0.266
0.220
0.220
0.220
0.182
0.182
0.182
0.149
0.149
0.125
0.125
0.125
0.100
0.100
0.083
0.083
0.068
0.553
1.98
1.95
2.09
2.23
2.20
2.20
2.53
2.55
2.60
2.82
2.86
2.90
3.30
3.25
3.60
3.67
3.80
4.05
1.20
1.30
1.55
1.55
1.67
1.67
1.82
1.85
1.82
2.04
2.04
2.04
2.40
2.25
2.62
2.49
2.49
2.84
2.84
3.32
3.00
3.50
1.00
2.48
2.44
2.61
2.79
2.75
2.75
3.16
3.19
3.25
3.53
3.58
3.63
4.13
4.06
4.50
4.59
4.75
5.06
1.76
1.91
2.28
2.28
2.45
2.45
2.68
2.72
2.68
3.00
3.00
3.00
3.53
3.31
3.85
3.66
3.66
4.17
4.17
4.88
4.41
5.15
1.47
25 x 35
30 x 25
30 x 30
22 x 45
25 x 40
30 x 30
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 35
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 35
30 x 25
22 x 45
25 x 40
30 x 30
25 x 45
30 x 35
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
22 x 25
(A
rms
)
20kHz
Size (DxL)
(mm)
120 Hz 20kHz 120 Hz
80 Vdc (100 Vdc Surge)
160 Vdc (200Vdc Surge)
100 Vdc (125 Vdc Surge)
180 Vdc (225Vdc Surge)
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type SLP 105 °C Snap-In Aluminum Electrolytic
Best Value 105 °C Snap-In Type
Cap
(μF)
330
390
390
470
470
560
560
560
680
680
680
820
820
820
1000
1000
1000
1200
1200
1500
1500
1800
2200
220
220
270
330
330
330
390
390
470
470
470
470
560
560
560
680
680
680
680
Catalog
Part Number
SLP331M180A3P3
SLP391M180A3P3
SLP391M180C1P3
SLP471M180A5P3
SLP471M180C3P3
SLP561M180A7P3
SLP561M180C3P3
SLP561M180E1P3
SLP681M180A4P3
SLP681M180C5P3
SLP681M180E3P3
SLP821M180A9P3
SLP821M180C7P3
SLP821M180E3P3
SLP102M180C4P3
SLP102M180E5P3
SLP102M180H3P3
SLP122M180E7P3
SLP122M180H5P3
SLP152M180E4P3
SLP152M180H7P3
SLP182M180H4P3
SLP222M180H9P3
SLP221M200A1P3
SLP221M200A3P3
SLP271M200A1P3
SLP331M200A3P3
SLP331M200C1P3
SLP331M200C3P3
SLP391M200A5P3
SLP391M200C3P3
SLP471M200A7P3
SLP471M200C3P3
SLP471M200C5P3
SLP471M200E1P3
SLP561M200A4P3
SLP561M200C5P3
SLP561M200E1P3
SLP681M200A9P3
SLP681M200C5P3
SLP681M200C7P3
SLP681M200E3P3
(Ω)
120 Hz 20kHz
0.603
0.510
0.510
0.423
0.423
0.355
0.355
0.355
0.293
0.293
0.293
0.243
0.243
0.243
0.199
0.199
0.199
0.166
0.166
0.133
0.133
0.111
0.090
0.905
0.905
0.737
0.603
0.603
0.603
0.510
0.510
0.423
0.423
0.423
0.423
0.355
0.355
0.355
0.293
0.293
0.293
0.293
0.452
0.383
0.383
0.317
0.317
0.266
0.266
0.266
0.220
0.220
0.220
0.182
0.182
0.182
0.149
0.149
0.149
0.125
0.125
0.100
0.100
0.083
0.068
0.679
0.679
0.553
0.452
0.452
0.452
0.383
0.383
0.317
0.317
0.317
0.317
0.266
0.266
0.266
0.220
0.220
0.220
0.220
180 Vdc (225Vdc Surge)
1.20
1.35
1.35
1.50
1.50
1.67
1.67
1.67
1.78
1.78
1.78
2.04
2.04
2.04
2.30
2.30
2.30
2.55
2.55
2.90
2.90
3.30
3.65
0.99
1.07
1.10
1.25
1.25
1.35
1.35
1.35
1.50
1.50
1.60
1.50
1.67
1.70
1.67
1.78
1.72
1.82
1.78
1.76
1.98
1.98
2.21
2.21
2.45
2.45
2.45
2.62
2.62
2.62
3.00
3.00
3.00
3.38
3.38
3.38
3.75
3.75
4.26
4.26
4.85
5.37
1.46
1.57
1.62
1.84
1.84
1.98
1.98
1.98
2.21
2.21
2.35
2.21
2.45
2.50
2.45
2.62
2.53
2.68
2.62
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
30 x 30
22 x 50
25 x 40
30 x 30
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 40
35 x 45
35 x 50
22 x 25
22 x 30
22 x 25
22 x 30
25 x 25
25 x 30
22 x 35
25 x 30
22 x 40
25 x 30
25 x 35
30 x 25
22 x 45
25 x 35
30 x 25
22 x 50
25 x 35
25 x 40
30 x 30
180
180
220
220
270
270
220
270
330
330
390
390
470
470
470
560
560
560
560
680
680
680
820
820
820
1000
1000
1200
1500
820
820
820
1000
1000
1000
1200
1200
1200
1500
1800
1800
Additional Voltages and Sizes available at www.cde.com/catalogs/SLP.pdf
3000 h @ 105 ºC Max 25 °C ESR Max 105 °C Ripple Nominal
(A
rms
)
120 Hz
20kHz
Size (DxL)
(mm)
Cap
(μF)
3000 h @ 105 ºC
Catalog
Part Number
SLP821M200C4P3
SLP821M200E5P3
SLP821M200H3P3
SLP102M200C9P3
SLP102M200E7P3
SLP102M200H5P3
SLP122M200E4P3
SLP122M200H5P3
SLP122M200H3P3
SLP152M200H7P3
SLP182M200H4P3
SLP182M200H7P3
SLP221M220A1P3
SLP271M220A3P3
SLP331M220A5P3
SLP331M220C1P3
SLP391M220A5P3
SLP391M220C3P3
SLP471M220A7P3
SLP471M220C3P3
SLP471M220E1P3
SLP561M220A4P3
SLP561M220C5P3
SLP561M220E3P3
SLP561M220H1P3
SLP681M220C7P3
SLP681M220E5P3
SLP681M220H3P3
SLP821M220C4P3
SLP821M220E7P3
SLP821M220H3P3
SLP102M220E4P3
SLP102M220H5P3
SLP122M220H7P3
SLP152M220H4P3
SLP181M250A1P3
SLP181M250C1P3
SLP221M250A3P3
SLP221M250C1P3
SLP271M250A5P3
SLP271M250C3P3
Max 25 °C ESR Max 105 °C Ripple Nominal
(Ω)
120 Hz 20kHz
0.243
0.243
0.243
0.199
0.199
0.199
0.166
0.166
0.166
0.133
0.111
0.111
0.905
0.737
0.603
0.603
0.510
0.510
0.423
0.423
0.423
0.355
0.355
0.355
0.355
0.293
0.293
0.293
0.243
0.243
0.243
0.199
0.199
0.166
0.133
1.106
1.106
0.905
0.905
0.737
0.737
0.182
0.182
0.182
0.149
0.149
0.149
0.125
0.125
0.125
0.100
0.083
0.083
0.679
0.553
0.452
0.452
0.383
0.383
0.317
0.317
0.317
0.266
0.266
0.266
0.266
0.220
0.220
0.220
0.182
0.182
0.182
0.149
0.149
0.125
0.100
0.830
0.830
0.679
0.679
0.553
0.553
200 Vdc (250 Vdc Surge)
2.10
2.04
2.04
2.42
2.30
2.30
2.65
2.65
2.49
3.08
3.48
3.31
1.00
1.15
1.25
1.25
1.40
1.40
1.51
1.44
1.50
1.70
1.64
1.70
1.71
1.84
1.93
1.89
2.08
2.19
2.16
2.50
2.44
2.79
3.22
0.88
0.95
1.00
1.08
1.18
1.27
3.09
3.00
3.00
3.56
3.38
3.38
3.90
3.90
3.66
4.53
5.12
4.87
1.47
1.69
1.84
1.84
2.06
2.06
2.22
2.12
2.21
2.50
2.41
2.50
2.51
2.70
2.84
2.78
3.06
3.22
3.18
3.68
3.59
4.10
4.73
1.29
1.40
1.47
1.59
1.73
1.87
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 35
30 x 45
35 x 35
35 x 30
35 x 40
35 x 45
35 x 40
22 x 25
22 x 30
22 x 35
25 x 25
22 x 35
25 x 30
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
30 x 30
35 x 25
25 x 40
30 x 35
35 x 30
25 x 45
30 x 40
35 x 30
30 x 45
35 x 35
35 x 40
35 x 45
22 x 25
25 x 25
22 x 30
25 x 25
22 x 35
25 x 30
(A
rms
)
120 Hz
20kHz
Size (DxL)
(mm)
220 Vdc (270 Vdc Surge)
200 Vdc (250 Vdc Surge)
250 Vdc (300 Vdc Surge)
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
/slp221m450h3p3_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD/slp221m450h3p3_pdf/1.png)
/slp221m450h3p3_pdf/2.png)
/slp221m450h3p3_pdf/3.png)
/slp221m450h3p3_pdf/4.png)
/slp221m450h3p3_pdf/5.png)
/slp221m450h3p3_pdf/pg_0002.png)
/slp221m450h3p3_pdf/pg_0003.png)
/slp221m450h3p3_pdf/pg_0004.png)
/slp221m450h3p3_pdf/pg_0005.png)
