CRA06E, CRA06S
Vishay
Thick Film Resistor Array

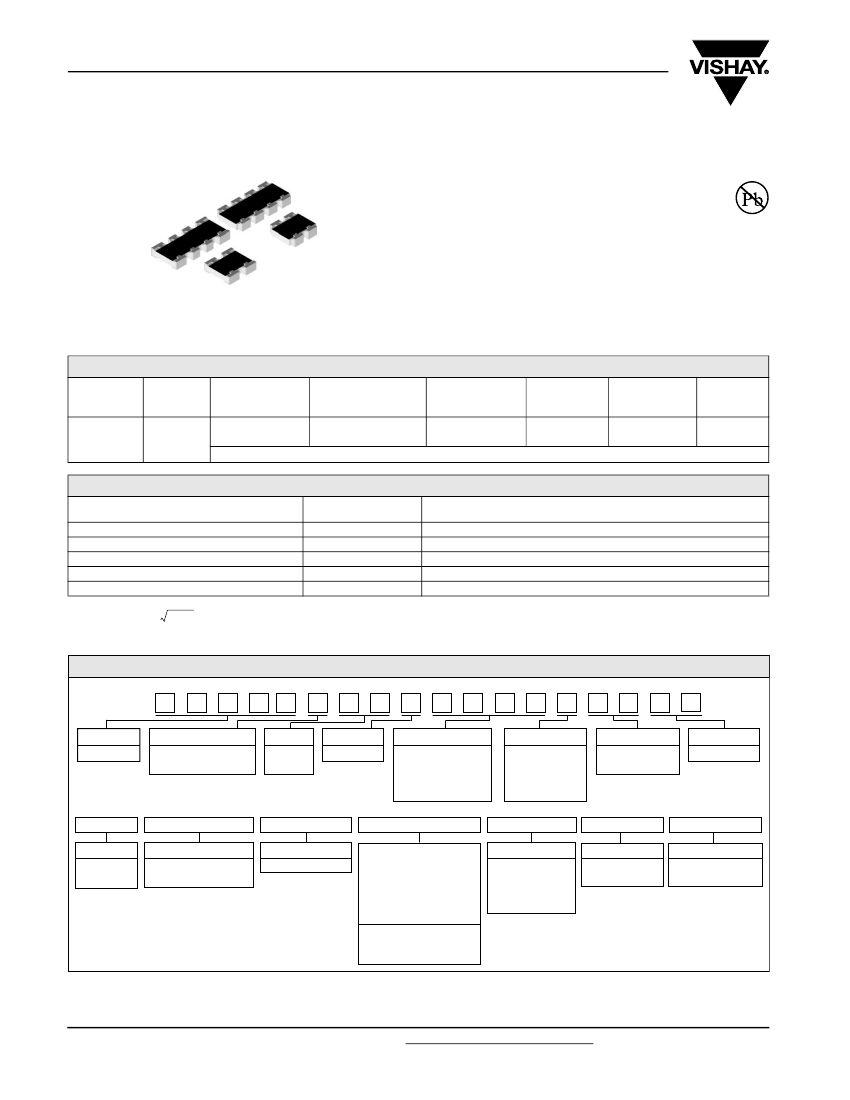

FEATURES
•
Convex
CRA06E and CRA06S Thick Film resistor arrays are
constructed on a high grade ceramic body with convex
terminations. A small package enables the design of high
density circuits. The single component reduces board space,
component counts and assembly costs.
•
•
•
•
•
terminal array available with either
scalloped corners (E version) or square corners
(S version)
Wide ohmic range: 10R to 1M0
4 or 8 terminal package with isolated resistors
Lead (Pb)-free solder contacts on Ni barrier layer
Pure tin plating provides compatibility with Lead (Pb)-free
and lead containing soldering processes
Compatible with "Restriction of the use of Hazardous
Substances" (RoHS) directive 2002/95/EC (issue 2004)
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
CRA06E
CRA06S
CIRCUIT
POWER RATING
P
70 °C
W
TEMPERATURE
COEFFICIENT
ppm/K
± 100
0.063
50
± 200
Zero-Ohm-Resistor available;
R
max.
= 50 mΩ,
I
max.
= 1 A
LIMITING ELEMENT
VOLTAGE MAX.
V≅
TOLERANCE
%
±1
± 2; ± 5
RESISTANCE
RANGE
Ω
10R - 1M0
E-SERIES
24 + 96
24
03
TECHNICAL SPECIFICATIONS
PARAMETER
Rated Dissipation at 70 °C
(2)
Limiting Element Voltage
(1)
Insulation Voltage (1 min)
Category Temperature Range
Insulation Resistance
UNIT
W per element
V≅
V
dc/ac peak
°C
Ω
CRA06E & S
0.063
50
100
- 55 to + 155
> 10
9
Notes
(1)
Rated voltage:
P
×
R
(2)
The power dissipation on the resistor generates a temperature rise against the local ambient, depending on the heat flow support of the
printed-circuit board (thermal resistance). The rates dissipation applies only if the permitted film temperature of 155 °C is not exceed.
PART NUMBER AND PRODUCT DESCRIPTION
PART NUMBER: CRA06S08347K0JTA
(3)
C
MODEL
CRA06
R
A
0
6
PIN
04
08
S
0
CIRCUIT
3
= 03
8
3
4
VALU
E
7
K
0
J
T
A
SPECIAL
Up to 2 digits
TERMINAL STYLE
S
E
TOLERANCE
F
=±1%
G
=±2%
J
=±5%
Z
= 0
Ω
Jumper
J
TOLERANCE
F=±1%
G=±2%
J=±5%
Z = 0
Ω
Jumper
R
= Decimal
K
= Thousand
M
= Million
0000
= 0
Ω
Jumper
473
PACKAGING
(4)
TA
TC
PRODUCT DESCRIPTION: CRA06S 08 03 473 J RT1 e3
CRA06S
MODEL
CRA06S
CRA06E
08
TERMINAL COUNT
04
08
03
CIRCUIT TYPE
03
RT1
e3
RESISTANCE
VALUE
473 = 47 kΩ
4702 = 47 k
Ω
10R0 = 10
Ω
100 = 10
Ω
000 = 0
Ω
Jumper
First two digits (3 for 1 %)
are significant. Last
digit is the multiplier.
PACKAGING
(4)
LEAD (Pb)-FREE
e3 = Pure tin
RT1
Termination finish
RT6
Notes
(3)
Preferred way for ordering products is by use of the PART NUMBER
(4)
Please refer to table PACKAGING, see next page
www.vishay.com
252
For technical questions, contact: filmresistors.thickfilmchip@vishay.com
Document Number: 31002
Revision: 13-Oct-08
CRA06E, CRA06S
Thick Film Resistor Array
Vishay
AVAILABLE TYPES AND RANGES
MODEL
TERMINAL COUNT
04
CRA06S
08
CRA06E
08
03
03
CIRCUIT
03
TEMPERATURE
COEFFICIENT
± 100 ppm/K
± 200 ppm/K
± 100 ppm/K
± 200 ppm/K
± 100 ppm/K
± 200 ppm/K
TOLERANCE
±1
%
± 5
%;
± 2
%
±1
%
± 5
%;
± 2
%
±1
%
± 5
%;
± 2
%
PACKAGING
MODEL
TAPE WIDTH
DIAMETER
180 mm/7"
330 mm/13"
PITCH
4 mm
4 mm
PIECES/REEL
5000
20 000
PACKAGING CODE
PAPER TAPE
PART NUMBER
PRODUCT DESCRIPTION
TA
RT1
TC
RT6
CRA06
8 mm
CIRCUIT
03 CIRCUIT
Rated Power in
%
120
100
80
60
40
20
4 pin
8 pin
0
- 55
- 25
0
25
50
Derating

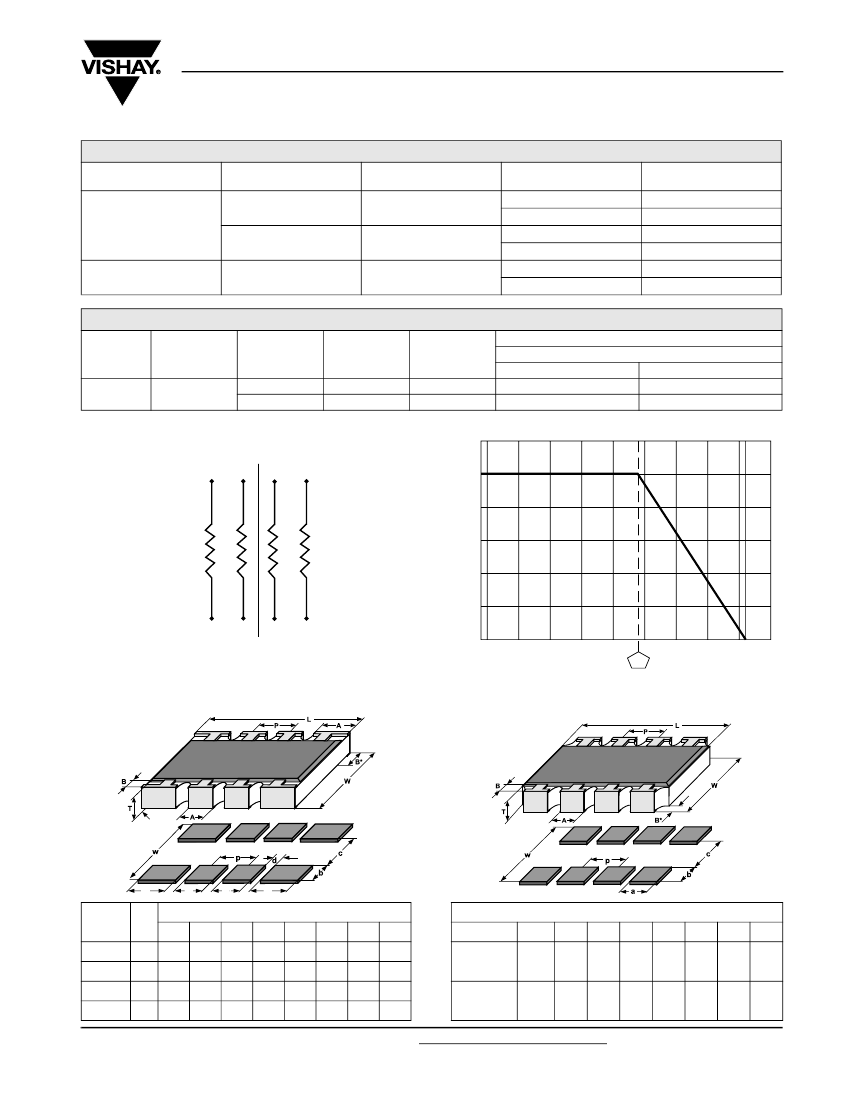

DIMENSIONS
S-Version
1
75
70
100
125
155 175
Ambient Temperature in °C
E-Version
103
103
PIN 1
e
a
a
e
MODEL
CRA06S
CRA06E
CRA06S
PIN
NO#
4
8
8
DIMENSIONS
[in millimeters]
L
1.6
3.2
3.2
A
0.38
0.38
0.38
A
1
0.61
-
0.61
B
0.3
0.3
0.3
B*
0.3
0.3
0.3
P
0.8
0.8
0.8
T
0.5
0.5
0.5
W
1.5
1.5
1.5
MODEL
CRA06S
CRA06E
CRA06S
SOLDER PAD DIMENSIONS
[in millimeters]
PINS
4
c
0.8
w
3.1
d
0.36
p
a
0.44
b
1.15
e
TOL.
± 0.15 ± 0.15 ± 0.15 ± 0.15 ± 0.15 ± 0.1 ± 0.1 ± 0.15
Document Number: 31002
Revision: 13-Oct-08
8
0.8
3.1
0.36
0.8
0.44
1.15
0.63
For technical questions, contact: filmresistors.thickfilmchip@vishay.com
www.vishay.com
253
CRA06E, CRA06S
Vishay
Thick Film Resistor Array
TEST PROCEDURES AND REQUIREMENTS
EN 60115-1
REQUIREMENTS
PERMISSIBLE CHANGE (ΔR/R)
(1)
CONDITIONS OF TEST
STABILITY
CLASS 1 OR BETTER
Stability for product types:
CRA06E/CRA06S
Resistance (4.5)
Temperature coefficient (4.8.4.2)
-
20/- 55/20 °C and
20/125/20 °C
U
= 2.5 × (P
70
x
R)
1/2
≤
2 x
U
max.
; 0.5 s
Aging 4 h at 155 °C, dryheat
solder bath method; 235 °C; 2 s
visual examination
Solder bath method;
(260 ± 5) °C; (10 ± 1) s
30 min at LCT = - 55 °C;
30 min at UCT = 125 °C; 5 cycles
(40 ± 2) °C; 56 days;
(93 ± 3)
%
RH
16 h at UCT = 125 °C; 1 cycle at 55 °C;
2 h at LCT = - 55 °C;
1 h/1 kPa at 15 °C to 35 °C;
5 cycles at 55 °C
U
= (P
70
x
R)
1/2
U
=
U
max.
; whichever is less severe
U
= (P
70
x
R)
1/2
U
=
U
max.
; whichever is less severe
1.5 h ON; 0.5 h OFF;
70 °C; 1000 h
Duration extended to 8000 h
UCT = 125 °C; 1000 h
±1
%
± 100 ppm/K
± (0.25
%
R
+ 0.05
Ω)
± 2
%;
± 5
%
± 200 ppm/K
± (0.5
%
R
+ 0.05
Ω)
10
Ω
to 1 MΩ
STABILITY
CLASS 2 OR BETTER
10
Ω
to 1 MΩ
TEST
(clause)
Overload (4.13)
Solderability (4.17.5)
(2)
Good tinning (≥ 95
%
covered)
no visible damage
± (0.25
%
R
+ 0.05
Ω)
± (0.25
%
R
+ 0.05
Ω)
± (1
%
R
+ 0.05
Ω)
± (0.5
%
R
+ 0.05
Ω)
± (0.5
%
R
+ 0.05
Ω)
± (2
%
R
+ 0.1
Ω)
Resistance to soldering heat (4.18.2)
Rapid change of temperature (4.19)
Damp heat, steady state (4.24)
Climatic sequence (4.23)
± (1
%
R
+ 0.05
Ω)
± (2
%
R
+ 0.1
Ω)
Endurance at 70 °C (4.25.1)
± (1
%
R
+ 0.05
Ω)
± (2
%
R
+ 0.1
Ω)
Extended endurance (4.25.1.8)
Endurance at upper category
temperature (4.25.3)
± (2
%
R
+ 0.1
Ω)
± (1
%
R
+ 0.05
Ω)
± (4
%
R
+ 0.1
Ω)
± (2
%
R
+ 0.1
Ω)
Notes
(1)
Figures are given for a single element
(2)
Solderability is specified for 2 years after production or requalification. Permitted storage time is 20 years
APPLICABLE SPECIFICATIONS
• EN 60115-1
• EN 140400
• EN 140401-802
• IEC 60068-2-X
• EIA 481
Generic Specification
Sectional Specification
Detail Specification
Variety of environmental test procedures
Packaging of SMD components
www.vishay.com
254
For technical questions, contact: filmresistors.thickfilmchip@vishay.com
Document Number: 31002
Revision: 13-Oct-08
