2815-2521-007 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2815-2521-007

Preview

2815-2521-007: DescriptionRF Connector, Female, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

2815-2521-007 Overview

RF Connector, Female, Cable Mount, Crimp Terminal, Plug

2815-2521-007 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	APPLICABLE CABLES: RG59; RG62, INSERTION LOSS MAX AT 1.5 GHZ, CAPTIVE CONTACT
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.6 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	2815
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	2 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

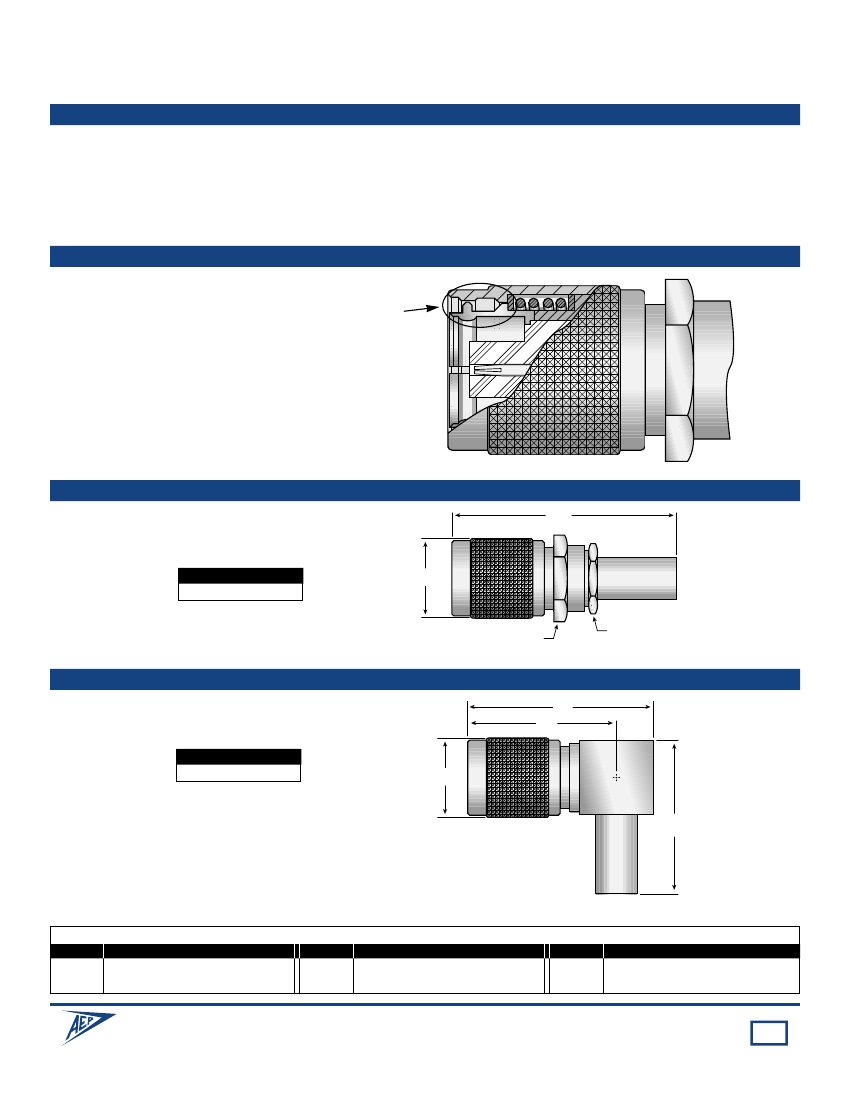

75Ω Positive-Locking Cable Plugs

Click on connector picture to go directly to cable assembly instructions

Introduction

AEP’s positive-locking 75-ohm plugs use a spring-loaded collar that must be retracted before the connector will

unmate. The bright nickel ﬁnish of the collar allows easy visual veriﬁcation of their locked status after mating.

AEP positive-locking 75Ω plugs mate with any standard 75Ω snap-on jack. Standard body plating is gold with

bright nickel ﬁnish on the locking collar, but they can be supplied with nickel-plated bodies as well.

All have captivated contacts.

How They Work

The spring-loaded collar positions dual

detents over the outer contact ﬁngers when

released, preventing them from spreading.

The plugs cannot be unmated unless the

collar is fully retracted.

Straight plug

1.13

C

rimp type for ﬂexible cable

AEP P/N

2802-2571-0XX*

.400

Hex 11/32 A.F.

Hex 5/16 A.F.

Right angle plug

.85

C

rimp type for ﬂexible cable

AEP P/N

2815-2521-0XX*

.68

.400

.72

Substitute the appropriate cable group number for “XX” when ordering:

GROUP

03

CABLE TYPES

RG174, RG179, RG316, M17/113,

M17/119, M17/172, M17/189

GROUP

04

CABLE TYPES

RG180, RG195, M17/95

GROUP

07

CABLE TYPES

RG59, RG62, M17/29, M17/30

APPLIED ENGINEERING PRODUCTS

(203) 776-2813 • FAX (203) 776-8294

www.aepconnectors.com • aepsales@aepconnectors.com

9

2815-2521-007 Related Products

	2815-2521-007	2802-2571-004	2802-2571-007	2815-2521-003	2815-2521-004	2802-2571-003
Description	RF Connector, Female, Cable Mount, Crimp Terminal, Plug	RF Connector, Female, Cable Mount, Crimp Terminal, Plug	RF Connector, Female, Cable Mount, Crimp Terminal, Plug	RF Connector, Female, Cable Mount, Crimp Terminal, Plug	RF Connector, Female, Cable Mount, Crimp Terminal, Plug	RF Connector, Female, Cable Mount, Crimp Terminal, Plug
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	APPLICABLE CABLES: RG59; RG62, INSERTION LOSS MAX AT 1.5 GHZ, CAPTIVE CONTACT	APPLICABLE CABLES: RG180; RG195, INSERTION LOSS MAX AT 1.5 GHZ, CAPTIVE CONTACT	APPLICABLE CABLES: RG59; RG62, INSERTION LOSS MAX AT 1.5 GHZ, CAPTIVE CONTACT	APPLICABLE CABLES: RG174; RG179; RG316, INSERTION LOSS MAX AT 1.5 GHZ, CAPTIVE CONTACT	APPLICABLE CABLES: RG180; RG195, INSERTION LOSS MAX AT 1.5 GHZ, CAPTIVE CONTACT	APPLICABLE CABLES: RG174; RG179; RG316, INSERTION LOSS MAX AT 1.5 GHZ, CAPTIVE CONTACT
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insertion loss	0.6 dB	0.3 dB	0.3 dB	0.6 dB	0.6 dB	0.3 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	2815	2802	2802	2815	2815	2802
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	2 GHz	2 GHz	2 GHz	2 GHz	2 GHz	2 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Base Number Matches	1	1	1	1	1	1
