234-100-H5ZL11-98PN datasheet, PDF

Datasheet> All Categories > The connector> The connector> 234-100-H5ZL11-98PN

234-100-H5ZL11-98PN: DescriptionMIL Series Connector, 6 Contact(s), Stainless Steel, Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size412KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

234-100-H5ZL11-98PN Overview

MIL Series Connector, 6 Contact(s), Stainless Steel, Male, Solder Terminal, Receptacle

234-100-H5ZL11-98PN Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	STANDARD: MIL-DTL-38999, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/MOISTURE/VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	234-100-H5
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell surface	NICKEL PLATED
Shell material	STAINLESS STEEL
Housing size	11
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

D38999 QPL

Hermetics

Basic Specification

D38999

Connector

D38999/45

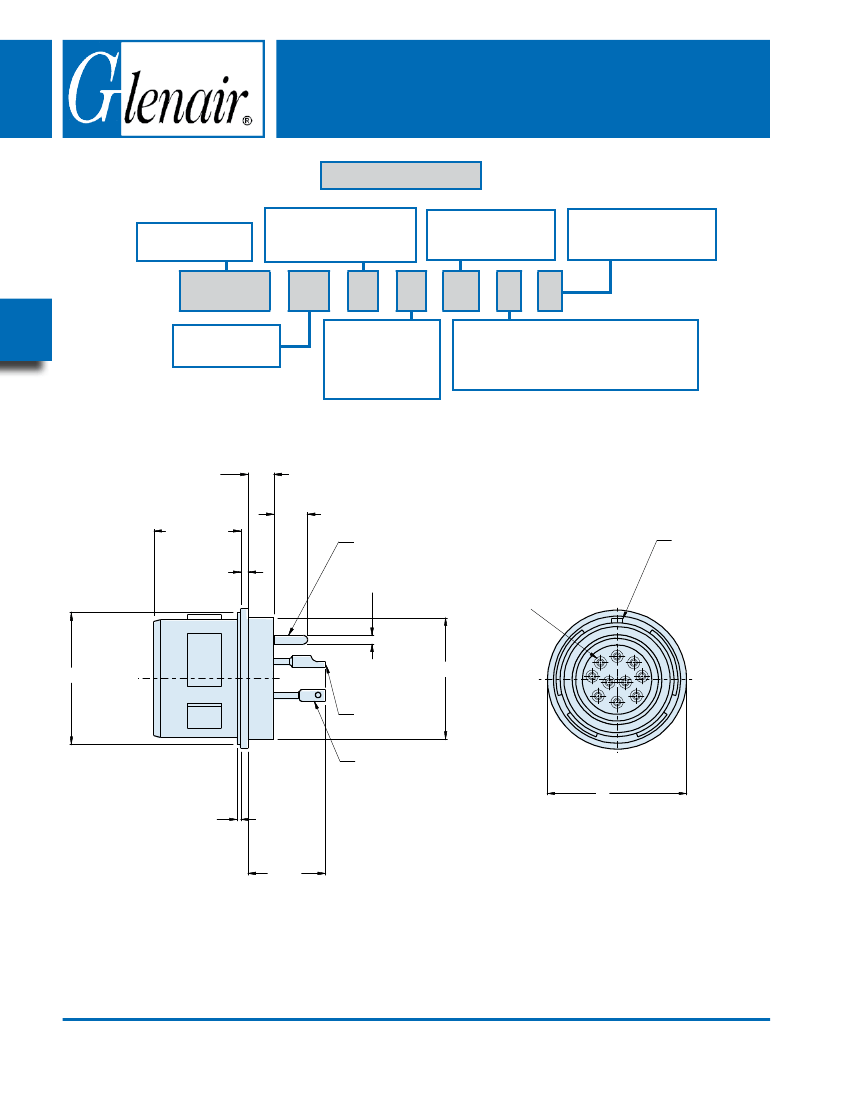

Solder Mount Hermetic Receptacle

MIL-DTL-38999 Series IV

How To Order:

Material / Finish

- CRES, Nickel

CRES, Passivated

Insert Arrangement

Per MIL-STD-1560;

See Pages B2 - B4

Alternate Key Position

A, B, C, D, K, L, M, R, U

(N = Normal)

D38999

/45

Shell Style

/45

Solder Mount

Shell Size

- 11

- 19

- 13

- 21

- 15

- 23

- 17

- 25

Contact Termination

- Pin, Solder Cup

- Socket, Solder Cup

- Pin, Eyelet

- Socket, Eyelet

- Pin, PCB

- Socket, PCB

Flex Feedthrough

.118 (3.0) Max

.175/.125

Feedthrough

Contact (C)

P (See Table II)

Master Key (Blue)

Insert

Arrangements

per MIL-DTL-38999

Series IV

.819 (20.8)

.756 (19.2)

.047 (1.19)

.024 (0.6)

Solder Cup

Contact (P)

Eyelet

Contact (X)

ø A Max

.035

.007

.438

Max

www.glenair.com

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

B-32
