P13QPEE2.2M10%FBOE3

Description
Potentiometer, Cermet, 0.05W, 2200000ohm, 350V, 10% +/-Tol, -150,150ppm/Cel,
CategoryPassive components    The resistor
File Size152KB,7 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

P13QPEE2.2M10%FBOE3 Overview

Potentiometer, Cermet, 0.05W, 2200000ohm, 350V, 10% +/-Tol, -150,150ppm/Cel,

P13QPEE2.2M10%FBOE3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid703625520
Reach Compliance Codecompliant
YTEOL7
structureFully Sealed
JESD-609 codee3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package diameter12.6 mm
Package length10.5 mm
Package formPanel Mount
method of packingBox
Rated power dissipation(P)0.05 W
resistance2200000 Ω
Resistor typePOTENTIOMETER
rotation angle270 deg
seriesP13
technologyCERMET
Temperature Coefficient150 ppm/°C
Terminal surfaceMatte Tin (Sn)
Tolerance10%
Operating Voltage350 V

P13QPEE2.2M10%FBOE3 Preview

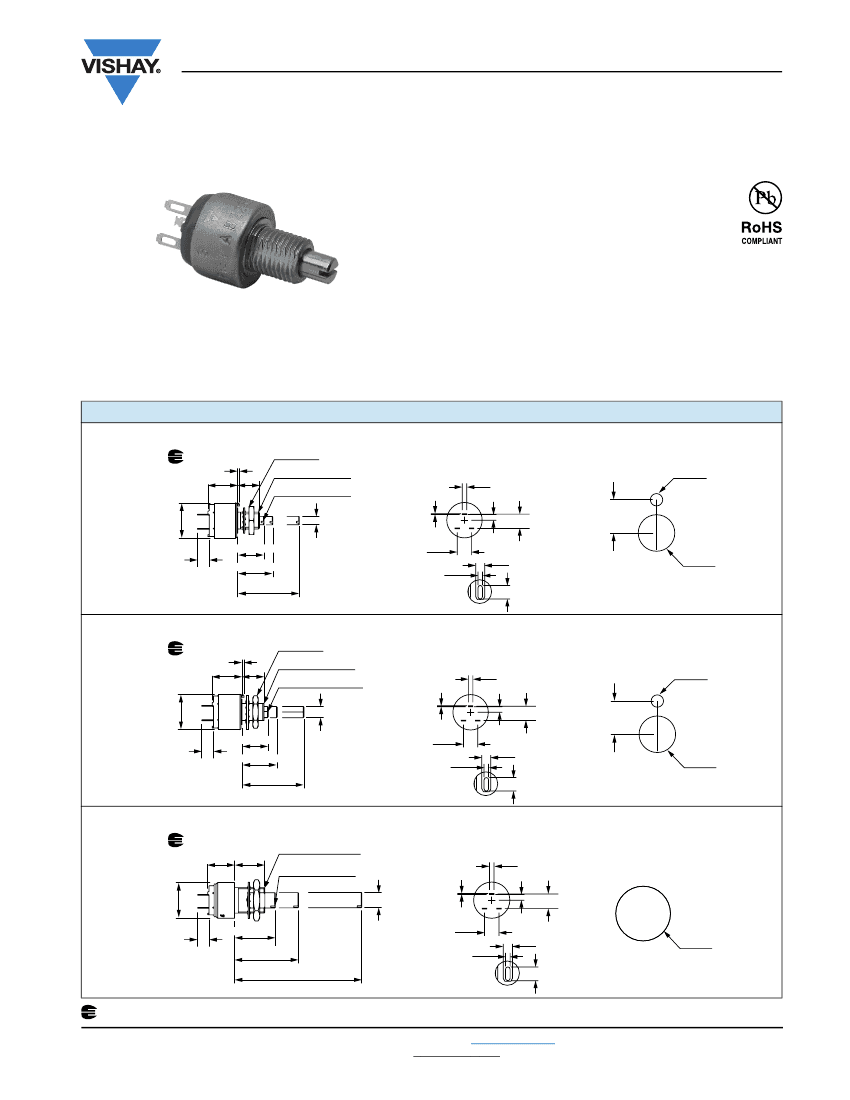

P13
Vishay Sfernice
Fully Sealed Container Cermet Potentiometers
Military and Professional Grade
FEATURES
High power rating 1.5 W at 70 °C
CECC 41 301-001 (A, B, C)
GAM T1
Fully sealed case
Tight temperature coefficient (± 75 ppm/°C typical)
P13 potentiometers fully conform to CECC 41301-001
specification. Their excellent performances are due to the
use of a cermet-track sealed in a large case.
P13 interchangeability with RV6, combined with the excellent
stability of its rated characteristics make it fully acceptable for
military and professional uses.
Mechanical strength
Lead (Pb)-free and RoHS compliant since 0501
Compliant to RoHS directive 2002/95/EC
DIMENSIONS
in millimeters (± 0.5)
P13T-(PC32) A
10
wrench
0.7
10.5 max.
8
Thread M6 x 0.75
Slot 0.6 x 1 deep
Ø 12.6
AA = 9.5
5
AB = 12.5
AJ = 22
Ø3
0.3
c
5.08
0.8
2.4
a
1.6
Ø 6.5
b
2 5.08
5.9 ± 0.2
1.6
Panel Cutout
Ø 2.2
P13Q-B
10
wrench
0.7
10.5 max.
8
Thread M7 x 0.75
Slot 0.8 x 1.4 deep
Ø 12.6
EA = 9.5
5
EB = 12.5
EJ = 22
Ø4
0.3
c
5.08
0.8
2.4
a
1.6
Ø 7.5
1.6
b
2 5.08
5.9 ± 0.2
Ø 2.2
Panel Cutout
P13V-(PC33) C
Thread M10 x 0.75
10.5 max.
12
Slot 1 x 1.8 deep
Ø 14
FG = 16
FL = 25
FR = 50
Ø6
0.3
5.08
1.6
0.8
2.4
Ø 10.5
2 5.08
1.6
Panel Cutout
5
Undergoes European Quality Insurance System
Document Number: 51034
Revision: 16-Oct-09
For technical questions, contact:
sfer@vishay.com
See also: Application Notes
www.vishay.com
119
P13
Vishay Sfernice
Fully Sealed Container Cermet Potentiometers
Military and Professional Grade
ELECTRICAL SPECIFICATIONS
Resistive Element
Electrical Travel
Linear Law
Resistance Range
Logarithmic Laws
Standard Series E3
Standard
Tolerance
On Request
100
Cermet
270° ± 10°
22
Ω
to 10 MΩ
1 kΩ to 2.2 MΩ
1, 2.2, 4.7 and on request 1, 2, 5
± 20 %
± 10 % to ± 5 %
% TOTAL RESISTANCE
80
60
40
20
0
F
A
L
Varation Law
0
20
40
60
80
100
% CLOCKWISE SHAFT ROTATION
a
c
(3)
b
(2)
cw
Circuit Diagram
(1)
1.5
LIN. LAW A
Linear
1.5 W at 70 °C
Power Rating
Logarithmic
0.75 W at 70 °C
POWER IN W
1
0.5
LOG. LAW
L and F
0
0
20
40
60 70 80
100
120 140
AMBIENT TEMPERATURE IN °C
Temperature Coefficient (Typical)
Limiting Element Voltage (Linear Law)
Contact Resistance Variation
End Resistance (Typical)
Dielectric Strength (RMS)
Insulation Resistance (300 VDC)
Independent Linearity (Typical)
± 150 ppm/°c
For values
100
Ω
and in temperature range + 20 °C to + 70 °C,
the typical temperature coefficient is ± 75 ppm/°C
350 V
3 % Rn or 3
Ω
1
Ω
2000 V
10
6
±5%
www.vishay.com
120
For technical questions, contact:
sfer@vishay.com
See also: Application Notes
Document Number: 51034
Revision: 16-Oct-09
P13
Fully Sealed Container Cermet Potentiometers
Military and Professional Grade
STANDARD RESISTANCE ELEMENT DATA
STANDARD
RESISTANCE
VALUES
Ω
22
47
100
220
470
1K
2.2K
4.7K
10K
22K
47K
100K
220K
470K
1M
2.2M
4.7M
10M
LINEAR LAW
MAX.
POWER
AT 70 °C
W
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.22
0.56
0.26
0.12
0.05
0.026
0.012
MAX.
WORKING
VOLTAGE
V
5.74
8.4
12.2
18.2
26.5
38.7
57.5
84
122.5
182
265
350
350
350
350
350
350
350
MAX. CUR.
THROUGH
WIPER
mA
261
177
122
82.6
56.5
38.7
26.1
17.9
12.2
8.26
5.65
3.5
1.6
0.74
0.35
0.16
0.074
0.035
MAX.
POWER
AT 70 °C
W
LOGS LAW
MAX.
WORKING
VOLTAGE
V
MAX. CUR.
THROUGH
WIPER
mA
TYPICAL
TCR
- 55 °C
+ 125 °C
ppm/°C
Vishay Sfernice
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.56
0.26
0.12
0.05
27
40
59
87
128
187
273
350
350
350
350
27
18
12
8.7
5.8
3.9
2.7
1.6
0.74
0.35
0.16
± 150
MECHANICAL SPECIFICATIONS
Mechanical Travel
Operating Torque (Typical)
End Stop Torque
Style T, Q
Style V
Tightening Torque of Mounting Nut
Style T, Q
Style V
Unit Weight
Terminals
150 Ncm max.
250 Ncm max.
6 g to 18 g max.
e3: pure Sn
13.3 lb inch max.
22.1 lb inch max.
0.22 oz. to 0.64 oz.
35 Ncm max.
80
Ncm max.
3.1 lb inch max.
7.1 lb inch max.
2 Ncm max.
300° ± 5°
2.85 oz. inch max.
ENVIRONMENTAL SPECIFICATIONS
Temperature Range
Climatic Category
Sealing
- 55 °C to 125 °C
55/100/56
Fully sealed - Container IP67
Document Number: 51034
Revision: 16-Oct-09
For technical questions, contact:
sfer@vishay.com
See also: Application Notes
www.vishay.com
121
P13
Vishay Sfernice
Fully Sealed Container Cermet Potentiometers
Military and Professional Grade
OPTIONS
Special Feature Command Shaft
Length is measured from the mounting surface to the free end of the shaft. The screwdriver slot is
aligned with the wiper within ± 10°. Special shafts are available, in accordance to drawings supplied
by customers. We recommend that customers should not machine tool shafts, in order to avoid
damage. Bending or torsion of terminals should also be avoided.
Potentiometers P13T and P13V can be fitted with a device providing sealing between the threaded
bushing and the front panel. Their designation is P13T and P13N respectively or with a locating peg
P13T...E and P13N...E.
Panel sealed version
P13T
P13T...E: Including locating ped
0.7
13.2 max.
8
Panel Cutout
Thread M6 x 0.75
Slot 0.6 x 1 deep
1.6
Ø 1.5
0.3
5.08
1.6
0.8
2.4
2 5.08
3.9 ± 0.2
Ø 6.5
Ø 12.6
AA = 9.5
5
AB = 12.5
AJ = 22
Ø3
Panel Sealing
Panel sealed version
P13N
P13N...E: Including locating ped
Thread M10 x 0.75
13.5 max. 9.5
1.6
Slot 1 x 1.8 deep
0.3
Ø6
FE = 13.5
FK = 22.5
FP = 47.5
2.4
5.08
1.6
0.8
Ø 10.5
2
5.08
6.9 ± 0.2
Panel Cutout
Ø 1.5
Ø 16 Ø 14
5
www.vishay.com
122
For technical questions, contact:
sfer@vishay.com
See also: Application Notes
Document Number: 51034
Revision: 16-Oct-09
P13
Fully Sealed Container Cermet Potentiometers
Military and Professional Grade
OPTIONS
On potentiometers equipped with a 3 mm Ø shaft, shaft locking can be obtained:
• Either by a taper nut tightening a slotted bushing. Ask for P13O type. These devices are normally
equipped with an AB type shaft (12.5 mm with a slot).
P13O
0.7
10 wrench
Slotted bushing
Thread M6 x 0.75
8 wrench
Ø3
11
AB = 12.5
Vishay Sfernice
Shaft Locking
• Or by a tightening nut locked by a screw. Ask for ES1 type. On potentiometers equipped with a
Ø 6 mm shaft, locking can be obtained by a taper nut applying pressure on a slotted notched washer.
This device is supplied in a box as an accessory. Ask for DBAN.
These devices are ordered separately. Please consult Vishay Sfernice.
P13V DBAN
12 wrench
6.5
No locking on shaft Ø 4 mm.
Product in conformity with RN6/MIL-R-94/3G
P13T-F55
45°
18.5 max.
RV6
(P13T-F55)
1.1
1/4 × 32 NEF 2A
Ø 6.35 × 32
threads per inch
0.
1
Ø 12.6
± 0.1
Ø 3.17 ± 0.03
6.3 ± 0.4
13.5 max.
2
±
6.
3
±
0.
1
MARKING
Printed:
VISHAY trademark
Part number (including ohmic value code, tolerance code and resistance law)
Manufacturing date
Marking of terminals a
PACKAGING
In box
Document Number: 51034
Revision: 16-Oct-09
For technical questions, contact:
sfer@vishay.com
See also: Application Notes
www.vishay.com
123
