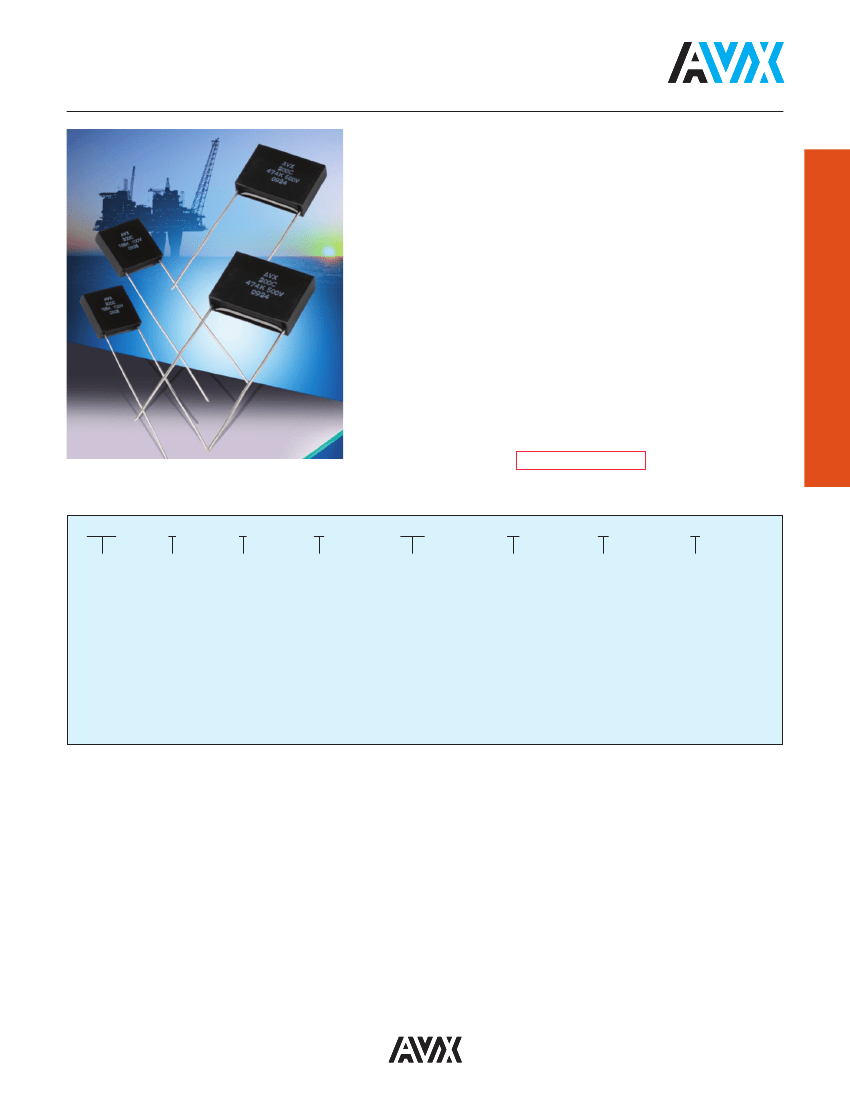

SMPS Molded Radial MLC Capacitors
SXP Style for High Temperature Applications up to 200ºC
SXP-style, encapsulated radial leaded MLC capacitors are ideally suited
for high temperature applications up to 200ºC. This product is intended
for downhole oil exploration, including logging while drilling, geophysical
probes, as well as space, aerospace and hybrid automotive applications.
This product supplements the SMX family of capacitors and offers
mechanical protection to the ceramic element in extreme harsh environ-
ment. The high temperature solder utilized in the construction of SXP-
style parts assures reliable operation in high temperature and rugged
environments. The SXP-style capacitors are ideally suited for applica-
tions as DC filters in high power, high frequency motor drives, high
pulsed-current circuitry, as well as standard electronic equipment
designed for high temperature applications.
SXP-style, switch mode power supply capacitors are characterized with
excellent performance. The main benefits of SXP product include:
• Low ESR, low ESL
• Low DC leakage
• Excellent high frequency performance
Not RoHS Compliant
HOW TO ORDER
SXP
AVX Style
3
Size
See
Dimensions
chart
1
Voltage
Code
50V = 5
100V = 1
200V = 2
500V = 7
1000V = A
1500V = S
2000V = G
3000V = H
C
Temperature
Coefficient
C0G = A
VHT = C
104
Capacitance
Code
(2 significant digits
+ number of zeros)
100 pF = 101
22,000 pF = 223
1μF = 105
M
Capacitance
Tolerance
C0G:
J = ±5%
K = ±10%
M = ±20%
X7R:
J = ±5%
K = ±10%
M = ±20%
Z = +80%, -20%
Tighter tolerances
available upon
request
A
Test Level
A = Standard
A
Leads
A = Standard
Sn/Pb (min. 5% Pb)
ELECTRICAL SPECIFICATIONS
Temperature Coefficient
C0G:
A Temperature Coefficient
VHT:
C Temperature Coefficient
0 ±30 ppm/°C, -55° to +200°C
±15%, -55°C to +125°C
+15% - 56%, -55ºC to +200°C
Insulation Resistance 125°C
(MIL-STD-202 Method 302)
10K MΩ or 100 MΩ-μF, whichever is less.
Insulation Resistance 200°C
(MIL-STD-202 Method 302)
1k MΩ or 10 MΩ -μF, whichever is less.
Dielectric Withstanding Voltage 25°C
(Flash Test)
250% rated voltage for 5 seconds with 50 mA max
charging current. (150% for 500 VDC and 120% for 1000 VDC
and higher voltage ratings)
Capacitance Test
(MIL-STD-202 Method 305)
25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz
Dissipation Factor 25°C
C0G:
0.15% Max @ 25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz
X7R/X9U: 2.5% Max @ 25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz
Insulation Resistance 25°C
(MIL-STD-202 Method 302)
100K MΩ or 1000 MΩ-μF, whichever is less.
