5660-0-15-01-30-84-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 5660-0-15-01-30-84-10-0

5660-0-15-01-30-84-10-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size98KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

5660-0-15-01-30-84-10-0 Overview

PCB Terminal

5660-0-15-01-30-84-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compli
ECCN code	EAR99
Manufacturer's serial number	5660-0
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

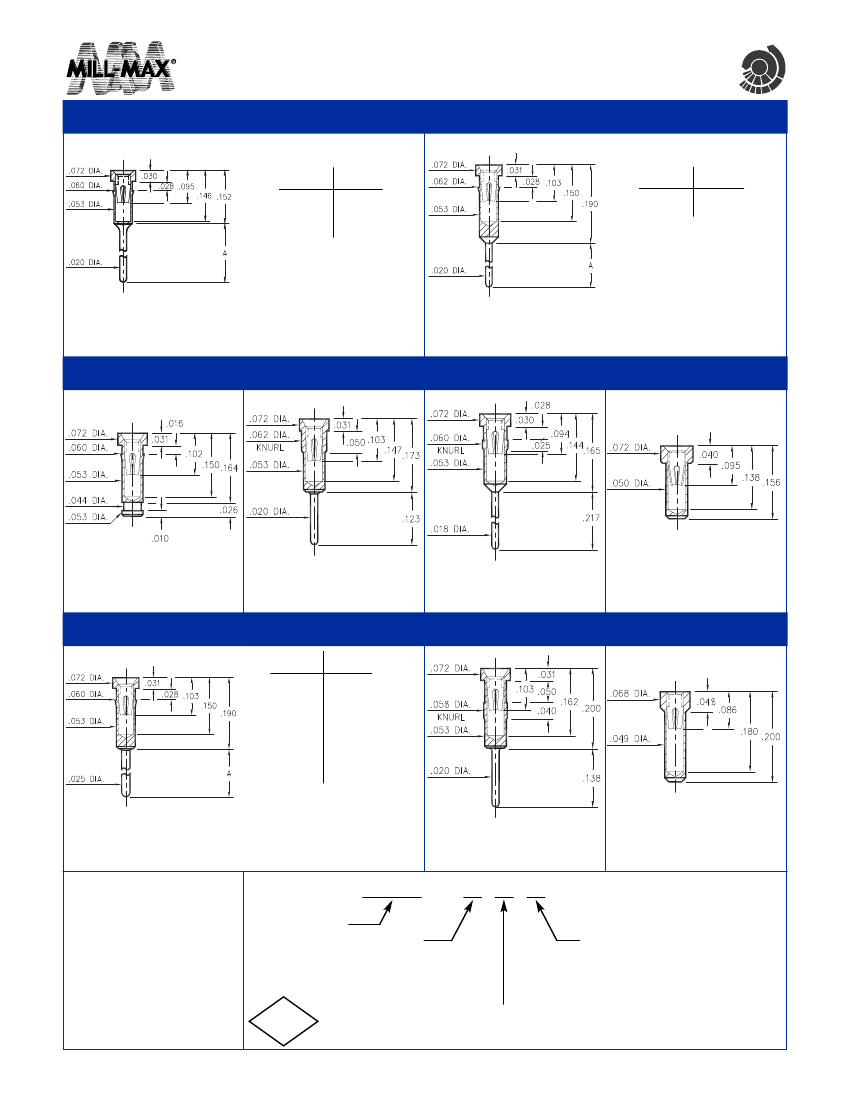

PIN RECEPTACLES

for .015” - .025” diameter pins

CHI

PINS

1005/1013/8898

Basic Part

Number

Length

0145/0146

Basic Part

Number

Length

1005-0

1013-0

8898-0

.138

.165

.224

0145-0

0146-0

.300

.410

NOTE: 8898 is not annealed &

not suitable for auto-clinching

XXXX-0-15-XX-3X-XX-04-0

Press-fit in .057 mounting hole

1/4 hard brass shell for auto-clinching

014X-0-15-XX-30-XX-04-0

Press-fit in .059 mounting hole

4378

0556

1103

9234

4378-0-15-XX-30-XX-10-0

Press-fit in .057 mounting hole

0556-0-15-XX-30-XX-04-0

Press-fit in .059 mounting hole

1103-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

9234-0-15-XX-30-XX-10-0

Solder mount in .052 min.

mounting hole

0136/37/38/39/41/48/52

Basic Part

Number

Length

0447

5660

0136-0

0137-0

0138-0

0139-0

0141-0

0148-0

0152-0

1.215

.560

.210

.635

.700

.455

.410

01XX-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

0447-0-15-XX-30-XX-04-0

Press-fit in .056 mounting hole

5660-0-15-XX-30-XX-10-0

Solder mount in .051 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 15 - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL



200μ” TIN OVER NICKEL (RoHS)



10μ” GOLD OVER NICKEL (RoHS)

2002/95/EC

SPECIFY CONTACT FINISH:

100μ” TIN/LEAD OVER NICKEL



100μ” TIN OVER NICKEL (RoHS)



30μ” GOLD OVER NICKEL (RoHS)

RoHS

SELECT CONTACT

#30 or #32

CONTACT (DATA ON PAGE 219)

w w w. m i l l - m a x . c o m

137



516-922-6000
