SMM020425390R0.5%B0

Description
Fixed Resistor, Thin Film, 0.25W, 390ohm, 200V, 0.5% +/-Tol, -25,25ppm/Cel,
CategoryPassive components    The resistor
File Size159KB，12 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

SMM020425390R0.5%B0 Overview

Fixed Resistor, Thin Film, 0.25W, 390ohm, 200V, 0.5% +/-Tol, -25,25ppm/Cel,

SMM020425390R0.5%B0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid912364177
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL8.1
structureCylindrical
JESD-609 codee3
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package diameter1.4 mm
Package length3.6 mm
Package shapeCYLINDRICAL PACKAGE
Package formMELF
method of packingTR, Blister, 13 Inch
Rated power dissipation(P)0.25 W
GuidelineAEC-Q200
resistance390 Ω
Resistor typeFIXED RESISTOR
seriesSMM0204
technologyTHIN FILM
Temperature Coefficient25 ppm/°C
Terminal surfaceMatte Tin (Sn)
Tolerance0.5%
Operating Voltage200 V

SMM020425390R0.5%B0 Preview

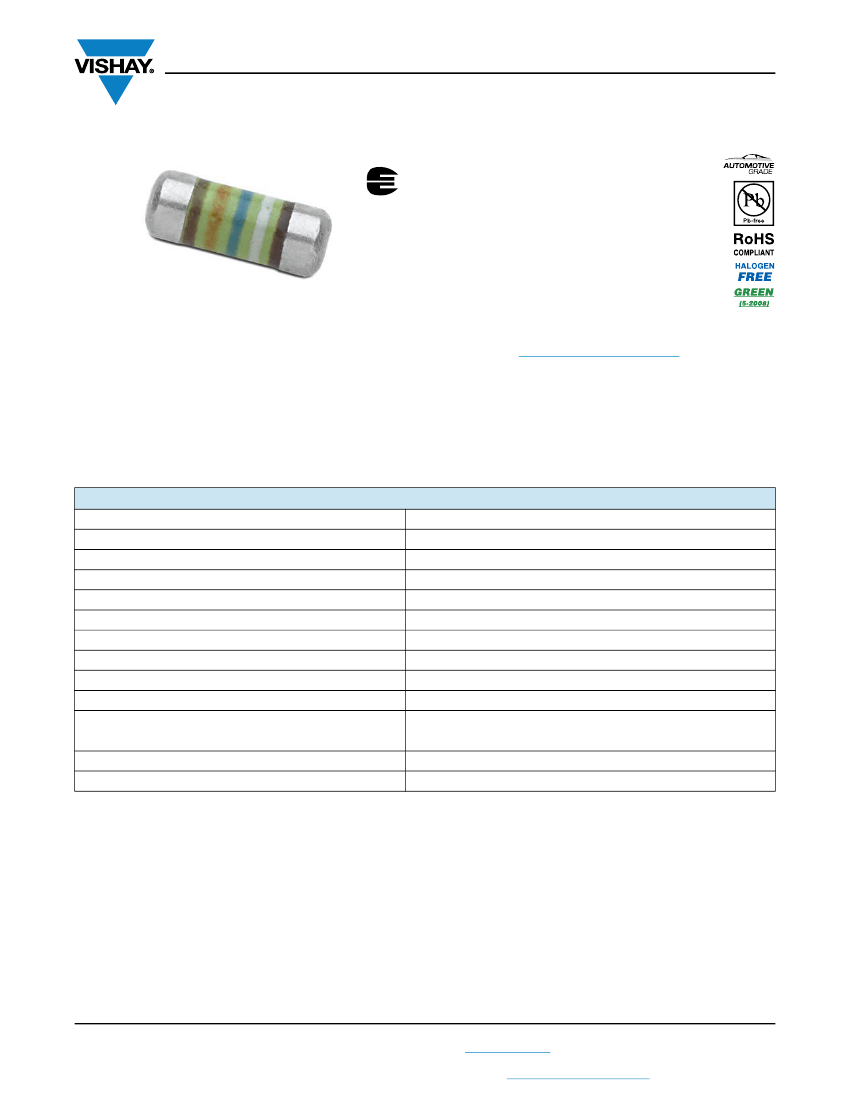

SMM0204
www.vishay.com
Vishay Draloric
Thin Film Mini-MELF Resistors
FEATURES
• Advanced metal film technology
• AEC-Q200 qualified
• Approval acc. EN 140401-803 available on
request
• Excellent stability in different environmental
conditions
SMM 0204 thin film MELF resistors are the perfect choice
for most fields of modern electronics where reliability and
stability are of major concern. The typical applications in the
fields of automotive, industrial and medical equipment
reflect the outstanding level of proven reliability.
• Best in class pulse load capability
• Intrinsic sulfur resistance
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Automotive
• Telecommunication
• Industrial
• Medical equipment
TECHNICAL SPECIFICATIONS
DESCRIPTION
DIN size
Metric size code
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation
P
70 (1)
Operating voltage,
U
max.
AC
RMS
/DC
Permissible film temperature,
F max. (1)
Operating temperature range
(1)
Permissible voltage against ambient (insulation):
1 min;
U
ins
Failure rate: FIT
observed
Zero-Ohm-Resistor: OMM0204
300 V
0.1 x 10
-9
/h
R
max.
= 10 m;
I
max.
= 3 A
SMM0204
0204
RC 3715M
0.22
to 10 M
± 5 %; ± 1 %; ± 0.5 %; ± 0.25 %; ± 0.1 %
± 100 ppm/K; ± 50 ppm/K; ± 25 ppm/K; ± 15 ppm/K
0.4 W
200 V
155 °C
-55 °C to 155 °C
Notes
• The IECQ-CECC approved product versions SMM0204 EN803 E0 and OMM0204 EN803 E0 respectively feature a quality factor
Q
= 3 for
the purpose of system MTBF calculations, compared with
Q
= 10 for the standard versions.
(1)
Please refer to APPLICATION INFORMATION below.
APPLICATION INFORMATION
When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal
resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted
film temperature is not exceeded.
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift
increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a
functional lifetime
Revision: 21-Jul-16
Document Number: 20004
1
For technical questions, contact:
melf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMM0204
www.vishay.com
Vishay Draloric
MAXIMUM RESISTANCE CHANGE AT RATED DISSIPATION
OPERATION MODE
Rated dissipation,
P
70
Operating temperature range
Permissible film temperature,
F max.
SMM0204
Max. resistance change at
P
70
for
resistance range, |R/R| after:
1000 h
8000 h
225 000 h
SMM0204
PRECISION
0.07 W
-10 °C to 85 °C
85 °C
10
to 1 M
0.05 %
0.1 %
0.25 %
STANDARD
0.25 W
-55 °C to 125 °C
125 °C
0.22
to 1 M
0.15 %
0.3 %
0.75 %
POWER
0.4 W
-55 °C to 155 °C
155 °C
0.22
to 10 M
0.25 %
0.5 %
-
Note
• The presented operation modes do not refer to different types of resistors, but actually show examples of different loads, that lead to
different film temperatures and different achievable load-life stability (drift) of the resistance value. A suitable low thermal resistance of the
circuit board assembly must be safeguarded in order to maintain the film temperature of the resistors within the specified limits. Please
consider the application note “Thermal Management in Surface-Mounted Resistor Applications” (www.vishay.com/doc?28844) for
information on the general nature of thermal resistance.
TEMPERATURE COEFFICIENT AND RESISTANCE RANGE
TYPE / SIZE
TCR
± 100 ppm/K
± 50 ppm/K
± 0.5 %
± 0.5 %
± 25 ppm/K
SMM0204
± 0.1 %
± 0.5 %
± 15 ppm/K
± 0.25 %
± 0.1 %
Jumper,
I
max.
= 3 A
10 m
± 0.25 %
TOLERANCE
±5%
±1%
RESISTANCE
0.22
to 10 M
0.82
to 10 M
10
to 1.65 M
10
to 1.65 M
22
to 1.65 M
22
to 1.65 M
10
to 221 k
22
to 221 k
43
to 221 k
0
E24; E192
E24; E192
E-SERIES
E24
E24; E96
E24; E192
Notes
•
The color of the body coating is light green for jumpers and for a temperature coefficient of ± 50 ppm/K or ± 100 ppm/K, pink for ± 25 ppm/K,
or violet for ± 15 ppm/K.
•
Zero ohm jumper are marked with one centered black band.
PACKAGING
TYPE / SIZE
CODE
B1
(1)
SMM0204
OMM0204
B3
B0
B1
(1)
SMM0204 EN803 E0
OMM0204 EN803 E0
B3
B0
QUANTITY
1000
(1)
Ø 180 mm/7"
3000
10 000
1000
(1)
3000
10 000
Antistatic blister tape acc.
IEC 60286-3, Type 2a
8 mm
4 mm
Ø 330 mm/13"
8 mm
4 mm
Ø 330 mm/13"
Ø 180 mm/7"
PACKAGING
STYLE
WIDTH
PITCH
PACKAGING
DIMENSIONS
Note
(1)
Package of 1000 pieces, code B1, is available only for products with TCR ± 25 ppm/K or ± 15 ppm/K, and with tolerance ± 0.25 % or ± 0.1 %.
Bulk case acc. IEC 60286-6 available on request.
Revision: 21-Jul-16
Document Number: 20004
2
For technical questions, contact:
melf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMM0204
www.vishay.com
Vishay Draloric
PART NUMBER AND PRODUCT DESCRIPTION
Part Number: SMM02040C5620FB000
Part Number: SMM0204VC5620FB000
Part Number: OMM02040000000B000
S
O
M
M
M
M
0
0
2
2
0
0
4
4
0
0
C
0
5
0
6
0
2
0
0
0
F
0
B
B
0
0
0
0
0
0
TYPE / SIZE
SMM0204
OMM0204
VERSION
0
= neutral
V
= EN 140401-803,
version A, nominal
failure rate level E0
TCR
E
= ± 15 ppm/K
D
= ± 25 ppm/K
C
= ± 50 ppm/K
B
= ± 100 ppm/K
0
= jumper
RESISTANCE
3 digit value
1 digit multiplier
0000
= jumper
MULTIPLIER
7
= *10
-3
2
= *10
2
8
= *10
-2
3
= *10
3
9
= *10
-1
4
= *10
4
0
= *10
0
5
= *10
5
1
= *10
1
TOLERANCE
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
=±1%
J
=±5%
0
= jumper
PACKAGING
B1
B3
B0
Product Description: SMM0204 50 562R 1 % B0
Product Description: SMM0204 50 562R 1 % B0 EN803 E0
Product Description: OMM0204 0R0 B0
SMM0204
OMM0204
TYPE / SIZE
SMM0204
OMM0204
50
-
TCR
±
15
ppm/K
±
25
ppm/K
±
50
ppm/K
±
100
ppm/K
562R
0R0
RESISTANCE
100R
= 100
2M21
= 2.21 M
0R0
= jumper
1%
-
TOLERANCE
± 0.1 %
± 0.25 %
± 0.5 %
±1%
±5%
B0
B0
PACKAGING
B1
B3
B0
-
-
VERSION
Notes
• Products can be ordered using either the PART NUMBER or the PRODUCT DESCRIPTION.
• Products according to EN 140401-803 can be ordered by using the related ordering code "SMM0204V...".
Revision: 21-Jul-16
Document Number: 20004
3
For technical questions, contact:
melf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMM0204
www.vishay.com
DESCRIPTION
Production is strictly controlled and follows an extensive set
of instructions established for reproducibility. A
homogeneous film of metal alloy is deposited on a high
grade ceramic body (Al
2
O
3
) and conditioned to achieve the
desired temperature coefficient. Nickel plated steel
termination caps are firmly pressed on the metallized rods.
A special laser is used to achieve the target value by
smoothly cutting a helical groove in the resistive layer
without damaging the ceramic. The resistor elements are
covered by a protective coating designed for electrical,
mechanical and climatic protection. The terminations
receive a final pure matte tin on nickel and copper plating for
enhanced temperature cycling stability. Four or five color
code rings designate the resistance value and tolerance in
accordance with
IEC 60062
(1)
.
The result of the determined production is verified by an
extensive testing procedure performed on 100 % of the
individual resistors. This includes full screening for the
elimination of products with a potential risk of early field
failures (feasible for
R
10
)
according to EN 140401-803,
2.1.2.2. Only accepted products are laid directly into the
blister tape in accordance with
IEC 60286-3, Type 2a
(1)
.
Vishay Draloric
MATERIALS
Vishay acknowledges the following systems for the
regulation of hazardous substances:
• IEC 62474, Material Declaration for Products of and for the
Electrotechnical Industry, with the list of declarable
substances given therein
(2)
• The Global Automotive Declarable Substance List
(GADSL)
(3)
• The REACH regulation (1907/2006/EC) and the related list
of substances with very high concern (SVHC)
(4)
for its
supply chain
The products do not contain any of the banned substances
as per IEC 62474, GADSL, or the SVHC list, see
www.vishay.com/how/leadfree.
Hence the products fully comply with the following
directives:
• 2000/53/EC End-of-Life Vehicle Directive (ELV) and
Annex II (ELV II)
• 2011/65/EU Restriction of the Use of Hazardous
Substances
Directive
(RoHS)
with
amendment
2015/863/EU
• 2012/19/EU Waste Electrical and Electronic Equipment
Directive (WEEE)
Vishay pursues the elimination of conflict minerals from its
supply chain, see the Conflict Minerals Policy at
www.vishay.com/doc?49037.
ASSEMBLY
The resistors are suitable for processing on automatic SMD
assembly systems. They are suitable for automatic
soldering using wave, reflow or vapor phase as shown in
IEC 61760-1
(1)
. The encapsulation is resistant to all
cleaning solvents commonly used in the electronics
industry, including alcohols, esters and aqueous solutions.
The suitability of conformal coatings, potting compounds
and their processes, if applied, shall be qualified by
appropriate means to ensure the long-term stability of the
whole system.
The resistors are completely lead (Pb)-free, the pure matte
tin plating provides compatibility with lead (Pb)-free and
lead containing soldering processes. Solderability is
specified for 2 years after production or requalification,
however, excellent solderability is proven after extended
storage in excess of 10 years. The permitted storage time is
20 years. The immunity of the plating against tin whisker
growth has been proven under extensive testing.
APPROVALS
The resistors are qualified according to AEC-Q200.
Resistors approved according to EN 140401-803 are
available by using the related ordering code.
RELATED PRODUCTS
MELF resistors of other sizes are available:
Thin Fim Micro-MELF Resistors SMM0102
(www.vishay.com/doc?20003)
Thin Fim MELF Resistors SMM0207
(www.vishay.com/doc?20005)
Resistors are available with established reliability in
accordance with
EN 140401-803 Version E.
Please refer to
datasheet “MELF Resistors with Established Reliability”
(www.vishay.com/doc?28707).
MS1 .... ESCC high-reliability thin film MINI-MELF resistors
are the premium choice for design and manufacture of
equipment, where matured technology and proven reliability
are of utmost importance. They are regularly used in
communication and research satellites and fit equally well
into aircraft and military electronic systems.
Approval of the MS1 .... ESCC products is granted by the
European Space Components Coordination and registered
in the ESCC Qualified Parts List, REP005.
(www.vishay.com/doc?28790).
Notes
(1)
The quoted IEC standards are also released as EN standards with the same number and identical contents.
(2)
The IEC 62474 list of declarable substances is maintained in a dedicated database, which is available at
http://std.iec.ch/iec62474.
(3)
The Global Automotive Declarable Substance List (GADSL) is maintained by the American Chemistry Council and available at
www.gadsl.org.
(4)
The SVHC list is maintained by the European Chemical Agency (ECHA) and available at
http://echa.europa.eu/candidate-list-table.
Revision: 21-Jul-16
Document Number: 20004
4
For technical questions, contact:
melf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMM0204
www.vishay.com
FUNCTIONAL PERFORMANCE
Power Dissipation
P
0.5
W
0.4
0.3
0.2
0.1
0
Vishay Draloric
-50
0
50
70
85
100
130
°C
160
Ambient Temparature
ϑ
amb
Derating - Precision Operation
Power Dissipation
P
0.5
W
0.4
0.3
0.2
0.1
0
-50
0
50
70
100
125
°C
160
Ambient Temparature
ϑ
amb
Derating - Standard Operation
Power Dissipation
P
0.5
W
0.4
0.3
0.2
0.1
0
-50
0
50
70
100
°C
155
Ambient Temparature
ϑ
amb
Derating - Power Operation
Revision: 21-Jul-16
Document Number: 20004
5
For technical questions, contact:
melf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Digital frequency shift demodulator circuit

audio mixer amplifier

Overcurrent protection circuit diagram b

Practical temperature control AC switch

555 color TV switching power supply circuit

Proportional controller circuit for remote control

Ask about ADS830
[i=s]This post was last edited by dontium on 2015-1-23 12:57[/i]Seeing everyone enthusiastically DIYing oscilloscopes, I can't help but want to make one. However, I have been troubled by a problem for...
cnshs Analogue and Mixed Signal
Are there any design differences between the different packages of 51 microcontrollers?
Excuse me, I see that there are 3 types of packages listed in the DATASHEET of AT89S51. I am familiar with the dual in-line package, but I would like to ask, are there any differences in the internal ...
dreamprosper 51mcu
Dear heroes: What is the English name for baseboard and core board?
The company requires some information to be translated into English, but I don't know how to translate the two words "baseboard" and "core board". If anyone can provide a dictionary of relevant terms,...
zhaoboqian Embedded System
Based on FOC2.0, the torque of the three-phase sensor hub motor is small and unstable under low-speed control
I am currently debugging a three-phase sensored hub motor based on FOC2.0 control. Now the motor can run smoothly at a faster speed, but under low-speed control, the motor torque is small and unstable...
yangkai0008 Industrial Control Electronics
Received the board, the snail-like internet speed is unbearable
I received the board yesterday. I ran more than 10 miles to the courier to pick it up. Then I went to the Internet cafe to download the CD and information. I kept downloading until dark. The three lar...
陈韶华 Embedded System
51 MCU C language complete tutorial
Very good information, I recommend it to everyone! [url=http://www.neoic.cn/bbs/read-htm-tid-204.html]51 MCU C Language Complete Tutorial[/url] [[i] This post was last edited by shuijian on 2008-10-21...
shuijian 51mcu
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. M29W160EB90ZA6F
  2. ZPD62
  3. M55342K03B12B3MTF
  4. 7505358
  5. TZPT-92X12B
  6. 54112-108-52-1300
  7. MF60E4120BM125
  8. P0805Y2672FBTC
  9. AME8833BEEV285L
  10. AME8500AEETDA44
  11. AME8500AEFVDF31
  12. A2547WRA-FJA-14P

Popular Articles

  1. s3c2440 learning path-008 uart implements printf function
  2. WPG World Peace Group launches power supply solution for epidemic prevention medical equipment based on Onsemi products
  3. Realme preheats GT Neo2: Samsung E4 flagship straight screen
  4. S3C2440 bare metal -------NandFlash programming_chip id reading
  5. How TSMC's price increase affects the global semiconductor supply chain
  6. Aurora Autonomous Driving Safety Case Framework
  7. The third generation of Moto Razr foldable phone uses the "star track hinge design" in its development
  8. How to implement Ethernet communication and ModbusTCP configuration through CHNet-S7300MD
  9. Porting u-boot-2010.09 to S3C2440 (VI) - Calculation of SDRAM address and capacity
  10. 04-S3C2440u-boot learning u-boot analysis (3) source code stage 1 and 2

Technical ResourceMore

  1. How to burn M8 and T26 via parallel port
  2. bluetooth specification download
  3. Implementing Fast Fourier Transform Using the MAXQ2000 Microcontroller
  4. Research on GPS Fully Automatic Bus Voice Announcer
  5. Analysis of TD-LTE network coverage performance
  6. VD4 circuit breaker opening and closing anti-tripping technology
  7. Guide to large-scale application and multi-person development with labview software
  8. XAPP105 - Introduction to CPLD VHDL
  9. Wave Soldering Safety Precautions
  10. Wireless data collection and transmission system for LED navigation lights

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 25  2008  2  12  2226  1  41  45  20  31
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
