C380BX555 datasheet, PDF - EEWORLD Datasheet

C380BX555: Description450 A, 1200 V, SCR; CategoryAnalog mixed-signal IC Trigger device; File Size239KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

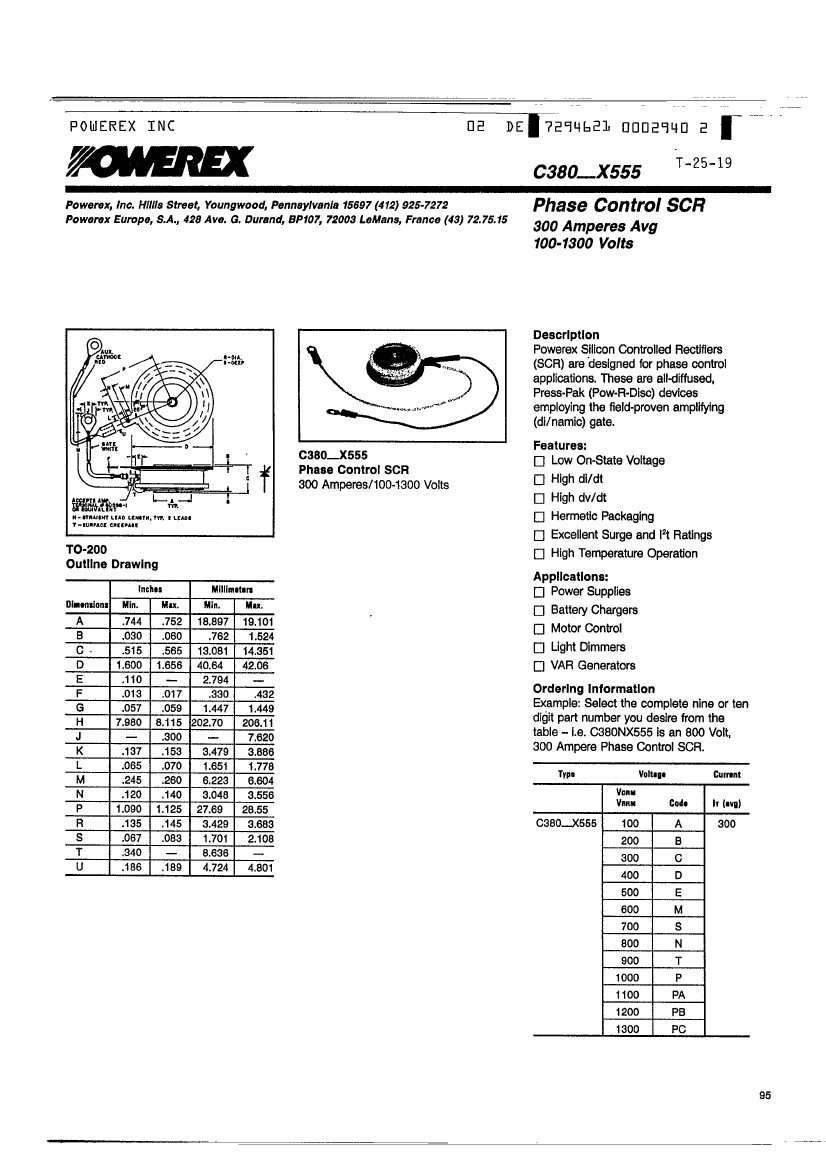

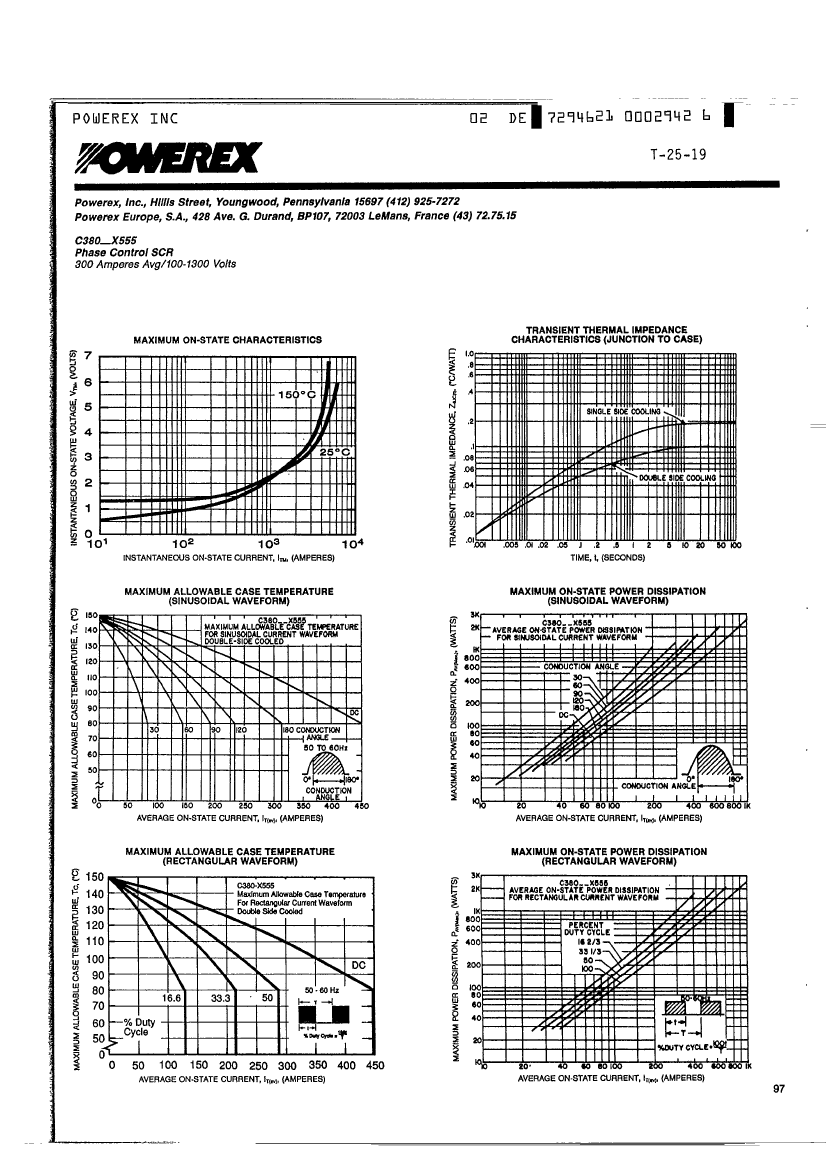

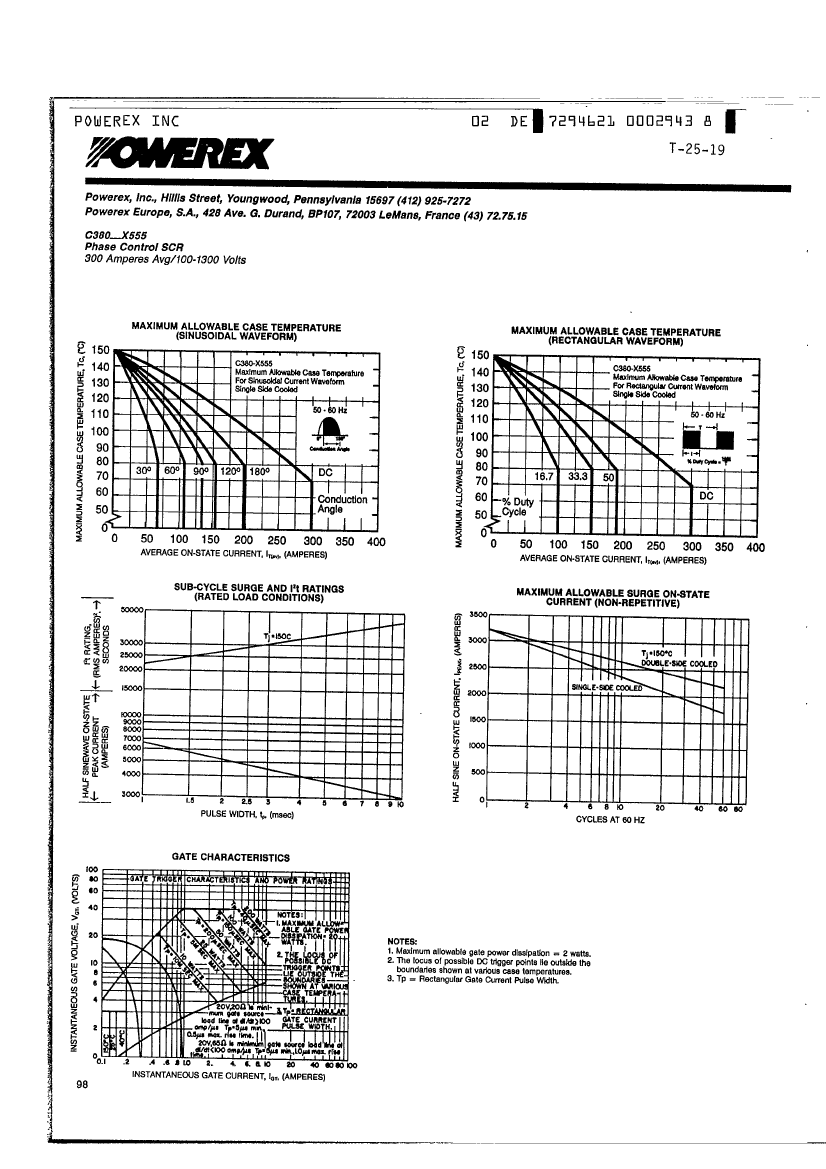

C380BX555 Overview

450 A, 1200 V, SCR

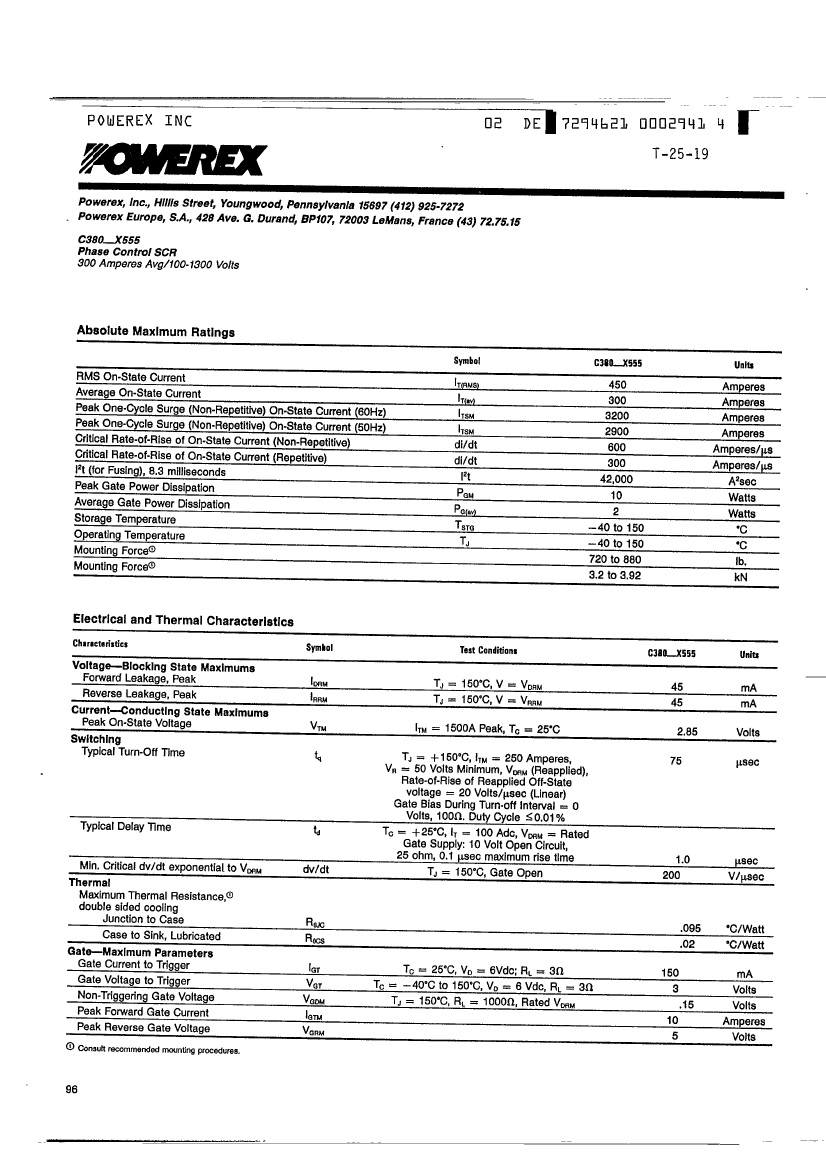

Parameter Name	Attribute value
Maker	POWEREX
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	75 µs
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Maximum leakage current	45 mA
On-state non-repetitive peak current	3200 A
Maximum on-state current	300000 A
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	200 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

	C380BX555	C380AX555	C380CX555	C380EX555	C380PAX555	C380SX555	C380TX555
Description	450 A, 1200 V, SCR	450 A, 1200 V, SCR	450 A, 1200 V, SCR	450 A, 1200 V, SCR	450 A, 1200 V, SCR	450 A, 1200 V, SCR	450 A, 1200 V, SCR
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal circuit commutation break time	75 µs	75 µs	75 µs	75 µs	75 µs	75 µs	75 µs
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Maximum leakage current	45 mA	45 mA	45 mA	45 mA	45 mA	45 mA	45 mA
On-state non-repetitive peak current	3200 A	3200 A	3200 A	3200 A	3200 A	3200 A	3200 A
Maximum on-state current	300000 A	300000 A	300000 A	300000 A	300000 A	300000 A	300000 A
Maximum operating temperature	150 °C	155 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-45 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Off-state repetitive peak voltage	200 V	100 V	300 V	500 V	1100 V	700 V	900 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1	1
