C380NX555 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> C380NX555

C380NX555: Description450 A, 1200 V, SCR; CategoryAnalog mixed-signal IC Trigger device; File Size944KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

C380NX555 Overview

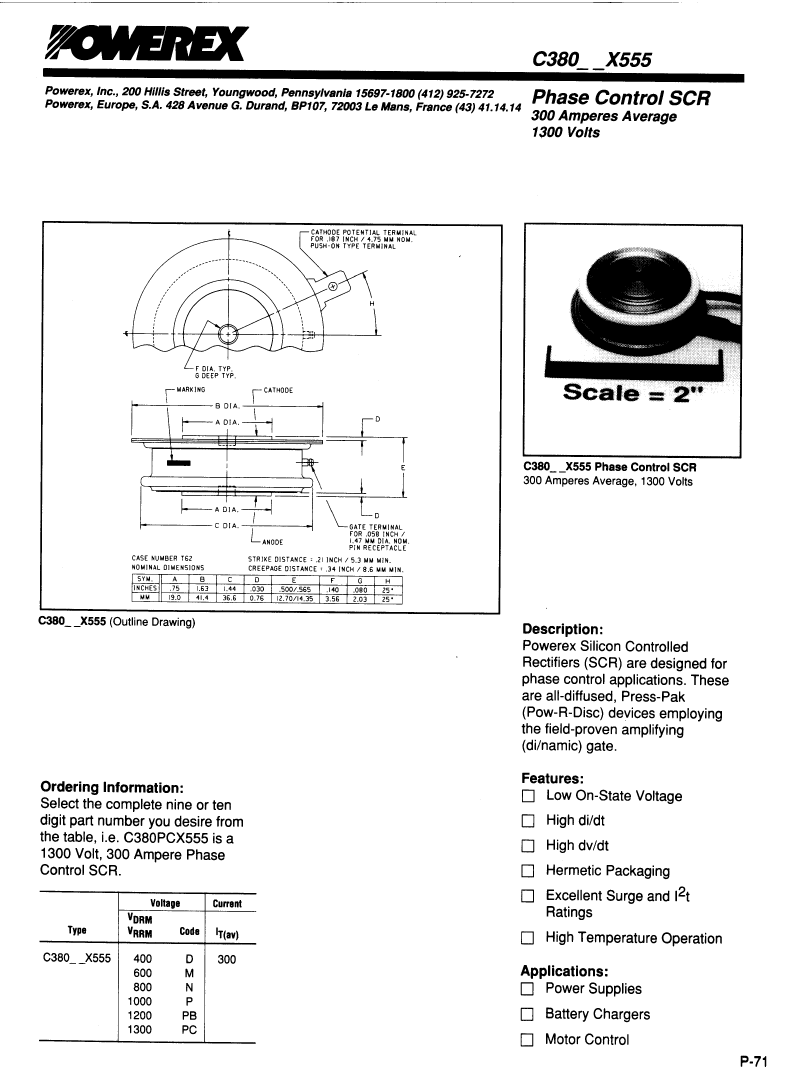

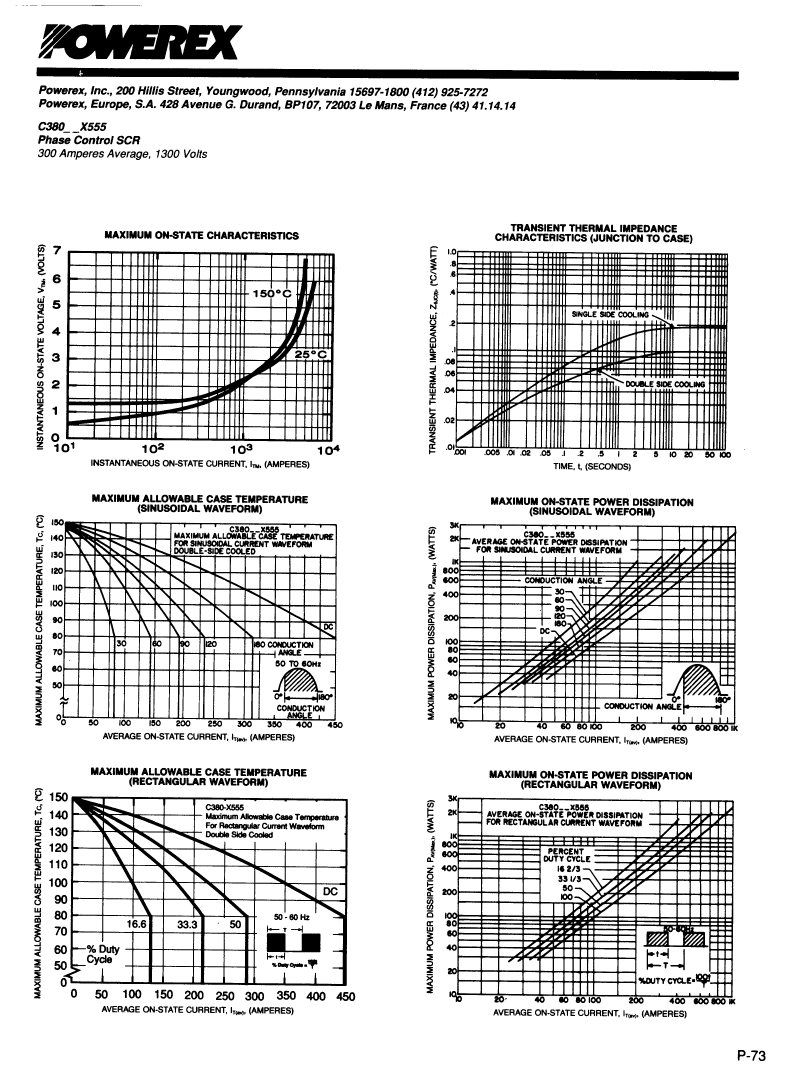

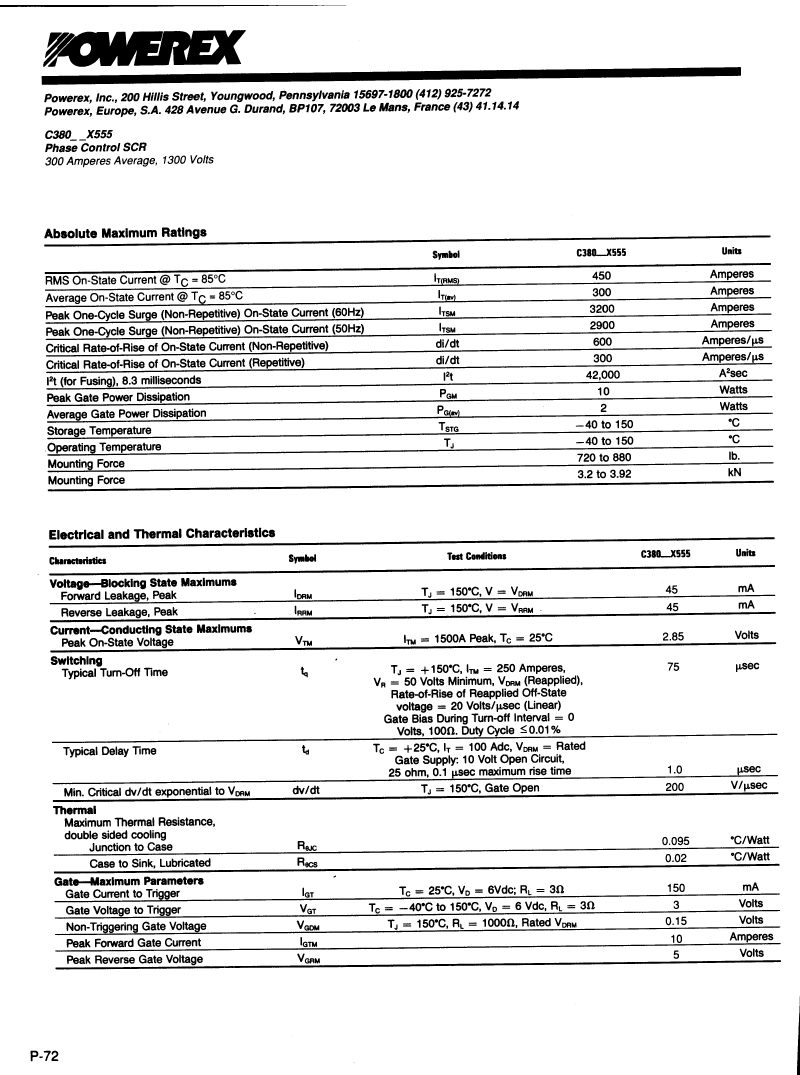

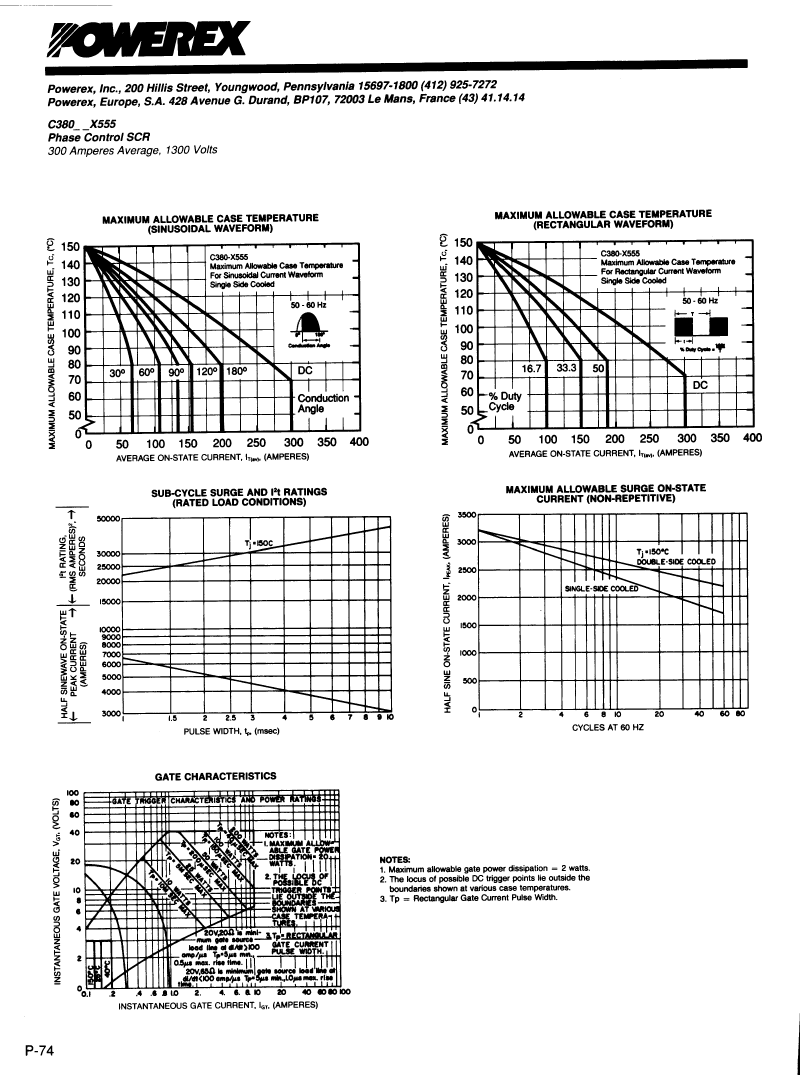

450 A, 1200 V, SCR

C380NX555 Parametric

Parameter Name	Attribute value
Maker	POWEREX
package instruction	DISK BUTTON, O-CEDB-X3
Reach Compliance Code	unknown
Nominal circuit commutation break time	75 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
JESD-30 code	O-CEDB-X3
Maximum leakage current	45 mA
On-state non-repetitive peak current	3200 A
Number of components	1
Number of terminals	3
Maximum on-state current	300000 A
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	450 A
Off-state repetitive peak voltage	800 V
Repeated peak reverse voltage	800 V
surface mount	YES
Terminal form	UNSPECIFIED
Terminal location	END
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

C380NX555 Related Products

	C380NX555	C380DX555	C380MX555	C380PBX555	C380PCX555	C380PX555
Description	450 A, 1200 V, SCR	450 A, 1200 V, SCR	450 A, 1200 V, SCR	450 A, 1200 V, SCR	450 A, 1200 V, SCR	450 A, 1200 V, SCR
package instruction	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknow
Nominal circuit commutation break time	75 µs	75 µs	75 µs	75 µs	75 µs	75 µs
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V
JESD-30 code	O-CEDB-X3	O-CEDB-X3	O-CEDB-X3	O-CEDB-X3	O-CEDB-X3	O-CEDB-X3
Maximum leakage current	45 mA	45 mA	45 mA	45 mA	45 mA	45 mA
On-state non-repetitive peak current	3200 A	3200 A	3200 A	3200 A	3200 A	3200 A
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum on-state current	300000 A	300000 A	300000 A	300000 A	300000 A	300000 A
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	450 A	450 A	450 A	450 A	450 A	450 A
Off-state repetitive peak voltage	800 V	400 V	600 V	1200 V	1300 V	1000 V
Repeated peak reverse voltage	800 V	400 V	600 V	1200 V	1300 V	1000 V
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	END	END	END	END	END	END
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1
