“Smart” Test Cords –
800/900-Series DSX-1/1C Systems

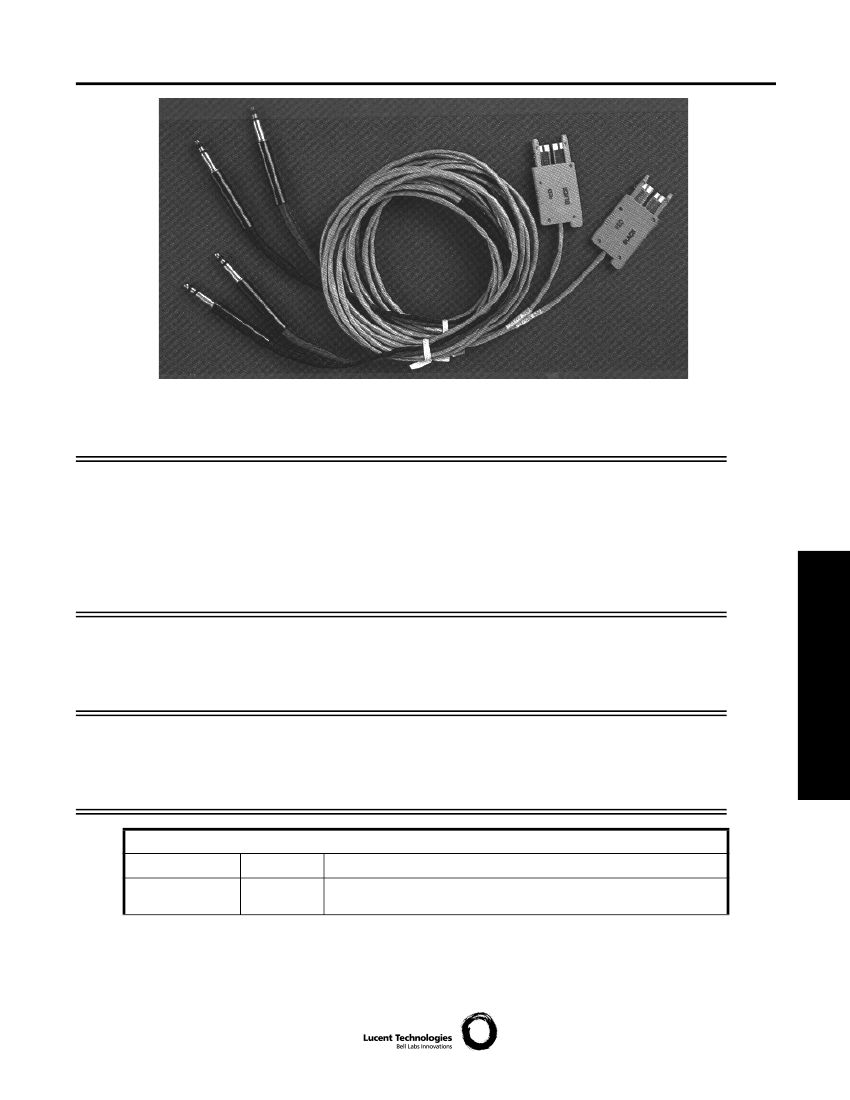

800PGY/6 Blue Test Cord and 800RGY/6 Orange Test Cord
Description
The Blue and Orange Test Cords for the 800/900-Series DSX-1/1C
Systems take advantage of Lucent Technologies’ special circuit
board connection technology. Thanks to the multi-contact
capability of the plugs and jacks, several different test and
in-
service
monitoring functions can be performed
from a single jack.
Furthermore, when testing or monitoring, all cross-connect wiring
and tie cabling are included in the circuit, which helps assure
thorough coverage.
Each cord comes with the appropriate circuit board plug for
insertion into the DSX on one end, and with two bantam plugs on
the other end for connection to test equipment.
Applications -- Blue Test Cords
•
Far-end testing of digital circuit
•
Test access of cross-connected IOR
•
Sectionalization of cross-connected IOR.
DS1, CEPT-1, and CEPT2
Applications -- Orange Test Cords
•
In-service, bi-directional monitoring
•
In-service monitor of x-connected IOR
•
In-service monitor of digital equipment terminated on back of
block
Ordering Information
Blue Test Cords
Apparatus Code
800PGY/6
Comcode
106 463 243
Description
6-ft. (1.83 m), “Y” cords, with an 800-type duplex plug at one end and two
310-type single plugs at the other
ExchangeMAX SCS (Select Code 4346C)
Issue 3, Jun 1999
3-97
Blue Test Cords
Apparatus Code
800PGY/12
800PHY/6
800PHY/12
Comcode
106 463 235
106 463 268
106 463 250
Description
12-ft. (3.66 m), “Y” cords, with an 800-type duplex plug at one end and two
310-type single plugs at the other
6-ft. (1.83 m), “Y” cords, with an 800-type duplex plug at one end and two
bantam-type single plugs at the other
12-ft. (3.66 m), “Y” cords, with an 800-type duplex plug at one end and two
bantam-type single plugs at the other.
Orange Test Cords
Apparatus Code
800RGY/6
800RGY/12
800RHY/6
800RHY/12
Comcode
106 412 919
106 412 927
106 412 935
106 412 943
Description
6-ft. (1.83 m), “Y” cords, with an 800-type duplex plug at one end and two
310-type single plugs at the other
12-ft. (3.66 m), “Y” cords, with an 800-type duplex plug at one end and two
310-type single plugs at the other
6-ft. (1.83 m), “Y” cords, with an 800-type duplex plug at one end and two
bantam-type single plugs at the other
12-ft. (3.66 m), “Y” cords, with an 800-type duplex plug at one end and two
bantam-type single plugs at the other.
For additional information on application and use of the Blue and
Orange Test Cords, please refer to Lucent Technologies Instruction
Sheet 365-301-102-7 and/or to Technical Description 201-099-
024TD, Issue 1.
DS1, CEPT-1, and CEPT2
3-98
ExchangeMAX SCS (Select Code 4346C)
Issue 3, Jun 1999
