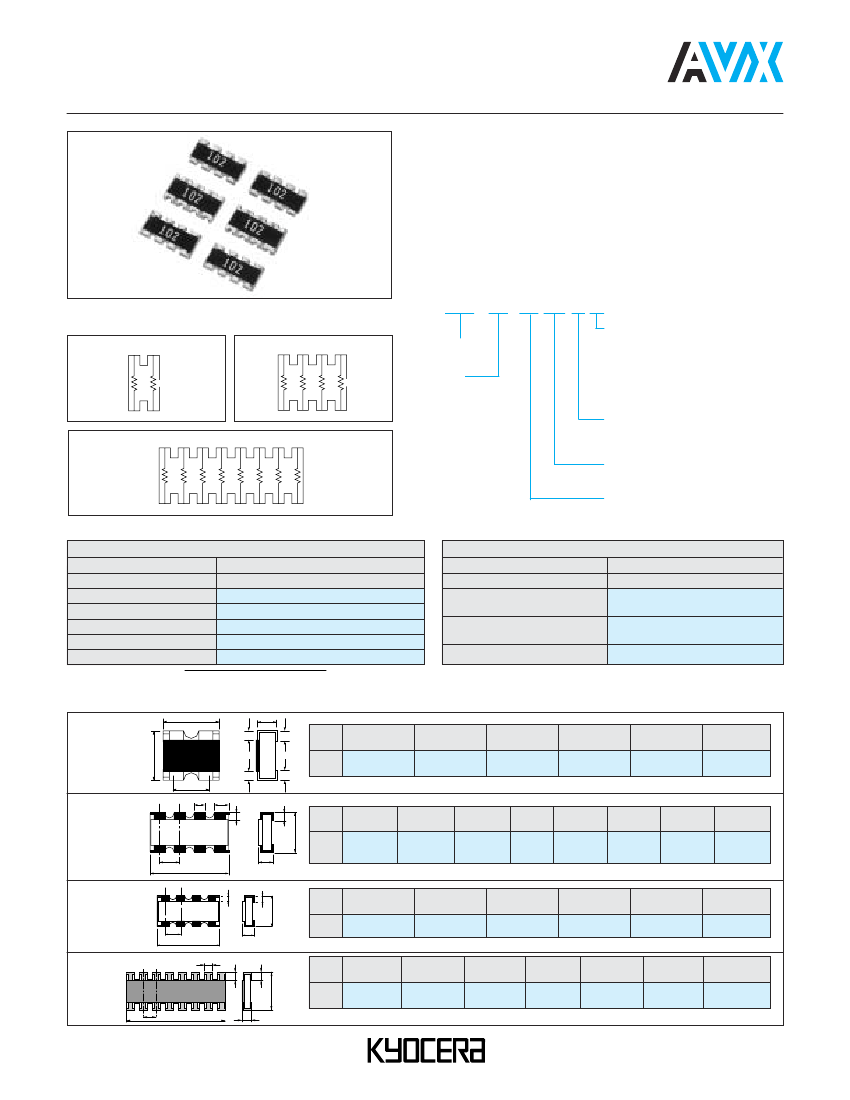

Chip Resistor Arrays
CRC Series (Convex Square Corner Type)
FEATURES
• Reduction in mounting process & costs
• Save PCB space
• Reduction of inventory control costs
APPLICATIONS
• Computer
• Printer
• Hard Disk Drive
• CD-ROM
HOW TO ORDER
Chip Resistor Arrays have several resistor elements
integrated as a single component.
CRC 2A
Series
Size
4E 103 J T
Packaging
T = Paper Taping
• CRC2A 10,000 pcs/7" reel
• CRC3A 5,000 pcs/7" reel
• CRC4A 5,000 pcs/7" reel
H = Paper Taping
• CRC11A 10,000 pcs/7" reel
2 Resistors Circuit
R1
R2
4 Resistors Circuit
R1
R2
R3
R4
R1=R2
R1=R2=R3=R4
11A = 0404 size
2A = 0804 size
3A = 1206 size
4A = 1506 size
R8
Resistance Tolerance
J = ±5%
Blank = Chip Jumper Arrays
8 Resistors Circuit
R8
R1
R2
R3
R4
R5
R6
R7
R8
Resistance Value
(3 digits)
Chip Jumper Arrays = 000
Number of Elements
R1=R2=R3=R4=R5=R6=R7=R8
RATING
Chip Resistor Arrays
Item
Rating
Rated Power (70°C)*
1/16W Element
Max. Working Voltage
50V (25V CRC4A)
Max. Overload Voltage
100V (50V CRC4A)
Resistance Value
J = 10Ω to 2.2MΩ (CRC4A8E 1MΩ max.)
Tolerance
J±5%
Working Temperature
-55 to +125°C
*Rated voltage = 50V or
Rated power x Resistance value, whichever is less
2E = 2 Elements 8E = 8 Elements
4E = 4 Elements
Chip Jumper Arrays
Rating
1A
50MΩ max.
Zero ohms
(0 ± .5 ohms)
-55 to +125°C
Item
Rated Current
Conductive
Resistance Value
Resistance Value
Working Temperature
DIMENSIONS
CRC11A
W
L
c
T
d
millimeters (inches)
Code
Dim.
c
P
d
W
1.00±0.10
(0.040±0.004)
L
1.00±0.10
(0.040±0.004)
c
0.20±0.15
(0.008±0.006)
d
0.20±0.15
(0.008±0.006)
t
0.35±0.06
(0.014±0.002)
P
0.65 typ
(0.026 typ)
No Marking on chips
e1
e2
c
d
W
CRC2A4E
Code
L
2.00±0.10
W
1.00±0.10
T
0.40±0.10
P
0.50 typ
c
0.15±0.15
d
0.25±0.15
e1
0.30±0.10m
e2
0.40±0.10
P
L
T
Dim.
(0.079±0.004) (0.039±0.004) (0.016±0.004) (0.020 typ) (0.006±0.006) (0.010±0.006) (0.012±0.004) (0.016±0.004)
No Marking on chips
CRC3A4E
P
L
c
d
W
T
Code
Dim.
W
L
3.20±0.15
(0.126±0.006)
c
0.30±0.20
(0.012±0.008)
d
0.20±0.15
(0.008±0.006)
T
0.50±0.10
(0.020±0.004)
P
0.80 typ
(0.031 typ)
1.60±0.15
(0.063±0.006)
No Marking on chips
d
W
CRC4A8E
e
C
Code
L
3.80±0.10
W
1.60±0.10
T
0.45±0.10
P
0.50 typ
c
0.30±0.20
d
0.30±0.15
e
0.30±0.10
Dim.
(0.150±0.004) (0.063±0.004) (0.018±0.004) (0.020 typ) (0.012±0.008) (0.012±0.006) (0.012±0.004)
No Marking on chips
P
L
T
7
Chip Resistor Arrays
CR, CJ, CRA, CRB, CRC Series - Test Conditions
ELECTRICAL CHARACTERISTICS
Item
Resistor
DC Resistance
Within Initial Tolerance
Resistance (Ω)
Temperature
Characteristics
*D, F
10≤ R
≤1M
J, CR05 = F
R <10
10≤ R
≤1M
1M< R
Standard
Jumper
50mΩ max.
Resistor
Test Conditions
Jumper
Power Condition A
(20°C, 65% RH)
Test Temperature: 25, 125(°C)
R/R=R
2
–R
1
/R
1
x1/T
2
–T
1
x10
6
R/R = Temp. Coefficient
(ppm/°C)
T
1
= 25(°C)
T
2
= 125(°C)
R
1
= T
1
Resistance at (Ω)
R
2
= T
2
Resistance at (Ω)
(1) Apply 2.0 x rated voltage for (1) 2A for 5 sec.
5 sec. (2.5 x rated voltage
(CJ03 = 1A)
for Arrays)
(2) Wait 30 minutes
(2) Wait 30 minutes
(3) Measure
(3) Measure resistance
resistance
CR03 = 30V max.
CR05 = 50V max
CR10 = 100V max.
CR21 = 200V max.
CR32 = 400V max.
CRA3A, CRB3A, CRC3A =
100V max.
(1) Perform 10,000 voltage
(1) Perform 10,000
cycles as follows:
current cycles
ON (2.0 x rated voltage,
as follows:
2.5 x for Arrays)
1 sec. ON (2A)
1 sec.
OFF
25 sec. OFF
25 sec.
(2) Stabilization time 30 min.
(2) Wait 30 minutes
without loading
(3) Measure
(3) Measure resistance
resistance
CR03 = 30V max.
CJ03 = 1A max.
CR05 = 50V max.
CR10 = 150V max.
CR21 = 200V max.
CR32 = 400V max.
CRA, CRB, CRC = 100V max.
Apply 500 VAC for 1 min. (CR10 300 VAC)
(CR05, CRA3A, CRB3A, CRC3A 300 VAC/1 sec.
CR03 50 VAC/min.)
TCR (ppm/°C)
–100 to +100
–100 to +600
–250 to +250
–500 to +300
R/R
Short-time
Overload
±(2.0%+0.10Ω) max.
of the initial value
50mΩ max.
Visual
No evidence of mechanical damage
intermittent overload
R/R
Intermittent
Overload
±(5%+0.1Ω) max.
of the initial value
50mΩ max.
Visual
Dielectric
Withstanding Voltage
•
•
•
•
•
•
No evidence of mechanical damage
No evidence of mechanical damage
CR03, CJ03 = 10
8
Ω
min.
CR05, CJ05 = 10
8
Ω
min.
CR10, CJ10 = 10
9
Ω
min.
CR21, CJ21 = 10
10
Ω
min.
CR32, CJ32 = 10
12
Ω
min.
CRA3A, CRB3A, CRC3A = 10
9
Ω
min.
Insulation Resistance
Apply 500V DC
(CR05, CRA3A, CRB3A, CRC3A 100V DC
CR03 50 VDC)
9
Chip Resistor Arrays
CR, CJ, CRA, CRB, CRC Series - Test Conditions
MECHANICAL CHARACTERISTICS
Item
Resistor
R/R
±(1%+0.05Ω) max.
of the initial value
Standard
Jumper
50mΩ max.
Resistor
Test Conditions
Jumper
Apply the load as shown:
Measure resistance during load application
millimeters (inches)
50
20
(0.787) (1.969)
R230
Visual
No evidence of mechanical damage after loading
Bending in
10 seconds
3 (0.118)
Terminal
Strength
±2
(0.079)max
[φ5 (0.197)]
45 (1.772) 45 (1.772)
PC Board = Glass epoxy t = 1.60 (0.063)
Soldering
Heat
Resistance
R/R
Visual
±(1%+0.05Ω) max.
of the initial value
No evidence of leaching
Coverage
≥95%
each termination end
R/R
Visual
R/R
Visual
±(1%+0.1Ω) max.
of the initial value
No evidence of mechanical damage
±(0.5%+0.05Ω) max.
of the initial value
No evidence of mechanical damage
50mΩ max.
Immerse in static state butyl acetate at 20°C to 25°C
for 30±5 sec.
Stabilize component at room temperature for 30 min.
then measure value.
50mΩ max.
50mΩ max.
Immerse into molten solder at 260±5°C for 10±1 sec.
Stabilize component at room temperature for 1 hr.
Measure resistance.
Immerse in Rogin Flux for 2±0.5 sec. and in
SN62 solder at 235±5°C for 2±0.5 sec.
2 hrs. each in X, Y and Z axis. (TTL 6 hrs.) 10 to 55 Hz
sweep in 1 min. at 1.5mm amplitude.
Solderability
Anti-Vibration
Test
Solvent
Resistance
ENVIRONMENTAL CHARACTERISTICS
Item
Resistor
Temperature
Cycle
R/R
Visual
R/R
Visual
R/R
Visual
R/R
Visual
R/R
Life Test
Visual
Loading Life
in Moisture
R/R
Visual
±(1%+0.05Ω) max.
of the initial value
No evidence of mechanical damage
±(2%+0.1Ω) max.
of the initial value
No evidence of mechanical damage
±(3%+0.1Ω) max.
of the initial value
No evidence of mechanical damage
±(3%+0.1Ω) max.
of the initial value
No evidence of mechanical damage
±(3%+0.1Ω) max.
of the initial value
No evidence of mechanical damage
±(3%+0.1Ω) max.
of the initial value
No evidence of mechanical damage
50mΩ max.
50mΩ max.
50mΩ max.
50mΩ max.
50mΩ max.
Standard
Jumper
50mΩ max.
Resistor
Test Conditions
Jumper
(1) Run 5 cycles as follows: -55±3°C for 30 min.
125±3°C for 30 min. Room temp. for 10-15 min.
(2) Stabilize component at room temperature for 1 hr.
then measure value.
(1) Dwell in -55°C chamber without loading for 1000
+48
-0
hrs.
(2) Stabilize component at room temperature for 1 hr.
then measure value.
(1) Dwell in 125°C chamber without loading for 1000
+48
-0
hrs.
(2) Stabilize component at room temperature for 1 hr.
then measure value.
(1) Dwell in temp.: 65°C RH90 to 95% RH chamber
without loading for 1000
+48
hrs.
-0
(2) Stabilize component at room temperature for 1 hr.
then measure value.
(1) Temp.: 70±3°C Voltage: (rated voltage) on 90 min.
off 30 min. Duration: 1000
+48
hrs.
-0
(2) Stabilize component at room temperature for 1 hr.
then measure value.
(1) Temp.: 40±2°C RH: 90-95% Voltage Cycle: on 90
min. (rated voltage) off 30 min. Duration: 1000
+48
hrs.
-0
(2) Stabilize component at room temperature for 1 hr.
then measure value.
Low
Temperature
Storage
High
Temperature
Storage
Moisture
Resistance
10

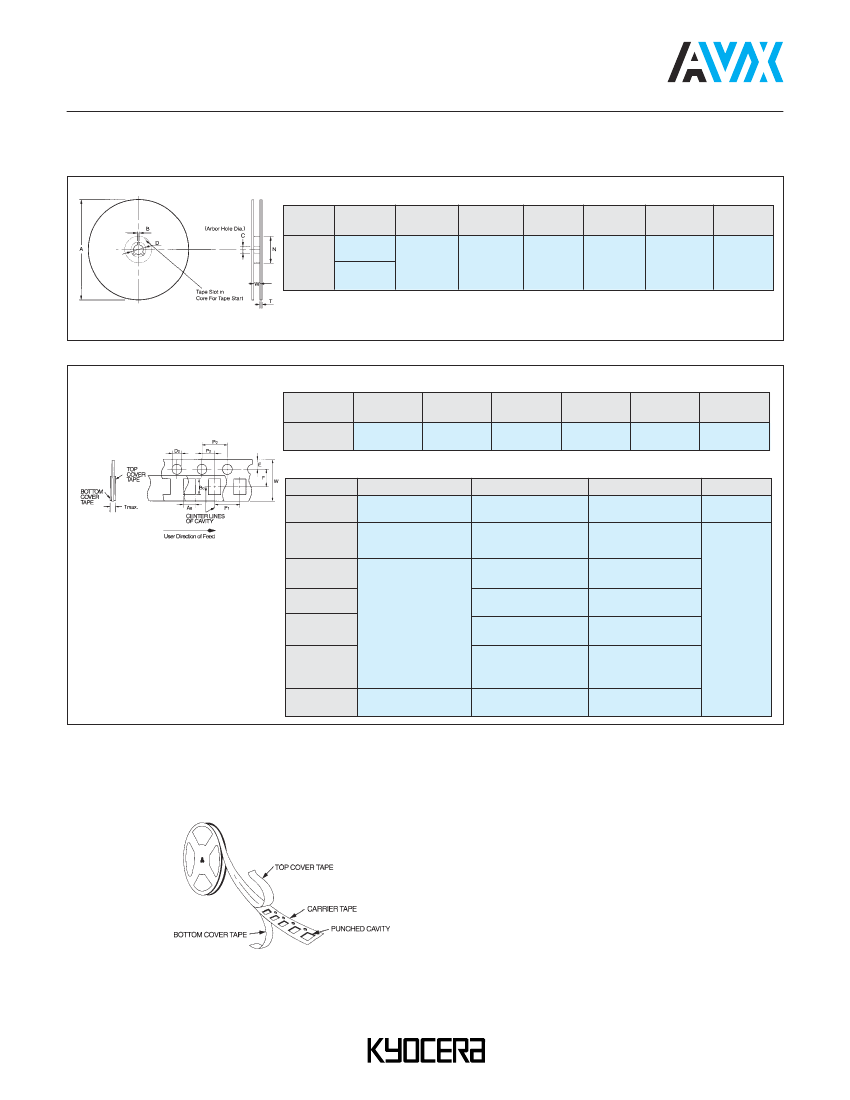

Packaging of Chip Component
Automatic Insertion Packaging
TAPE AND REEL
REEL DIMENSIONS
Tape
Size
A
Max.
178
(7)
260
(10)
millimeters (inches)
B
Min.
1.50
(0.059)
C
D
Min.
20.2
(0.795)
N
Min.
50
(1.969)
W
T
Max.
2.50
(0.098)
8mm
13.0±0.50
(0.512±0.020)
10.0±1.50
(0.394±0.059)
Metric dimensions will govern.
English measurements rounded and for reference only.
millimeters (inches)
PUNCHED TAPE CONFIGURATION 8MM TAPE ONLY
Tape
Size
8mm
D
0
+0.10
1.5000000
-0.00
+0.004
(0.05900000)
-0.000
E
1.75±0.10
(0.069±0.004)
P
0
4.0±0.10
(0.157±0.004)
P
2
2.00±0.05
(0.079±0.002)
W
8.00±0.20
(0.135±0.008)
F
3.50±0.05
(0.138±0.002)
VARIABLE DIMENSIONS
Style
CR/CJ03
CR/CJ05
CR/CJ/FR10
CR/CJ/FR21
CR/CJ/FR32
CRB1A
CRA3A
CRB3A
CRC3A
CRB2A
2.00±0.10
(0.079±0.004)
4.00±0.10
(0.157±0.004)
P
1
2.00±0.10
(0.079±0.004)
4.00±0.10 (0.157±0.004)
or
2.00±0.10 (0.079±0.004)
A
0
0.65±0.10
(0.026±0.004)
1.10±0.20
(0.043±0.008)
1.65±0.20
(0.065±0.008)
2.00±0.20
(0.079±0.008)
1.90±0.20
(0.075±0.008)
2.00±0.20
(0.079±0.008)
1.25±0.20
(0.049±0.008)
B
0
1.15±0.10
(0.045±0.004)
1.90±0.20
(0.075±0.008)
2.40±0.20
(0.094±0.008)
3.60±0.20
(0.142±0.008)
1.90±0.20
(0.075±0.008)
3.60±0.20
(0.142±0.008)
2.50±0.20
(0.098±0.008)
T max.
0.60
(0.024)
1.10
(0.043)
PUNCHED CARRIER
11
Talking
京公网安备 11010802033920号
EEWORLD
