C390DX500

Description

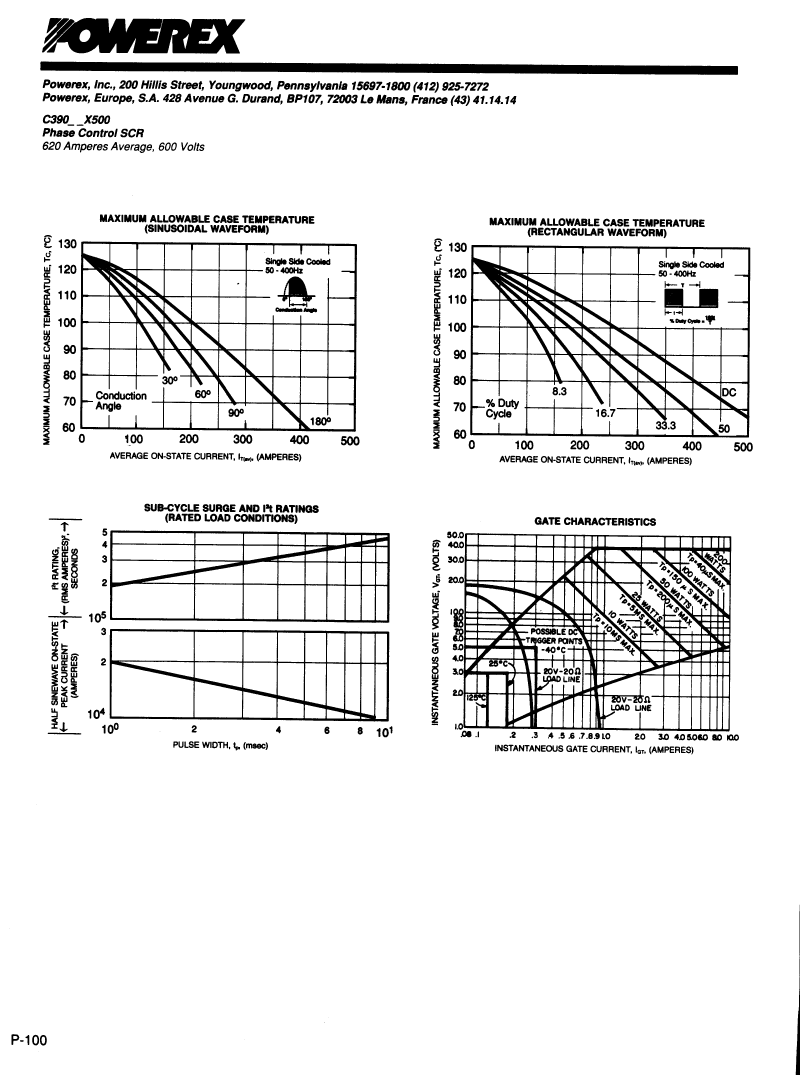

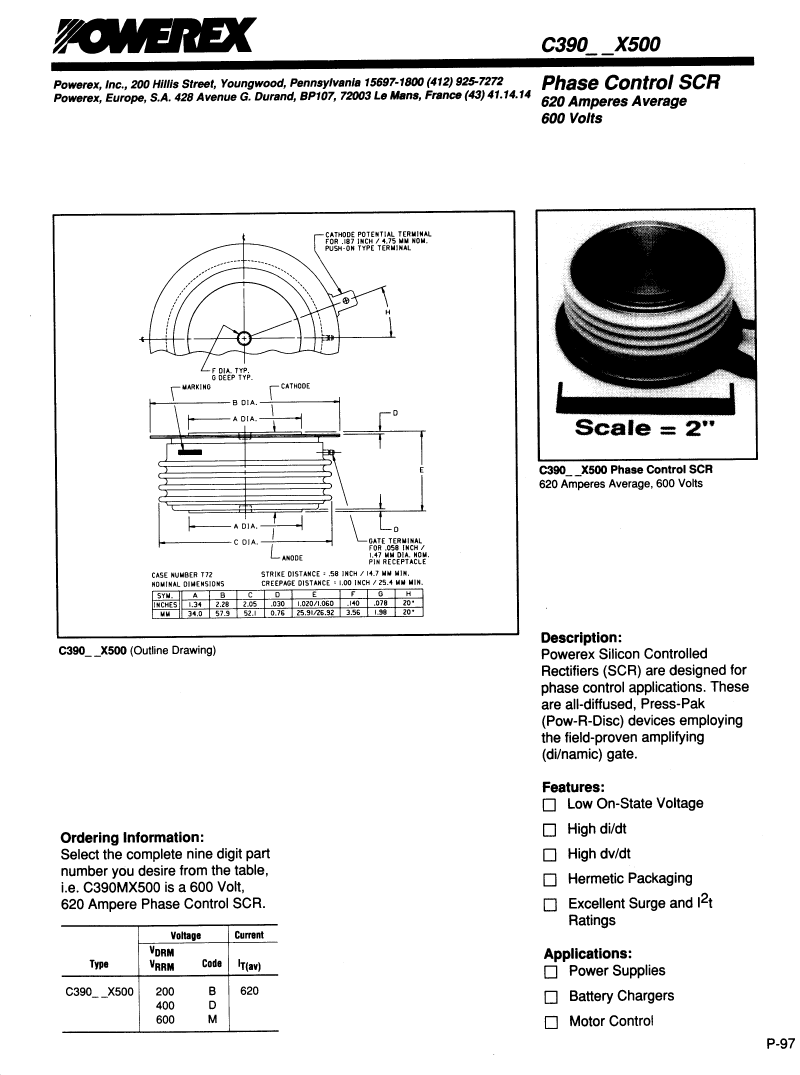

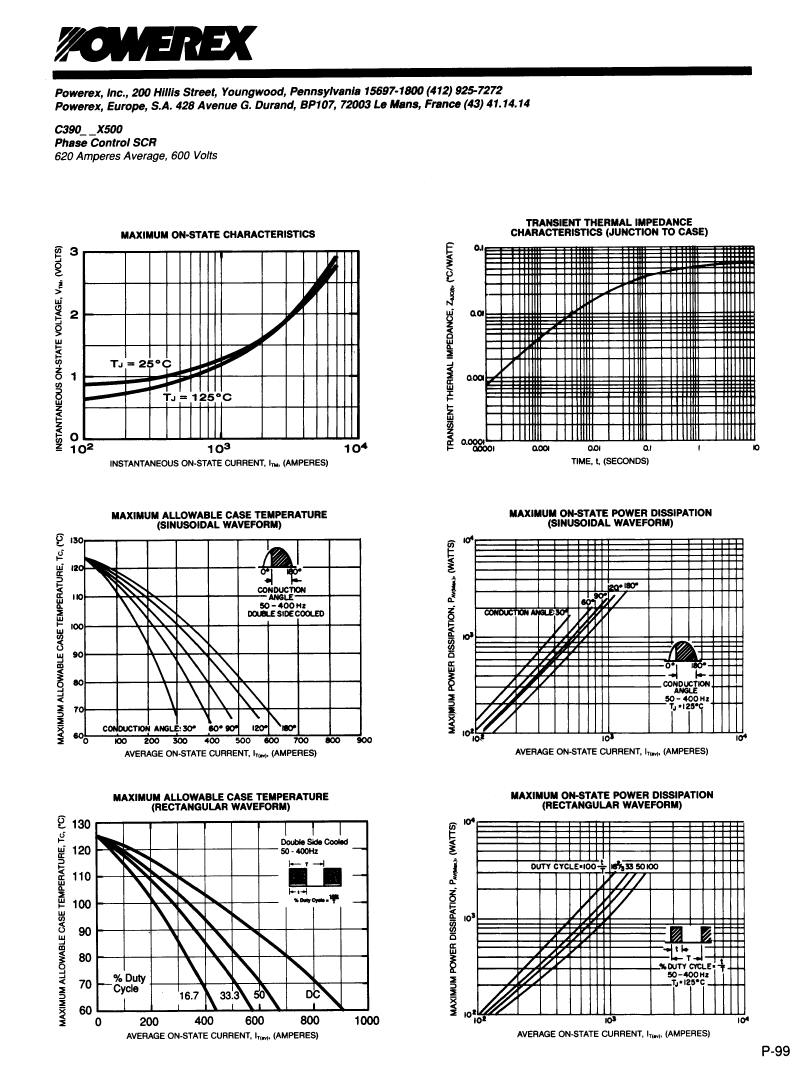

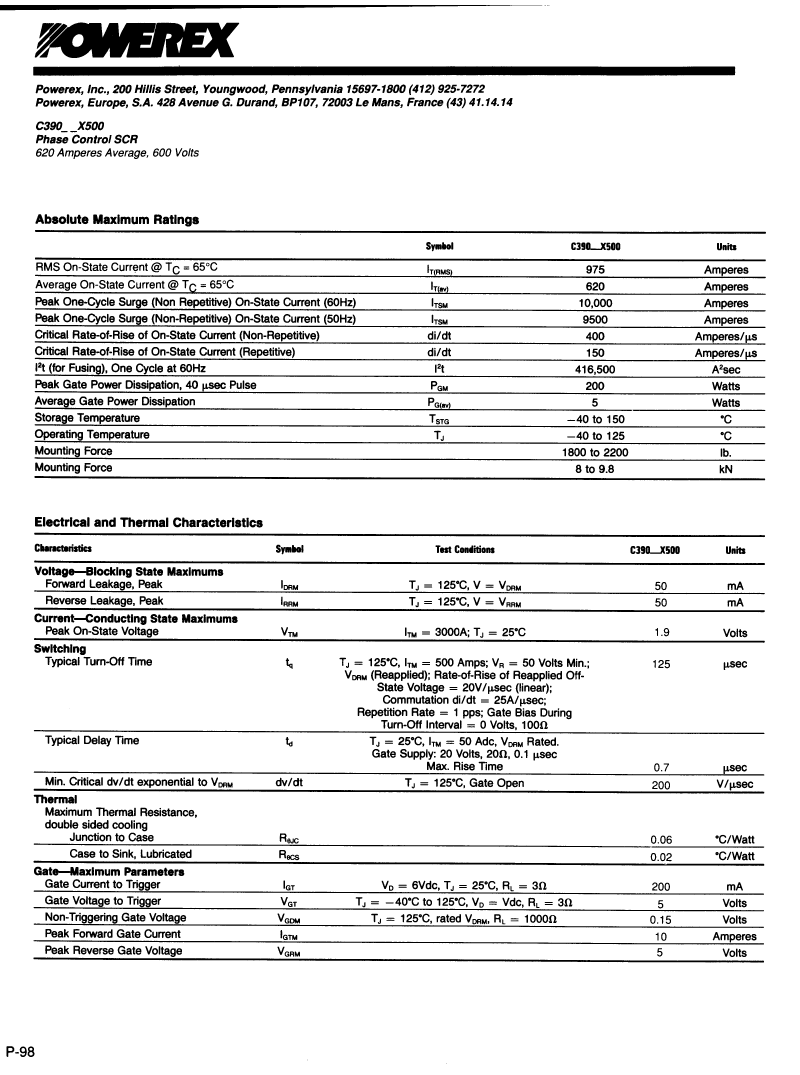

Phase Control SCR 620 Amperes Average 600 Volts
CategoryAnalog mixed-signal IC    Trigger device
File Size843KB,4 Pages
ManufacturerPOWEREX
Websitehttp://www.pwrx.com/Home.aspx
Download Datasheet Parametric Compare View All

C390DX500 Overview

Phase Control SCR 620 Amperes Average 600 Volts

C390DX500 Parametric

Parameter NameAttribute value
MakerPOWEREX
Parts packaging codeSC-3
package instructionDISK BUTTON, O-CXDB-X3
Contacts3
Reach Compliance Codeunknown
Nominal circuit commutation break time125 µs
ConfigurationSINGLE
Critical rise rate of minimum off-state voltage200 V/us
Maximum DC gate trigger current200 mA
Maximum DC gate trigger voltage3.5 V
JESD-30 codeO-CXDB-X3
Maximum leakage current50 mA
On-state non-repetitive peak current10000 A
Number of components1
Number of terminals3
Maximum on-state current500000 A
Maximum operating temperature150 °C
Minimum operating temperature-40 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeROUND
Package formDISK BUTTON
Certification statusNot Qualified
Maximum rms on-state current975 A
Off-state repetitive peak voltage400 V
Repeated peak reverse voltage400 V
surface mountYES
Terminal formUNSPECIFIED
Terminal locationUNSPECIFIED
Trigger device typeSCR
Base Number Matches1

C390DX500 Related Products

C390DX500 C390BX500 C390MX500 C390X500
Description Phase Control SCR 620 Amperes Average 600 Volts Phase Control SCR 620 Amperes Average 600 Volts Phase Control SCR 620 Amperes Average 600 Volts Phase Control SCR 620 Amperes Average 600 Volts
Parts packaging code SC-3 SC-3 SC-3 -
package instruction DISK BUTTON, O-CXDB-X3 DISK BUTTON, O-CXDB-X3 DISK BUTTON, O-CXDB-X3 -
Contacts 3 3 3 -
Reach Compliance Code unknown unknown unknow -
Nominal circuit commutation break time 125 µs 125 µs 125 µs -
Configuration SINGLE SINGLE SINGLE -
Critical rise rate of minimum off-state voltage 200 V/us 200 V/us 200 V/us -
Maximum DC gate trigger current 200 mA 200 mA 200 mA -
Maximum DC gate trigger voltage 3.5 V 5 V 3.5 V -
JESD-30 code O-CXDB-X3 O-CXDB-X3 O-CXDB-X3 -
Maximum leakage current 50 mA 50 mA 50 mA -
On-state non-repetitive peak current 10000 A 10000 A 10000 A -
Number of components 1 1 1 -
Number of terminals 3 3 3 -
Maximum on-state current 500000 A 500000 A 500000 A -
Maximum operating temperature 150 °C 150 °C 150 °C -
Minimum operating temperature -40 °C -40 °C -40 °C -
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED -
Package shape ROUND ROUND ROUND -
Package form DISK BUTTON DISK BUTTON DISK BUTTON -
Certification status Not Qualified Not Qualified Not Qualified -
Maximum rms on-state current 975 A 975 A 975 A -
Off-state repetitive peak voltage 400 V 200 V 600 V -
Repeated peak reverse voltage 400 V 200 V 600 V -
surface mount YES YES YES -
Terminal form UNSPECIFIED UNSPECIFIED UNSPECIFIED -
Terminal location UNSPECIFIED UNSPECIFIED UNSPECIFIED -
Trigger device type SCR SCR SCR -
Base Number Matches 1 1 1 -
