Socket 370 SBC with Gigabit LAN, USB2.0, VGA/LCD and Audio

Preview

Download Datasheet

View All

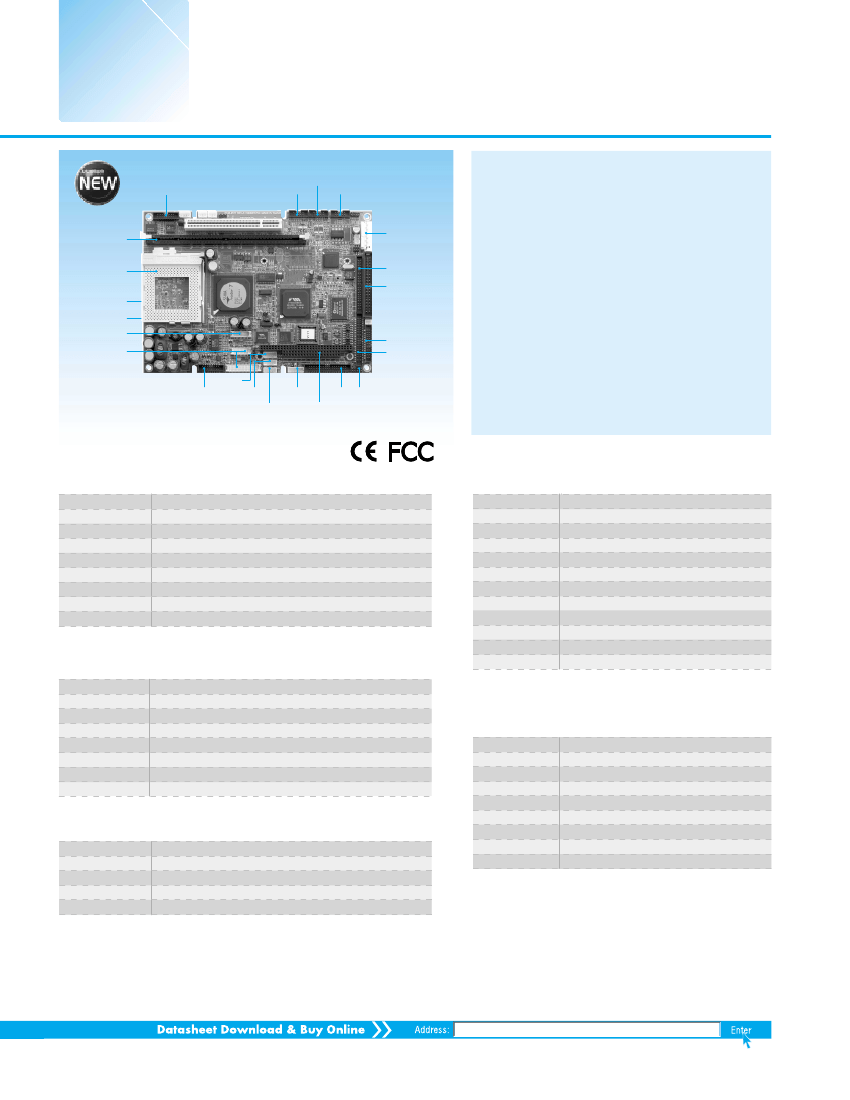

PCM-9577

Audio

USB 3, 4

Ethernet

USB 1, 2

DIMM up to

512 MBl

Socket 370

up to

PIII 1.26GHz

optional MiniPCI

(solder side)

CF (solder side)

LVDS

Socket 370 SBC with Gigabit LAN, USB2.0, VGA/LCD and Audio

Features

• Socket 370 supports up to Pentium

III/512K 1.26GHz

• Supports Gigabit Ethernet (PCM-9577FG)

EBX power

connector

2nd EIDE

1st EIDE

UDMA/100

• Supports Embedded USB, 4 USB 2.0 ports

(PCM-9577FG)

• 133MHz FSB and 4X AGP graphics for high

performance application

• Supports 24/36 bit TFT/DSTN LCD and 2-channel

LVDS interface

• Optional TV-out and Mini PCI for WLAN applications

LPT

LCD display

TV out

option

CRT display

backlight

SIR

4 COM ports

KB/mouse

FDD

GPIO

PC/104

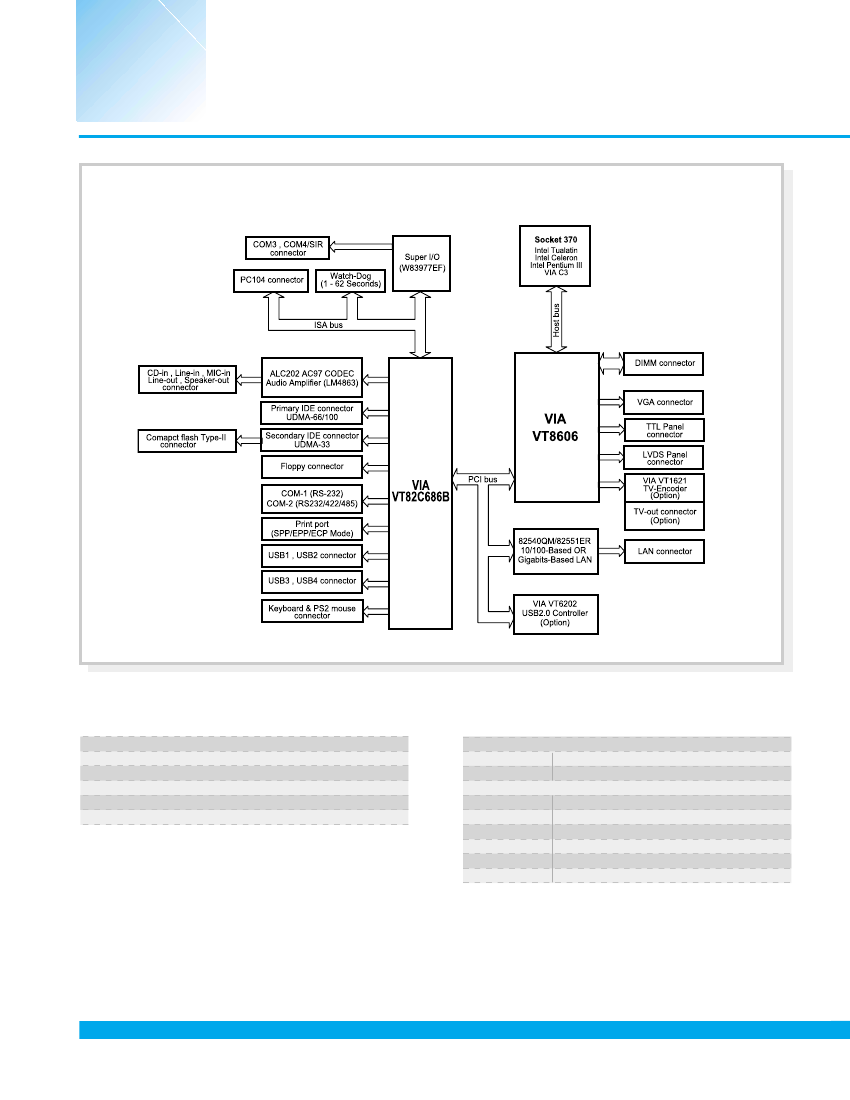

System

CPU

System Memory

2nd Cache Memory

System Chipset

BIOS

SSD

Watchdog Timer

Expansion Interface

Battery

Socket 370 for Intel

Celeron™/Pentium

III/512K (Tualatin) up to 1.26GHz

SDRAM PC133 168pin DIMM x 1, Max. 512 MB

128KB/256KB/512KB on the processor

VIA PN133T (VT8606, VT82C686B), 133MHz FSB

AWARD 256 KB Flash BIOS

CompactFlash™ card Type I/II

1 - 62 sec, 62 level timer intervals, system reset or IRQ11

PC/104 and PCI slot

Lithium 3 V/196 mAH

Display

Chipset

Memory Size

Resolution

VIA Twister chip with Integrated S3 Savage4 2D/3D/

Video Accelerator

8/16/ 32 MB frame buffer using system memory

CRT Mode:1280 x 1024@16 bpp (60 Hz),

1024 x 768@16 bpp (85 Hz)

LCD/Simultaneous Mode: 1280 x1024@16bpp (60 Hz),

1024 x 768@16 bpp (60 Hz)

4X AGP VGA/LCD interface, Support for 9, 12, 18, 24,

36,48-bit

TFT and 16 or 24-bit DSTN panels up to SXGA resolution.

2-Channel ( 2 x 18-bit) LVDS interface

Supports both NTSC/PAL, S-video and Composite Video

LCD Interface

I/O

MIO

IrDA

Audio

USB

2 x EIDE (Ultra DMA100), 1 x FDD, 1 x K/B, 1 x Mouse,

1 x RS-232/422/485, 3 x RS-232, 1 x LPT

115 Kbps, IrDA 1.1 compliant

VIA 82C686 support AC’97 2.0 compliant, Mic in, Line in,

CD Audio in, Line out, Speaker out

4 USB 1.1 host port (PCM-9577F)

4 USB 2.0 host ports, support embedded USB Type I Flash memory, shared

with USB port 3 and port4(PCM-9577FG)

LVDS

TV-out (option)

Mechanical and Environmental

Dimensions (L x W)

Power supply Voltage

203 X 146mm (8" x 5.75")

+5V

±5%,

+12V

±5%

Max. : 10A @ +5V, 1.02A @ +12V

(within 5ms after power on)

Typical: 5.6A @ +5V, 0.17A @ +12V

(with 256 MB DRAM, Intel

)

0 ~ 60° C (32~140° F)

0% ~ 90% Relative Humidity, non condensing

0.85 kg (weight of total package)

Ethernet

Chipset

Interface

Intel

82551ER [Intel

82551QM optional] (PCM-9577F)

Intel

82540EM (PCM-9577FG)

IEEE 802.3u 100BASE-T Fast Ethernet compatible (PCM-9577F)

EEE 802.3z/ab 1000 BASE-T Gigabit Ethernet compatible (PCM-9577FG)

Built-in boot ROM in Flash BIOS

Operating temperature

Operating Humidity

Weight
