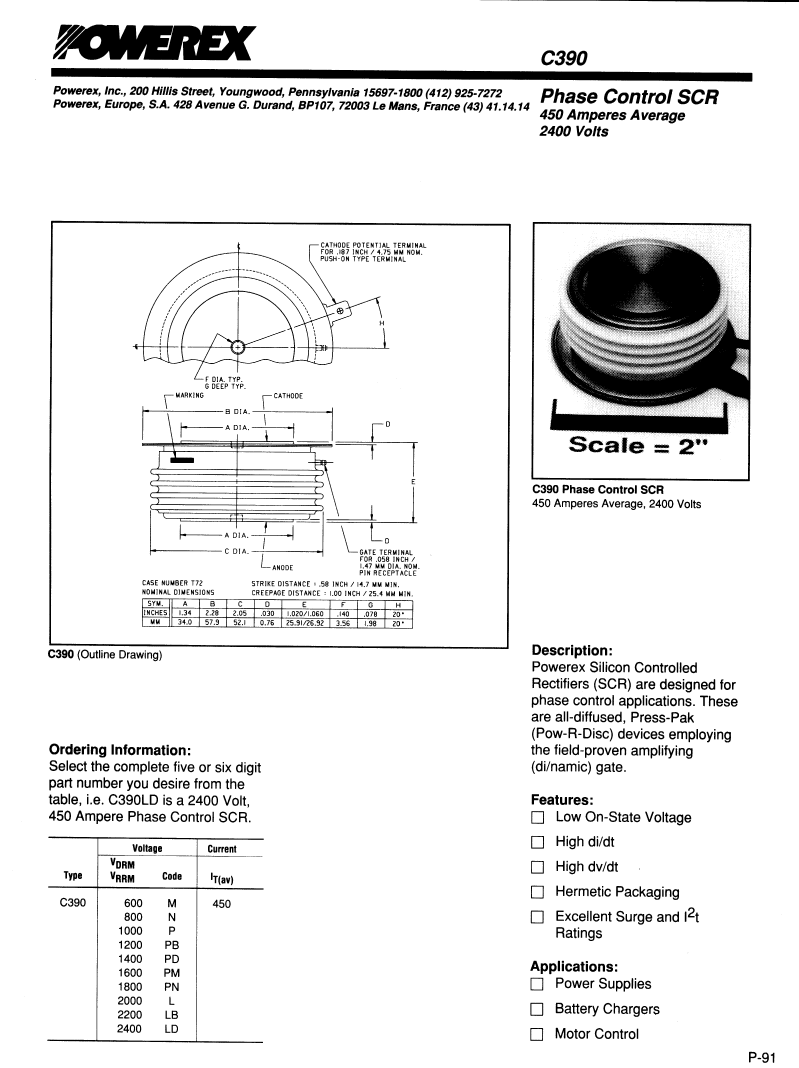

C390PB Overview

Phase Control SCR 450 Amperes Average 500-1300 Volts

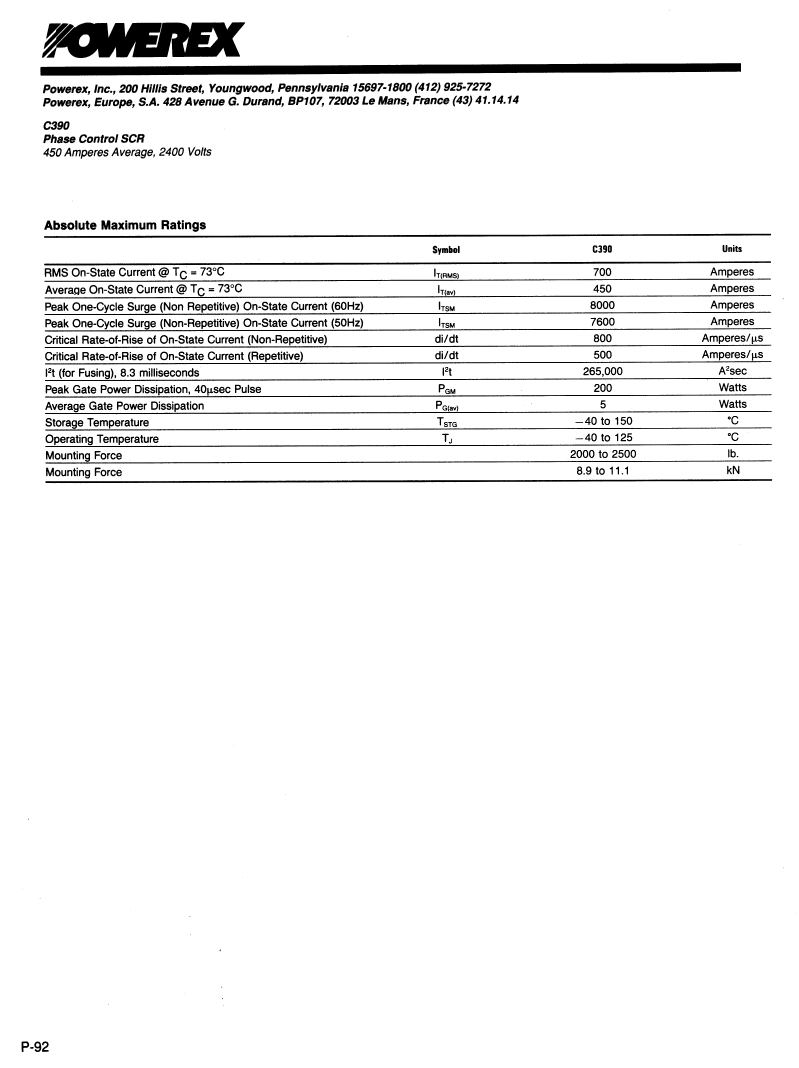

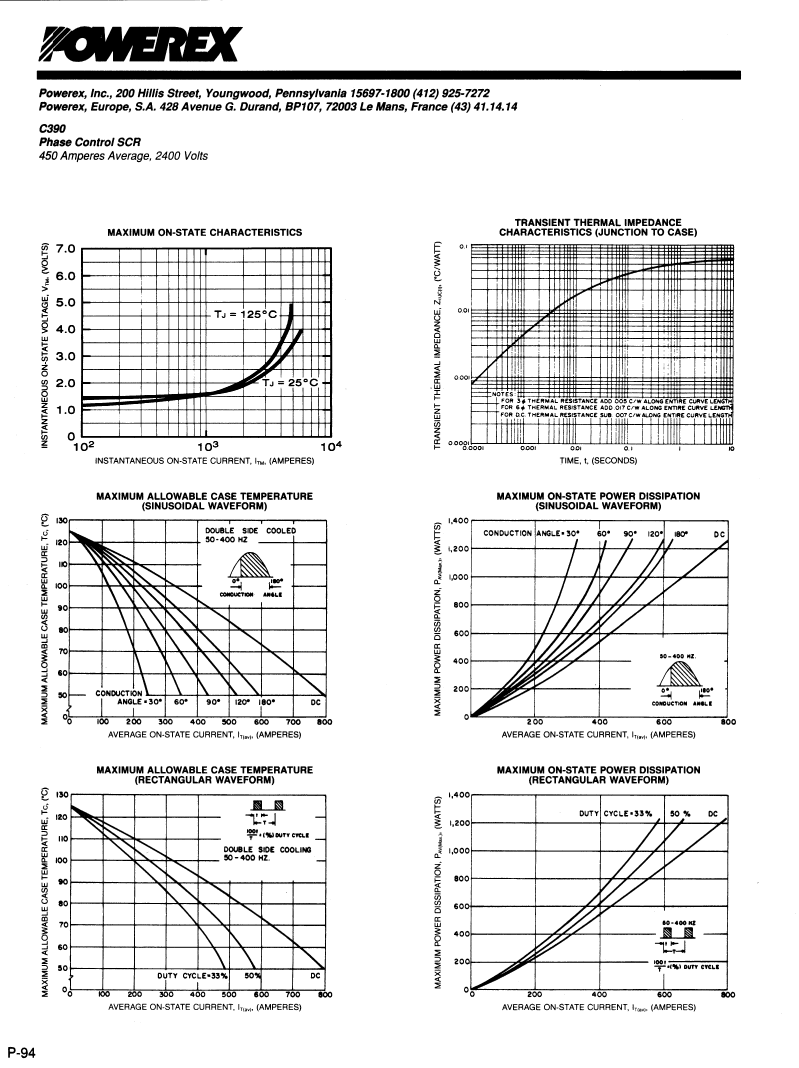

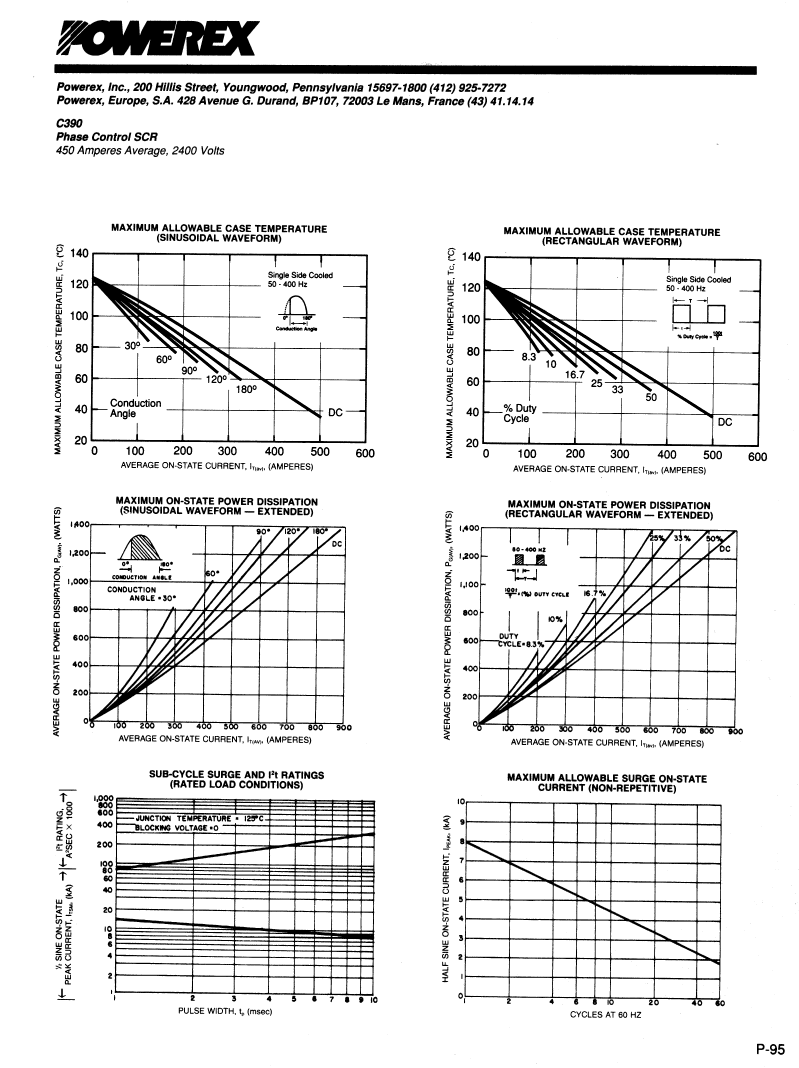

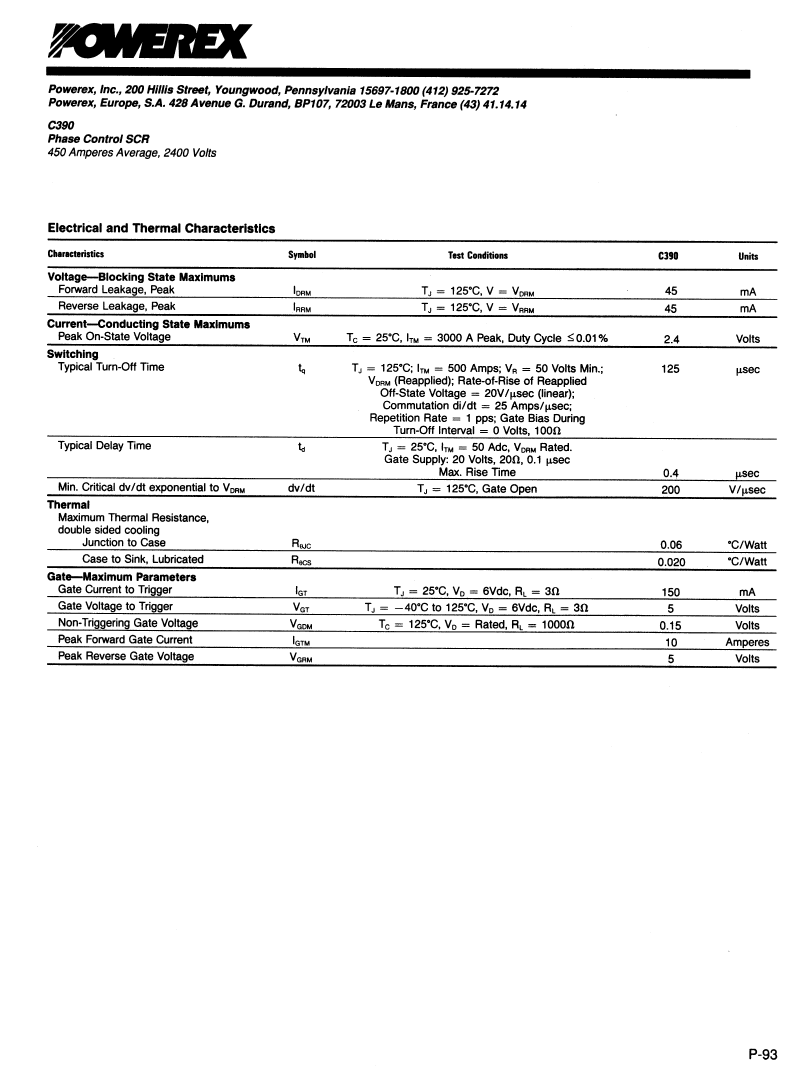

Parameter Name	Attribute value
Maker	POWEREX
Parts packaging code	SC-3
package instruction	DISK BUTTON, O-CXDB-X3
Contacts	3
Reach Compliance Code	unknown
Nominal circuit commutation break time	125 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	5 V
JESD-30 code	O-CXDB-X3
Maximum leakage current	45 mA
On-state non-repetitive peak current	8000 A
Number of components	1
Number of terminals	3
Maximum on-state current	450000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	700 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	YES
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Trigger device type	SCR
Base Number Matches	1
