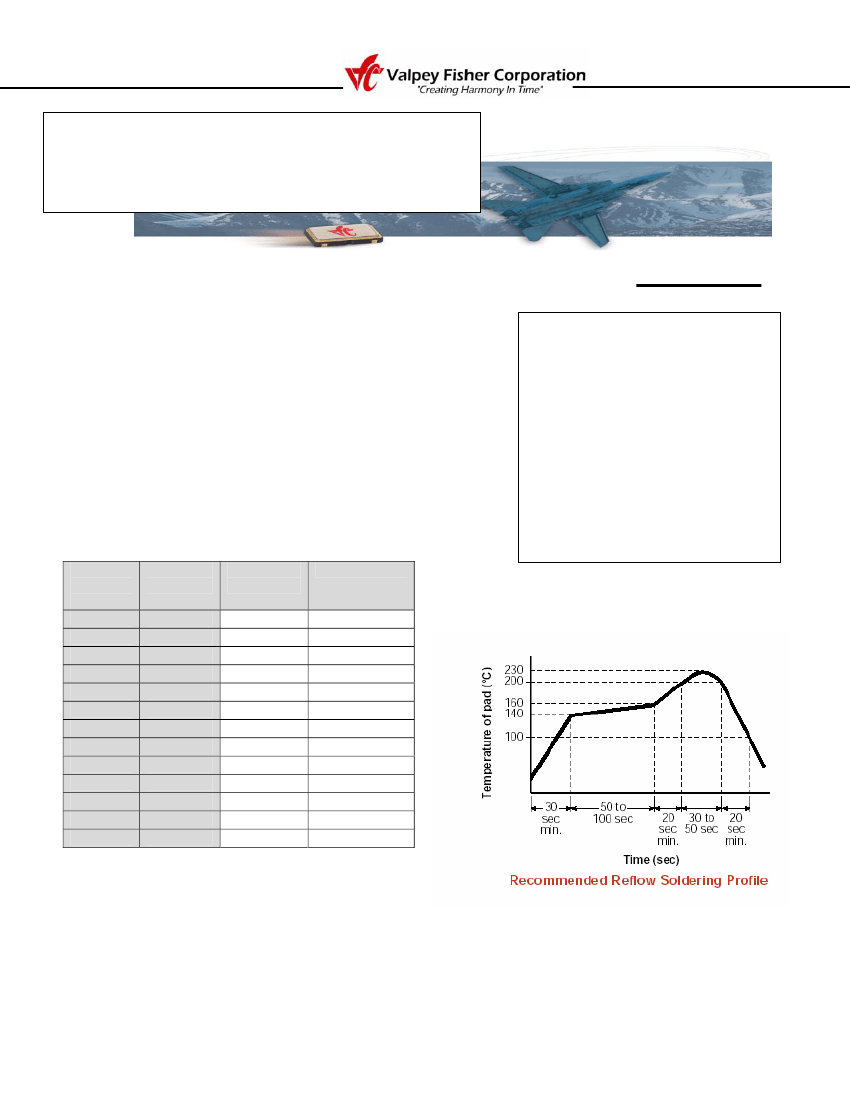

T1250, T1254, T1256, T1258, T4001 thru T4009,
T3250, T3254, T3256, T3258, T4301 thru T4309
5X7 mm Surface Mount
Extended Temperature/COTS 20KHz to 100MHz
Extended Temperature COTS Product Specification
Features
•
•
•
•
•
Tiny 5X7 SMD form factor
Hermetically sealed for rugged environmental conditions
Extremely wide operating temperature range accommodates harsh
environments
All crystals are processed in-house with tight angle control to assure
best frequency-temperature characteristics
All units are vacuum baked before sealing at 175°C for 16 hours to
eliminate moisture traces and pre-age units for superior stability
XO
Description
Owing to their small size, light weight, and
rugged characteristics, these 5V HCMOS
extended temperature/COTS oscillators
fulfill tasks not previously feasible. They
are used in applications that take advantage
of their extended temperature range and
high performance. Twenty four different
models (with and without tristate) cover
-55°C to +200°C operation and provide
frequency selection from 20KHz to
100MHz. They combine excellent long-
term reliability, loading characteristics, and
superior startup performance.
Typical Applications
Any electronic circuit requiring 5V HCMOS clocking that is exposed to
very high or very low temperatures such as oil drilling or weather
observation equipment
Non-
Tristate
Model
T1250
T1254
T1256
T1258
T4001
T4002
T4003
T4004
T4005
T4006
T4007
T4008
T4009
Tristate
Model
T3250
T3254
T3256
T3258
T4301
T4302
T4303
T4304
T4305
T4306
T4307
T4308
T4309
Frequency
Stability
+/-75ppm
+/-75ppm
+/-75ppm
+/-100ppm
+/-500ppm
+/-500ppm
+/-250ppm
+/-250ppm
+/-250ppm
+/-250ppm
+/-150ppm
+/-150ppm
+/-100ppm
Temperature
-40 to + 85°C
0 to + 175°C
-55 to + 85°C
-40 to + 85°C
-55 to + 200°C
0 to 200°C
-55 to + 200°C
0 to 200°C
-55 to 175°C
0 to 175°C
-55 to 175°C
0 to 175°C
-55 to 125°C
Valpey Fisher Corporation
•
75 South Street, Hopkinton, MA 01748
•
Tel. 1-800-XTALREP, 508-435-6831
•
FAX 508 4355289
1
T1250, T1254, T1256, T1258, T4001 thru T4009,
T3250, T3254, T3256, T3258, T4301 thru T4309
5X7 mm Surface Mount
Extended Temperature/COTS 20KHz to 100MHz

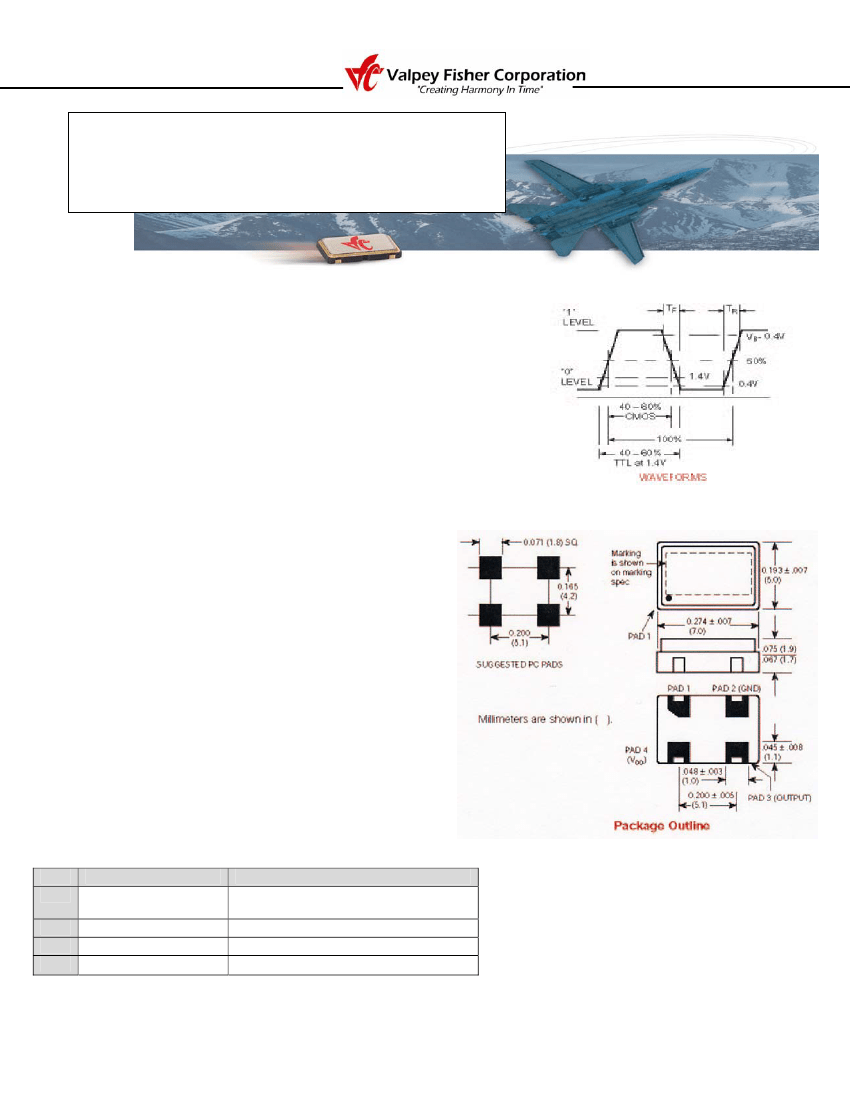

ELECTRICAL SPECIFICATIONS
Frequency
Frequency Stability
20 KHz to 100MHz
Includes calibration at 25°C, operating
temperature, change of input voltage, change of
load, shock and vibration.
MIN
4.5
TYP
5.0
MAX
5.5
40
UNITS
volts
mA
Input Voltage, V
DD
Input Current
Output
All units, full range
Loads
3 TLL loads, or 10LSTTL loads, or 15 pf CMOS
8
8
10
ns
ns
ns
percent
percent
ppm
ppm/yr
Rise and Fall Time
TTL and LSTTL from 0.4 to 2.4V
CMOS, 15pf, from 0.4 to (V
DD
-0.4) V
CMOS, 30pf, from 0.4 to (V
DD
-0.4) V
Symmetry
TTL and LSTTL @ 1.4V
CMOS @50% V
DD
Aging
First year
After first year
40/60
40/60
3
1
ENVIRONMENTAL SPECIFICATIONS
Shock-1000
Gs, 0.35 ms, ½ sine wave, 3 shocks in each plane
Vibration-10-2000
Hz of .06” d.a. or 20Gs, whichever is less
Humidity-Resistant
to 85° R.H. at 85°C
Connections
Pad
1.
2.
3.
4.
Non-Tristate Models
Not Used
Ground and Case
Output
+5.0V, V
DD
Tristate Models
Floating or “1”: Oscillator runs Ground or
“0”: Disable or Tristate
Ground and Case
Output
+5.0V, V
DD
Valpey Fisher Corporation
•
75 South Street, Hopkinton, MA 01748
•
Tel. 1-800-XTALREP, 508-435-6831
•
FAX 508 4355289
2
T1250, T1254, T1256, T1258, T4001 thru T4009,
T3250, T3254, T3256, T3258, T4301 thru T4309
5X7 mm Surface Mount
Extended Temperature/COTS 20KHz to 100MHz
MECHANICAL SPECIFICATIONS
Gross Leak-Each
unit checked in 125°C fluorocarbon
Fine Leak-Mass
spectrometer leak rate less than 2X10-8 atm,
cc/sec of helium
Case-Hermetically
sealed ceramic package
Pads-60
microinch of gold over nickel
Marking-Epoxy
ink or laser inscribed
Resistance to Solvents-MIL
STD 202, Method 215

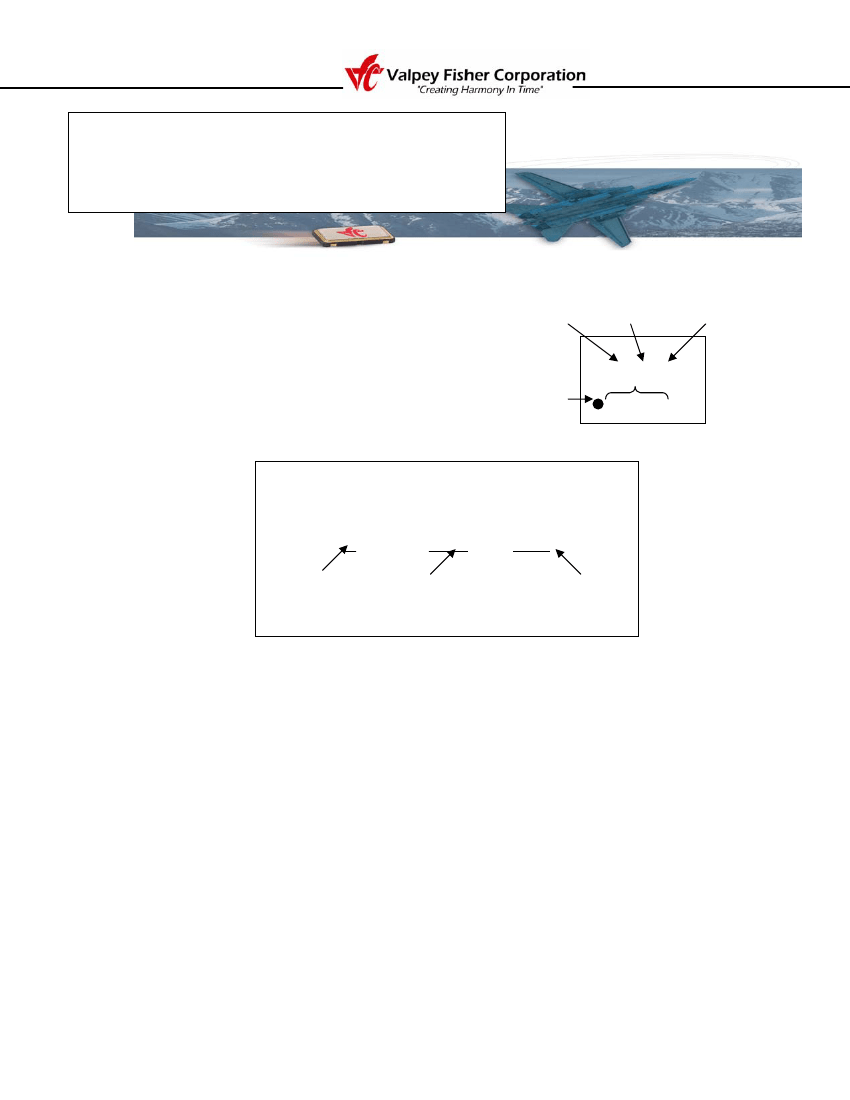

MARKING SPECIFICATION
The format for the marking is:
Valpey-Fisher Model Code
T Oscillator
Date Code
MTXXYY
100.00
Pin 1
Frequency
HOW TO ORDER
For Part Number, put package type before model number, and
add frequency in MHz, for example:
T
T is SMD
T package
4309 -
4309
is model type
40M
40M Frequency
in MHz
Rev. 1.0 4/04
Valpey Fisher Corporation
•
75 South Street, Hopkinton, MA 01748
•
Tel. 1-800-XTALREP, 508-435-6831
•
FAX 508 4355289
3
